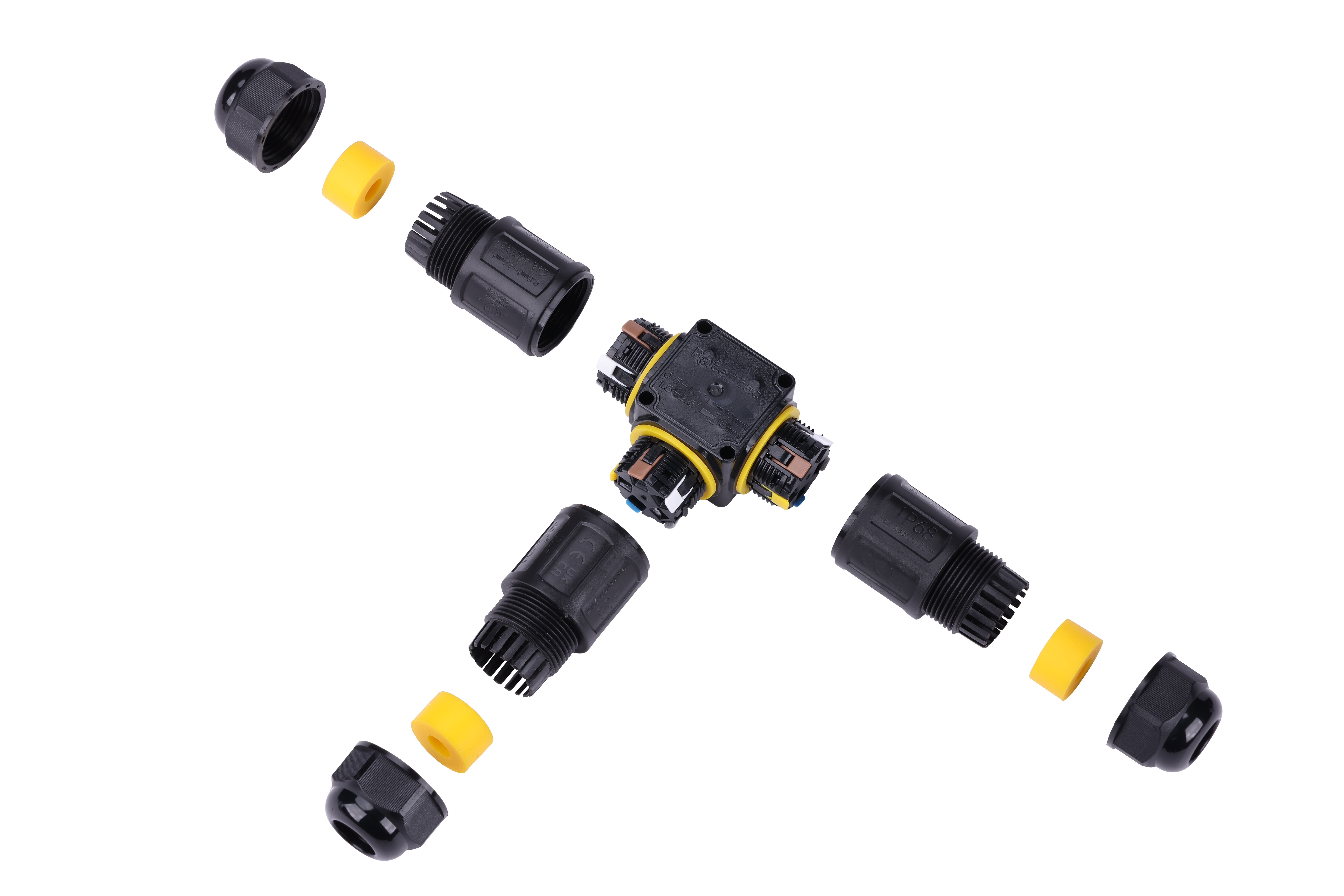

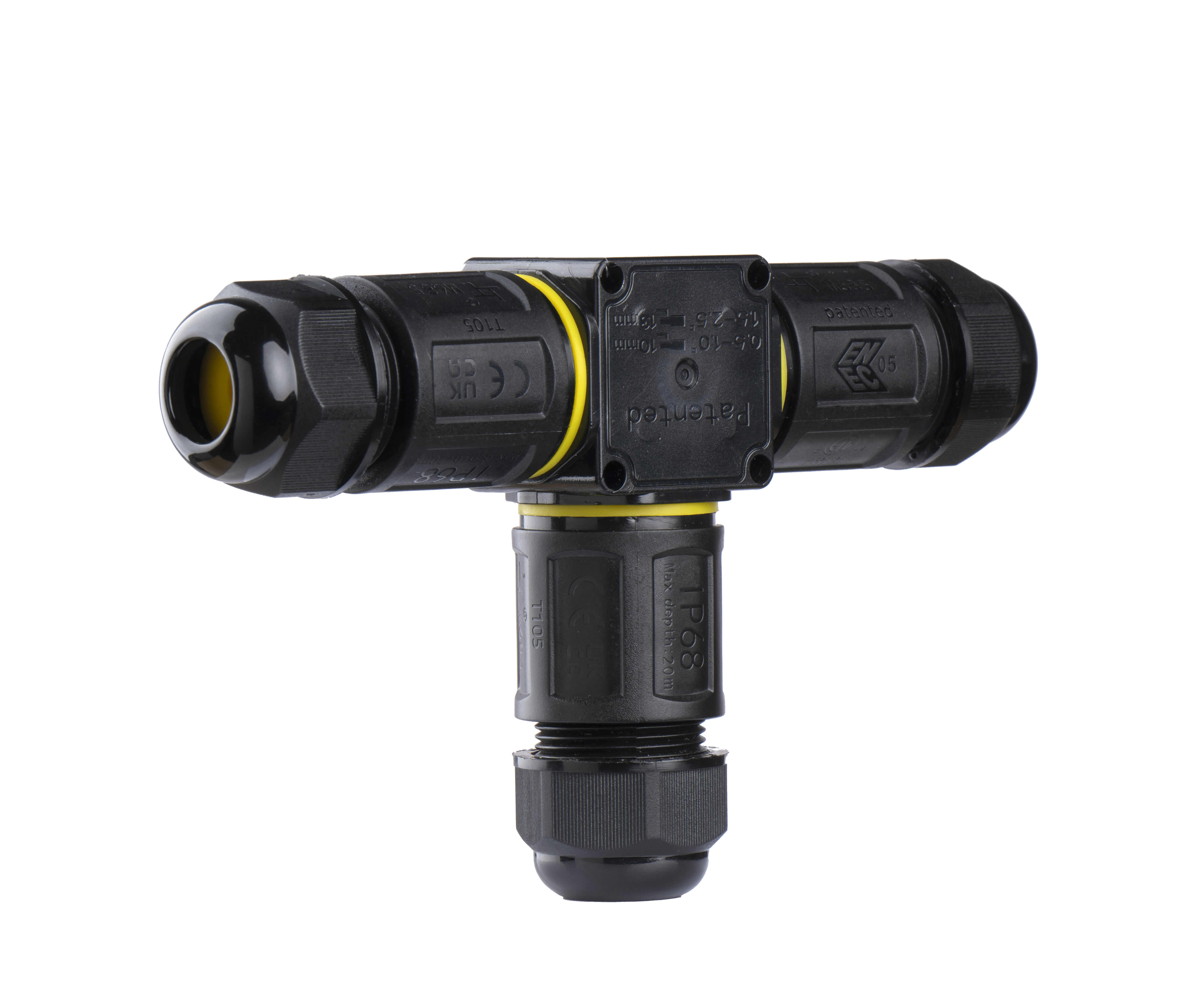

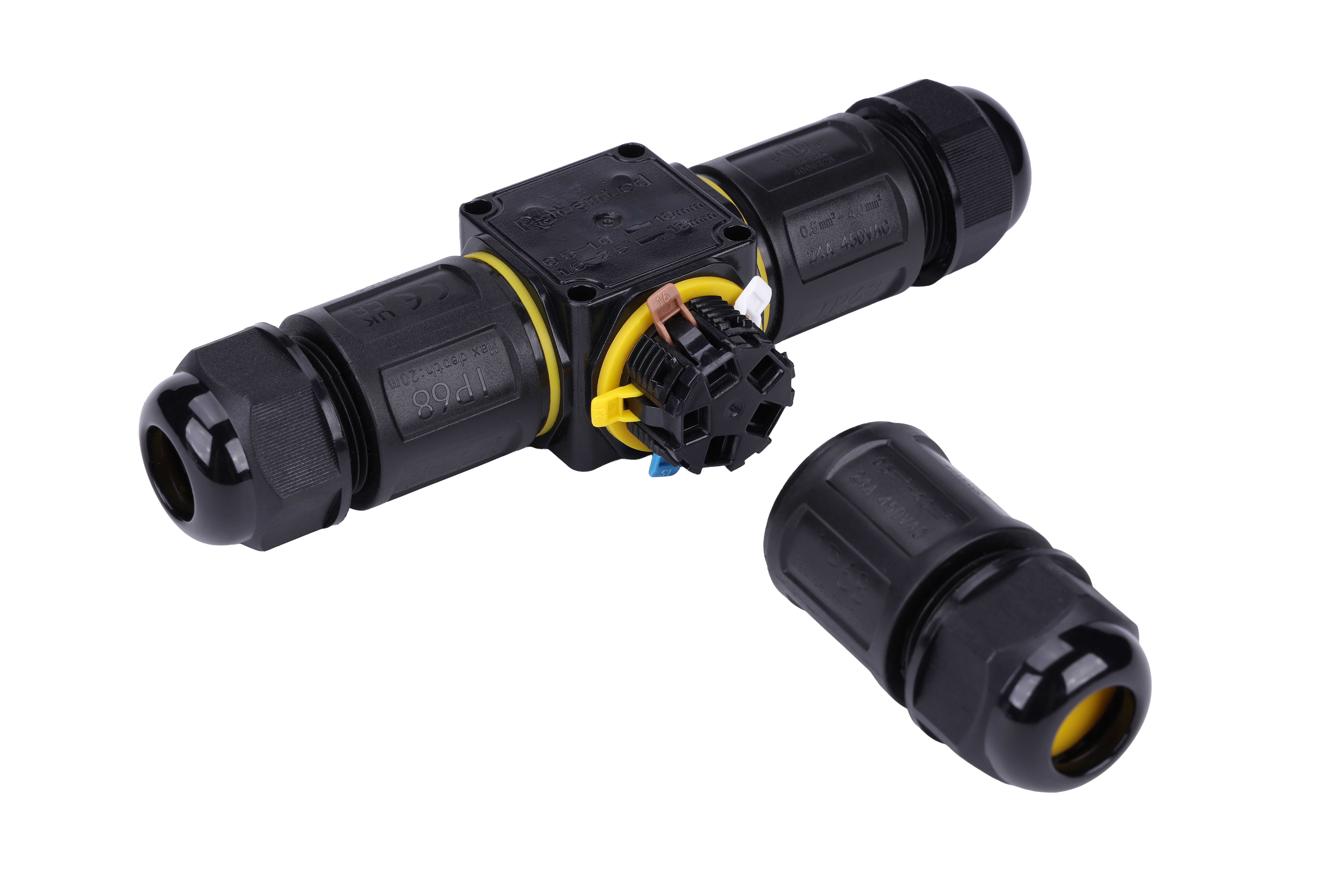

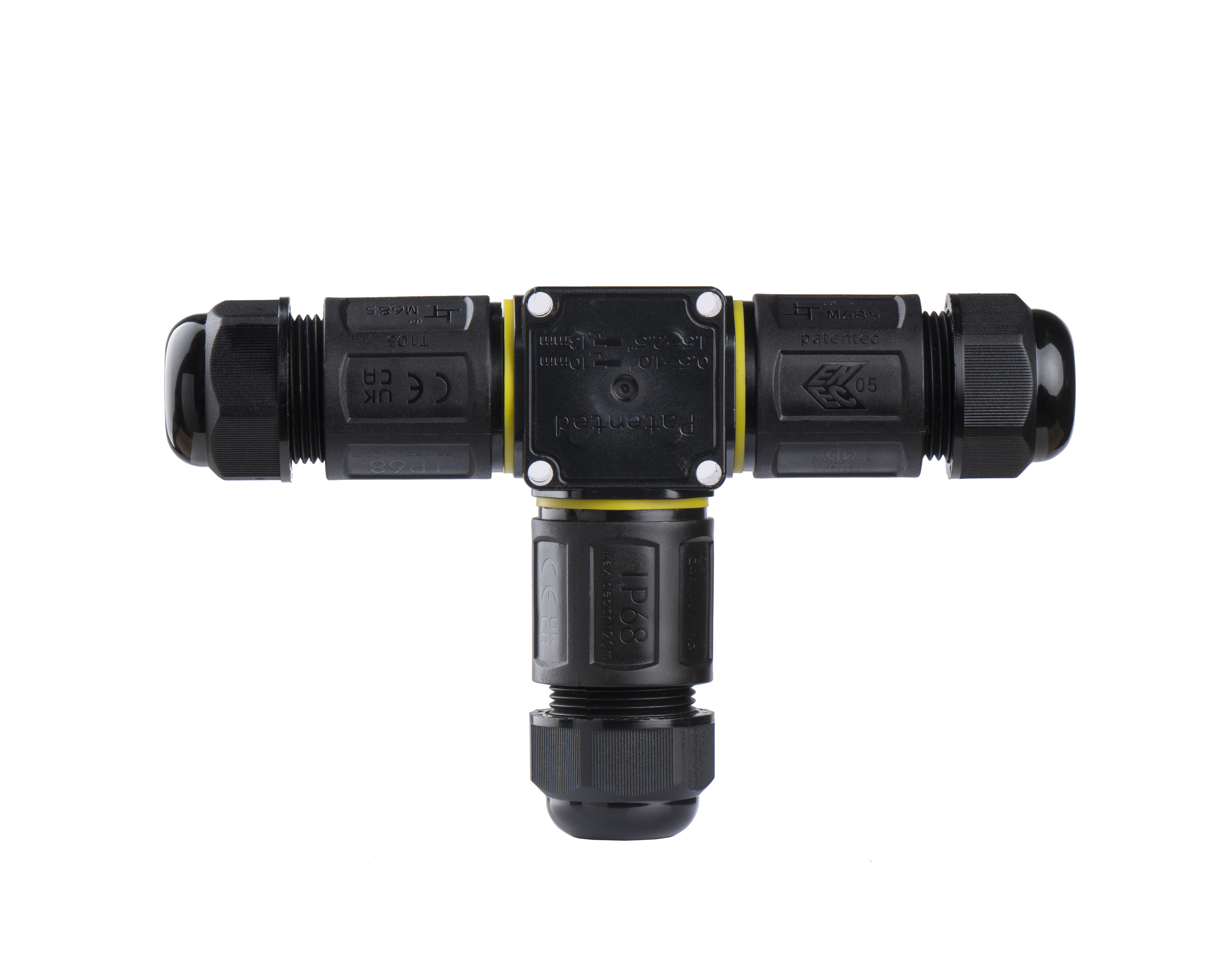

IP68 Waterproof Copper Quick Connector 3 Way No Screw Wire Connector For 2-5 Core Cable Solar Power System 32A

Product Parameters

Connection Type	Cross Section and Ampere / Voltage	Model	Pin Version	Suitable Cable Diameter	Dimension
Screw-less type connectors all with ETL, ENEC, UKCA, NSW, SAA, CE, CB, RoHS certificates	0.5 ~ 2.5mm² 24A 450VAC	M684-D	2-3PIN	4-8mm or 6-11mm	94.2*24.9mm
		M684-L	2-3PIN	4-8mm or 6-11mm	818127mm
		M684-T	2-3PIN	4-8mm or 6-11mm	1298727mm
		M684-Y	2-5PIN	4-8mm or 6-11mm	1296626mm
		M684-H	2-3PIN	4-8mm or 6-11mm	1296626mm
		M684-F	2-3PIN	4-8mm or 6-11mm	16012926mm
		M684-S	2-3PIN	4-8mm or 6-11mm	16012926mm
		M684-X	2-3PIN	4-8mm or 6-11mm	12912927mm
		M684-E (Male Female)	2-3PIN	4-8mm or 6-11mm	110.3*25mm
	0.5 ~ 4.0mm² 32A 450VAC	M685-B	2-5PIN	4-8mm or 8-12mm or 10-14mm	117.2*31mm
		M685-TE	2-5PIN	4-8mm or 8-12mm or 10-14mm	1499831mm
		M685-XE	2-5PIN	4-8mm or 8-12mm or 10-14mm	14914931mm
		M685-E (Male Female)	2-5PIN	4-8mm or 8-12mm or 10-14mm	131.8*31.5mm

Technical Specifications

Sealed Protection

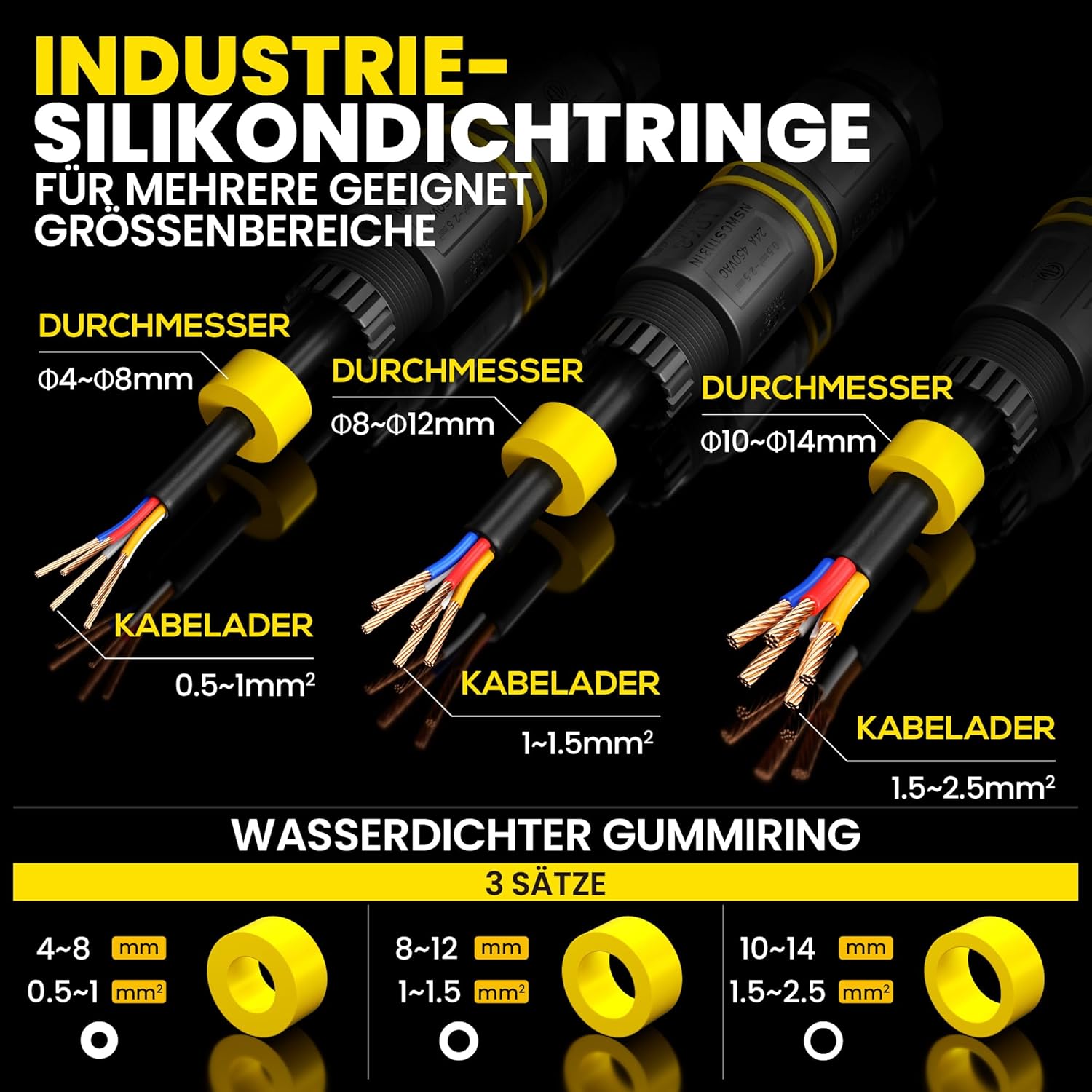

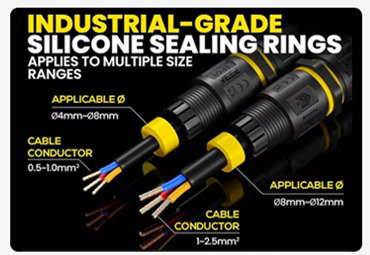

Industrial-grade silicone sealing rings, multiple sizes to support different cable ranges.

Electrical Safety

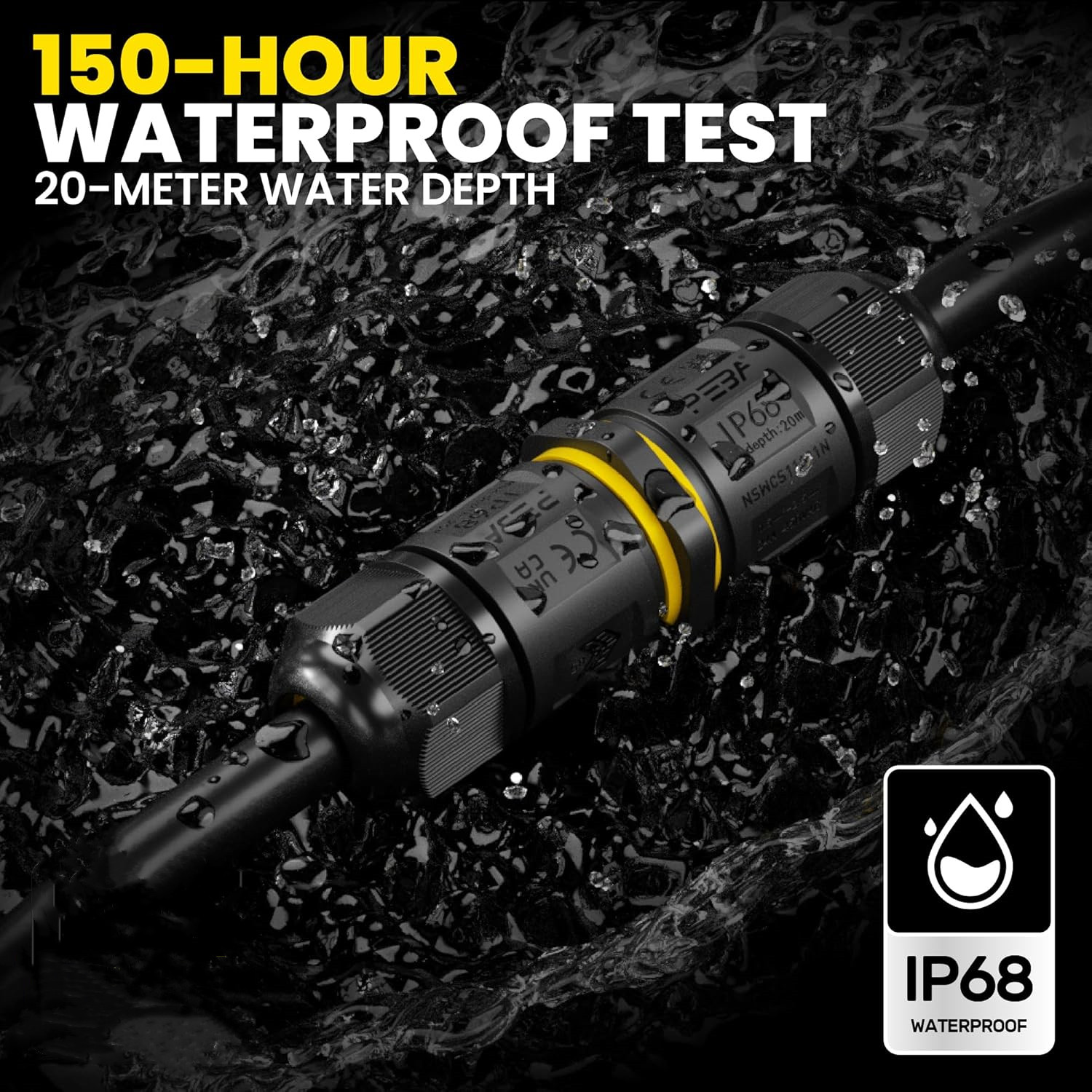

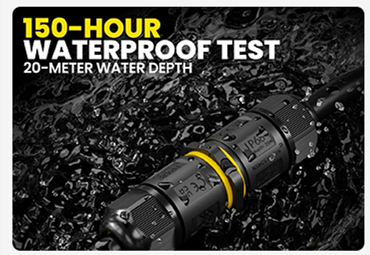

150 hours waterproof test to ensure the tightness function and durability.

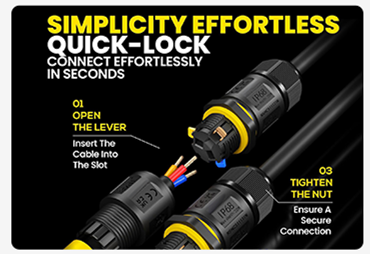

Tool-Free Installation

Connect effortlessly in seconds, faster cabling solutions for all your equipment.

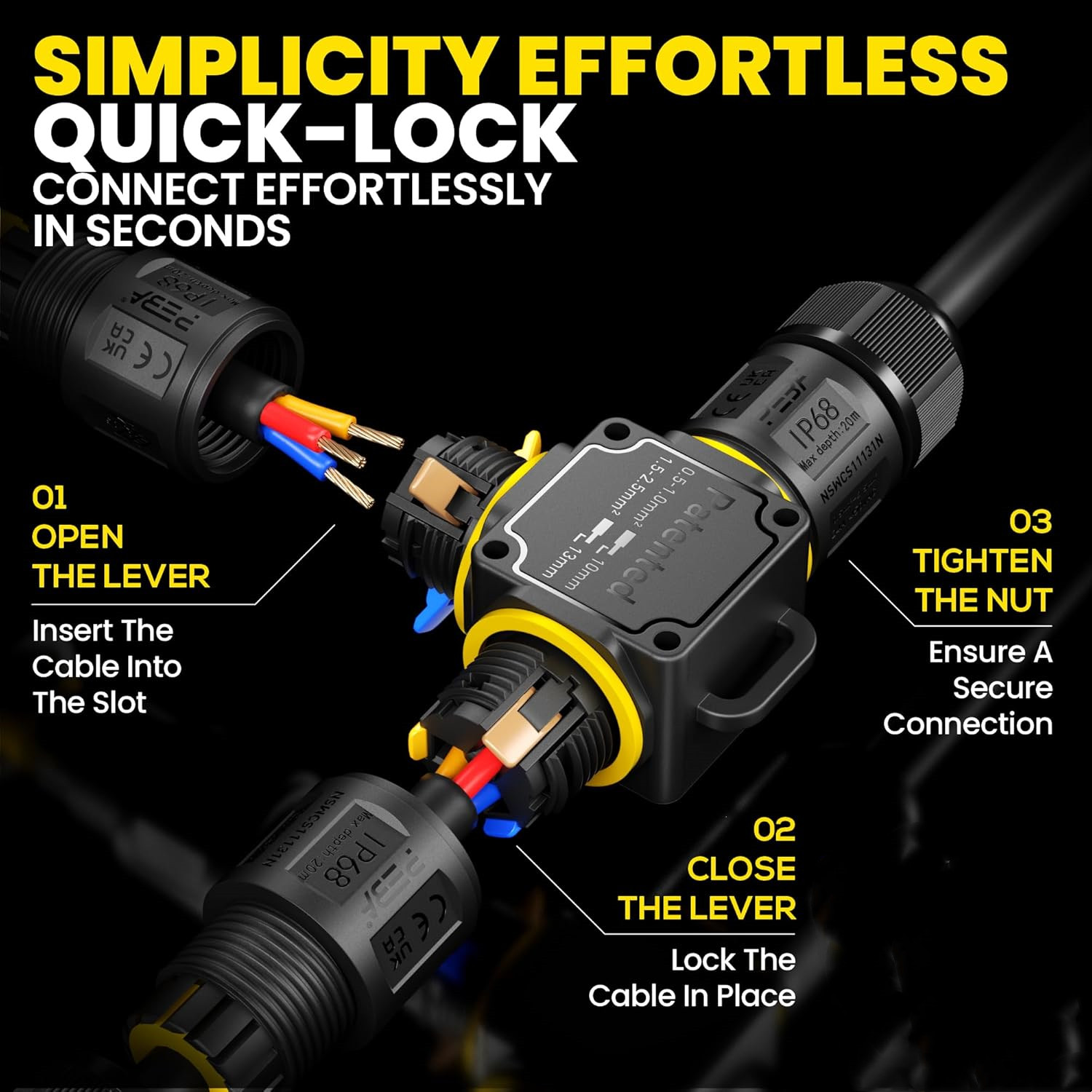

Installation Instructions

Application

Residential

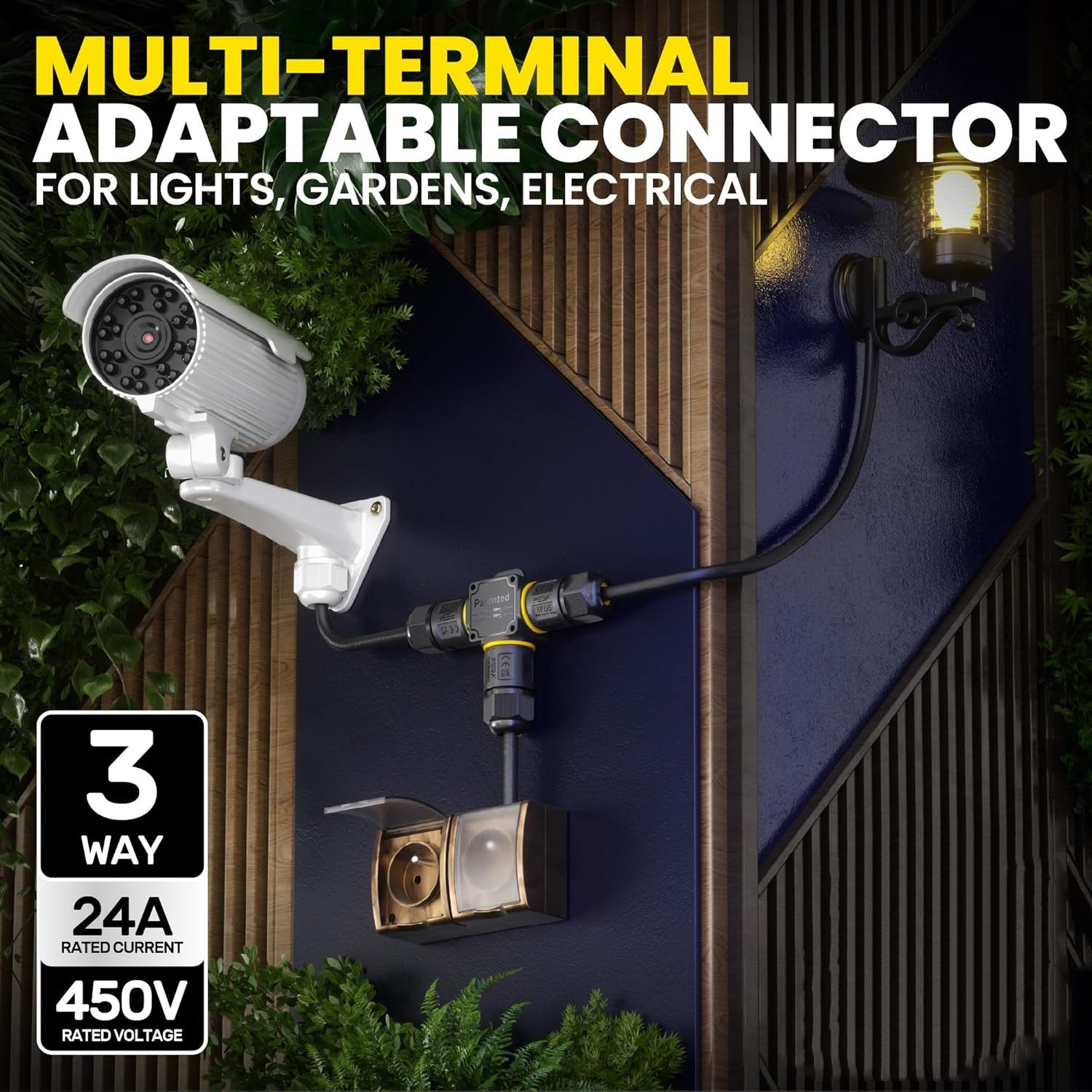

Ideal for household electrical setups such as backyard distribution boxes, weatherproof enclosures for surveillance cameras, and garden lighting solutions.

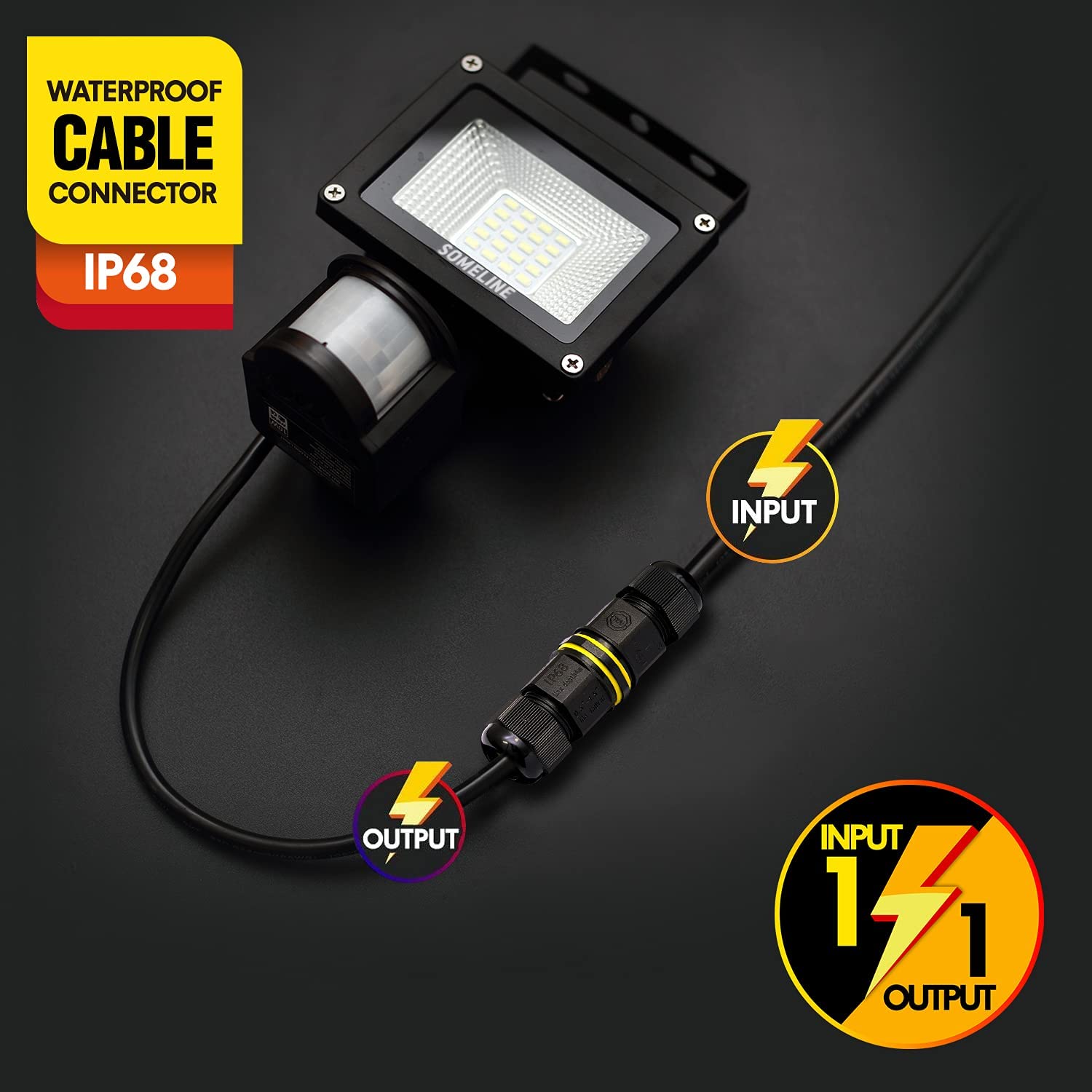

Industrial

Designed for outdoor wiring applications including streetlights, stadium lighting systems, and solar photovoltaic panel installations.

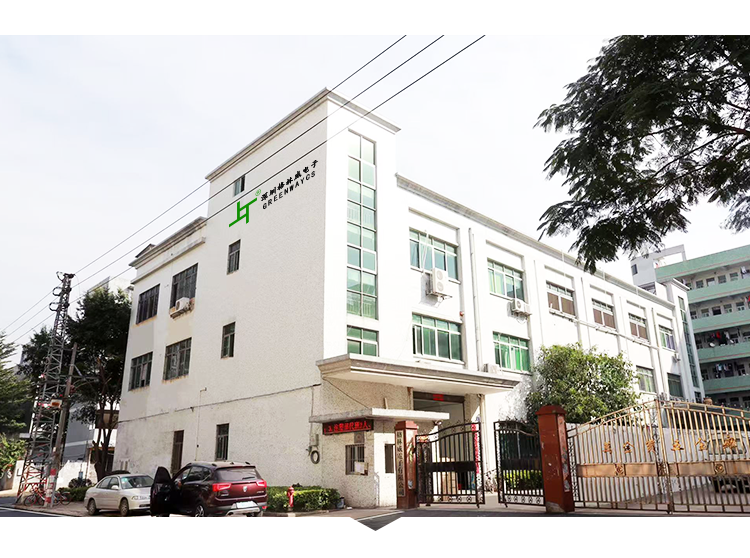

Company Profile

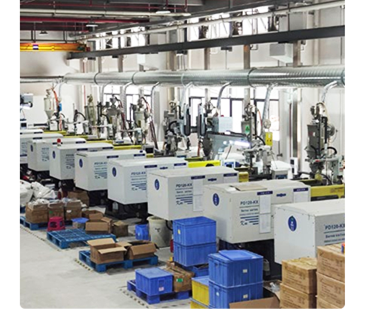

Production Capacity

Equipped with fully automated injection molding machines and assembly lines, delivering a monthly output of 500,000 units. Custom OEM/ODM solutions are supported to meet diverse client specifications.

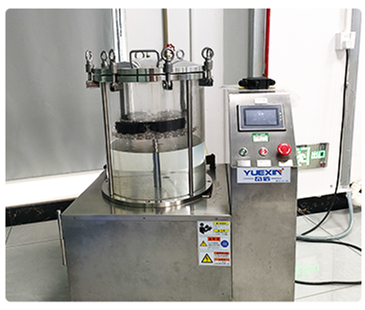

Quality Assurance

Waterproof testing (20m depth/72h), high-voltage resistance (2750V), and flame-retardant certification (V0/2 standards). All processes adhere to industrial safety and durability benchmarks.

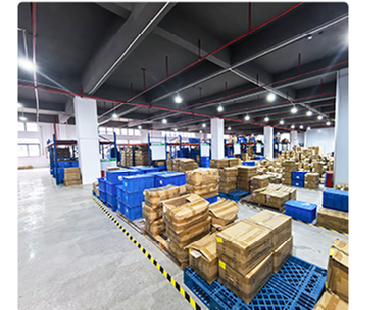

Warehouse Storage

4000m² warehouse to keep enough materials in stock, ample warehouse size for efficient and speedy shipments, your orders delivered promptly.

Our Advantages

Technical specifications and product samples are guaranteed to be provided within 24 hours, ensuring rapid decision-making for clients.

Global 24x7 customer support delivers real-time tech and logistics assistance. Expedited orders ship in 7-10 days via automated production.

A comprehensive 3-year warranty is offered, covering non human-induced defects in materials or manufacturing.

Custom Packaging

Diverse retail-ready designs tailored for supermarkets, hardware stores, and bulk distribution.

OEM Branding Services

Professional private-label manufacturing with precision logo imprinting for brand identity enhancement.

Functional Expansion

Flexible integration of modular terminals and adaptable configurations to meet specialized requirements.

FAQ

1. How to Select IP Rating?

IP68 is suitable for outdoor scenarios (e.g. garden lights, buried lamps) with full dust resistance and protection against high-pressure water jets.

2. Professional Tools Required for Installation?

Screw-free series enable tool-free installation. For detailed guidelines or technical support, please contact customer support directly.

3. Customization Options Available?

Custom branding, packaging, dimensions (multiple sizes), terminal positions (2P-2P), and material selection (PAPC). Minimum order quantity is 500 units.

4. International Compliance Certifications?

All products comply with ETL, ENEC, UKCA, NSW, SAA, CB, CE and RoHS standards. Certification numbers and test reports are available upon request.

5. Logistics & Packaging Details?

Global shipping via express, air, or sea. Expedited delivery within 15 days to major regions. Comprehensive protective packaging with palletized bulk transport support.

6. After-Sales Service Policy?

Non-human damage: 30-day return/exchange policy with a 3-year warranty. Technical issues: 24-hour response via support channels, including installation videos and diagrams.

Product Detail

IP68 Waterproof Copper Quick Connector 3 Way No Screw Wire Connector For 2-5 Core Cable Solar Power System 32A

Product Description
