High Current IP67 Waterproof Y-Type Solar Connector 2 to 1 Branch Parallel MC4 Connector 30A 1000V DC for Photovoltaic Systems
High Current IP67 Waterproof Y-Type Solar Connector 2 to 1 Branch Parallel MC4 Connector 30A 1000V DC for Photovoltaic Systems
High Current IP67 Waterproof Y-Type Solar Connector 2 to 1 Branch Parallel MC4 Connector 30A 1000V DC for Photovoltaic Systems
High Current IP67 Waterproof Y-Type Solar Connector 2 to 1 Branch Parallel MC4 Connector 30A 1000V DC for Photovoltaic Systems
High Current IP67 Waterproof Y-Type Solar Connector 2 to 1 Branch Parallel MC4 Connector 30A 1000V DC for Photovoltaic Systems
1 / 5
High Current IP67 Waterproof Y-Type Solar Connector 2 to 1 Branch Parallel MC4 Connector 30A 1000V DC for Photovoltaic Systems
High Current IP67 Waterproof Y-Type Solar Connector 2 to 1 Branch Parallel MC4 Connector 30A 1000V DC for Photovoltaic Systems
High Current IP67 Waterproof Y-Type Solar Connector 2 to 1 Branch Parallel MC4 Connector 30A 1000V DC for Photovoltaic Systems
High Current IP67 Waterproof Y-Type Solar Connector 2 to 1 Branch Parallel MC4 Connector 30A 1000V DC for Photovoltaic Systems
High Current IP67 Waterproof Y-Type Solar Connector 2 to 1 Branch Parallel MC4 Connector 30A 1000V DC for Photovoltaic Systems

High Current IP67 Waterproof Y-Type Solar Connector 2 to 1 Branch Parallel MC4 Connector 30A 1000V DC for Photovoltaic Systems

Send Inquiry

Product Description

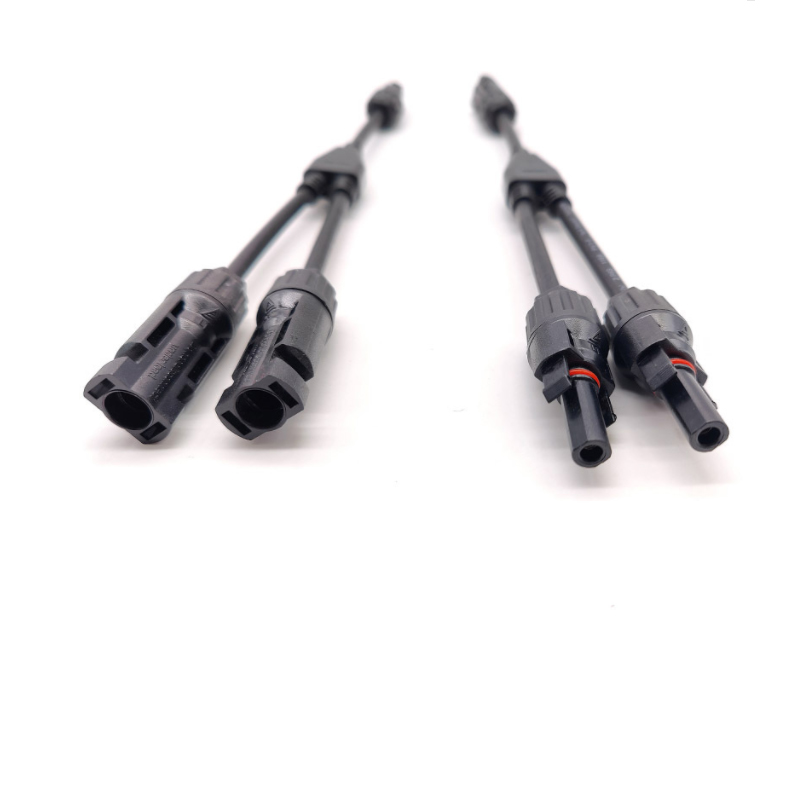

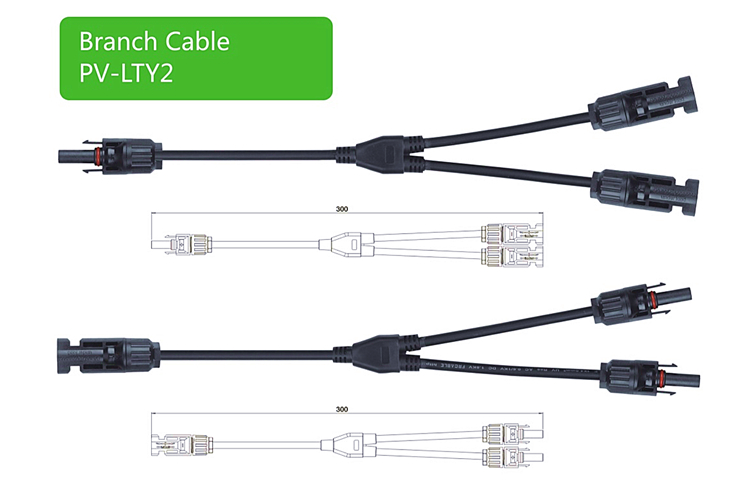

Y-Type Solar Connector Product View 1
Y-Type Solar Connector Product View 2

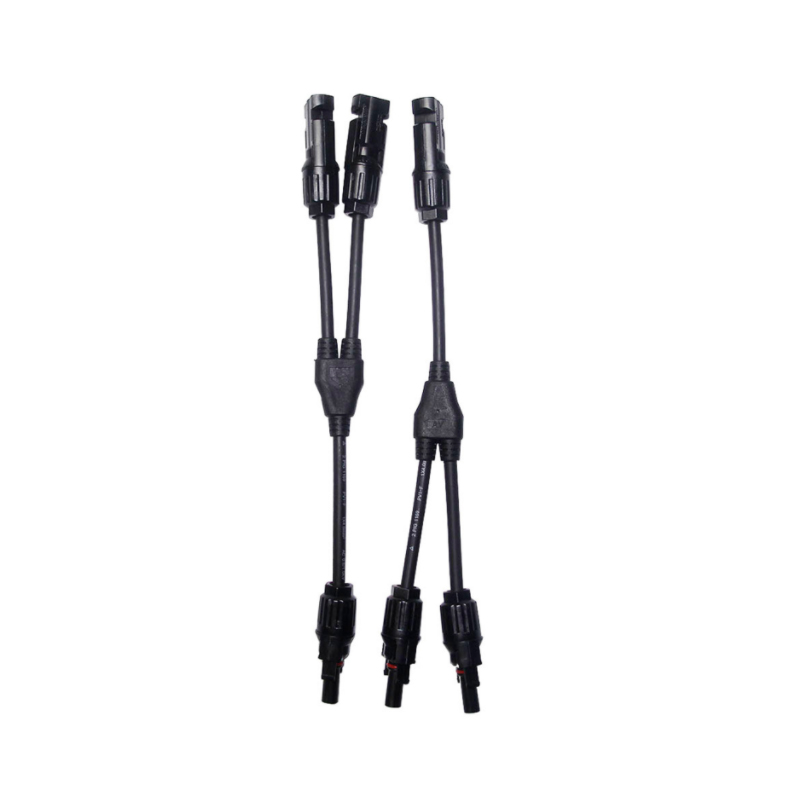

Y-Type Solar Connector Product View 3
Y-Type Solar Connector Product View 4
Y-Type Solar Connector Product View 5
Y-Type Solar Connector Product View 6

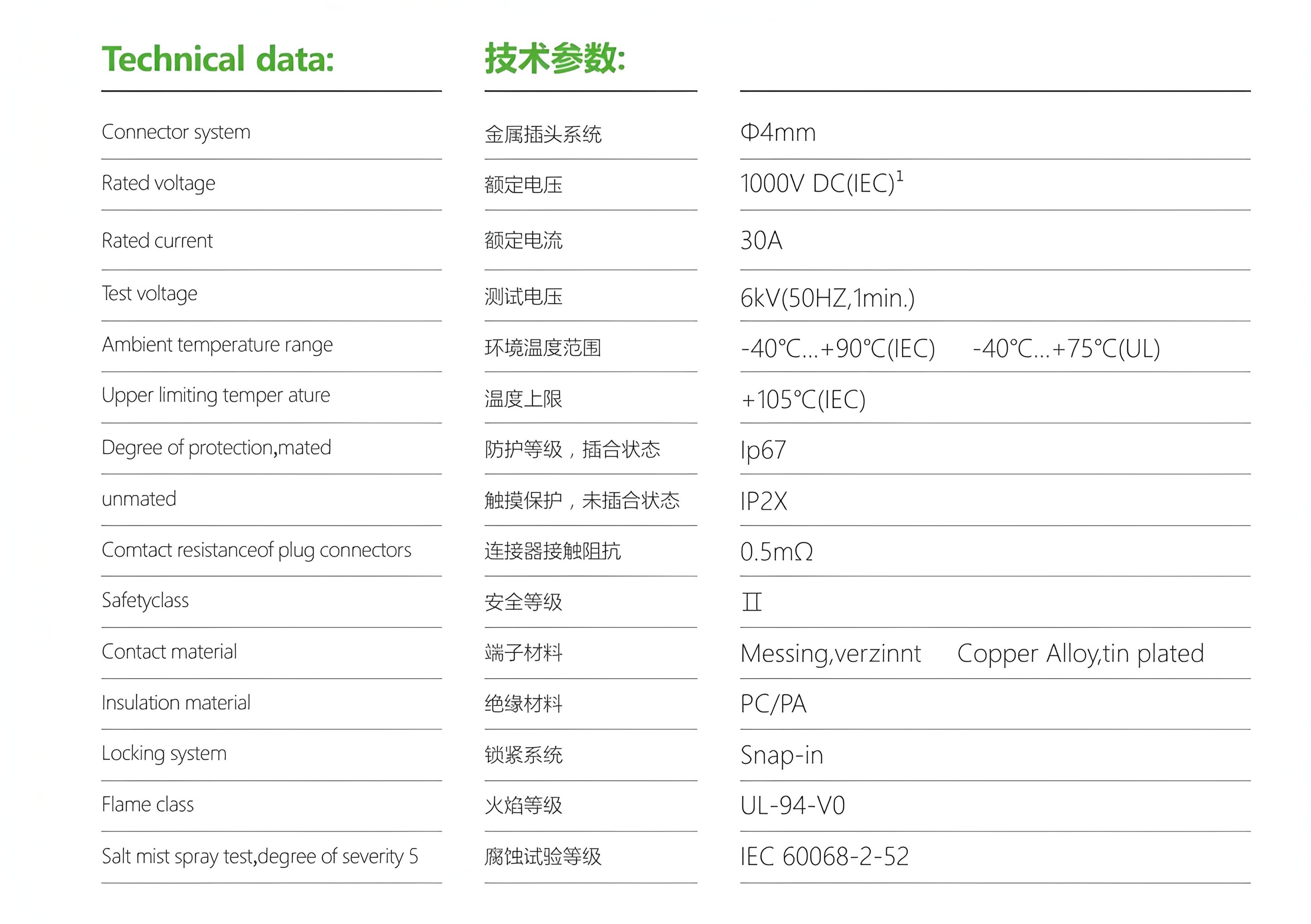

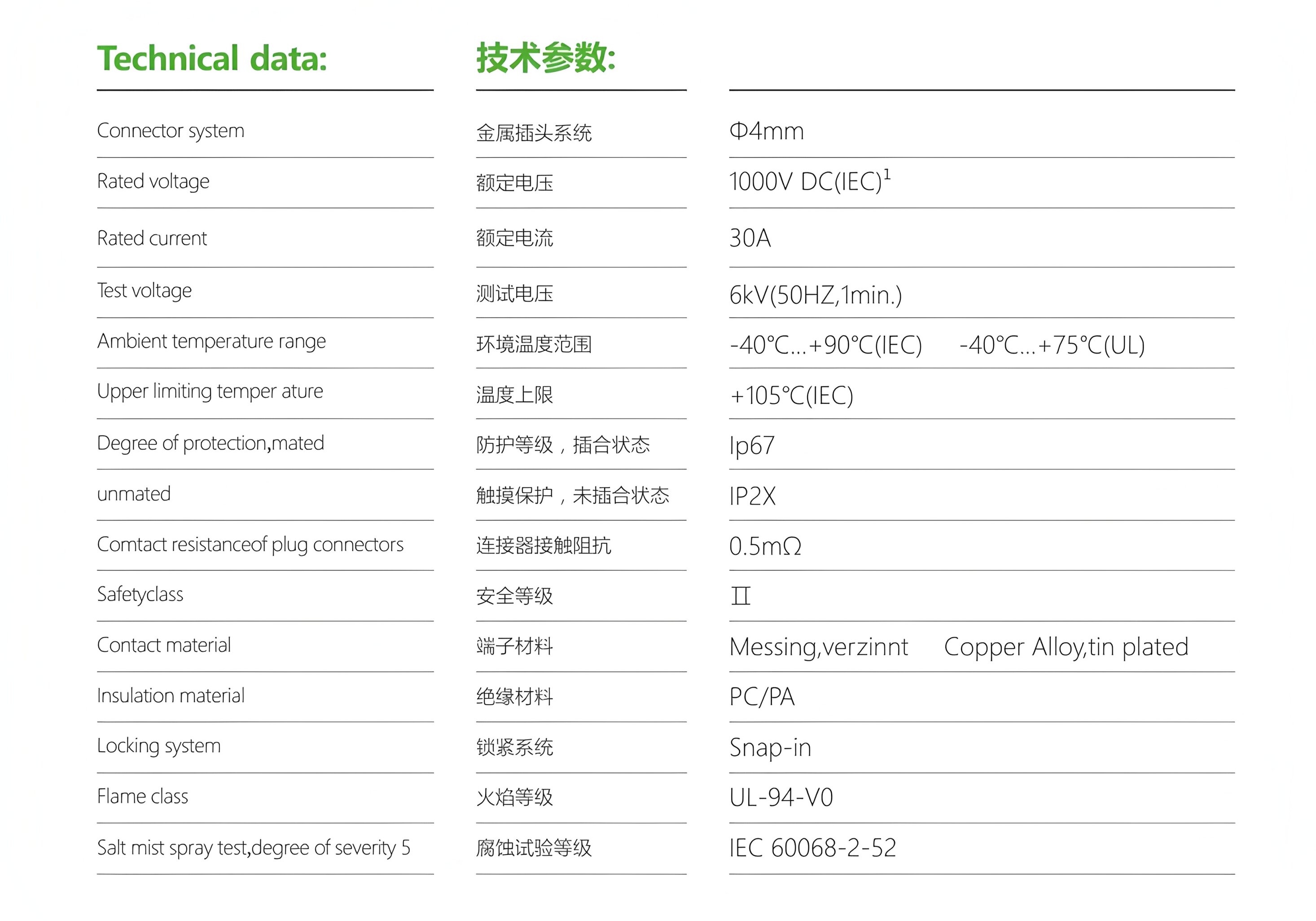

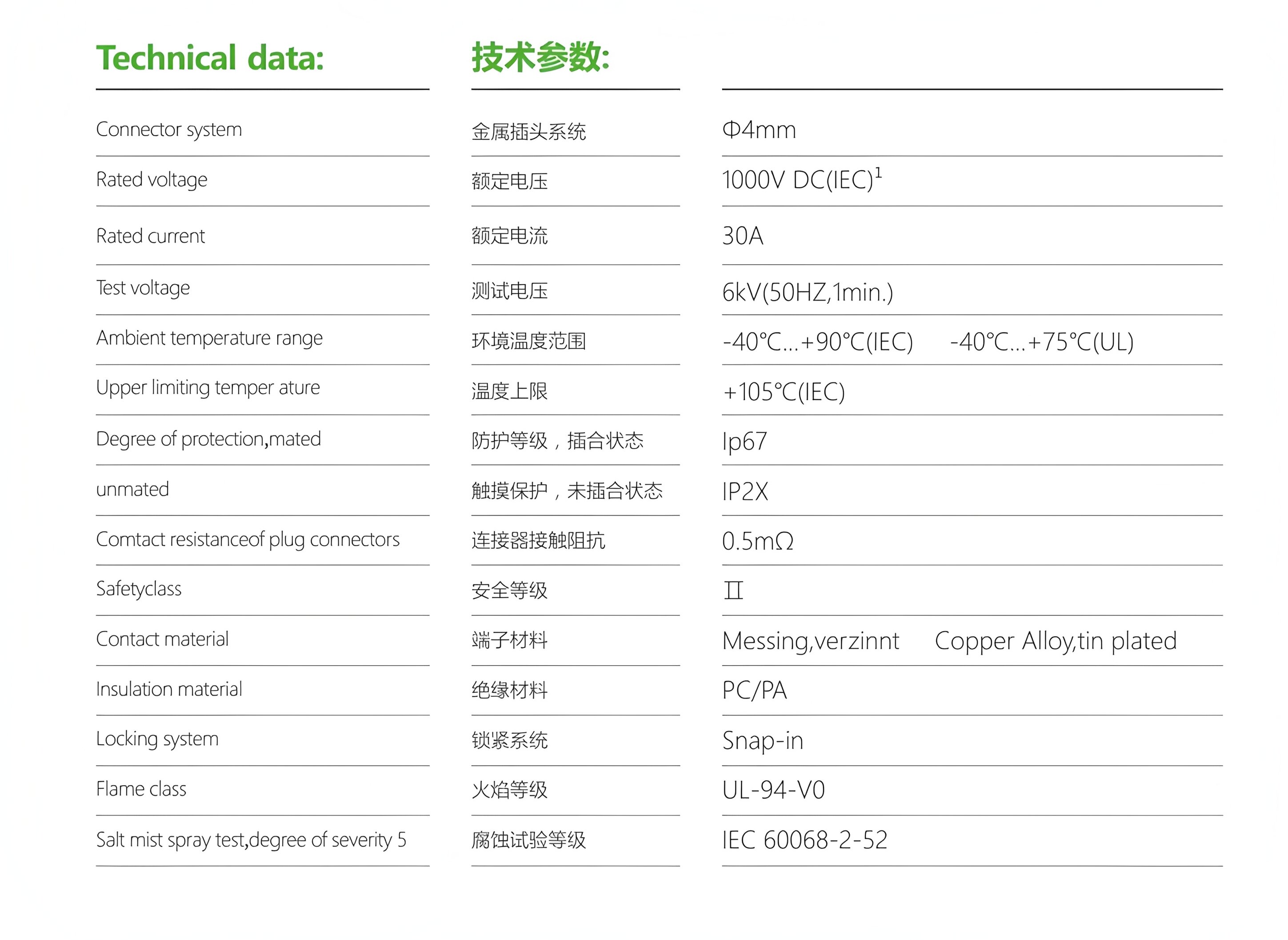

Technical Data

Insulation Material: PPO Contact Material: Copper, Tin plated
Rated Current: 17A (1.5mm²)
22A (2.5mm², 14AWG)
30A (4mm², 6mm², 12AWG, 10AWG)		 Insertion Force: Max. 50N
Rated Voltage: 1000V/1500V DC Withdrawal Force: Min. 50N
Test Voltage: 6kV (50Hz, 1min) Ambient Temperature Range: -40°C ~ +90°C
Contact Resistance: < 0.5mΩ Flame Class: UL94-V0
Waterproof Protection: IP67 Connecting System: Crimping connection
Overvoltage Degree: CATIII/2 Suitable Cable Cross Section: 2.5/4/6mm², 14/12/10AWG
Unmated: IP2X Safety Class: II
Flame Class: UL-94-V0 Salt Mist Spray Test: IEC 60068-2-52 (Severity Degree 5)

Product Details

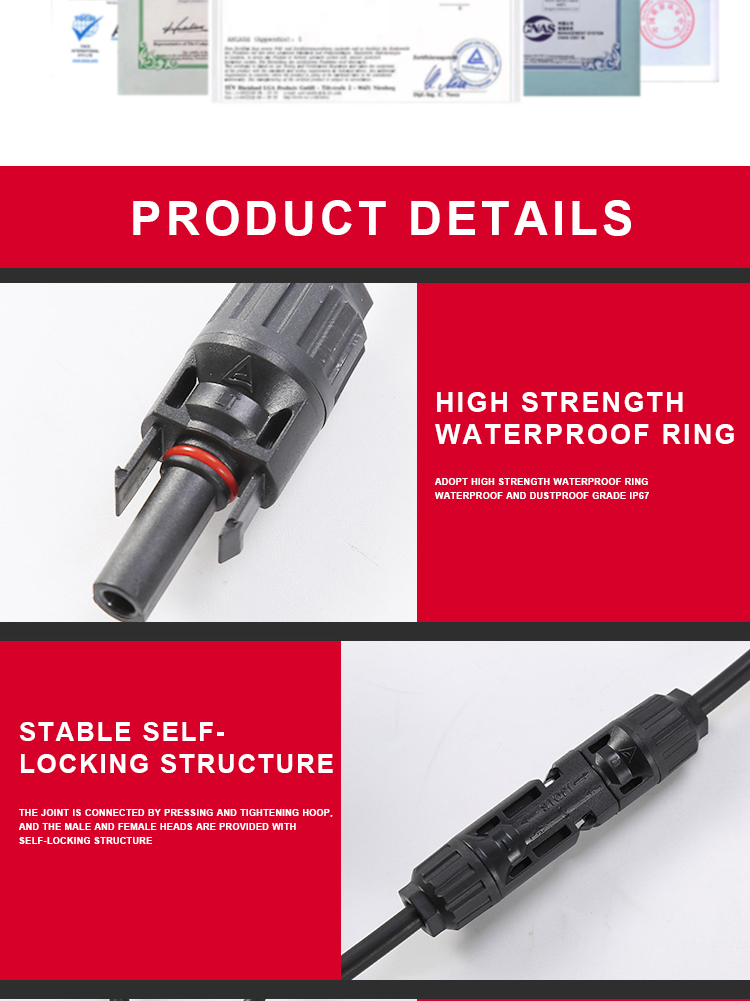

Detail 1
Detail 2
Detail 3
Detail 4

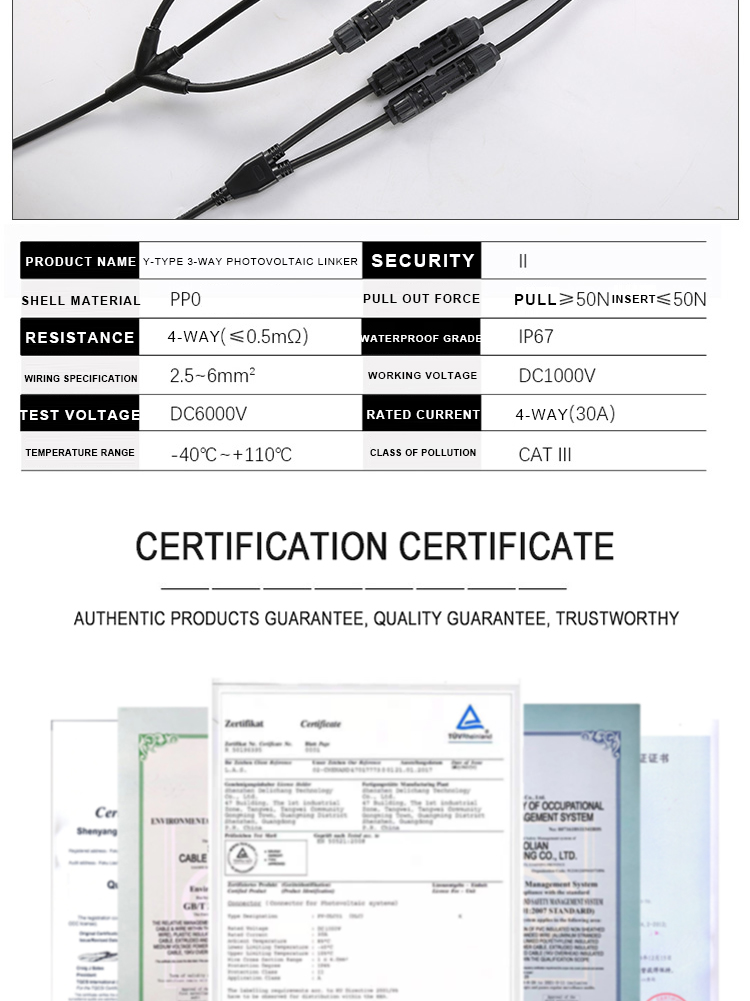

Detail 5
Detail 6

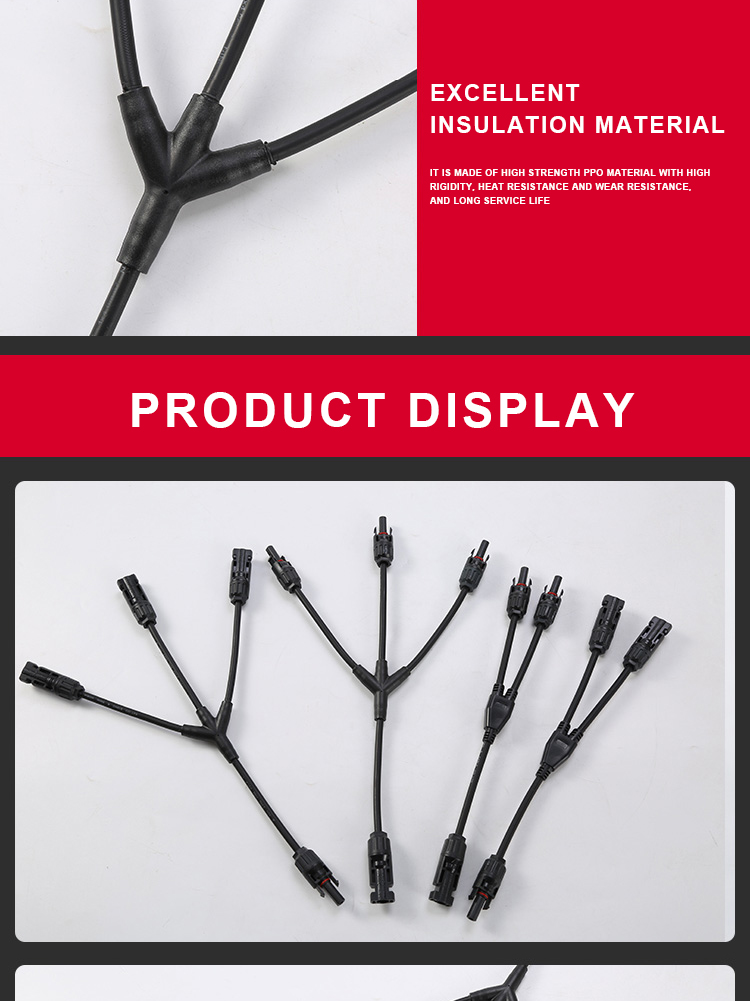

Detail 7

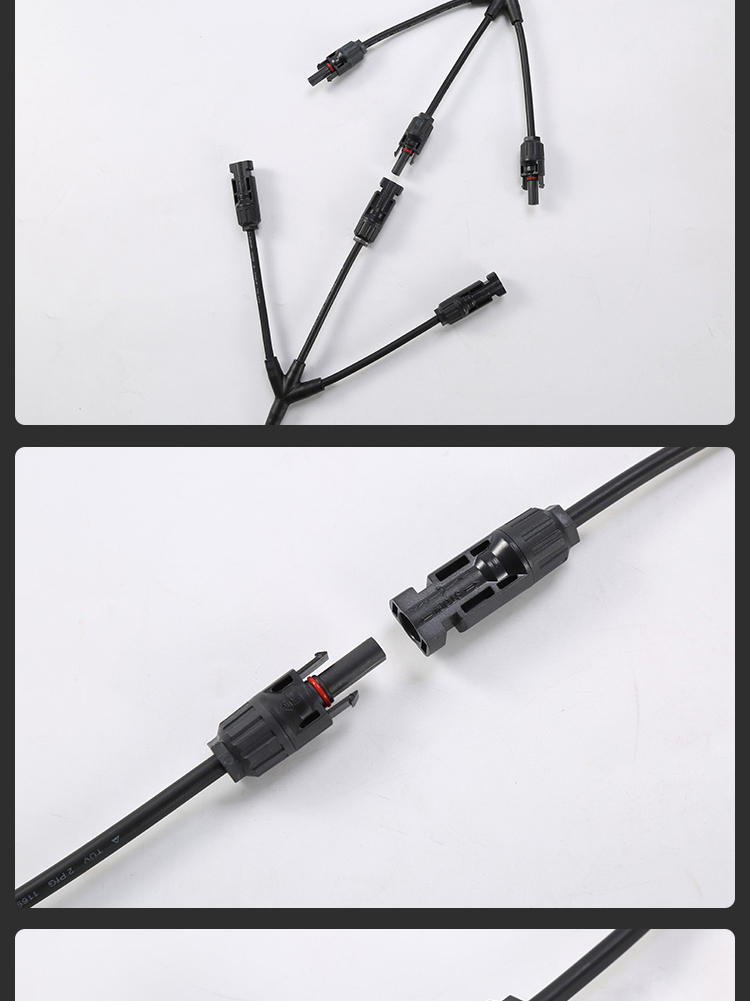

Detail 8

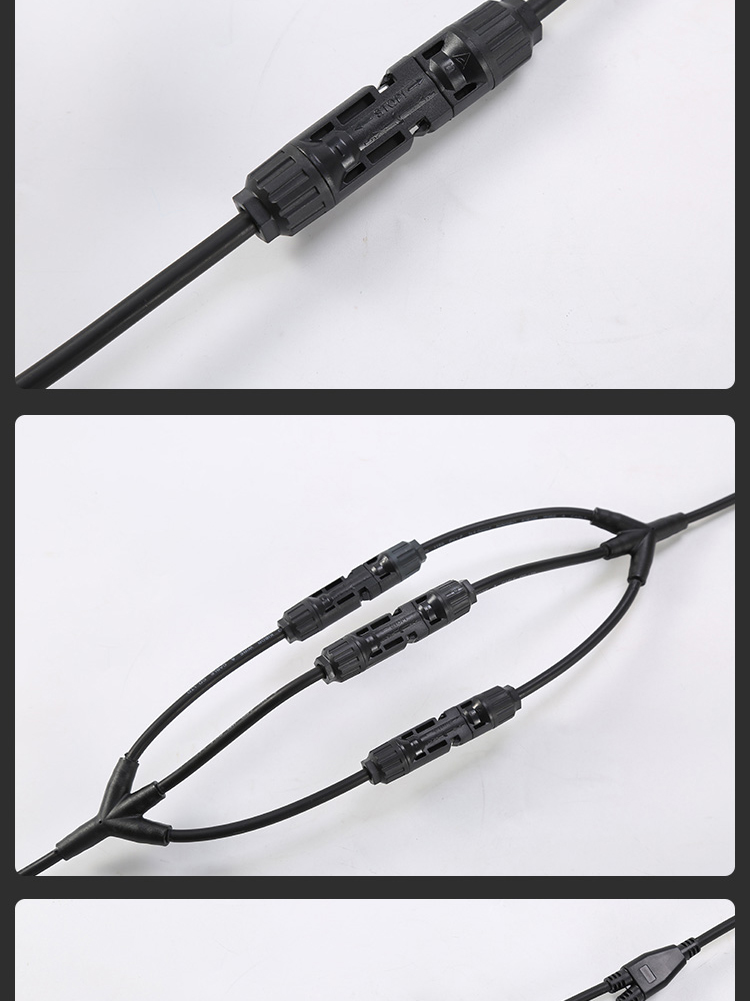

Detail 9

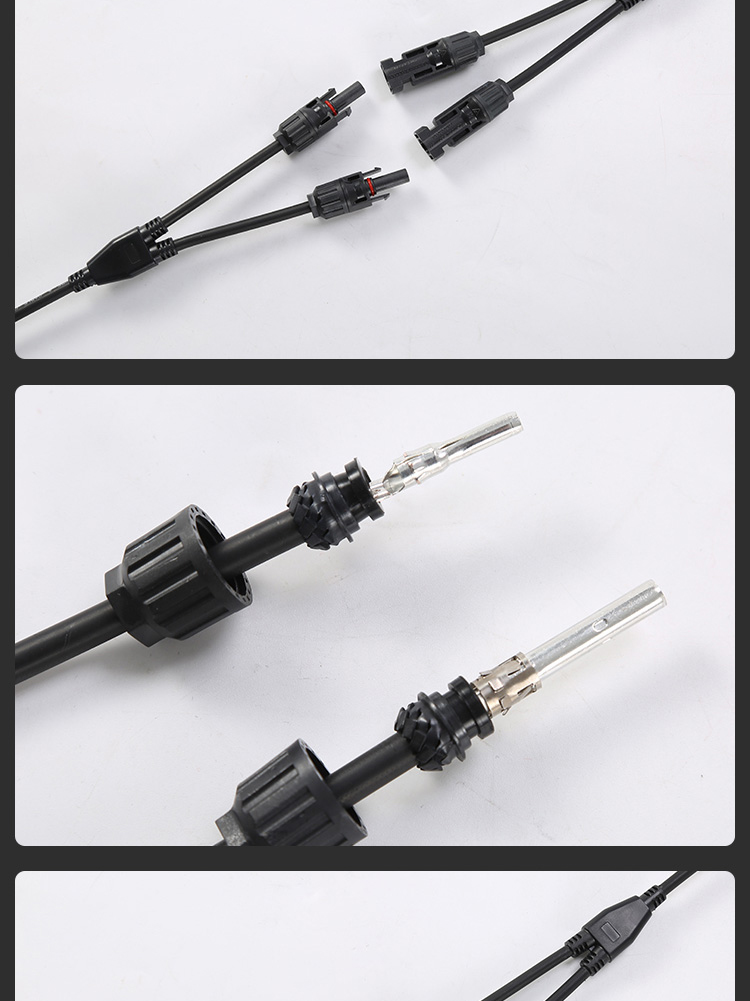

Detail 10

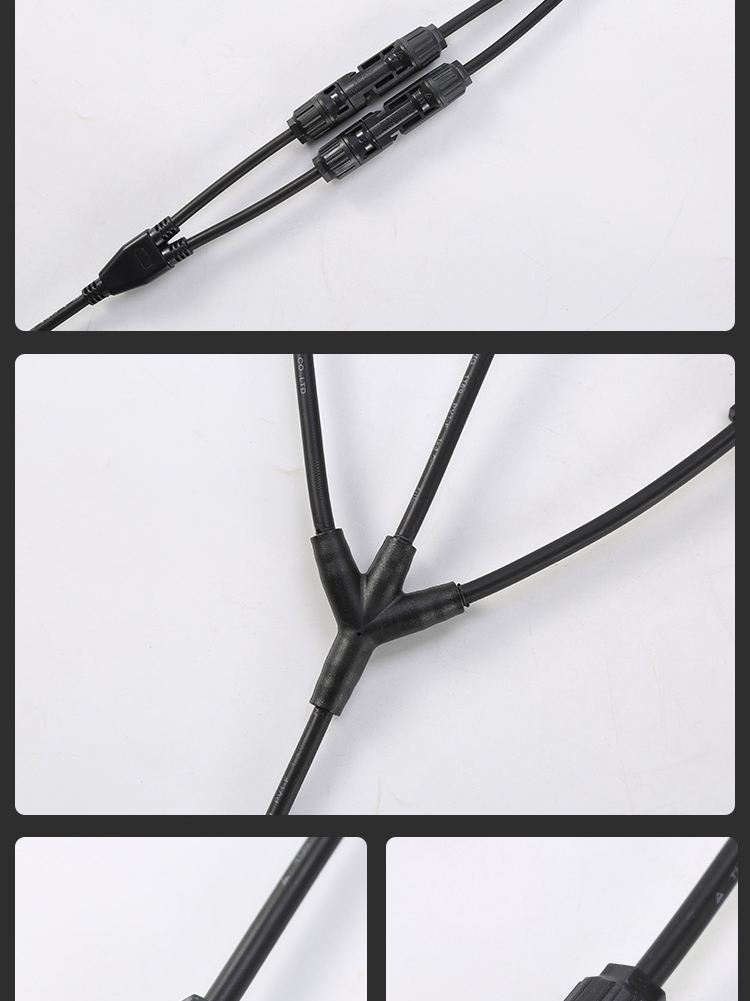

Detail 11

Real view of the factory

Real view of the factory

Product packaging

Product packaging

Frequently Asked Questions

What is the rated voltage and current for this Y-Type solar connector?
This Y-Type solar connector has a rated voltage of 1000V/1500V DC. The rated current is determined by the connected cable size: 17A for 1.5mm², 22A for 2.5mm² (14AWG), and up to 30A for 4mm² and 6mm² (12AWG/10AWG) cables.
What is the waterproof level of the parallel branch connector?
When mated, the connector provides IP67 waterproof protection, ensuring high reliability and defense against dust and water immersion in harsh outdoor environments.
What type of insulation and contact materials are used?
The connector uses premium PPO (Polyphenylene Oxide) insulation material, which has a UL94-V0 flame retardant rating. The contact material is made of high-conductivity copper that is tin-plated to ensure low resistance (< 0.5mΩ) and minimize power loss.
Can this connector withstand extreme weather temperatures?
Yes, the ambient operating temperature range is -40°C to +90°C. This wide operational range guarantees performance in both extreme cold and intense solar heat.
What cable sizes are compatible with this branch connector?
This connector is suitable for solar cables with cross-sections of 2.5mm², 4mm², and 6mm², matching international standard wire gauges of 14AWG, 12AWG, and 10AWG.
How is the connector installed and secured?
The connector features a stable crimping connection system. It has an insertion force of maximum 50N and a withdrawal force of minimum 50N, ensuring a robust, secure mechanical lock that prevents accidental disconnections.
