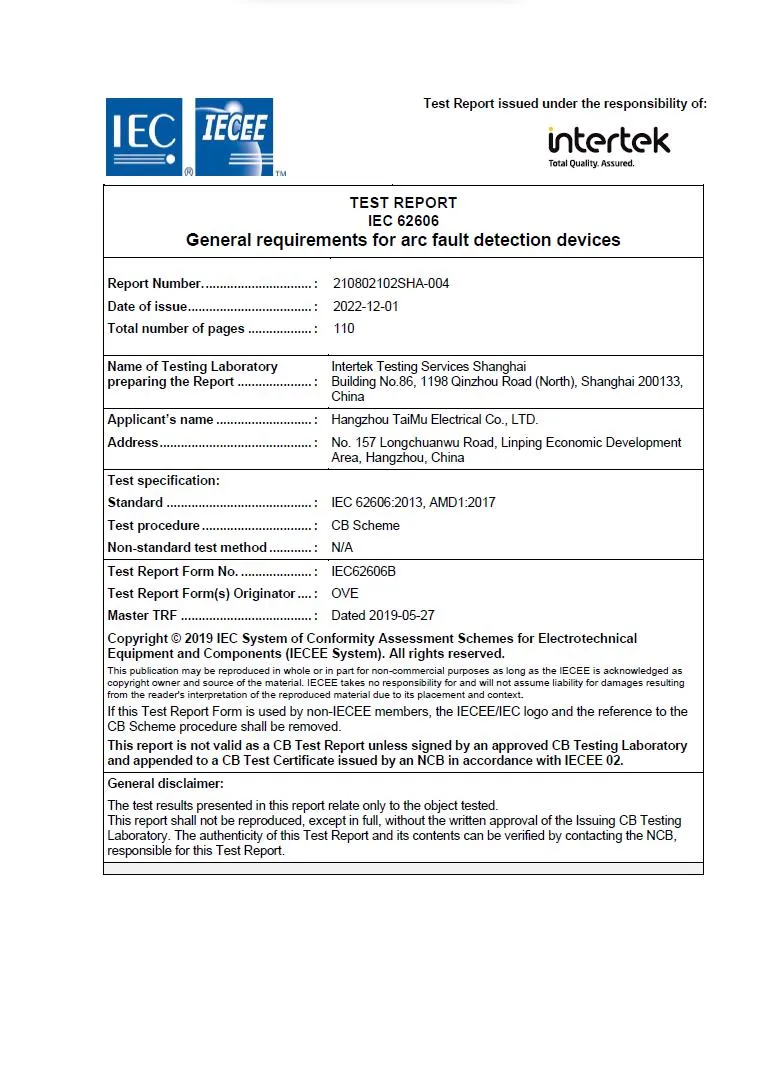

AFDD, Arc-Fault Detection Device, or being called AFCI, Arc Fault Circuit Interrupter, in North America, complies with IEC/BS EN 62606.
In terms of circuit protection, standard setups include MCB for short-circuit and overload protection, and RCD (RCCB) for residual current protection; yet this is not safe enough. According to statistics, in terms of electrical safety, 90% of fires are caused by electric arc, which requires an AFDD for comprehensive protection.
Our AFDD is a combined AFDD+RCBO solution, offering short-circuit, overload, residual current, arc, and over-voltage protection, meeting the standards of IEC/BS EN 62606 and IEC/BS EN 61009-1. It selectively distinguishes a harmless arc from a potentially dangerous arc. For example, it breaks the circuit when it detects electric arc signatures of loose connections in home wiring, which can develop over time and become hot enough to cause house fires.

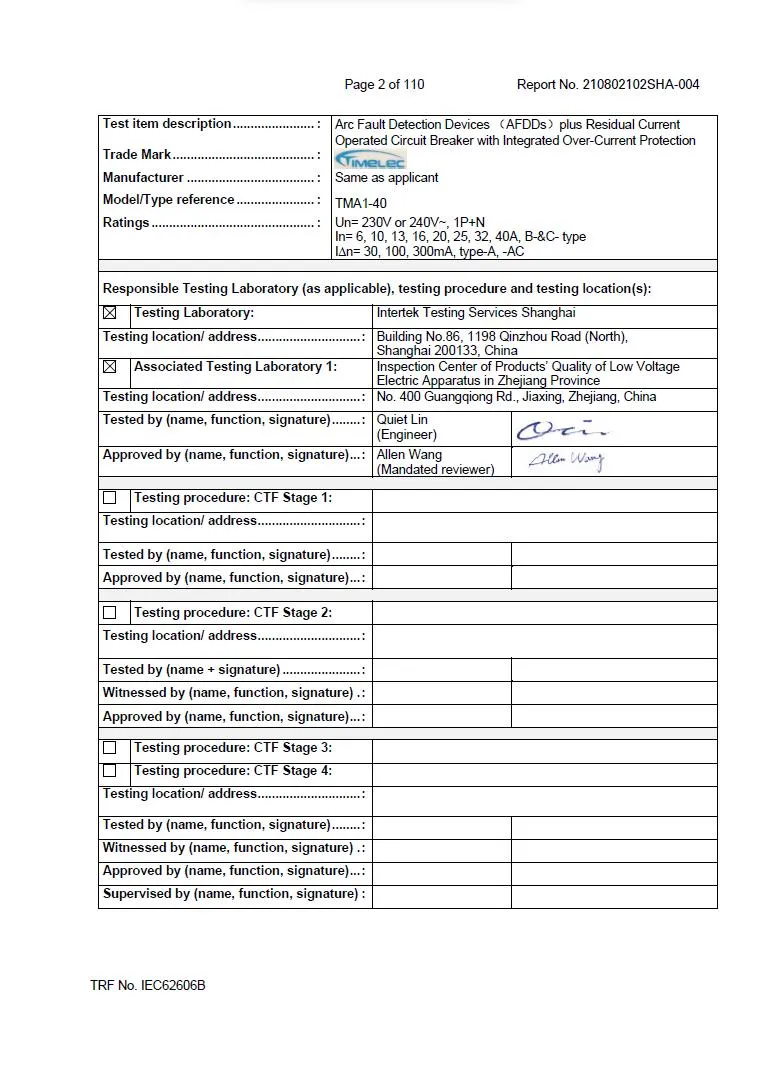

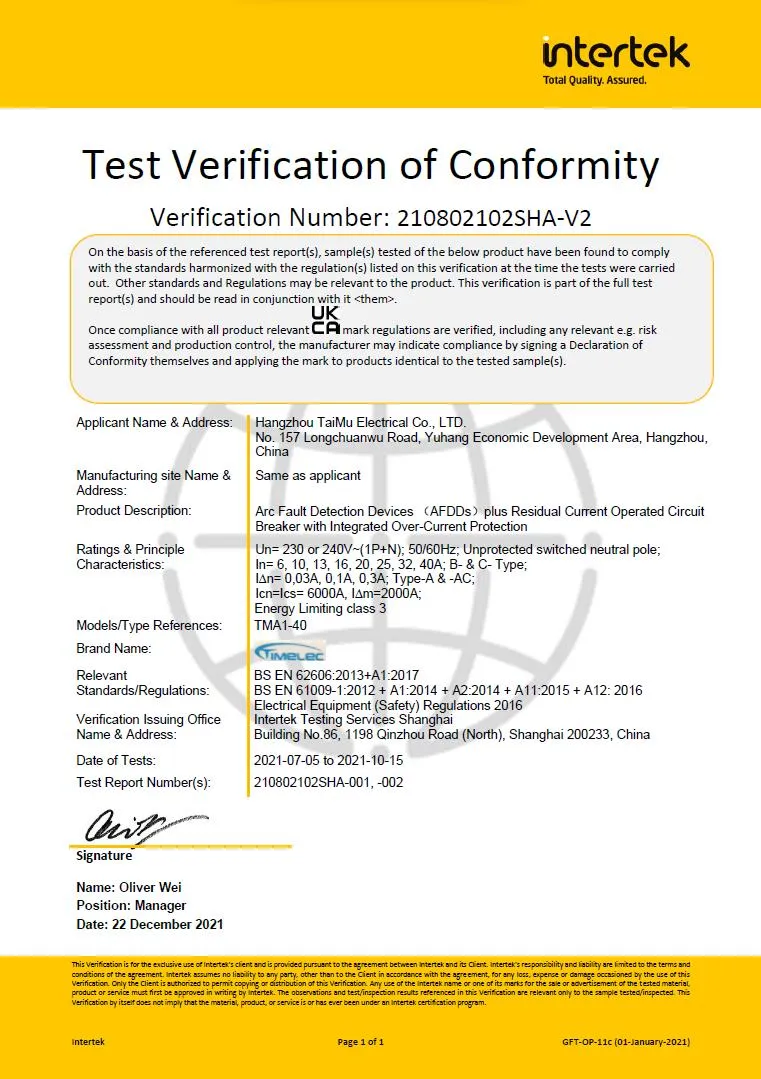

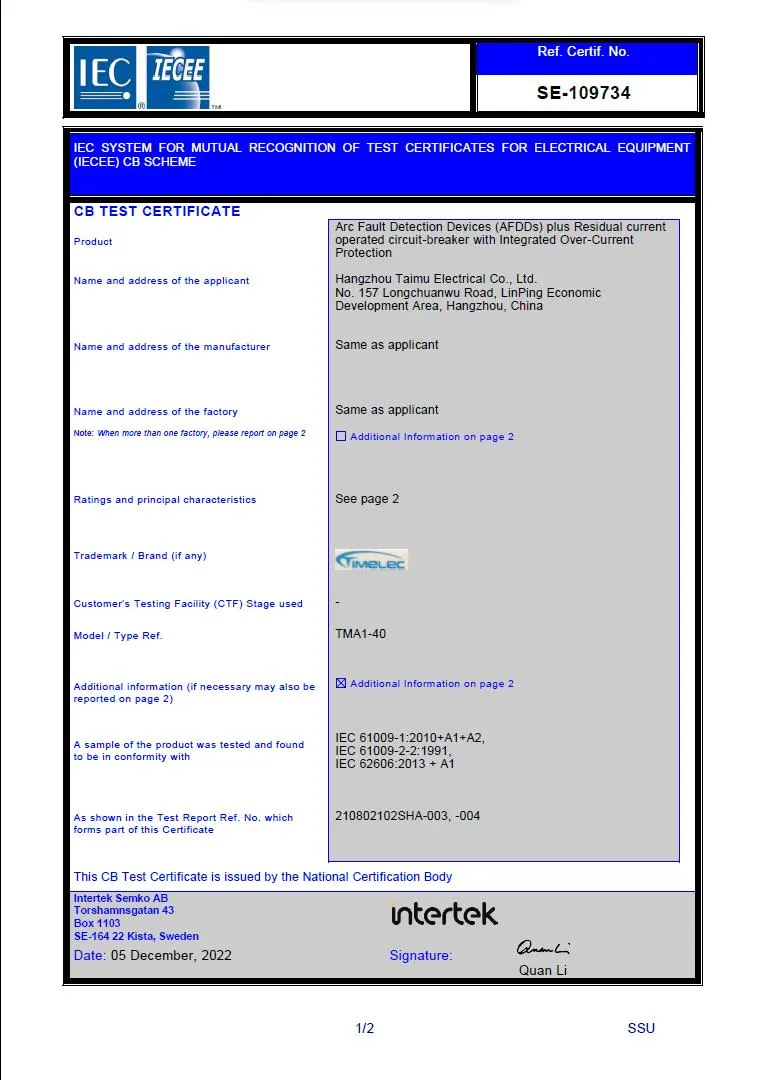

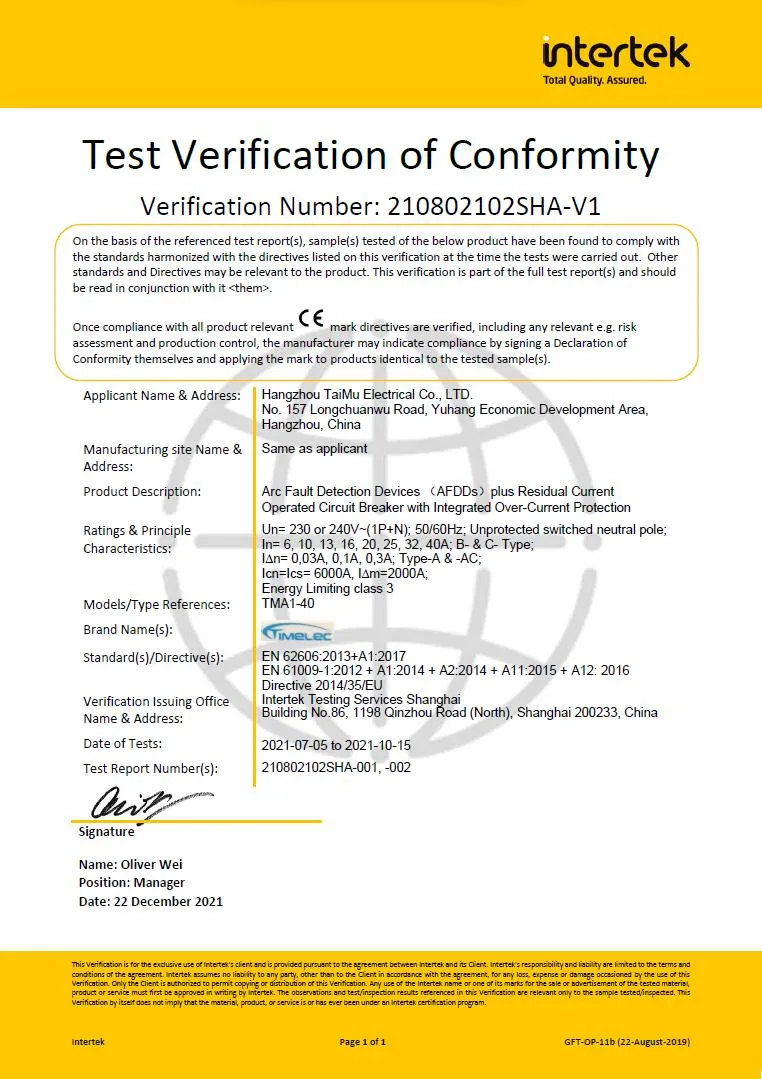

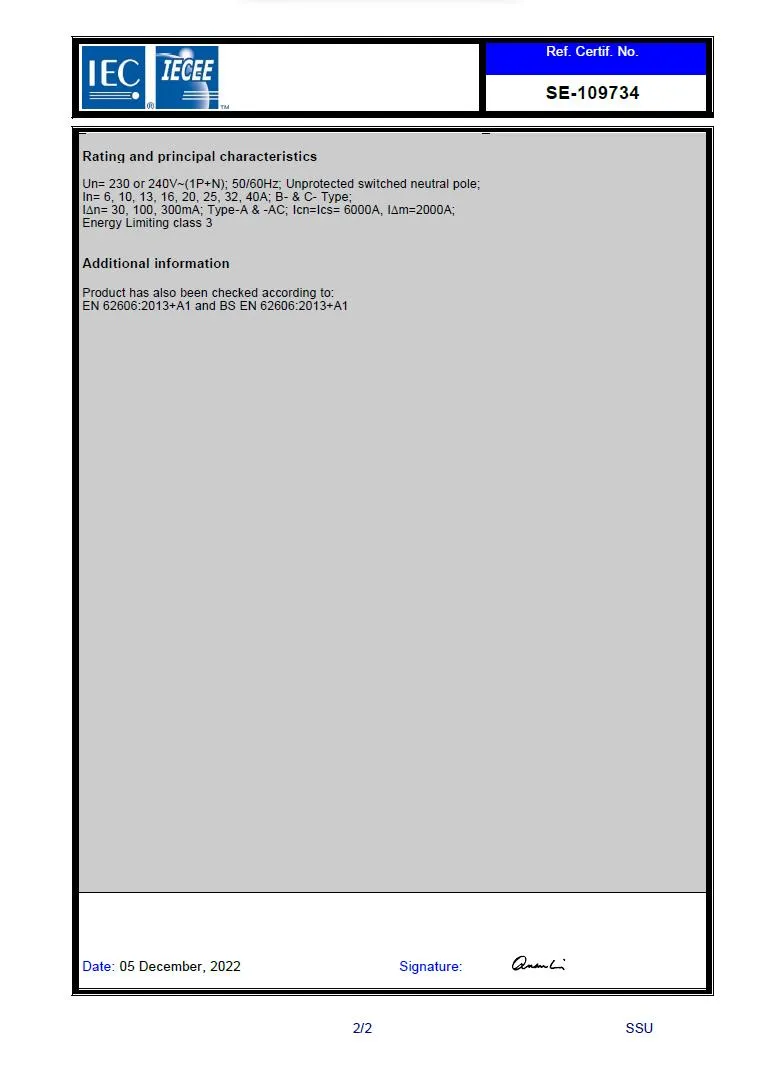

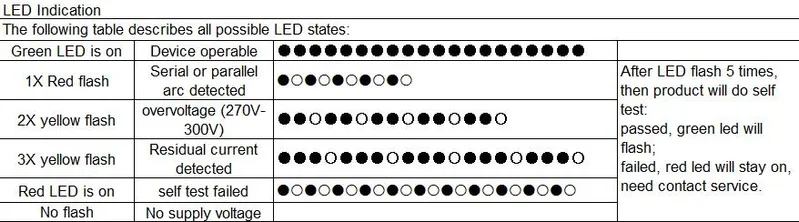

| Product category | CIRCUIT BREAKER | ||
| Product type | ARC FAULT DETECTION DEVICES (AFDDs) | ||
| Product model | TMA1-40 | ||
| Unique selling proposition | With AFD+RCBO protection With Over-vol. protection Total length, 115mm |
||
| TECHNICAL DATA | |||
| Standard | IEC/EN 62606 & IEC 61009-1 | ||
| Electrical features | Rated current (In) | 6A, 10A, 16A, 20A, 25A, 32A, 40A | |
| Trip curve | B, C, D | ||
| Model | Electronic | ||
| RCD Type | AC, A | ||
| Pole | 1P+N | ||
| Rate voltage (Ue) | 240V | ||
| Insulation voltage(Ui) | 500V | ||
| Rated frequency | 50Hz | ||
| Energy limiting class | 3 | ||
| Rated residual operating current (IΔn) | 30mA, 100mA, 300mA | ||
| Rated breaking capacity (Icn) | 6KA | ||
| Rated operating short circuit breaking capacity (Ics) | 6KA | ||
| Rated residual making and breaking capacity(IΔm) | 2000A | ||
| Rated impulse withstand voltage (Uimp) | 4KV | ||
| Surge current resistance / at (8/20) μs | 3KA | ||
| Overvoltage protection | 270V-300V | ||
| Electrical life | 4,000 operations | ||
| Pollution degree | 2 | ||
| Mechanical features | Mechanical life | 20,000 operations | |
| Protection degree | IP20 | ||
| Ambient temperature | -25°C to +40°C (with daily averages of 35°C) | ||
| Storage temperature | -25°C to +70°C | ||
| Installation | Terminal connection type | Cable, busbar | |
| Connection capacity (input) | 25mm² | ||
| Connection capacity (output) | 16mm² | ||
| Tightening torque (input) | 2.5Nm | ||
| Tightening torque (output) | 1.2Nm | ||
| Mounting | 35mm DIN rail | ||
Visible plasma discharges caused by electrical current passing through a normally nonconductive medium, such as air. This phenomenon is caused when the electrical current ionizes gases in the air. Temperatures can exceed 6000 ºC, which is more than sufficient to start a fire. (20% of fires are associated with electrical distribution or other electrical appliance faults.)

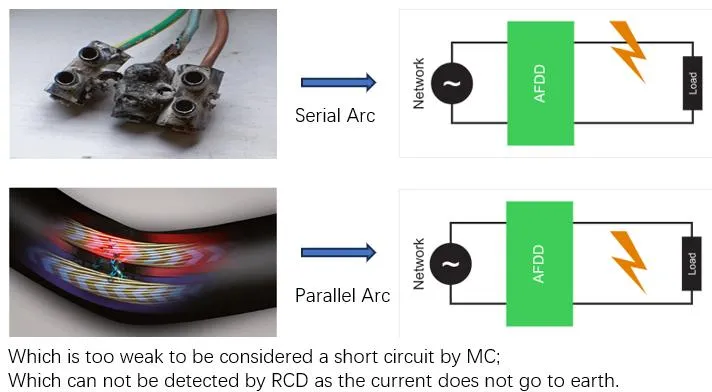

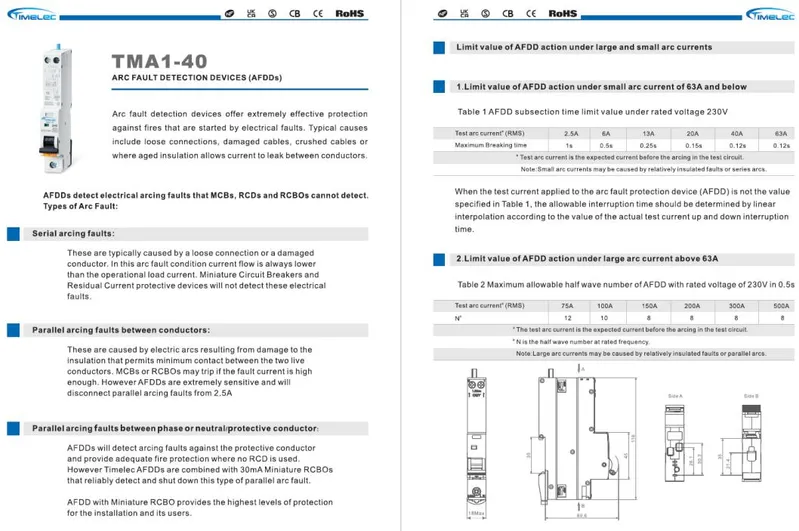

An arc is created when electrical current jumps between two conductive materials. The two main types are Serial Arcs and Parallel Arcs.

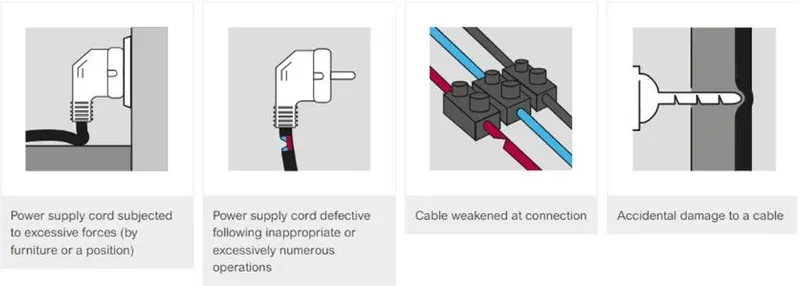

Most common causes include:
Yes, it is highly recommended where there is an increased risk of fire:
Arc Fault Detection Devices are designed to limit fire risks caused by the presence of arc fault currents in the final circuits of a fixed installation. They are installed in electrical switchboards, to protect circuits supplying power sockets and lighting, and are especially recommended in cases of renovation.
Since 2014, IEC 60364 recommends surrounding the installation and application environments of AFDDs in residential and commercial buildings:
It is recommended that AFDDs be installed at the place of origin of the low voltage final circuit to be protected (i.e., switchboard of an electrical installation).
More specifically, the installation of the AFDD is highly recommended to protect circuits with highest risk of fire, such as:

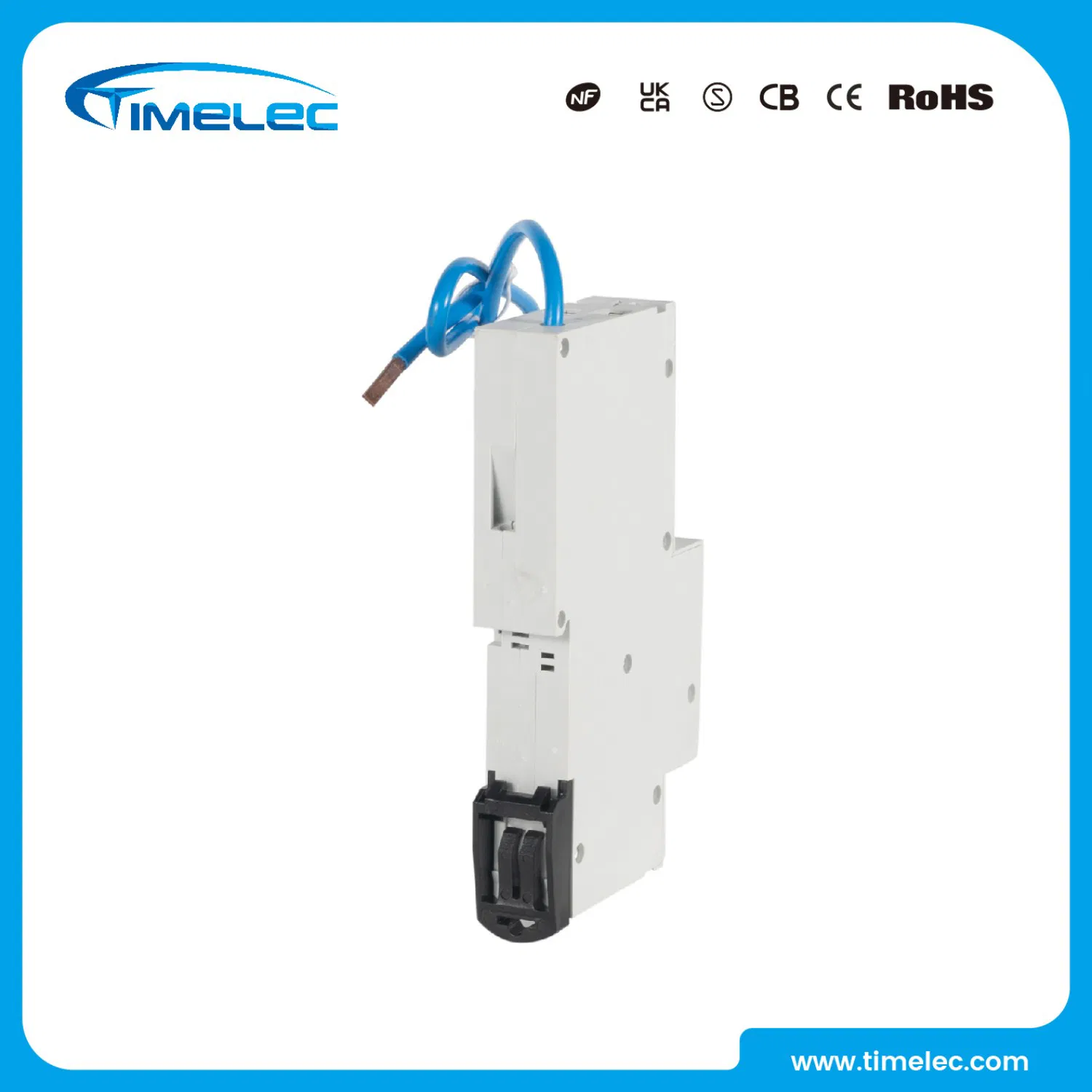

Our AFDD (AFCI) features a compact total length of 115mm. Compact yet no compromise. It is your best choice for overall protection and prevention in domestic and commercial applications.
