| Model NO. | GT15 |
| Rated Current | 15A |
| Shell Material | Flame Retardant PC Plastic |
| Application | Commercial, Residential/General-Purpose |
| IP Rating | IP20 |
| Certification | UL |
| Number of Holes | Porous |

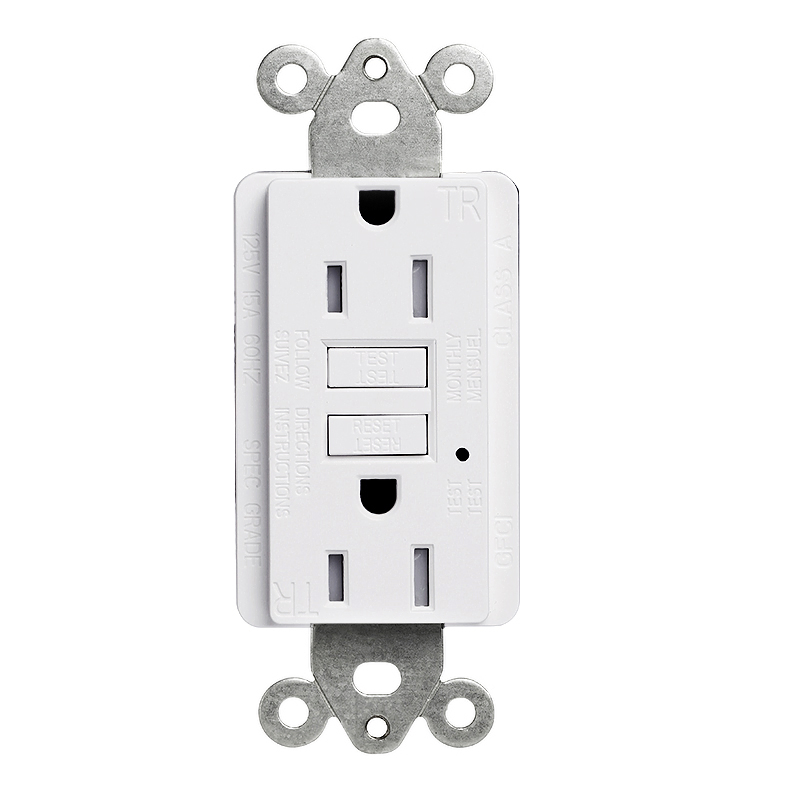

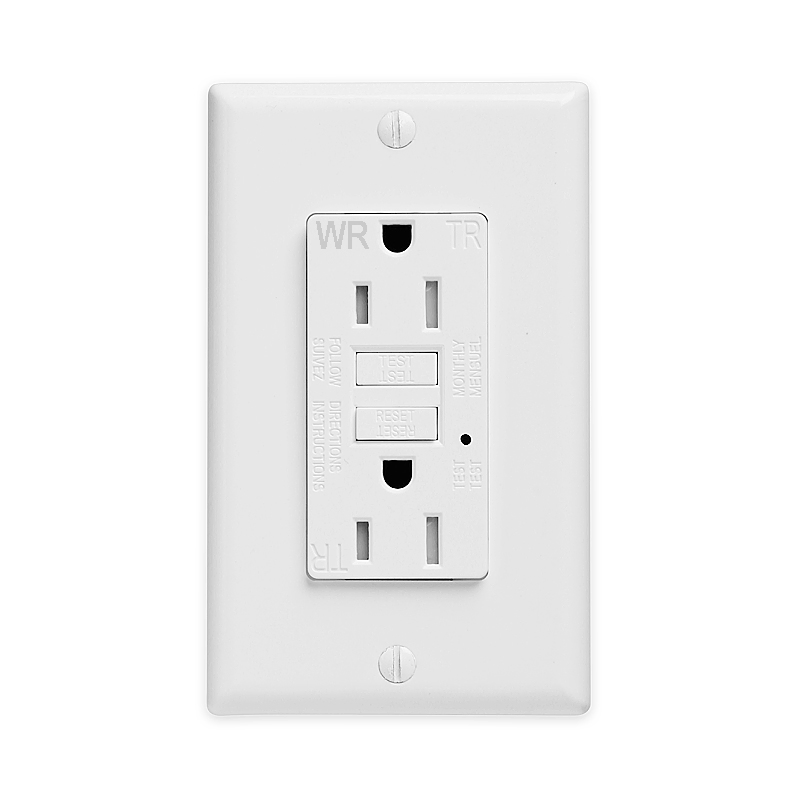

| Item | Electric Outlet GFCI |
| Current | 15A |
| Voltage | 110V,120V,125V,127V |
| Max Power | 1875W |
| Trip Level | Class a, 5mA Plus or Minus 1mA |
| Trip Time | Less Than 0.025s |
| Dielectric Voltage | Withstands 1250VAC Per UL 943 and CSA-C22.2 No. 14 |
| Short Circuit Current Rating | 10 Ka |
| Terminal Accom | 14-12 AWG |
| Terminal Screws | Plated Steel |
| Tamper Resistant | Yes |
| Self Test | Yes |
| Test Standard | UL498&UL943 |
| Transport Package | Color Box |

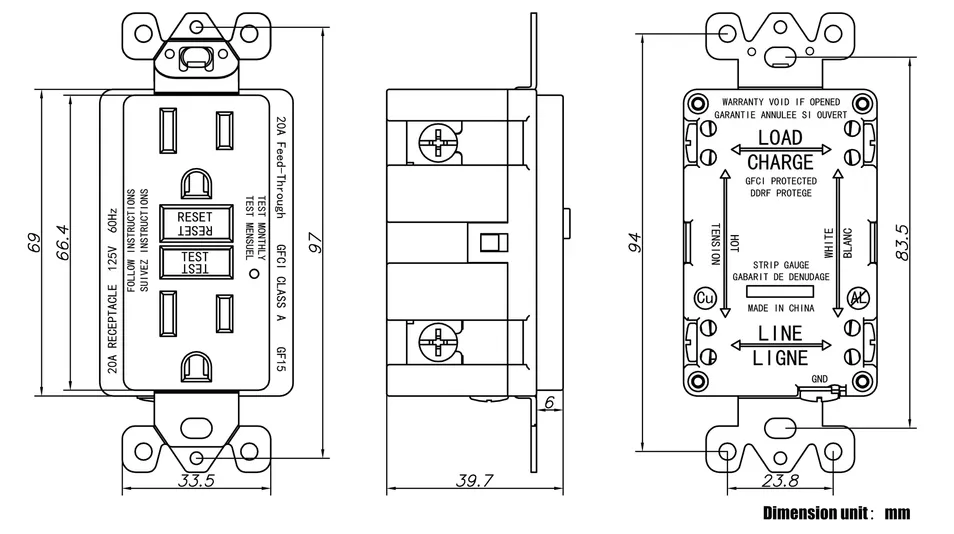

| Specification | 72x44x117mm |
| Trademark | Neutral type |
| Origin | China |
| HS Code | 8536690000 |
| Production Capacity | 10000PCS/Month |
| Package Size | 5.00cm * 12.00cm * 8.00cm |
| Package Gross Weight | 0.500kg |
| Lead Time |
15 days (1 - 100 Pieces) To be negotiated ( > 100 Pieces) |
| Parameter | Specification Details |
|---|---|
| Voltage (V) | 15A |
| Amperage (A) | 125V |
| Tamper resistant | Yes |
| Trip level | Class A, 5mA plus or minus 1mA |
| Dielectric voltage | Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 |
| Short circuit current rating | 10 kA |
| Temperature rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Operating temperature | -35C to +66C |
| Terminal Accom. | 14-10 AWG |

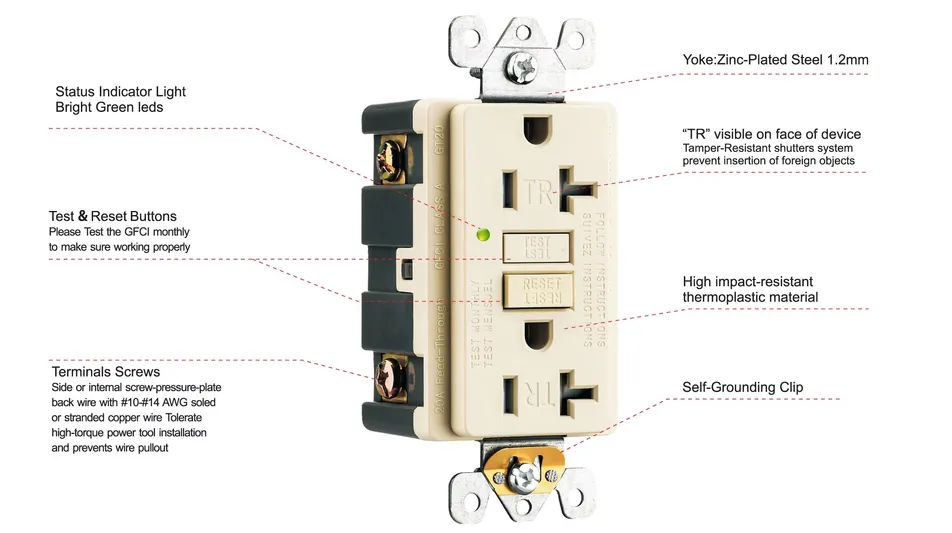

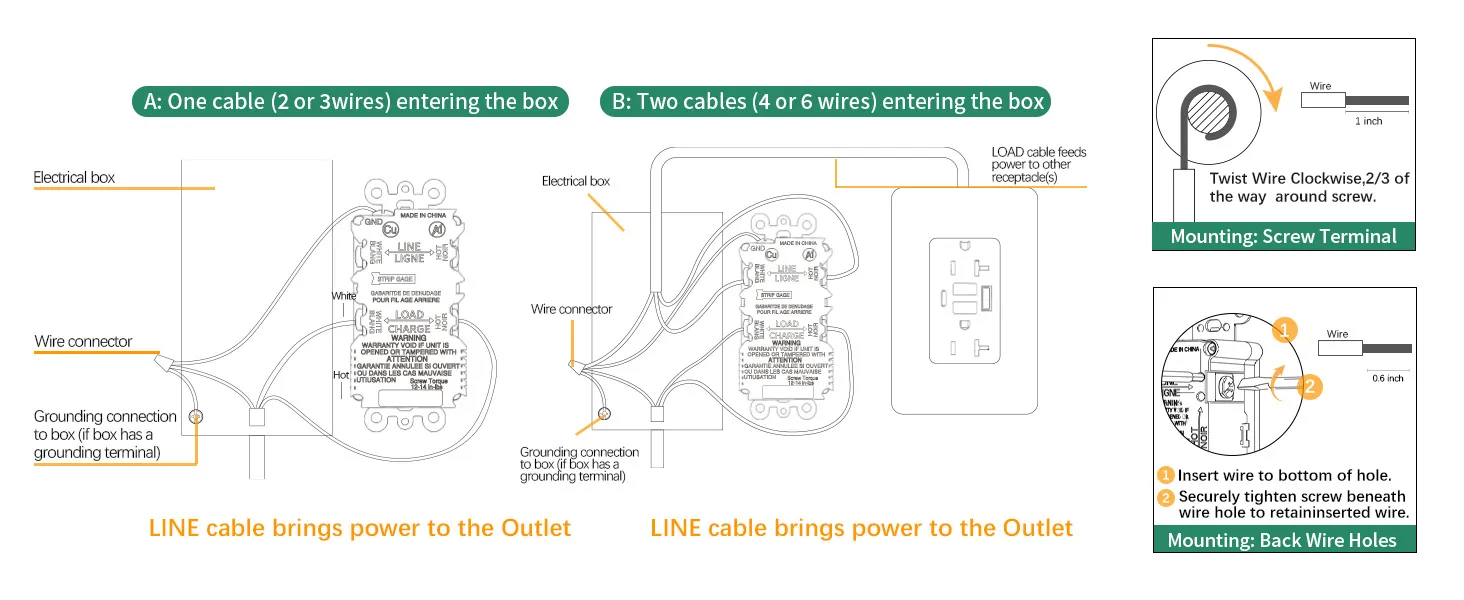

| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Body Material | Polycarbonate |
| Face Material | Thermoplastic |
| Terminal Screws | Plated Steel |
| Line Contacts | Brass Double-Wipe .031 Thick |
| Yoke | Zinc-Plated Steel |
| Clamps | Brass |
| Grounding Screw | Plated Steel |
| Self-test | Yes |

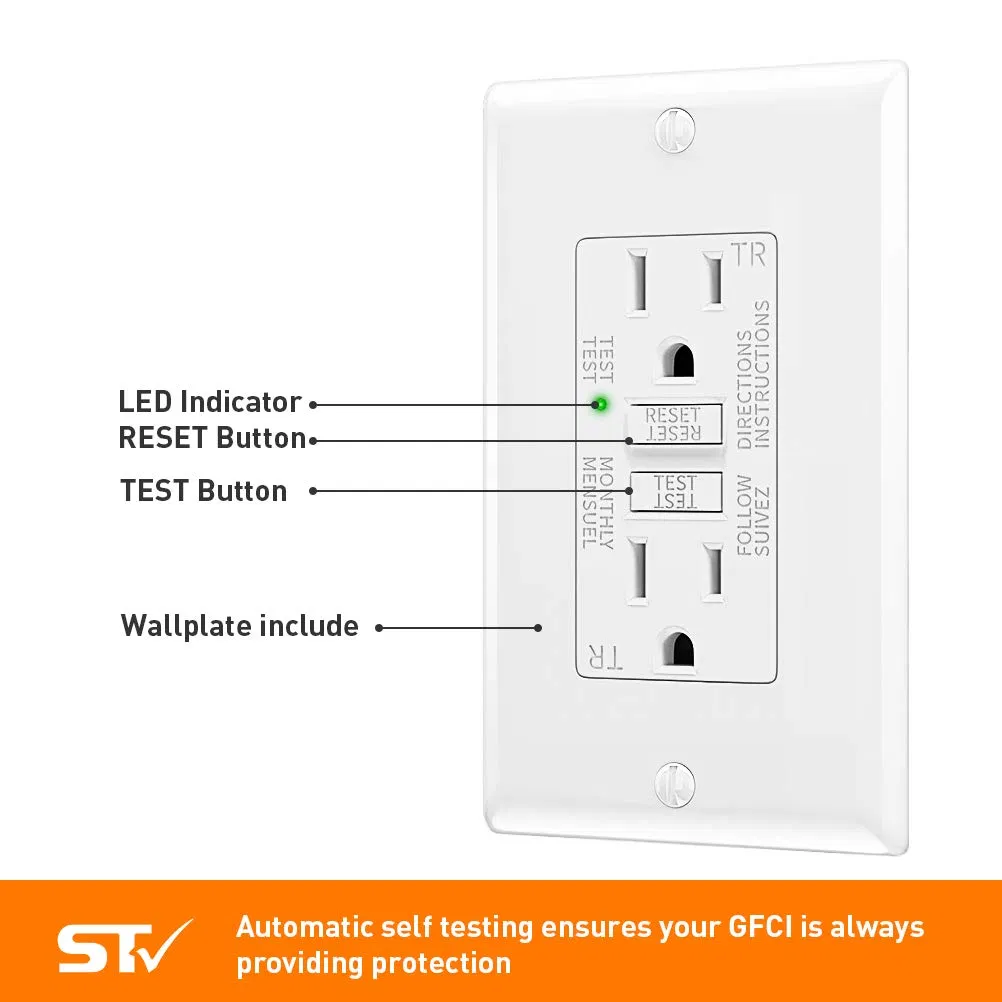

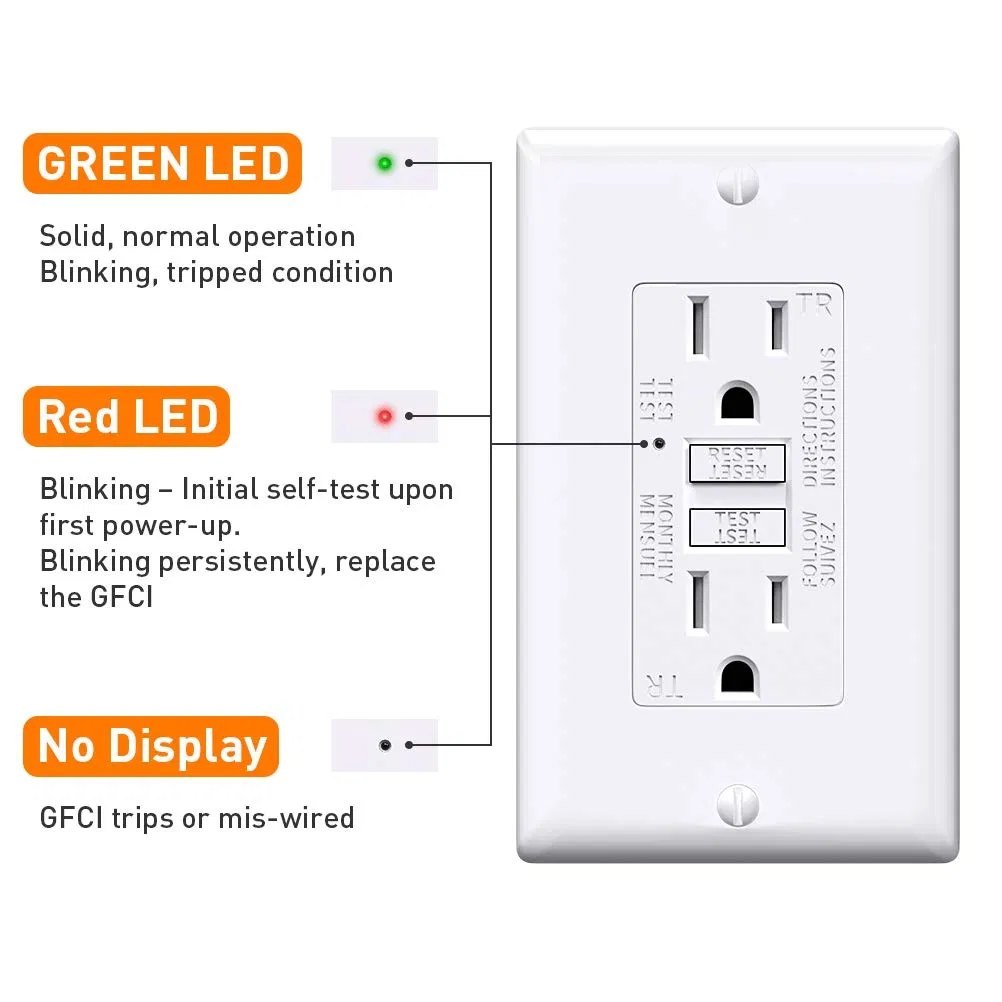

| LED indicator | Yes |
| Quality certifications | UL498, CSA-C22.2, etc. |

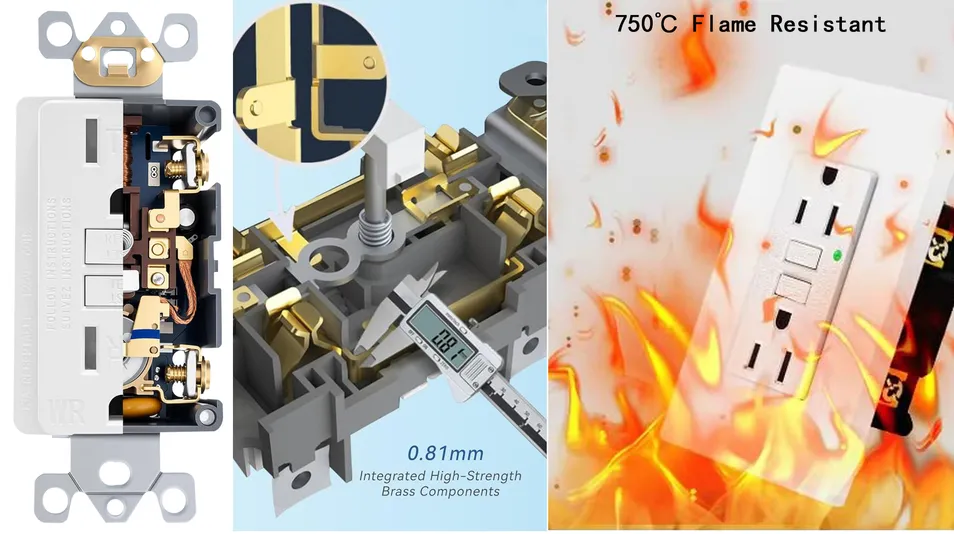

Copper connector - With 0.81mm Thickness for good conductivity.
100% virgin PC material - 750℃ flame resistant
It was programmed with an auto monitoring function; the self test starts every 15 minutes to keep operation safe.
This GFCI outlet features advanced ground fault protection to minimize the risk of electric shock. It is also designed with tamper-resistant slots to prevent children from inserting foreign objects.

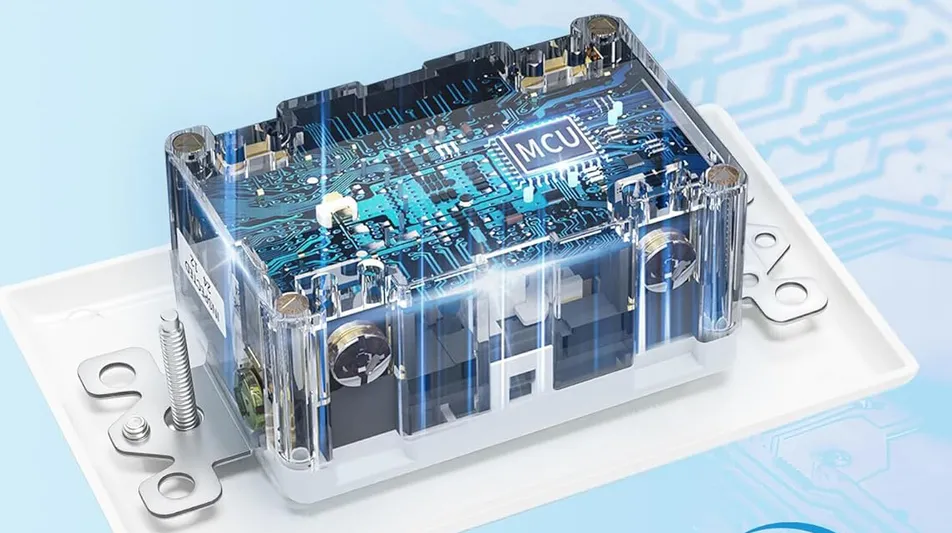

The integrated MCU is programmed to conduct a self-test automatically every 15 minutes to guarantee that the ground fault protection remains fully functional.
The outlet casing is made from 100% virgin flame-retardant PC (polycarbonate) plastic that has a high flame resistance rating of up to 750℃.
Yes, it features a rugged polycarbonate body and double-wipe brass line contacts, making it suitable for both general residential and commercial environments.
Yes, the outlet has passed testing and carries quality certifications including UL498 and CSA-C22.2 standards.

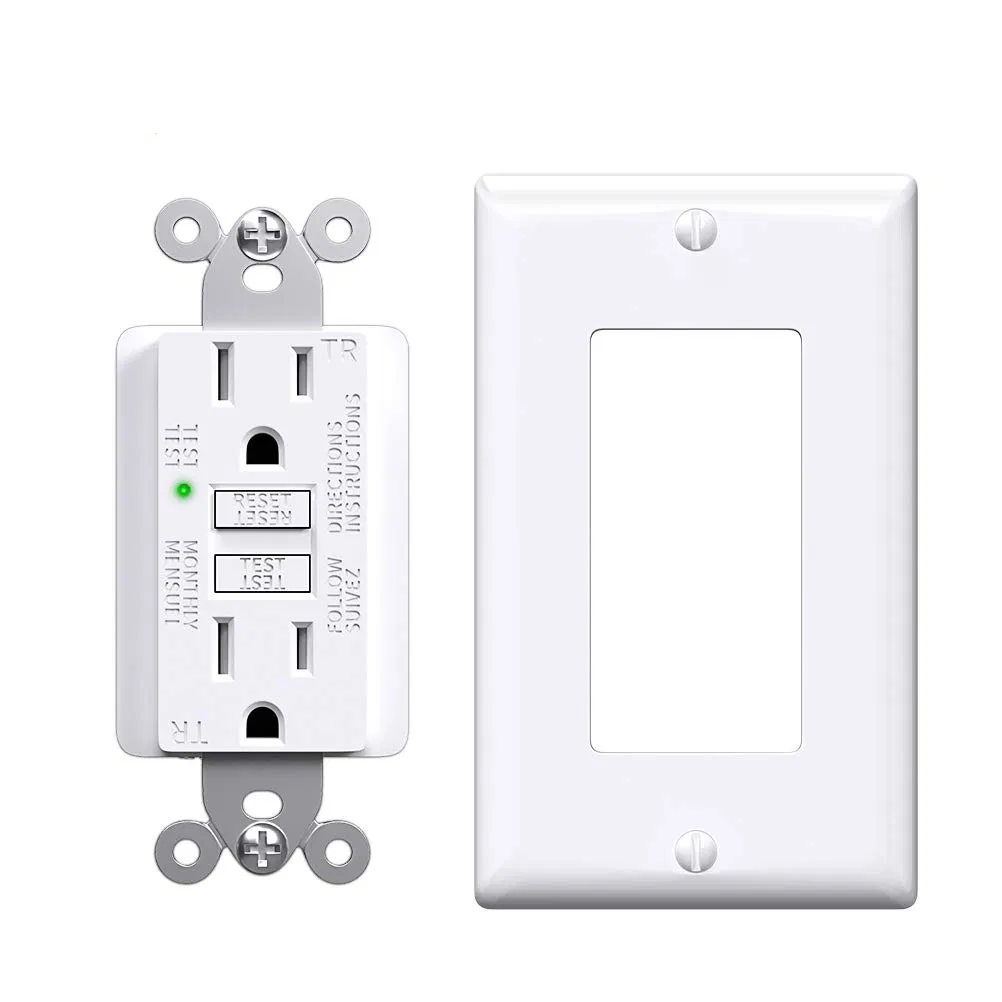

Our standard package includes the GFCI outlet, a screw faceplate, wall plate screws, mounting screws, and a manual. Custom logo printing is available starting at 100 pieces, and customized packaging starts at 1,000 pieces.
