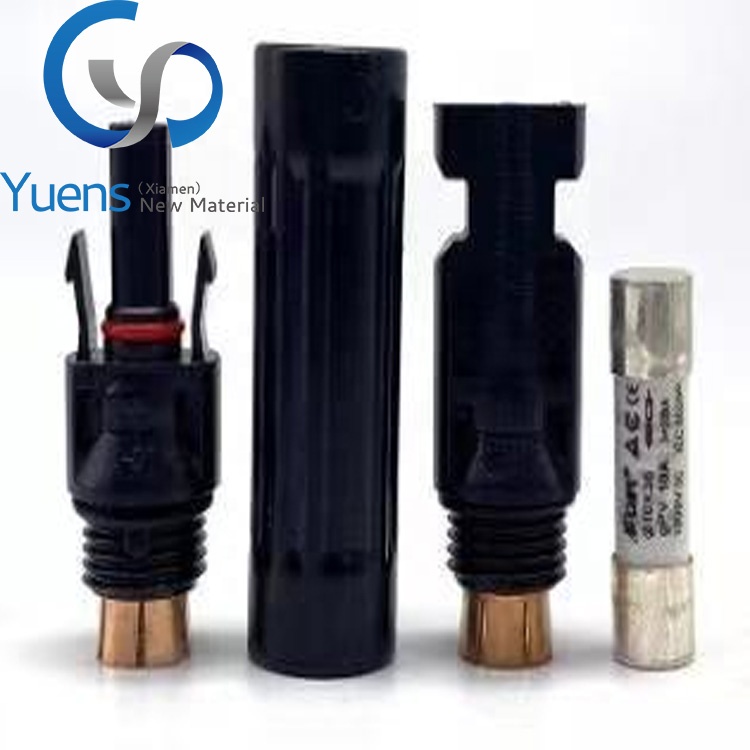

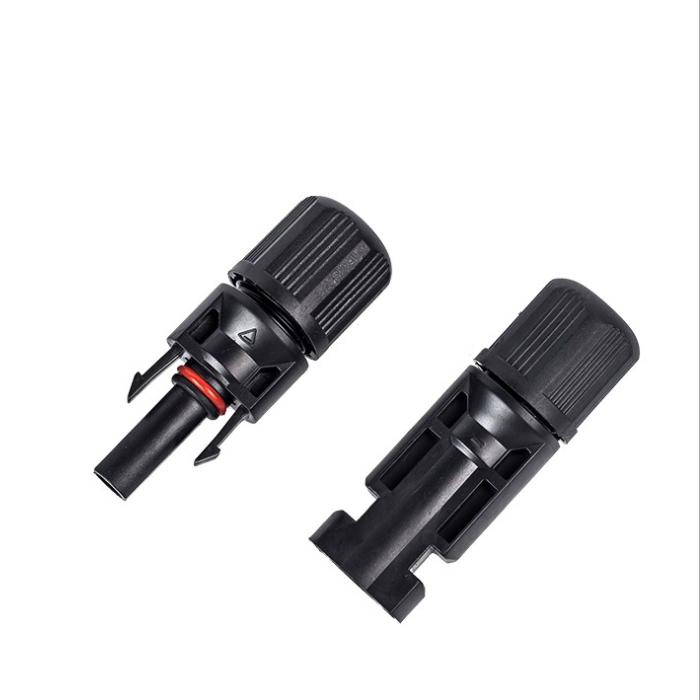

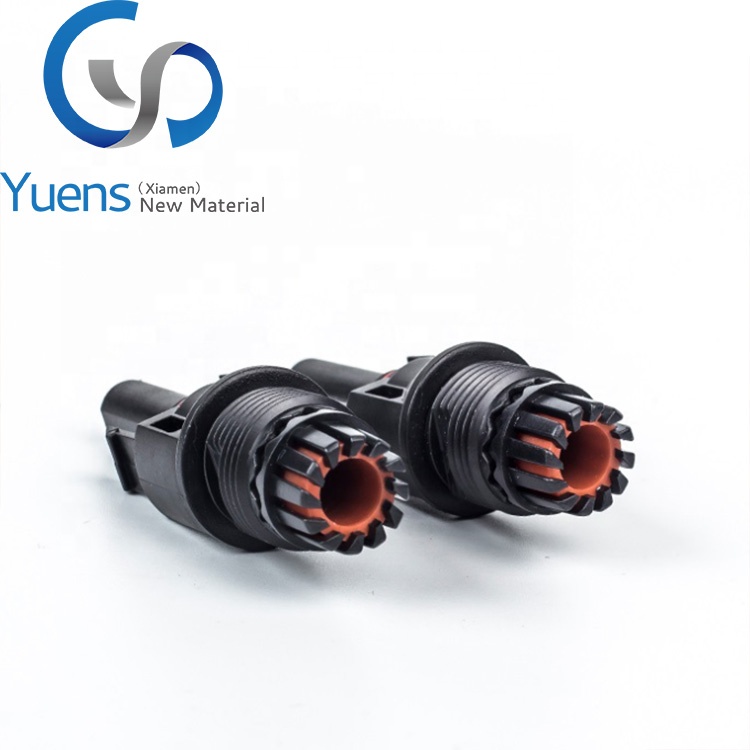

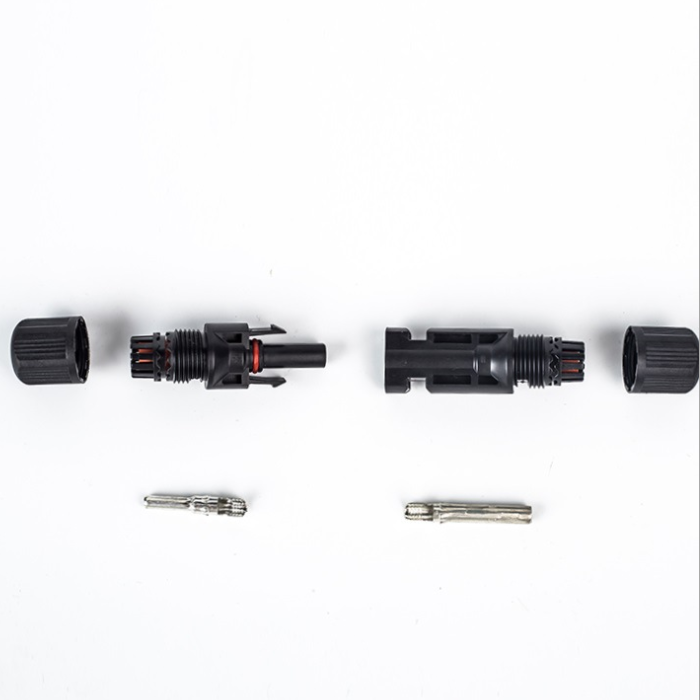

TUV/CE Certified MCX MC4 Solar PV Connectors | 1000V/1500V DC Waterproof Cable Connectors | 30A 50A Copper Contact

Product Description

Product Details
Insulation Material:
PPO
Contact material:
Copper, Tin plated
Rated current:
30A
Insertion force:
Max. 50N
Rated Voltage:
1000V DC
Withdrawal force:
Min. 50N
Test voltage:
DC6000V
Ambient temperature range:
-40℃ ~ +125℃
Contact resistance:
1mΩ
Flame class:
UL94-V0
Waterproof protection:
IP67
Connecting system:
Crimping connection
Overvoltage degree:
CATIII/2
Suitable cable cross section:
2.5/4mm²

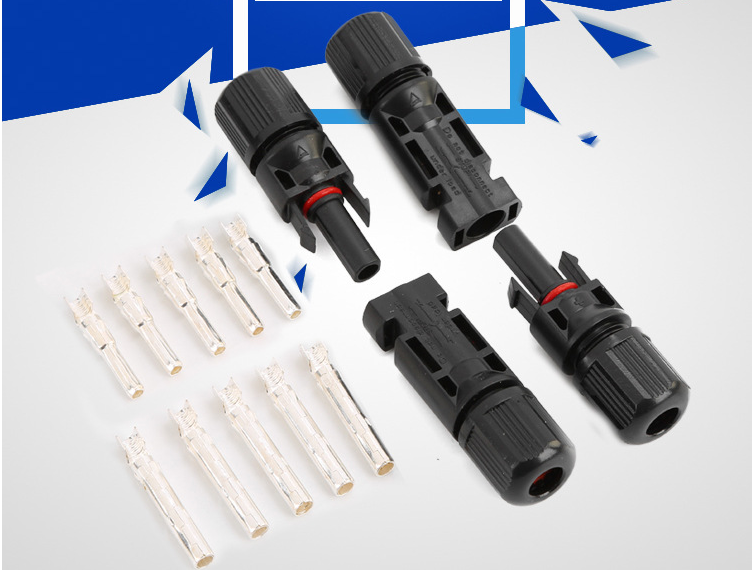

Technical Drawing

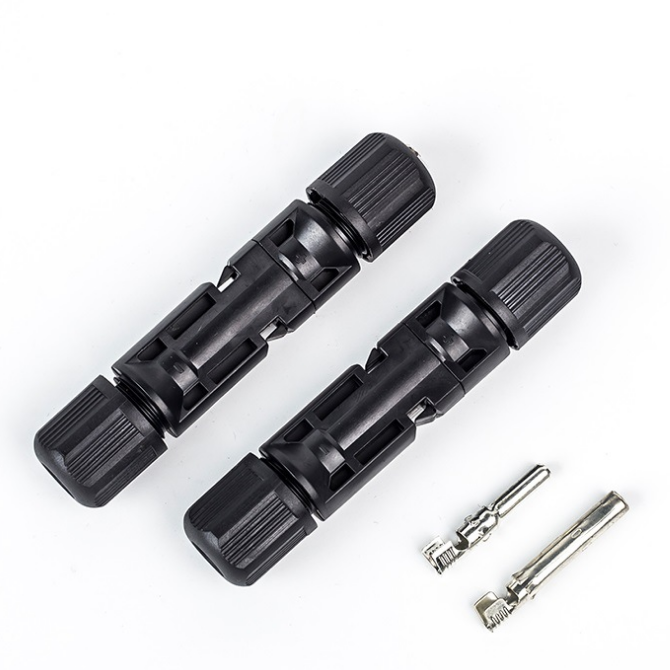

Connector Detail 1
Connector Detail 2

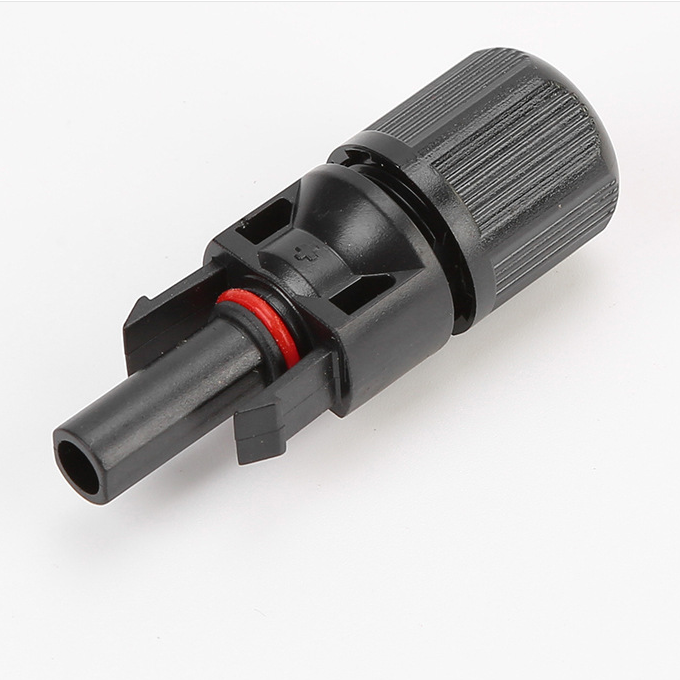

Connector Profile

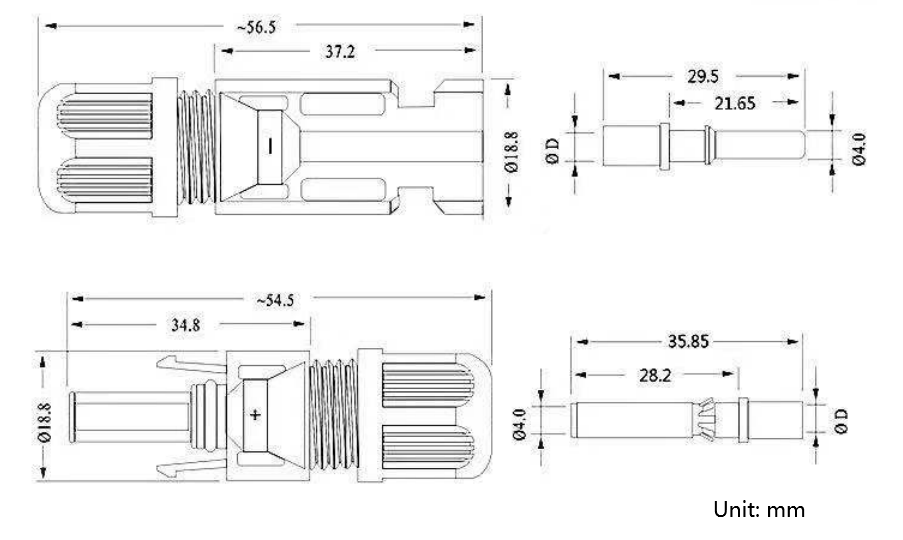

Connector Design
Connector View

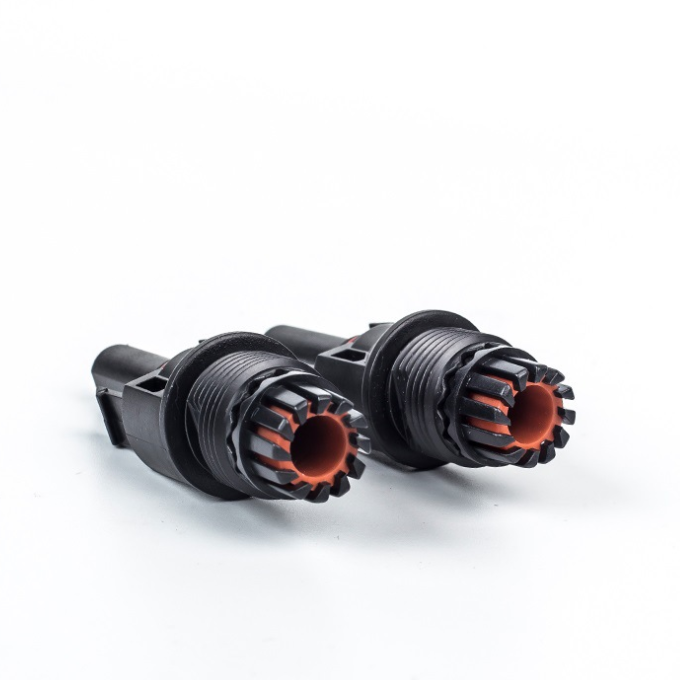

Connector Assembly
Specification
Item
Value
Model Number
YS-MC4
Type
MCX
Application
Power
Gender
Female & male
Color
Black
Product name
Cable Connector
MOQ
Sample order available
Application
Solar energy system
Rated current
30A 50A
Temperature range
-40℃ ~ +125℃
Contact material
Copper, Tin plated
Pins
1P
Rated voltage
1000V/1500V
Approval
TUV; CE
Project Photo
With 6 years of project design experience, we are a reliable manufacturer of solar mounting structures. Contact us to get a FREE BOM list and drawing design!

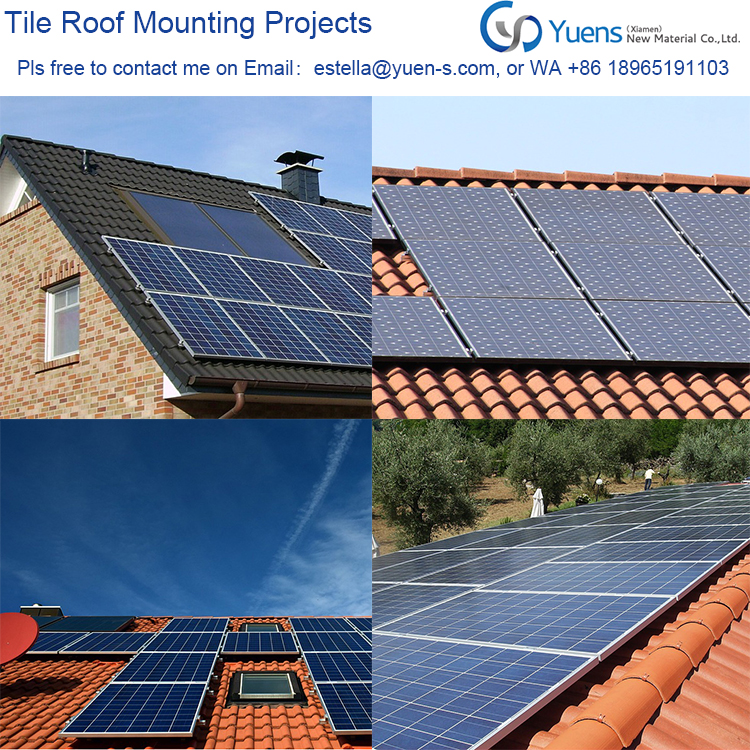

Solar Project Installation 1

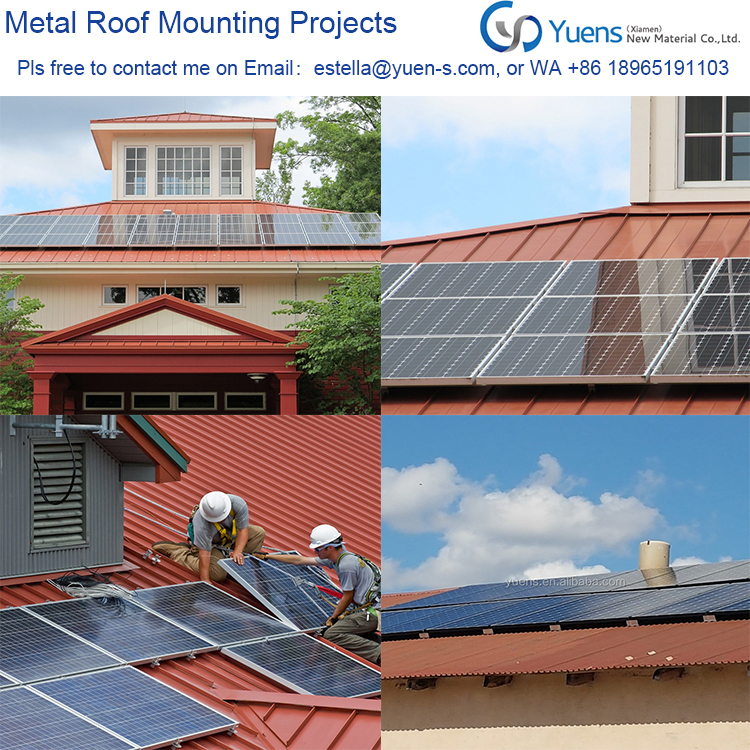

Solar Project Installation 2

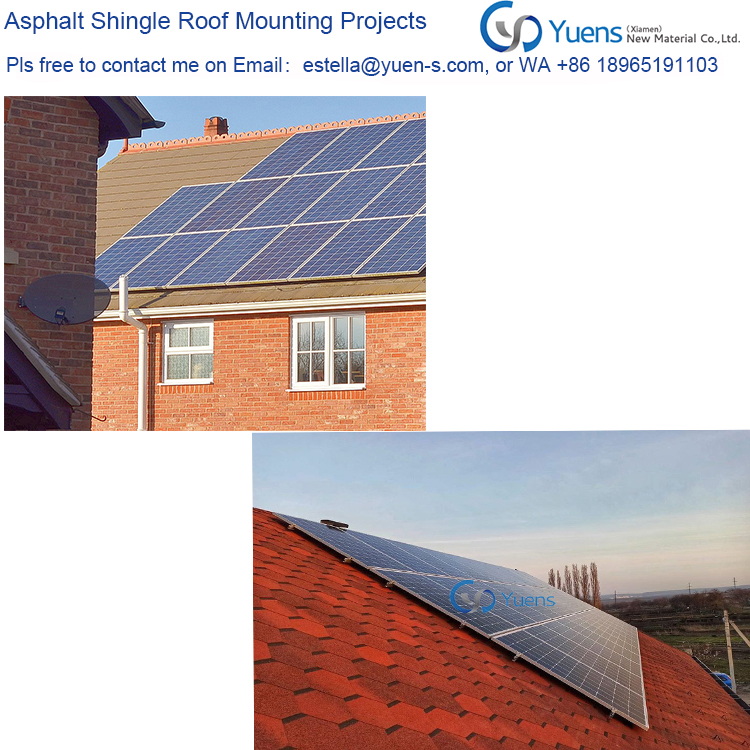

Solar Project Installation 3

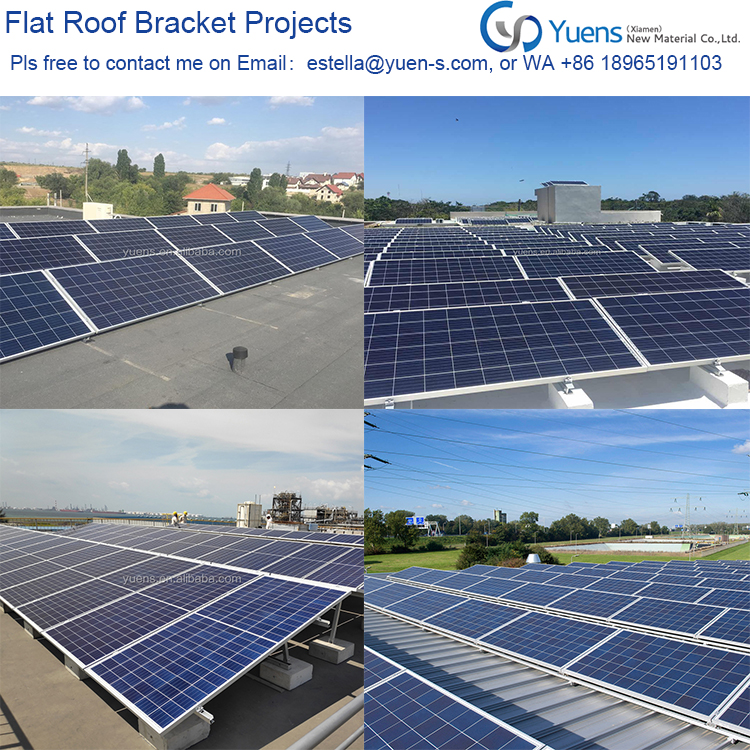

Solar Project Installation 4

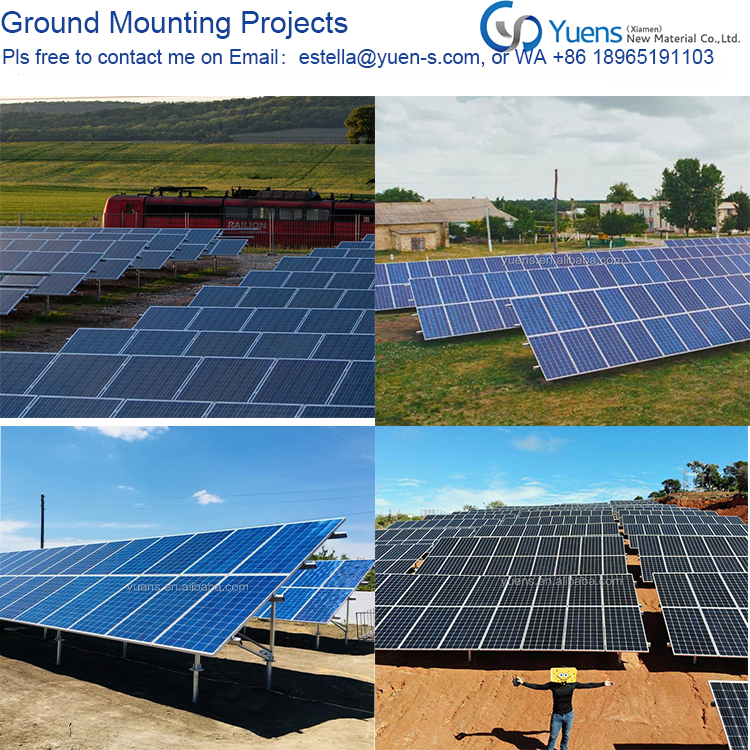

Solar Project Installation 5
Production Process
Production Process Flow
Product Packaging
Packaging Details 1
Packaging Details 2
FAQ
Q

Are you a factory or trading company?

We are a factory.

Q

Where is your factory? Can I visit it?

Our factory is located in China. All our clients are warmly welcome to visit our factory.

Q

How do you manage the quality control?

We stand for secure joints, the highest quality, and precision-crafted and customized components. Our customers and business partners deeply appreciate all of these factors. Three independent authorities have tested, confirmed, and certified our skills and components. Our internal quality control ensures that all our products are subject to a constant review process.

Q

Can you do OEM?

Yes, customized stainless steel hook and aluminum rail or components are available. And we will refund the mold/tooling charge once the order quantity reaches certain pcs.

Q

Are samples available?

Yes. Please contact us for more details.

Q

What is the package?

We normally pack the solar accessories by carton and then stack on plywood pallet. We apply orion pallet for long profile. All the pallets will be wrapped by film to keep water resistance. Customized package with your logo is available.
