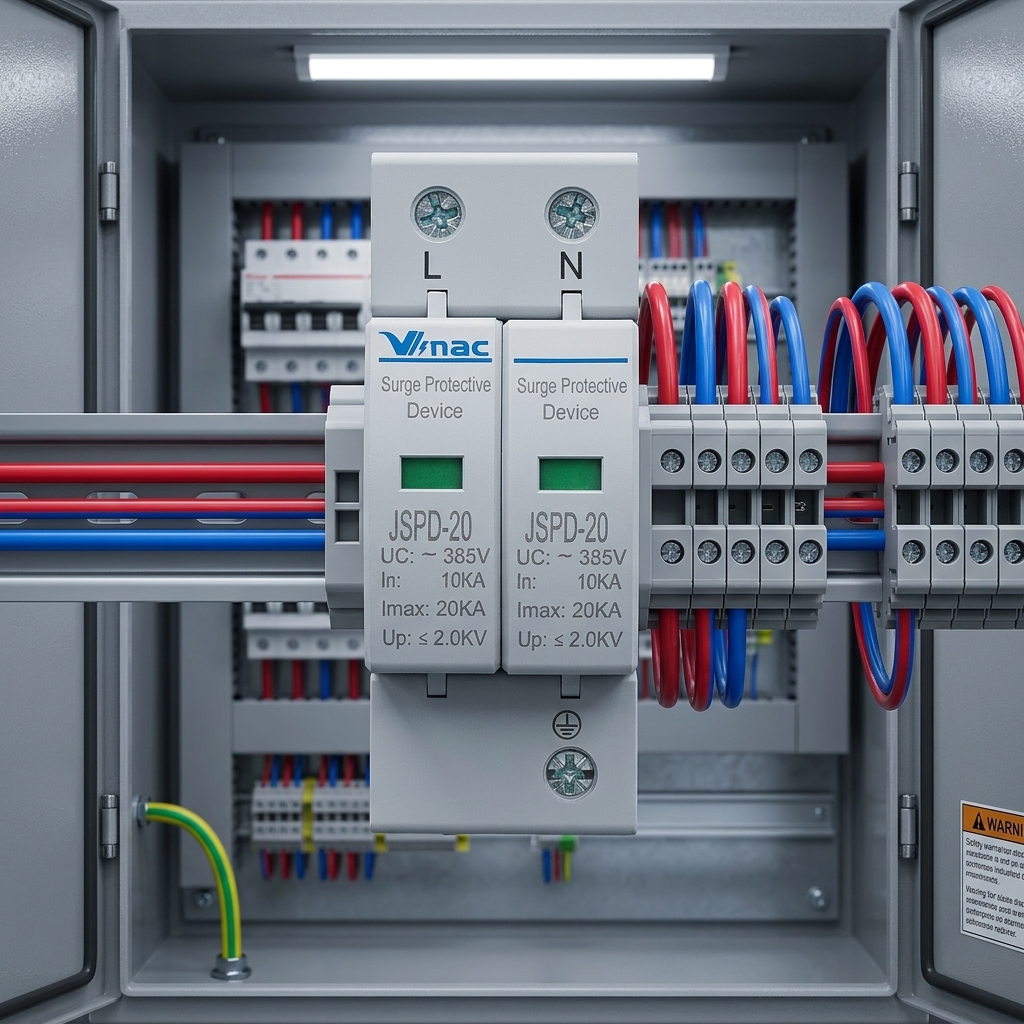

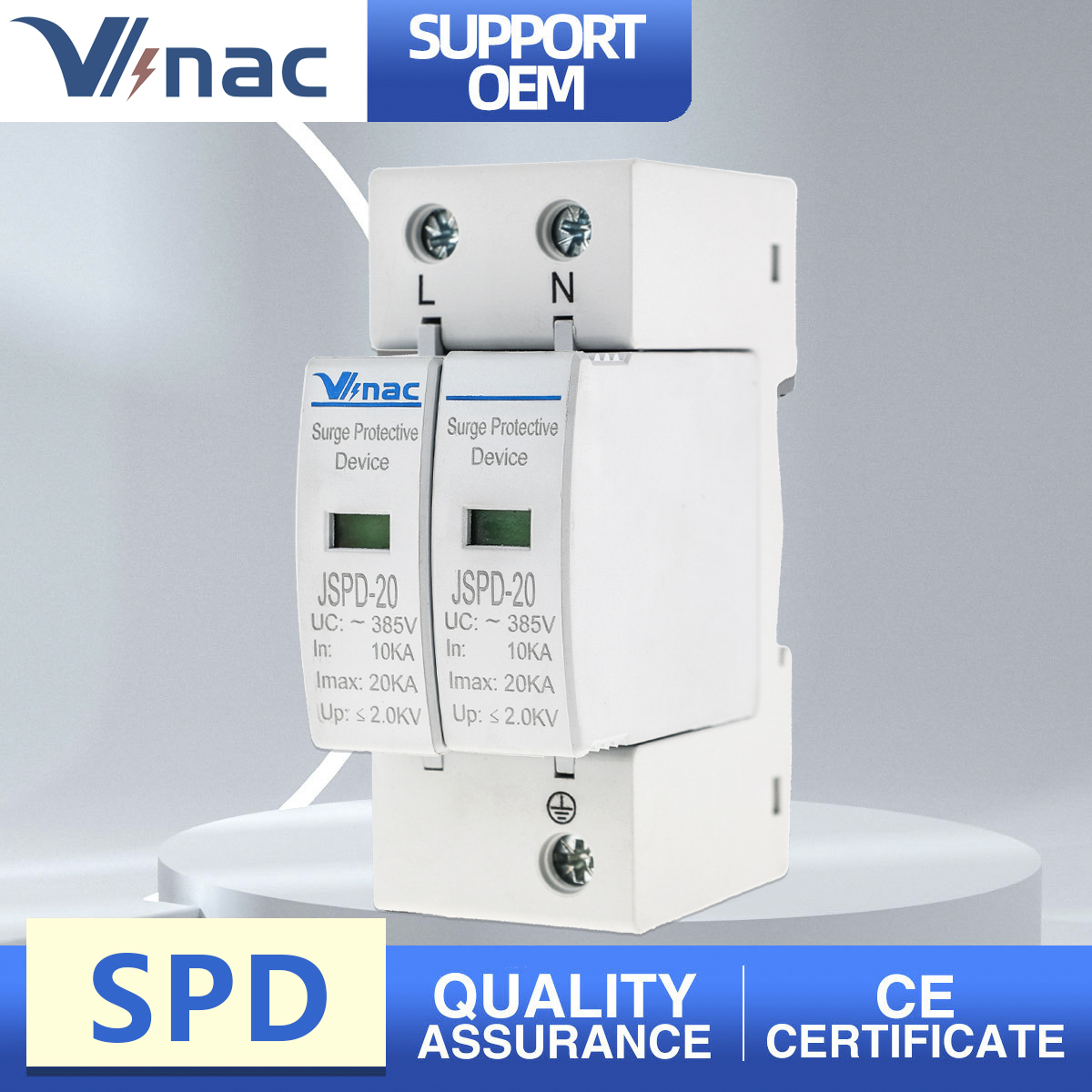

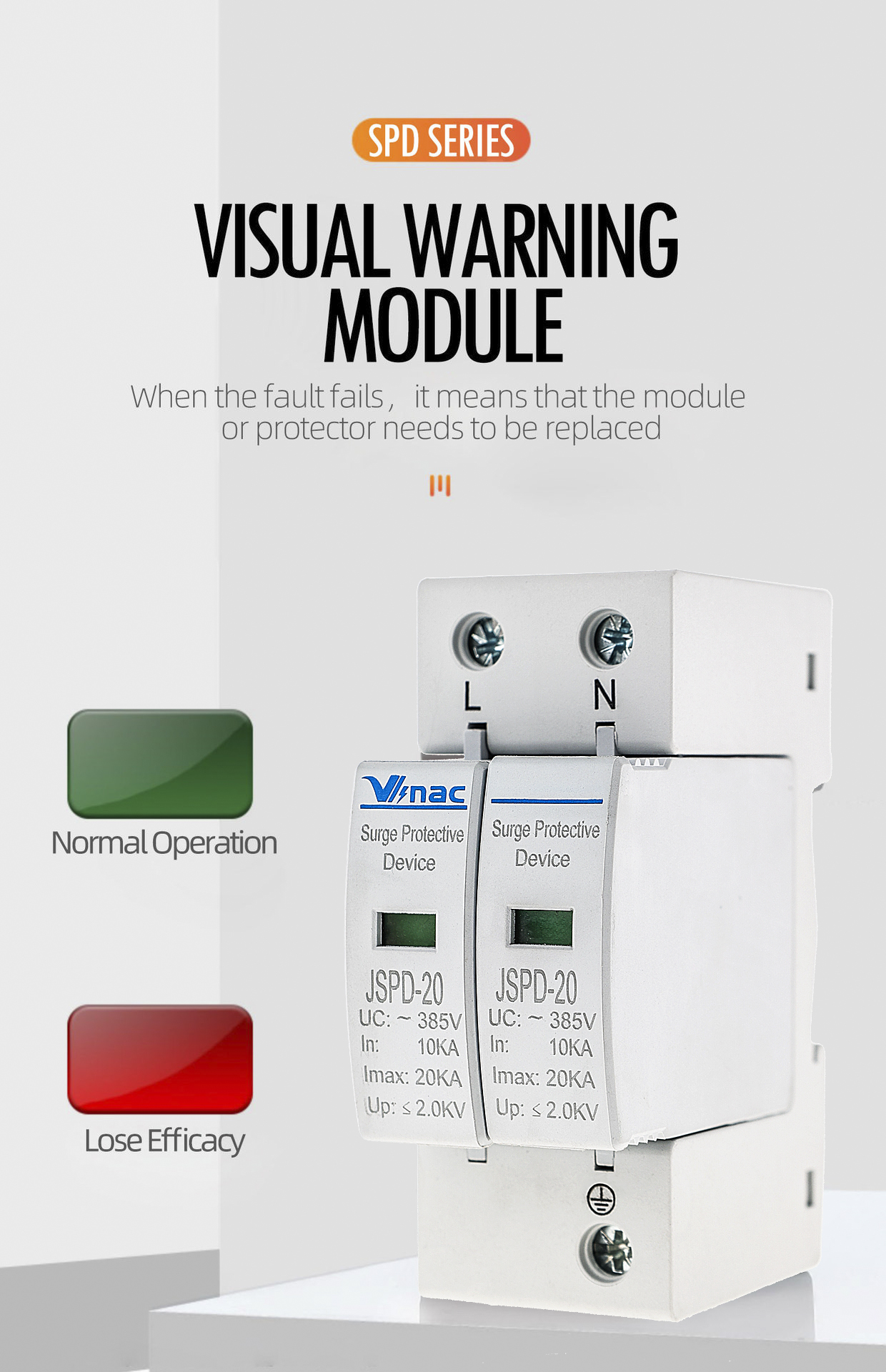

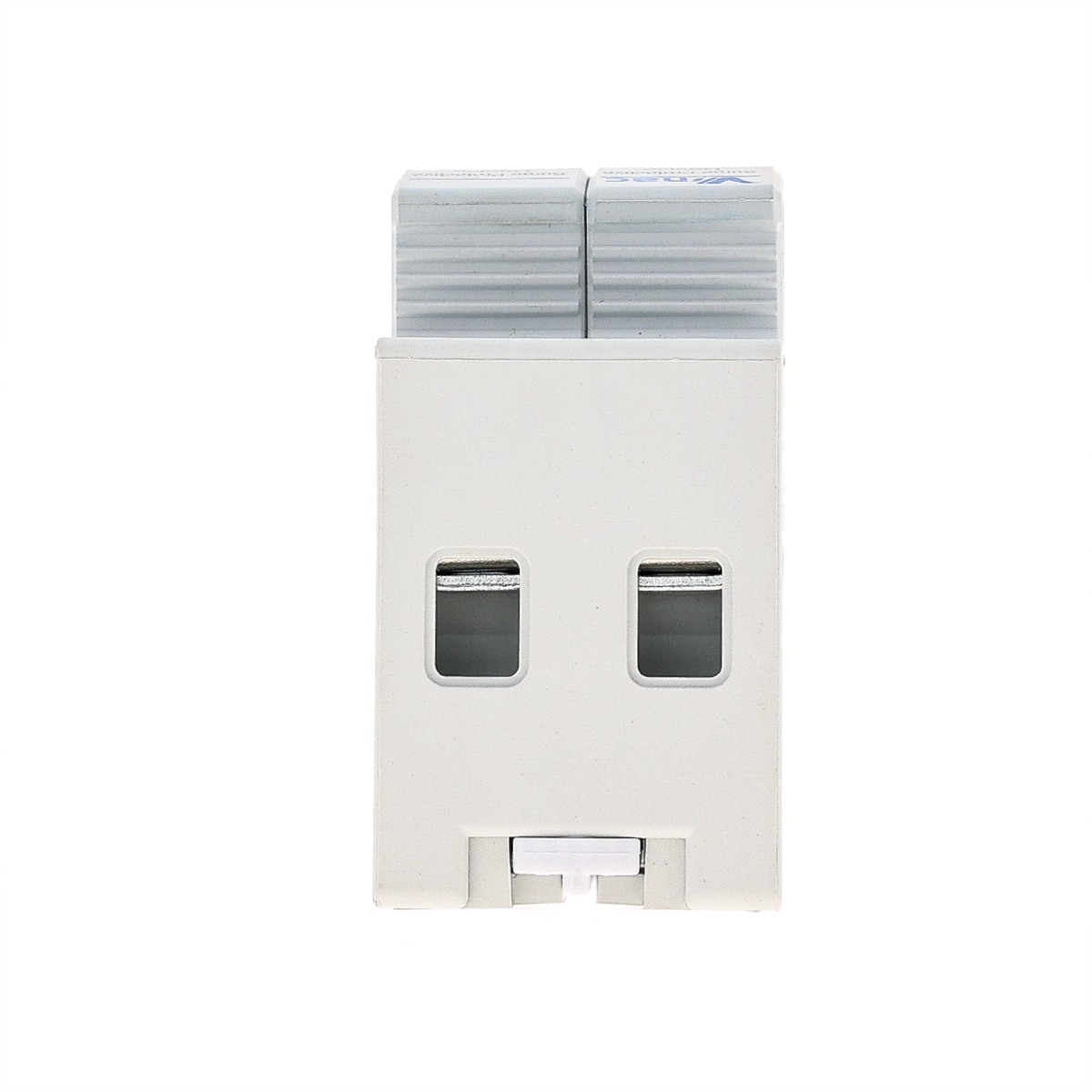

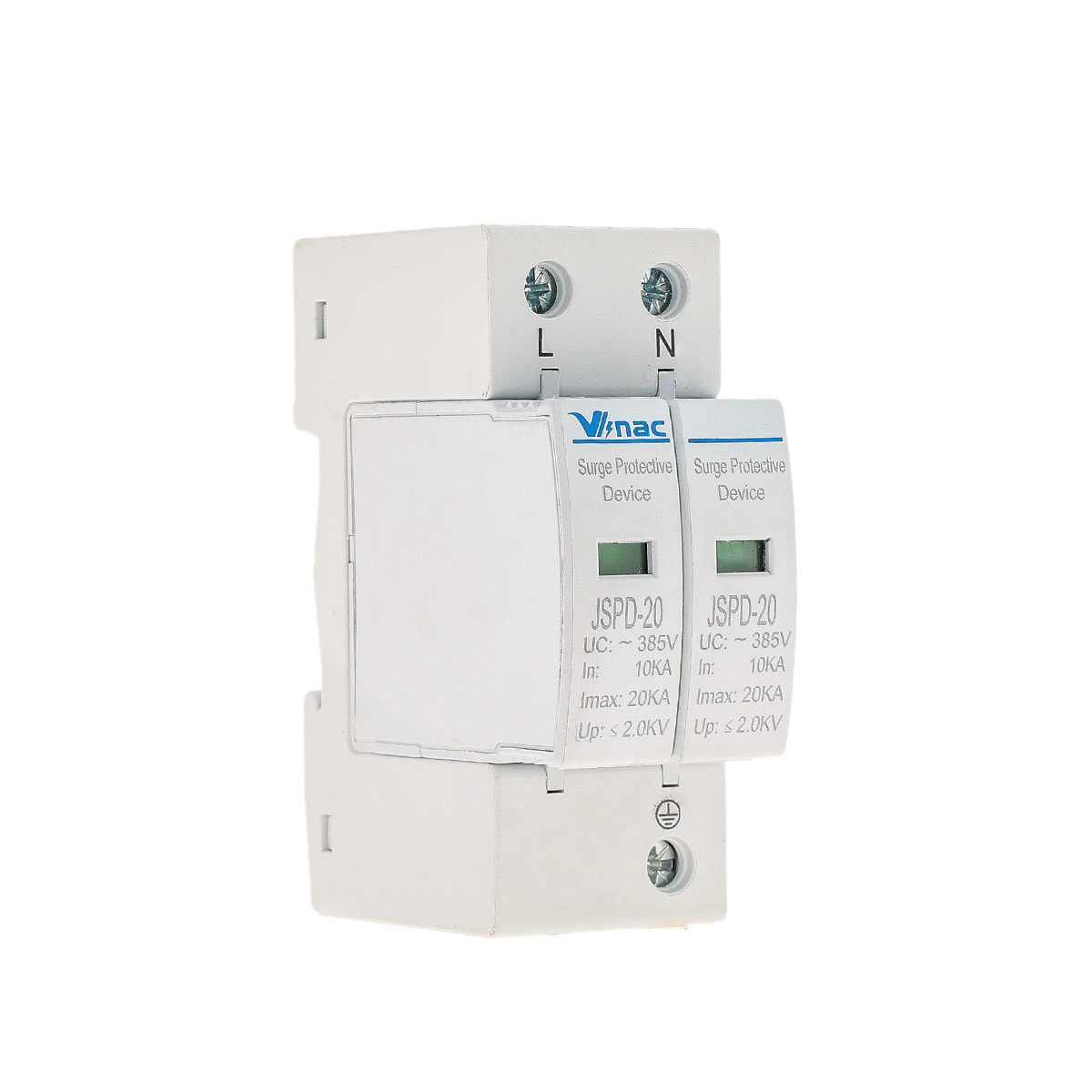

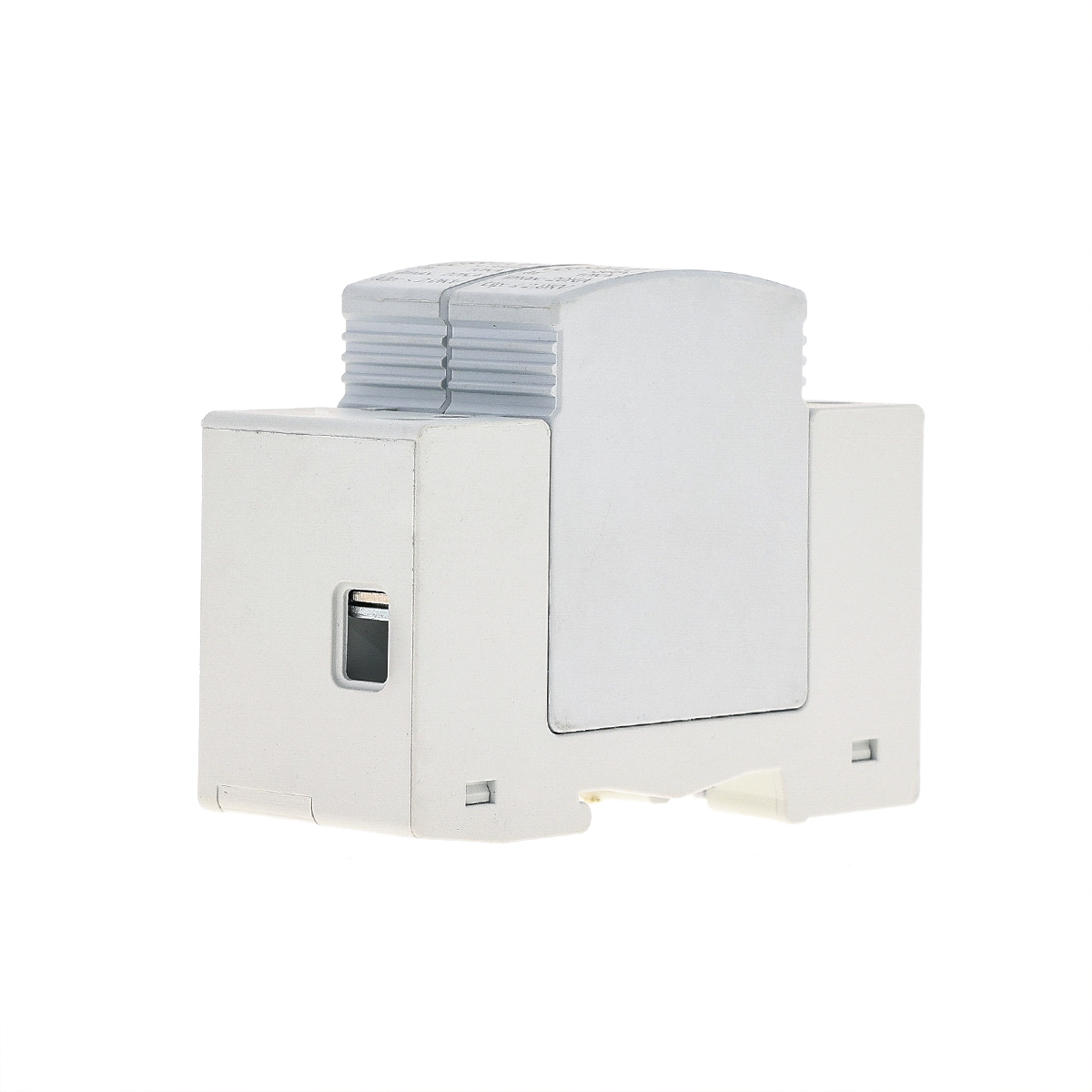

SPD 2P Surge Circuit Protector 20KA-60KA 220V-385V AC Industrial Copper Whole House T2 Lightning Protection

Send Inquiry

Product Description

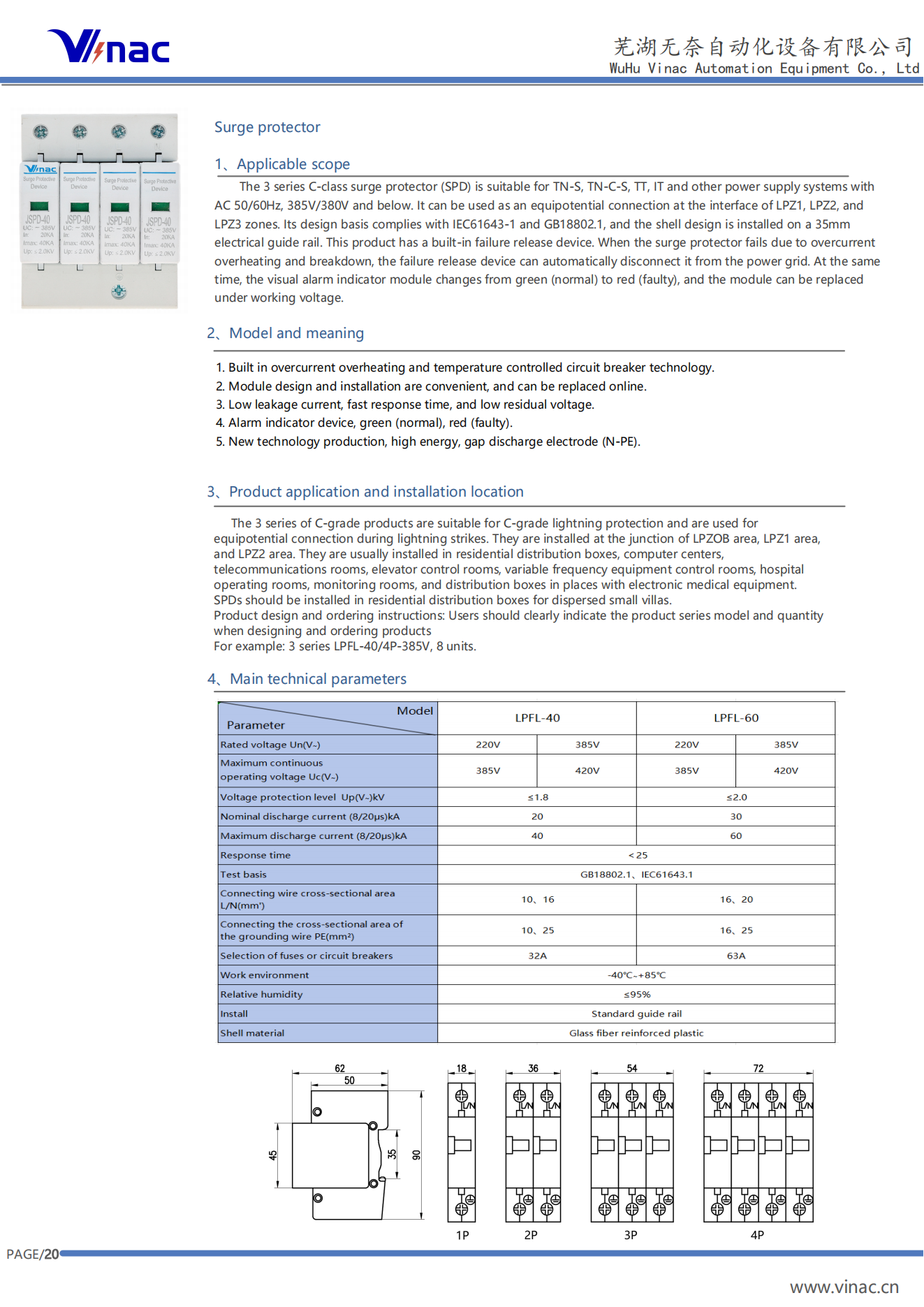

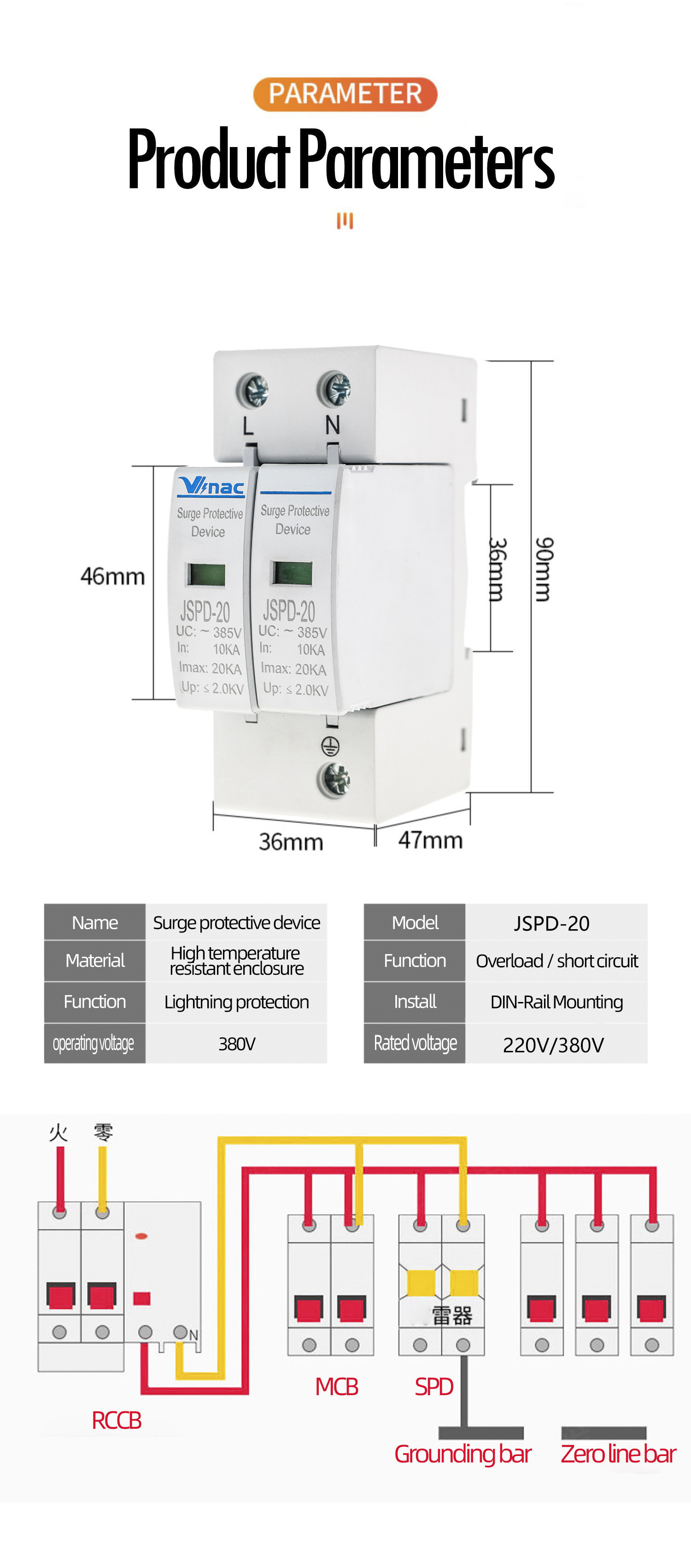

Technical Specifications

Parameter	LPFL-40		LPFL-60
Parameter	220V	385V	220V	385V
Rated voltage Un (V~)	220V	385V	220V	385V
Maximum continuous operating voltage Uc (V~)	385V	420V	385V	420V
Voltage protection level Up (V~) kV	≤ 1.8		≤ 2.0
Nominal discharge current (8/20μs) In (kA)	20		30
Maximum discharge current (8/20μs) Imax (kA)	40		60
Response time (ns)	< 25
Test basis	GB18802.1 / IEC61643.1
Connecting wire cross-sectional area L/N (mm²)	10, 16		16, 20
Connecting wire cross-sectional area PE (mm²)	10, 25		16, 25
Selection of back-up fuses / circuit breakers	32A		63A
Operating environment temperature	-40°C ~ +85°C
Relative humidity	≤ 95%
Installation method	Standard 35mm Din Guide Rail
Shell material	Glass fiber reinforced plastic (Flame retardant)

Frequently Asked Questions

Q When can I receive the quotation and detail information after sending the enquiry?

A reply will be sent to you within 24 hours.

Q Can I get a sample for test before placing an order?

Of course! Sample requests for testing and quality evaluation are welcome.

Q How is the delivery? Because I really need them urgently.

Samples typically take 5-7 days. Bulk orders require 12-15 days depending on the volume.

Q What is your shipment method?

We ship via Express (DHL/FedEx/TNT/UPS), air freight, sea freight, or rail transport based on your preferences.

Q If I want to release the order, what payment methods do you accept?

We accept T/T, PayPal, Western Union, L/C, and Trade Assurance.

Q Do you test all your goods before delivery?

Yes, we perform 100% testing and quality check on all products prior to dispatch.
