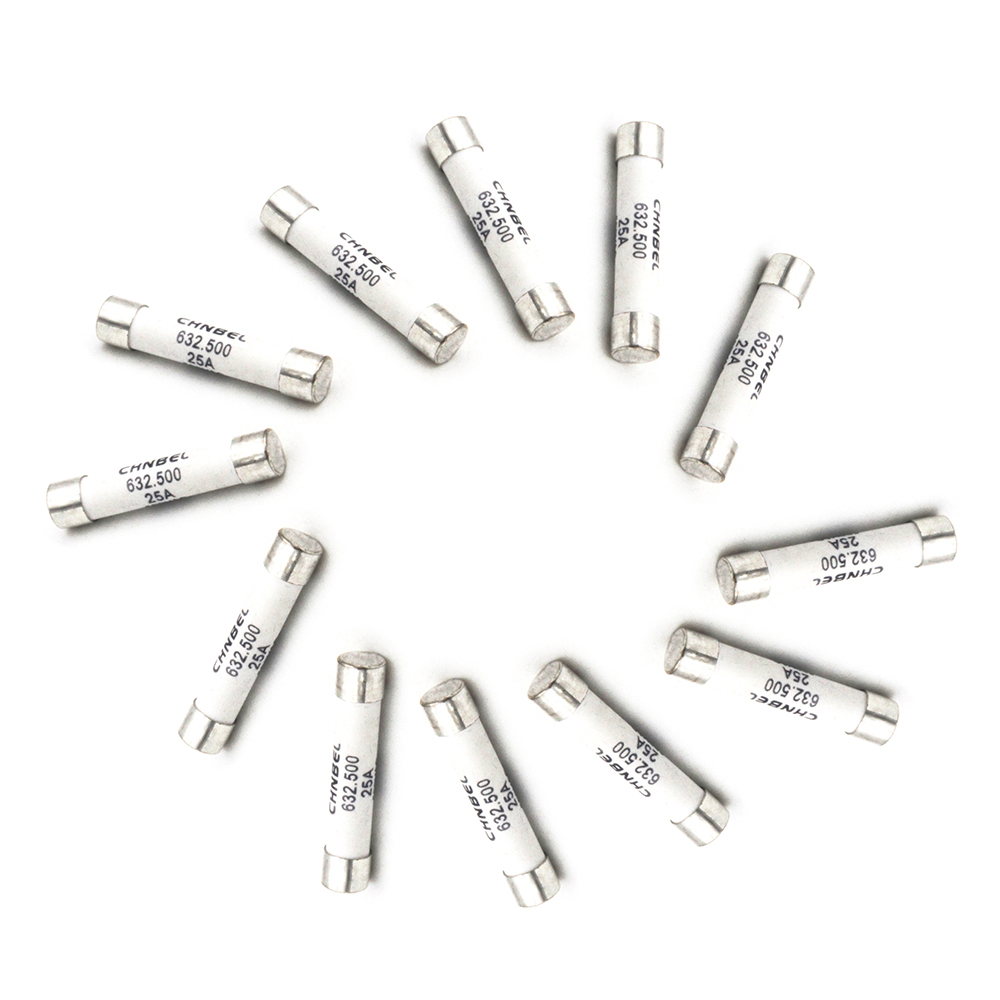

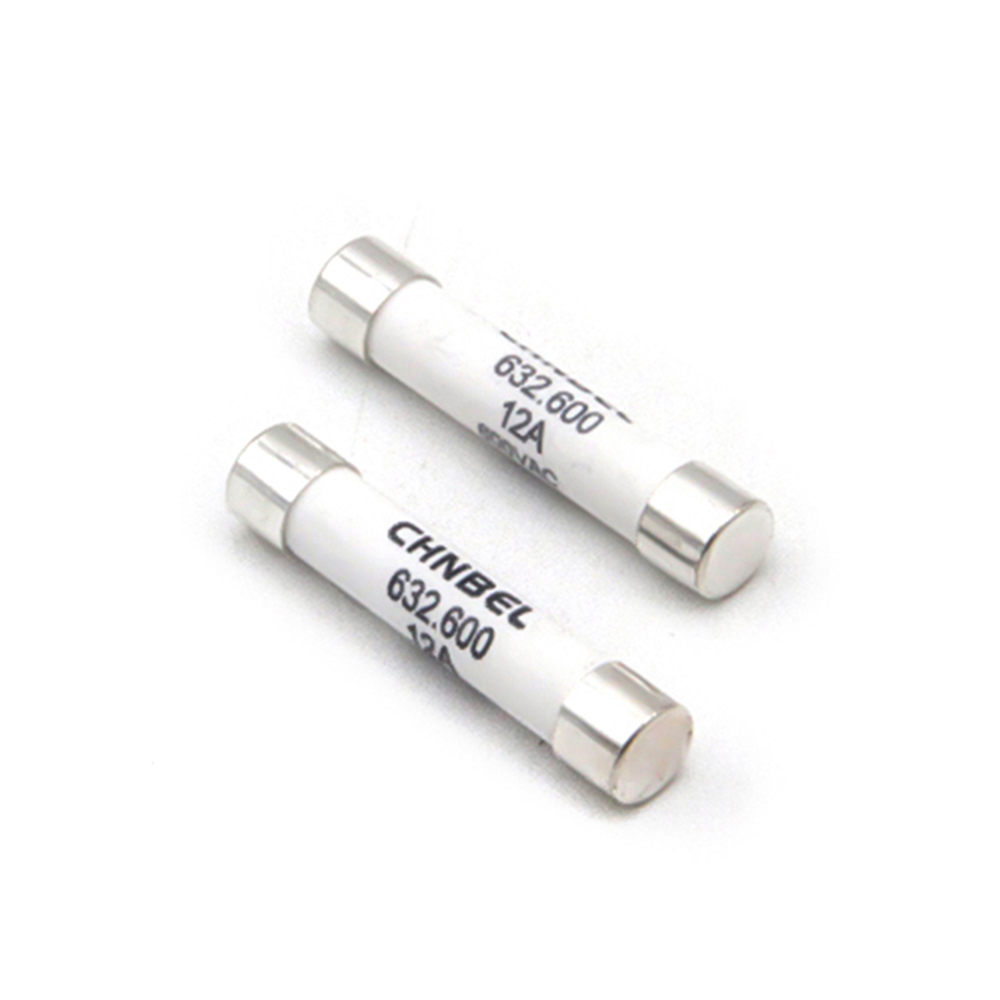

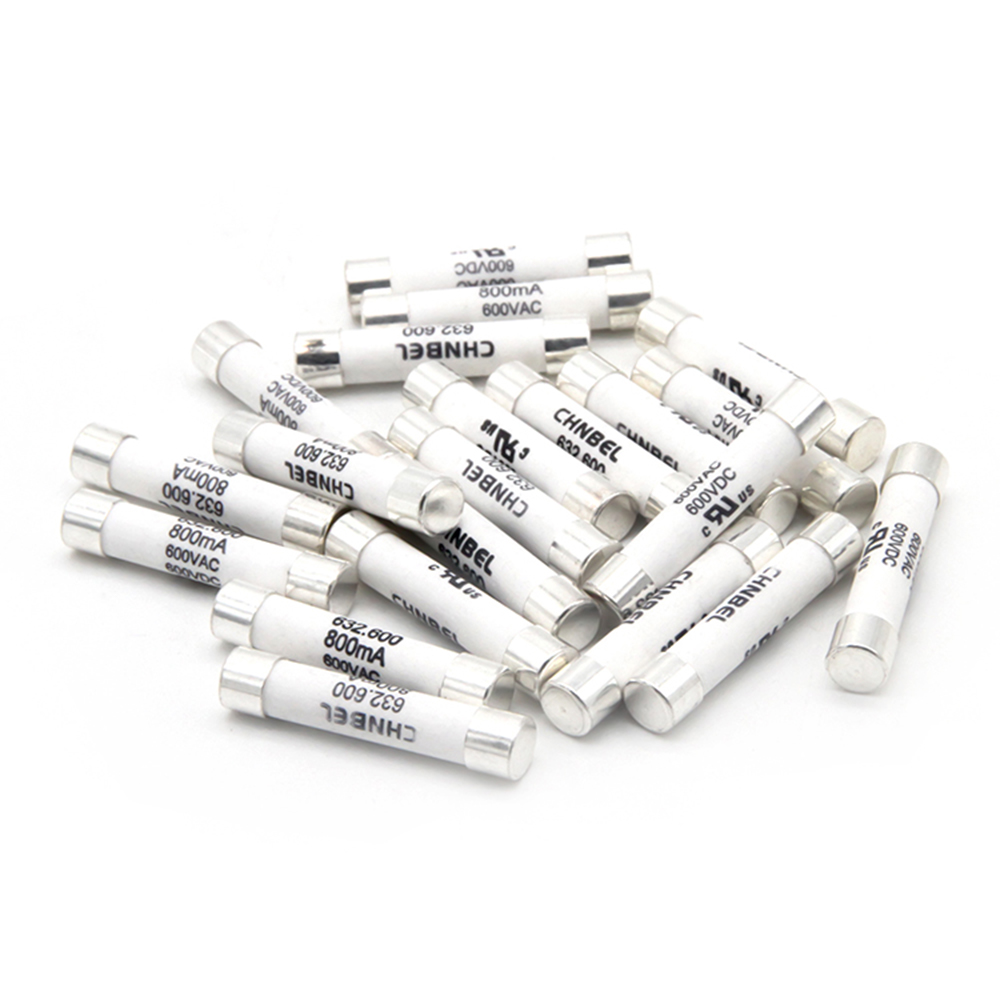

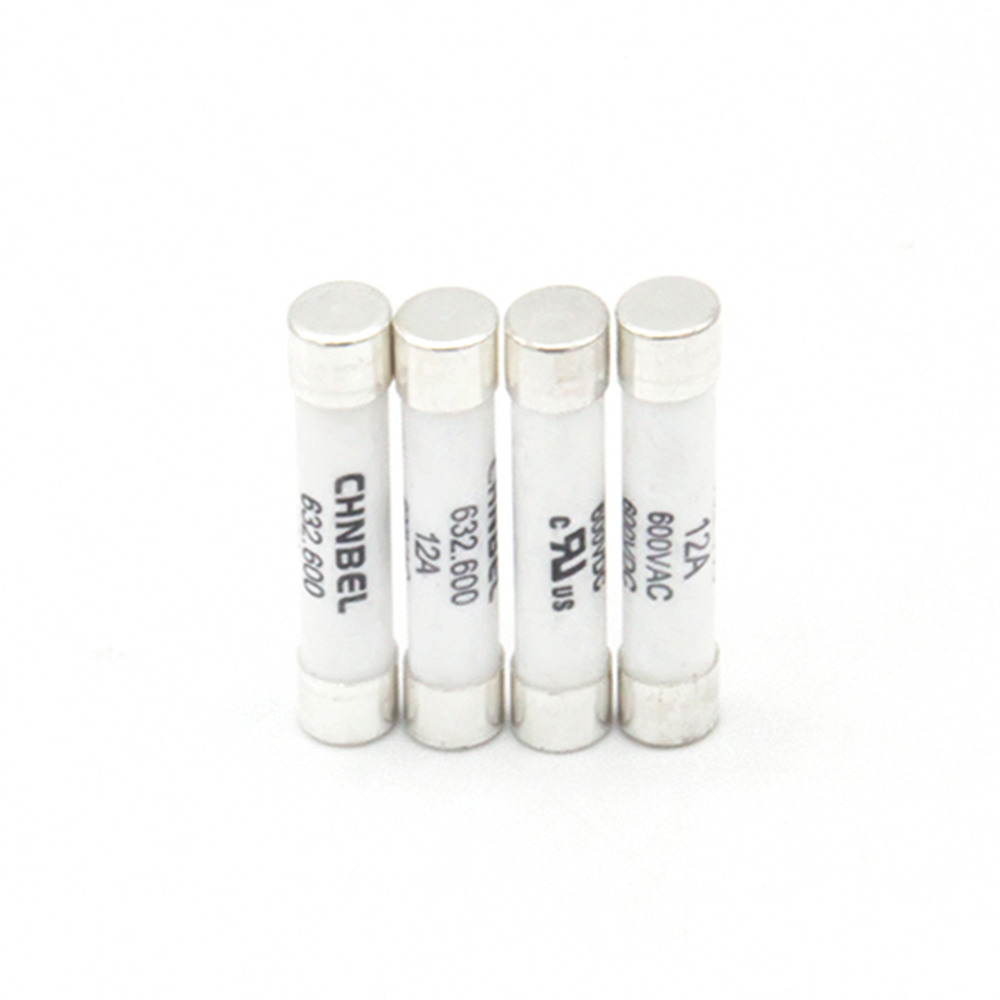

Multimeter Fuse 10a 600v / Fast Acting Ceramic Fuse-links

Class of Operation: Ultra fast acting (FF)

Ratings:

• Volts: 600Vdc
• Amps: 10A
• IR: 10kA@1000Vdc

Standards / Approvals for Reference:

• Standard: UL 248-1

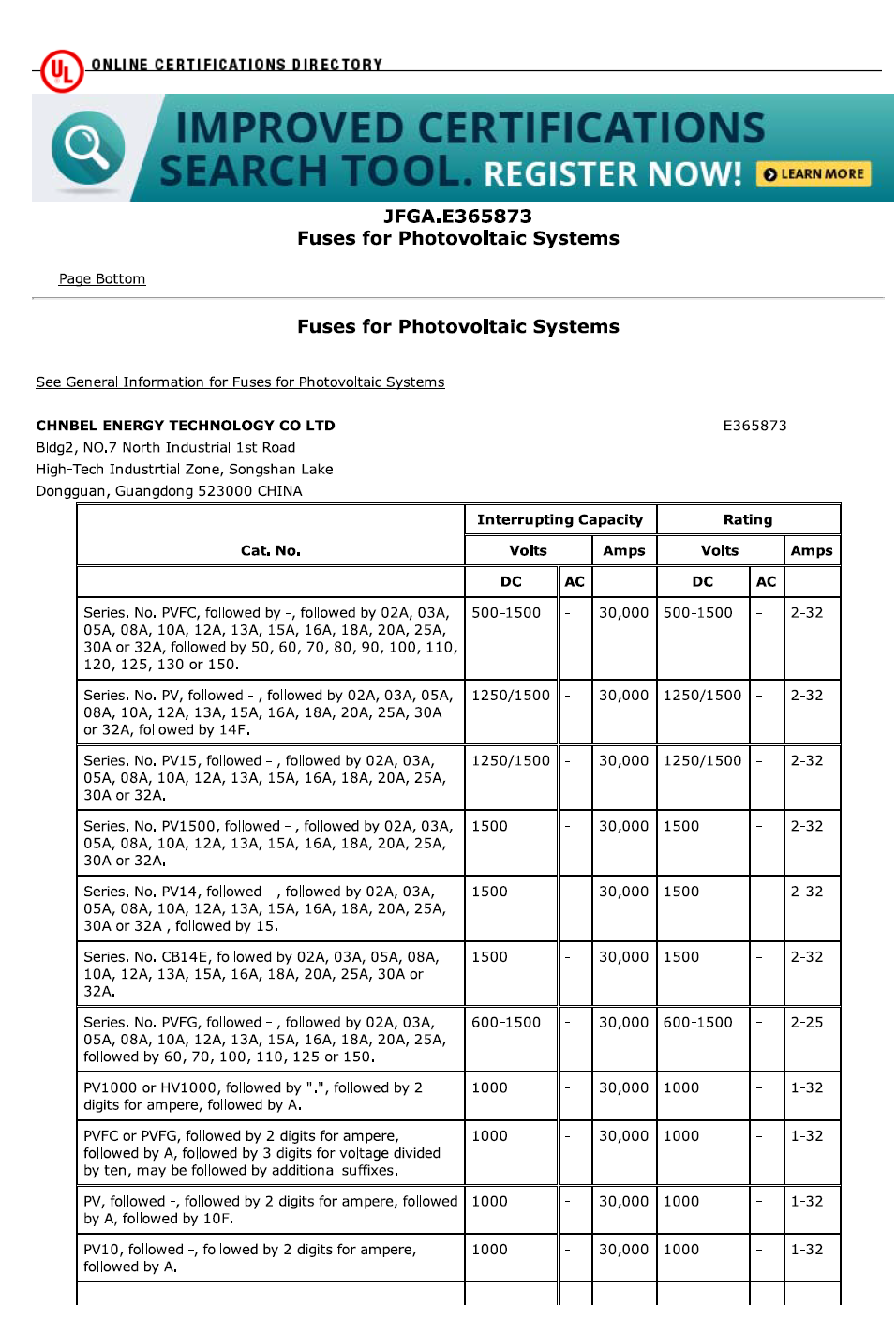

• Agency File Number: JDYX2 E365879

Features & Benefits:

• Fast acting, high breaking capacity

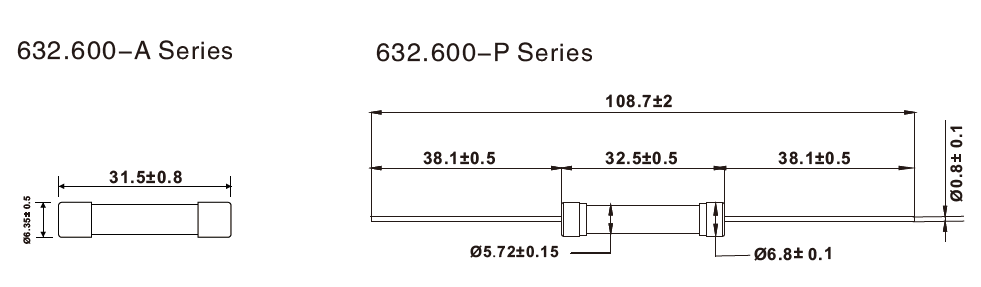

• 6 x 32mm physical size
• Ceramic tube, Silver plated copper cap
• Lead free and Halogen free material
• Normal operating conditions: -5°C ~ 40°C
• Permissible conditions of use: -40°C ~ 125°C

Ceramic Tube Structure

Ceramic Tube: No breakage and cracks

Verification 1: Fix the end caps on both sides, apply 30N pressure at the center of the ceramic tube, and the ceramic tube shall not break.

End Caps Specifications

The end cap shall be welded/riveted firmly, and the end cap shall not fall off without the elements damage.

• Verification 1: Soaking in 15-35°C water for more than 24hrs, then apply a pull force of 7N is evenly to both caps for 60s. The end caps should not fall off.
• Verification 2: Fix one of the caps, apply 7N tension along the horizontal axis on the other cap, and the caps on both sides shall not be loose and the body shall not be broken.
• Verification 3: Fix one of the caps, apply 50N torque to twist the other cap in the clockwise and counter-clockwise direction, and the caps on both sides should not be loose and the body should not be broken.

Electrical Characteristics Details

• All the test conditions were carried out at 23±5°C. During this period, the variation of lab temperature should not exceed ±5°C.
• Load capacity test: when the fuse is tested at 100% rated current, the circuit shall not be disconnected, the fuse shall not be electrically fused, and the body shall not be broken within 4 hours.
• Temperature rise test: The fuse is tested at 100% rated current, when the fuse reaches heat balance, temperature rise of fuse surface and the caps must be no more than 130°C.
  *Note: Temperature appreciation is constant fuse surface temperature minus current room temperature (ambient temperature).

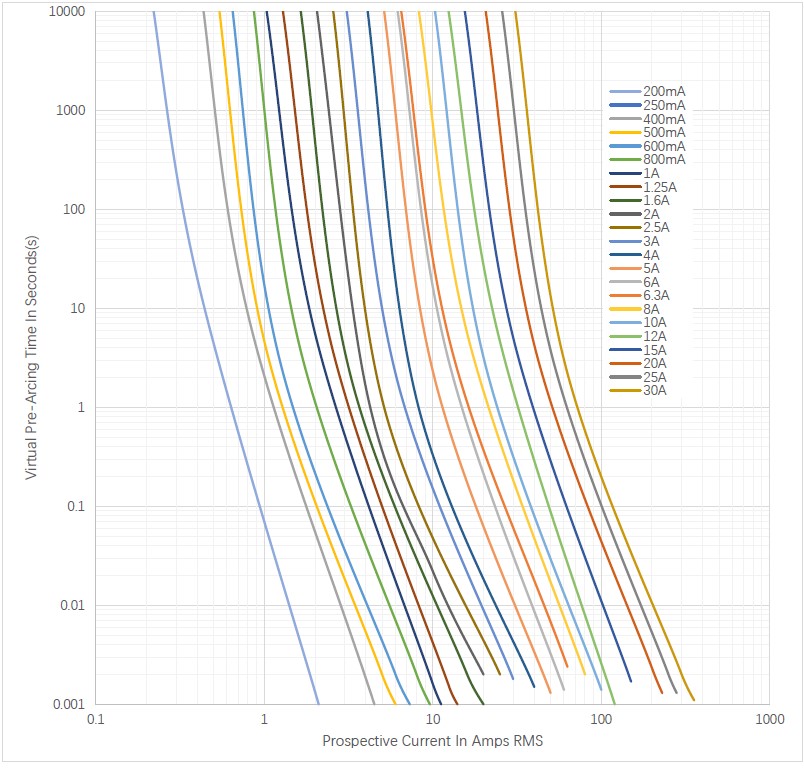

• Current characteristics: When the fuse passes at the current specified below, the fuse time must meet the requirements of the table. The tube body should not be broken and the end caps should not fall off after fuse.

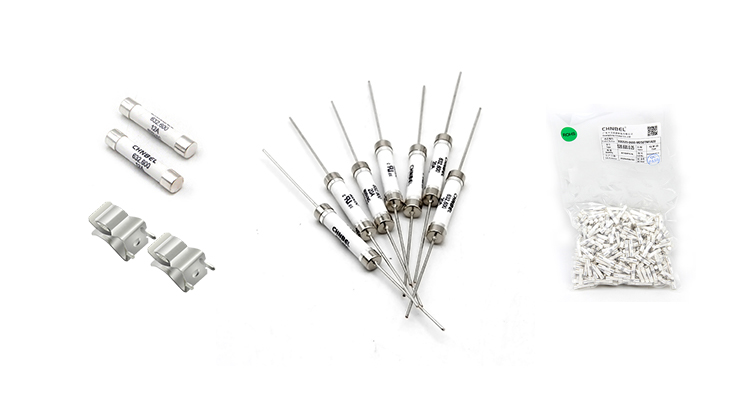

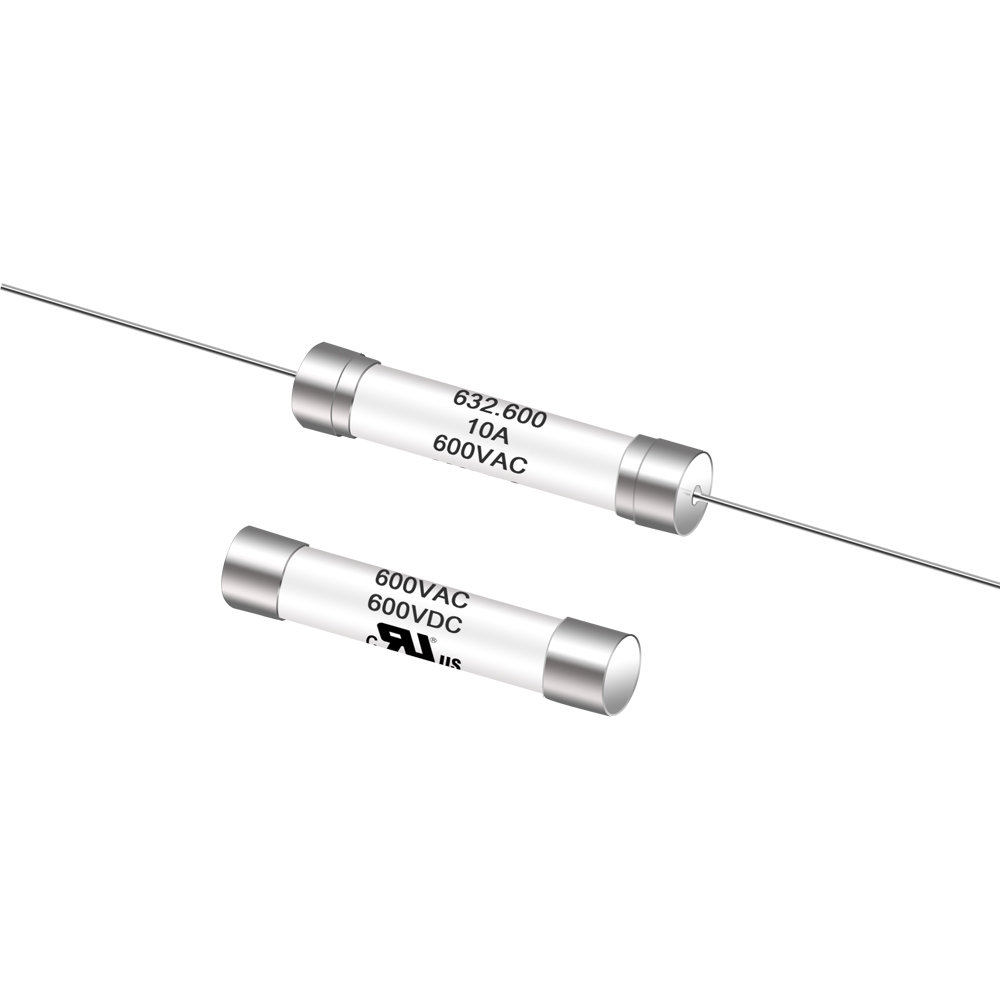

💡 Cartridge uses with fuse clips: dia. 6mm x length 32mm

💡 Fuses with pig-tails

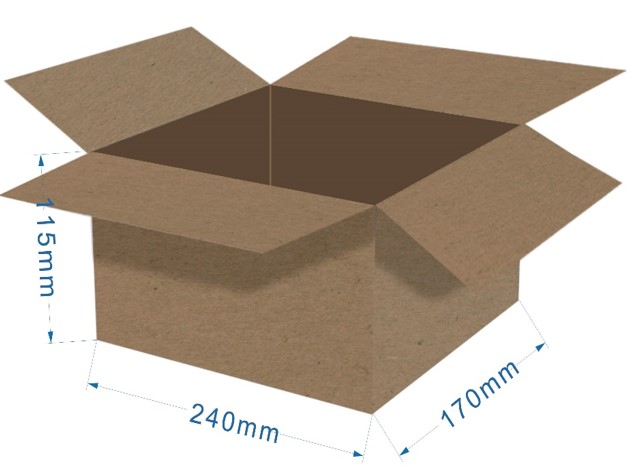

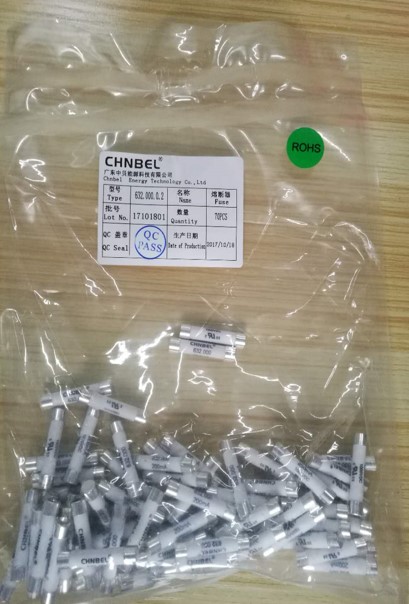

💡 Vacuum packaging, 150*250mm, 200pcs per bag

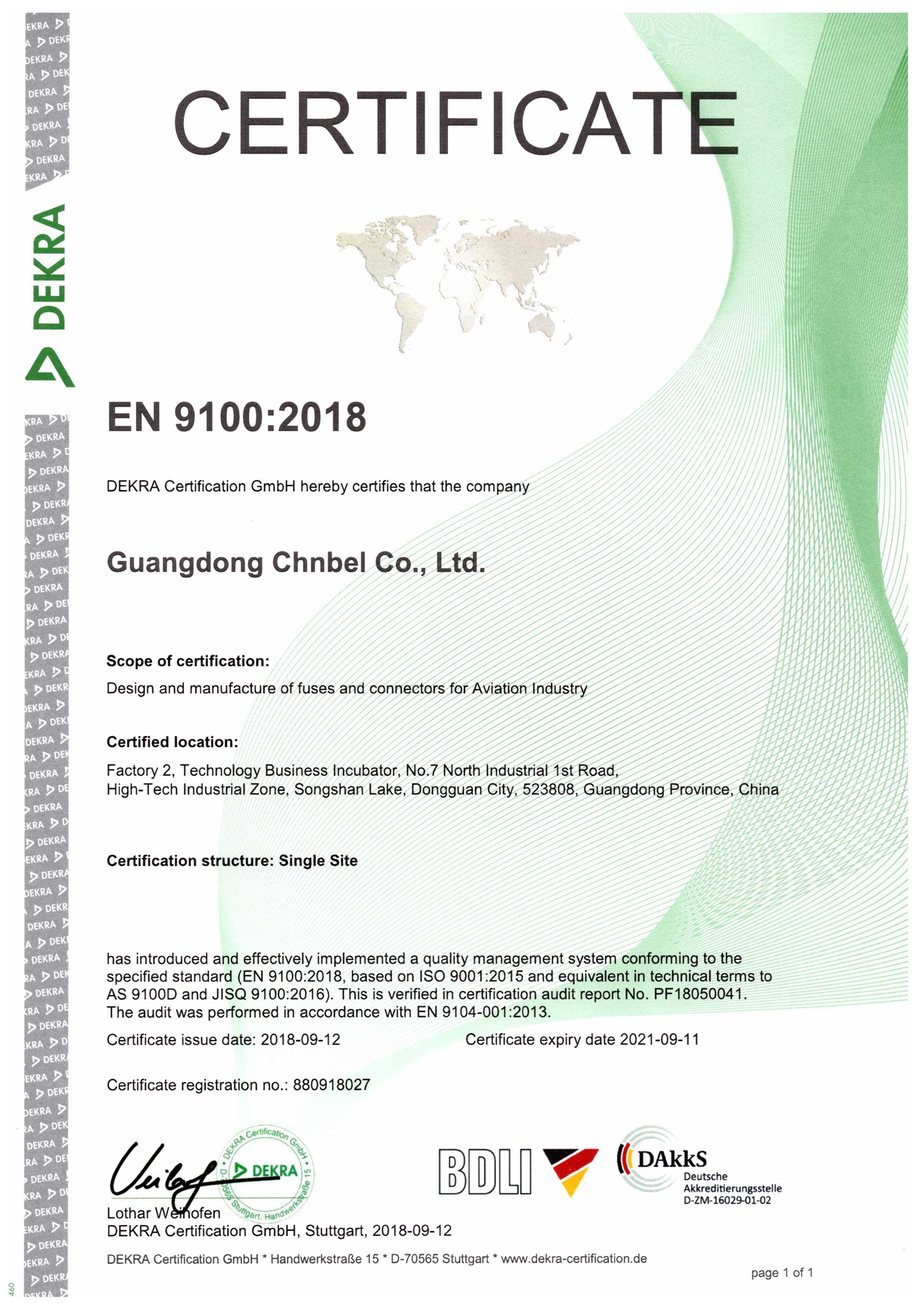

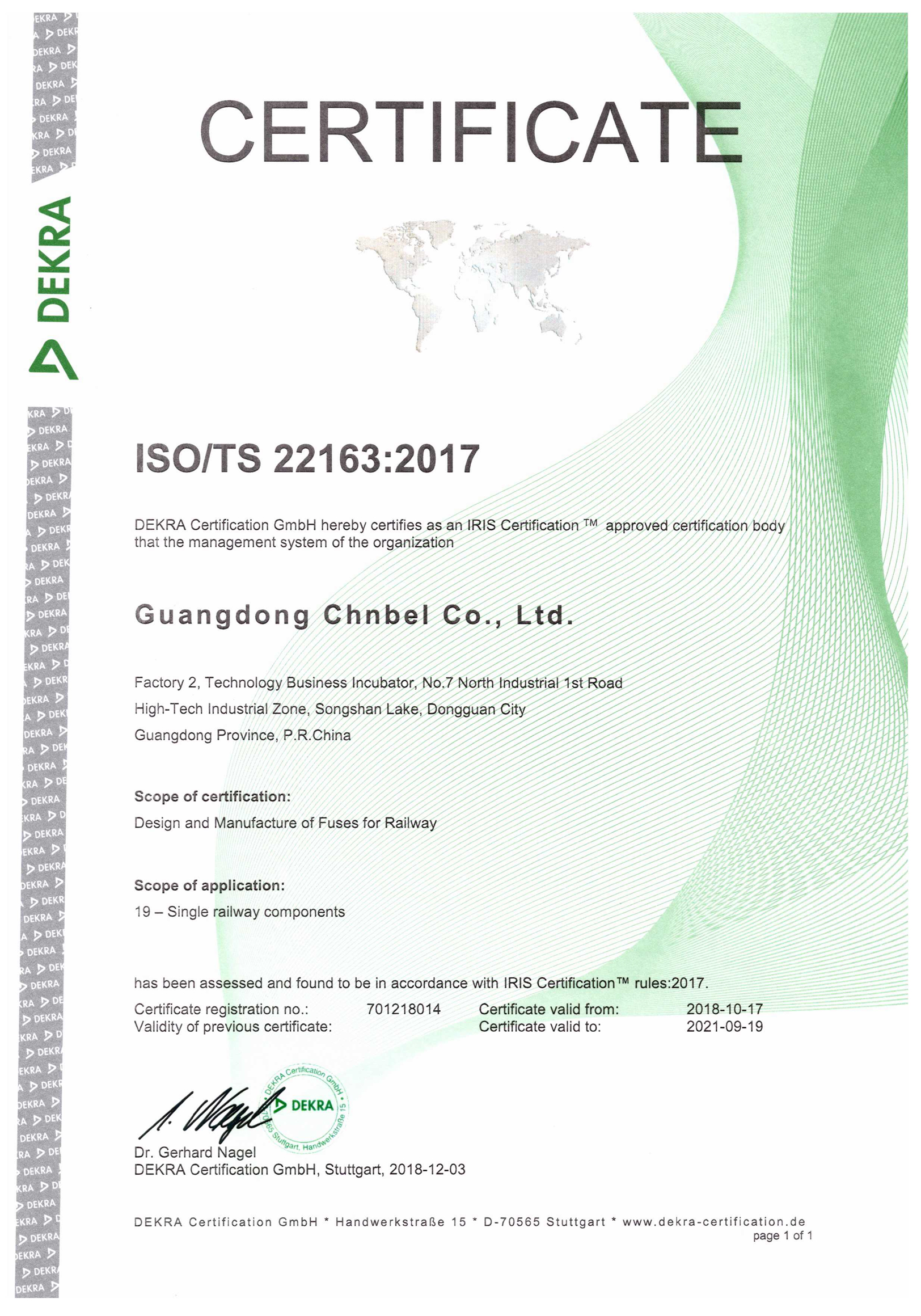

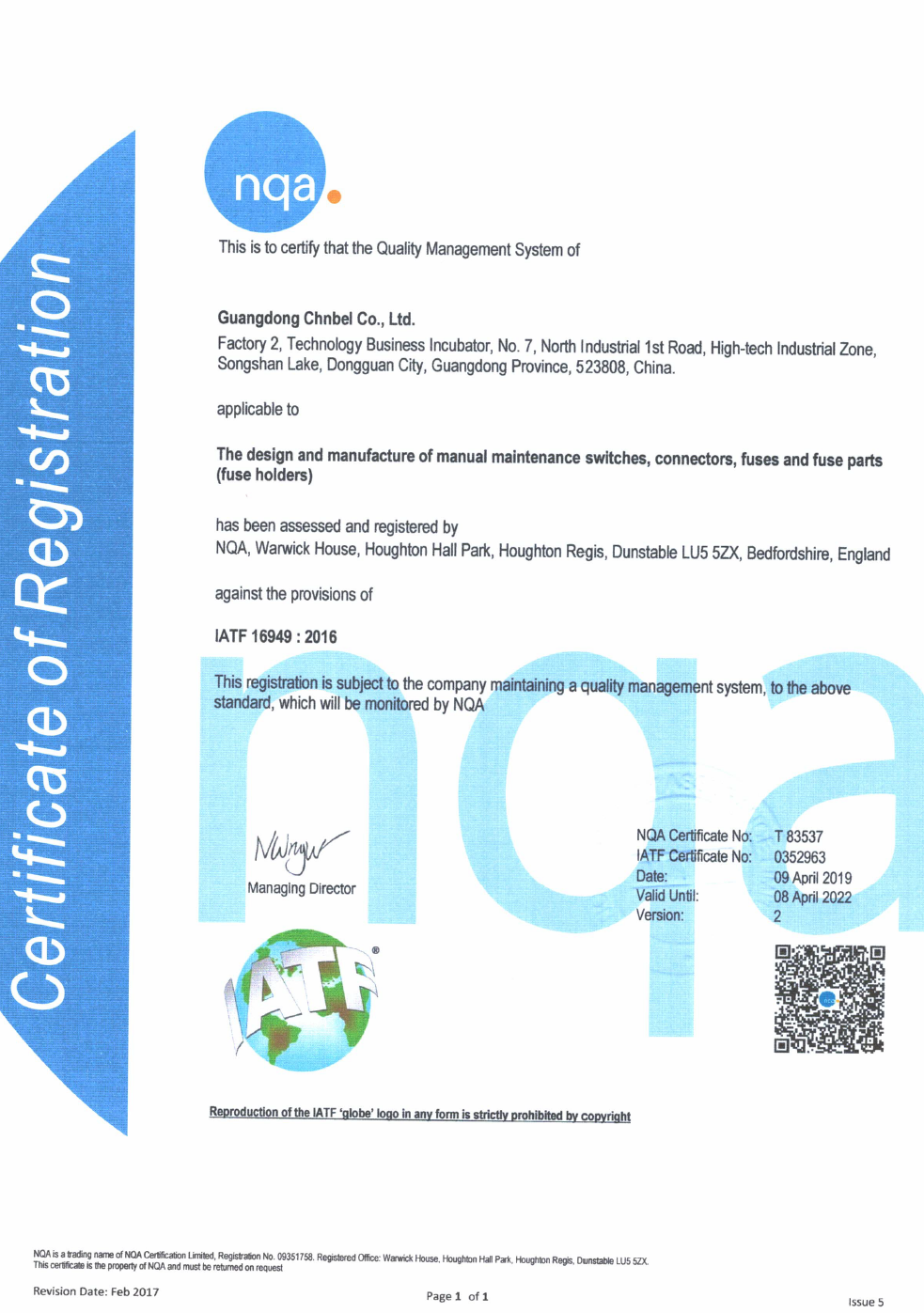

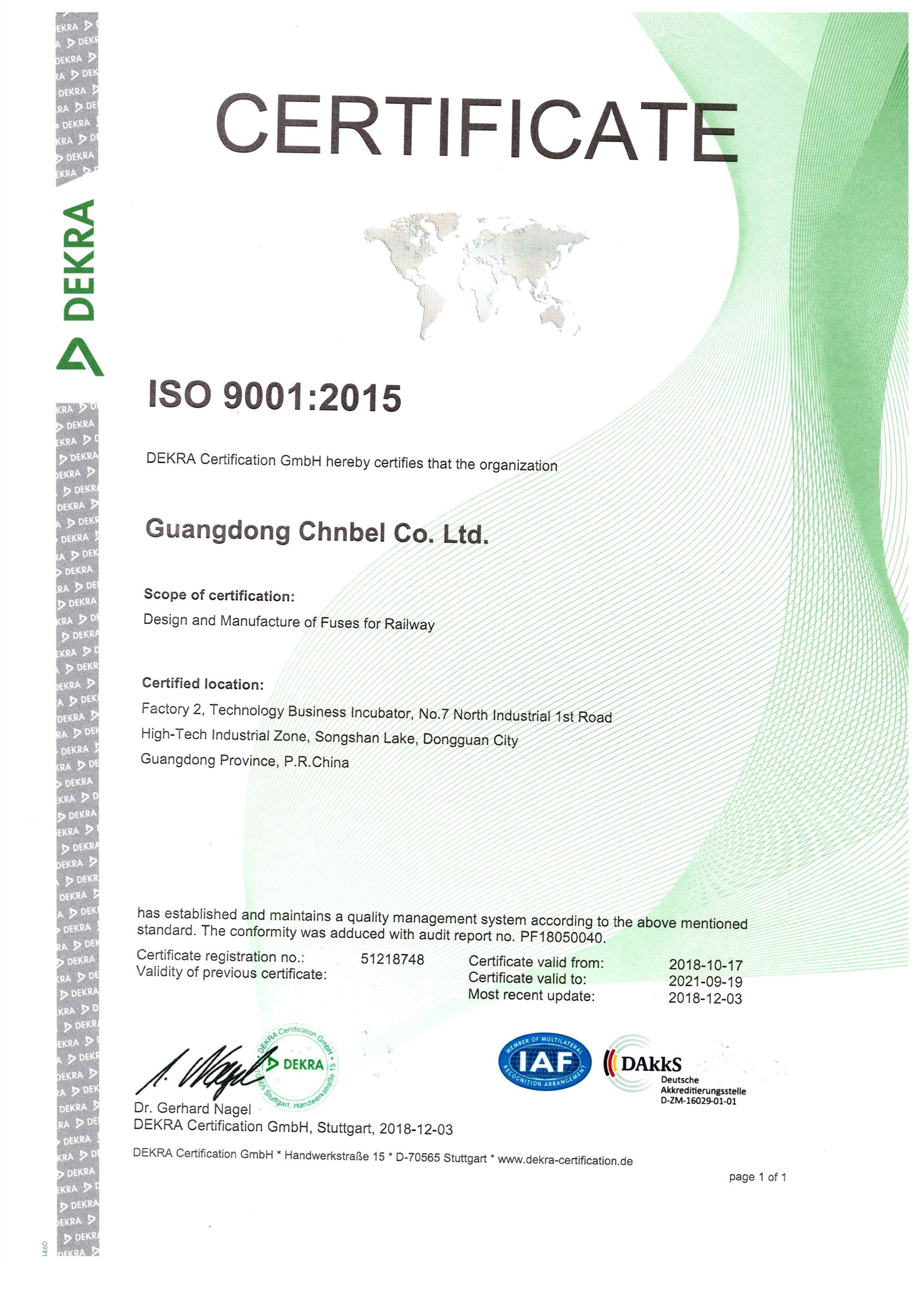

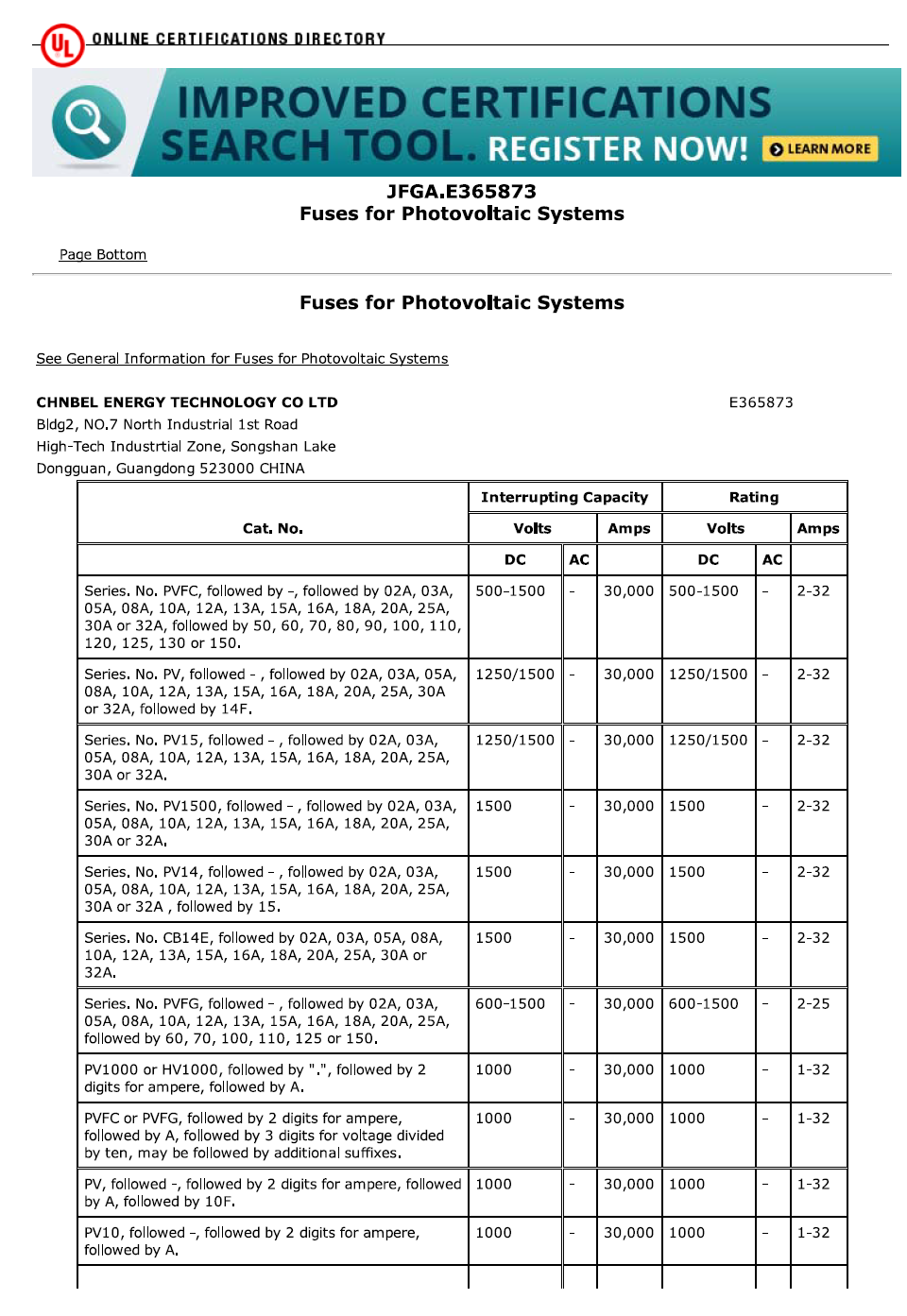

Certified Systems: IATF16949:2016, ISO/TS22163:2017, AS/EN9100：2018, ISO 9001:2015, ISO14001：2015, OHSAS1800

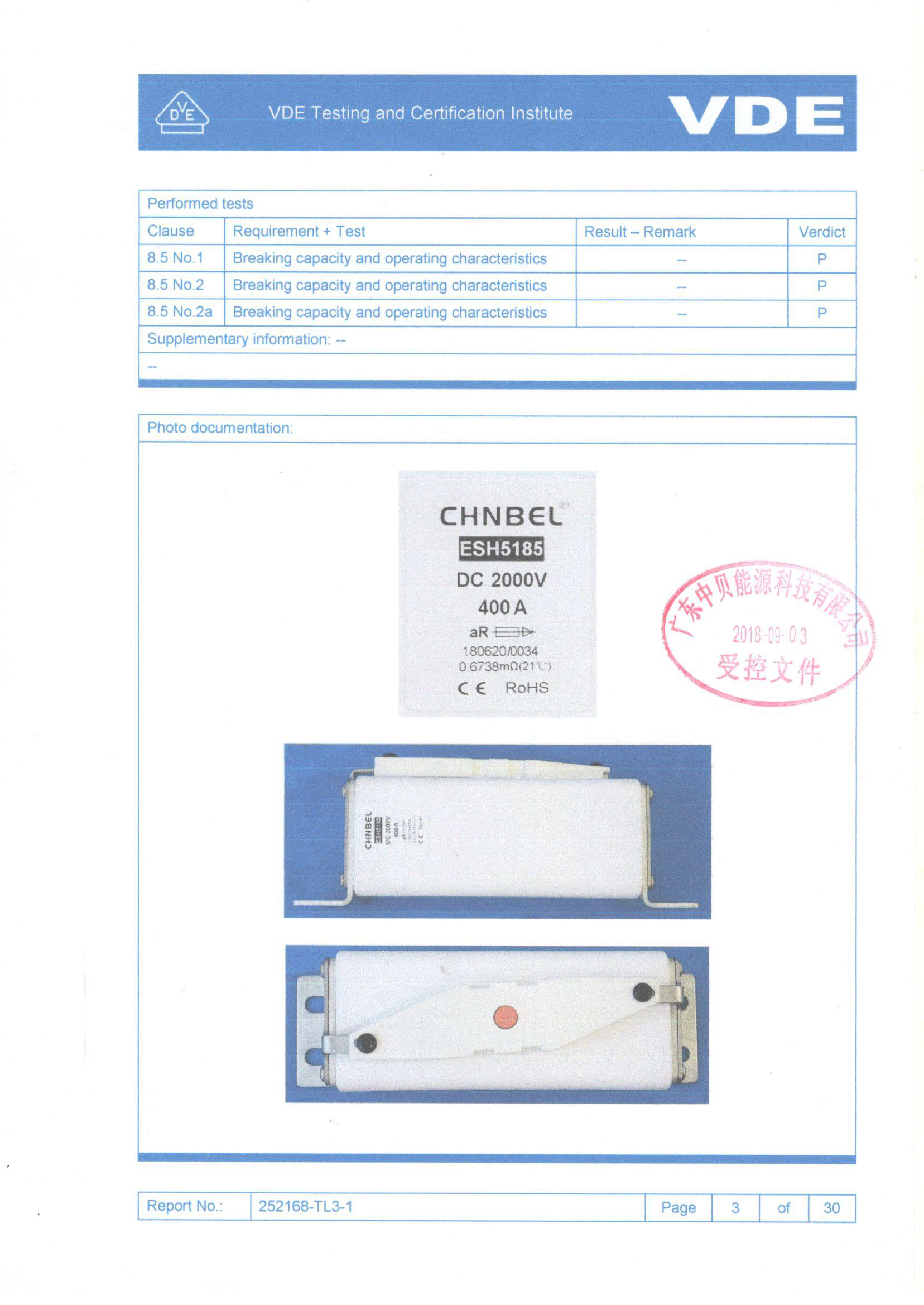

Electrical Performance Test

• Breaking Capacity Test
• Temperature Rise/Power Consumption Testing
• Overload Capacity Test
• Agree to Fuse, Agree Not to Fuse Test (IEC 60269, GB13539)
• Fuse Current Pulse Cycle Fatigue Test

Ambient Test

• Vibration Test (JASO-D622, GBT31467.3)
• Hot and Cold Impact Test (MIL-STD-202G)
• Temperature and Humidity Cycle Steam and Aging Test (GB/T2423)
• Salt Spray Test
• Horizontal and Vertical Combustion Test
• Glow Wire Test

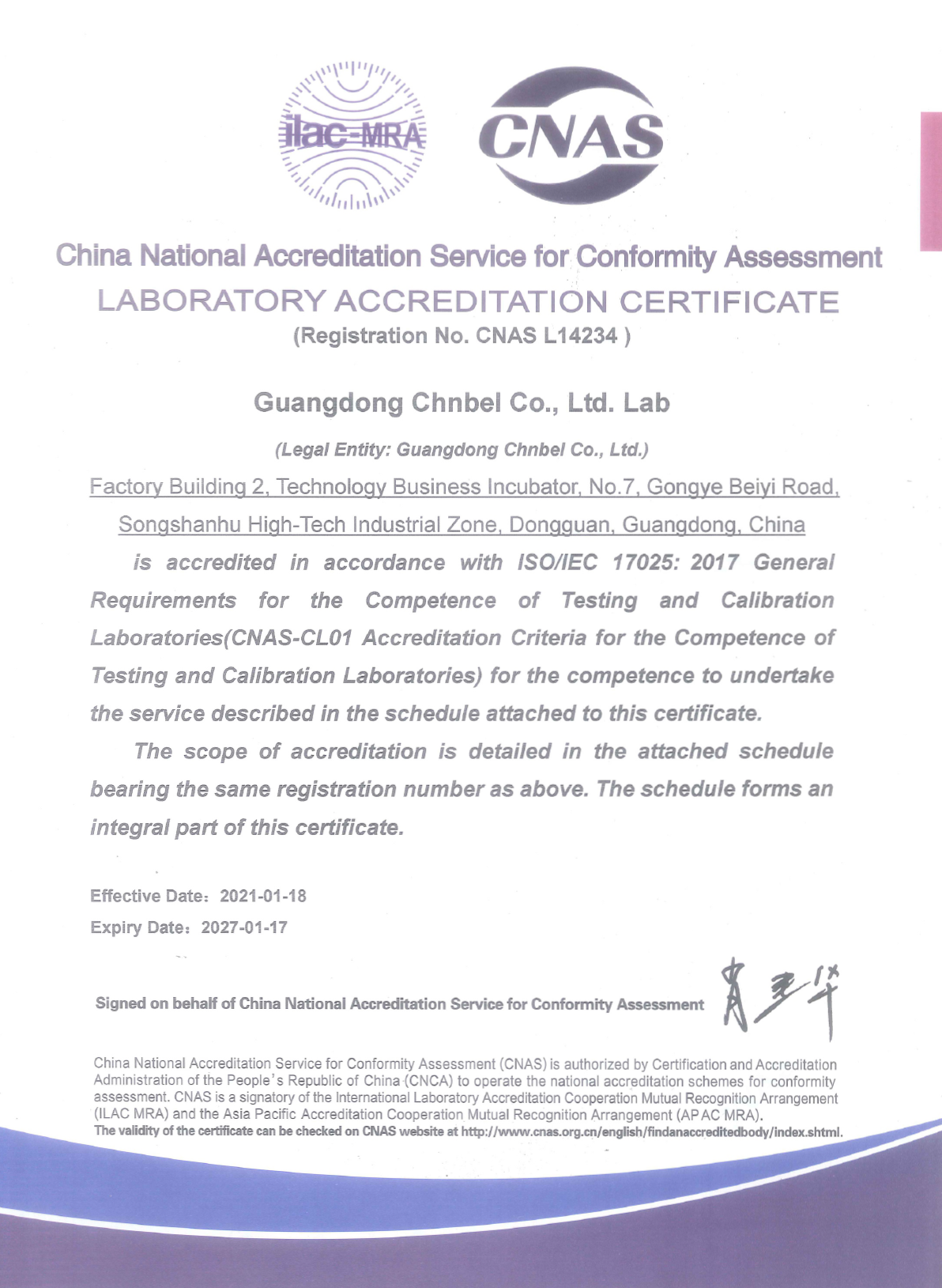

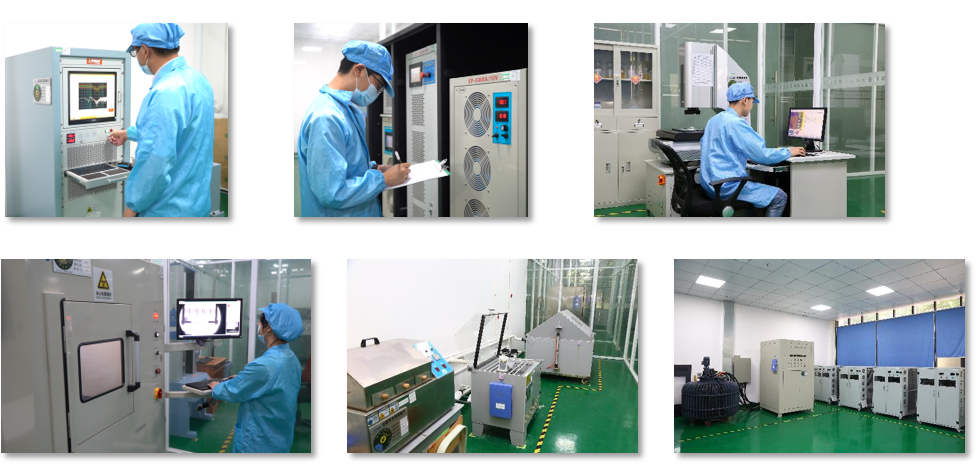

CNAS CERTIFICATE

Registration No. CNAS L14234

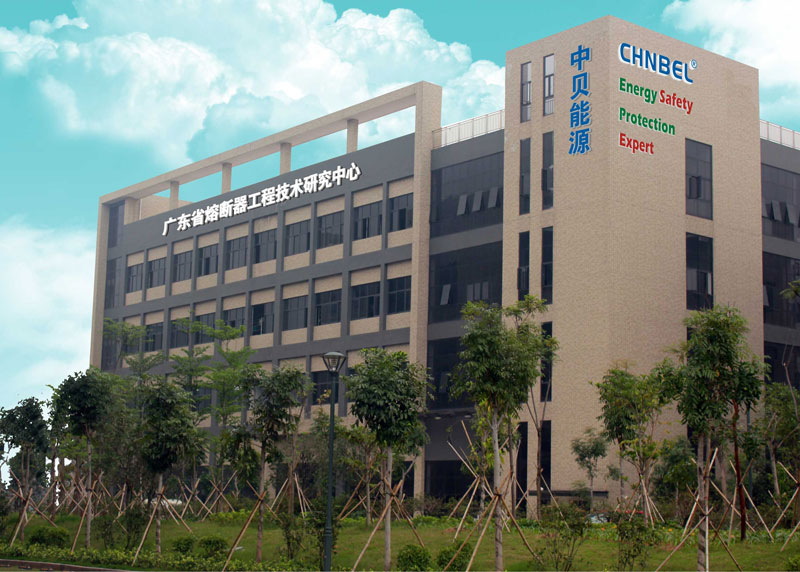

• 🗓️ Year Founded: 2008
• 👥 Employees: 200
• 📐 Area: 12,000 sq. meters

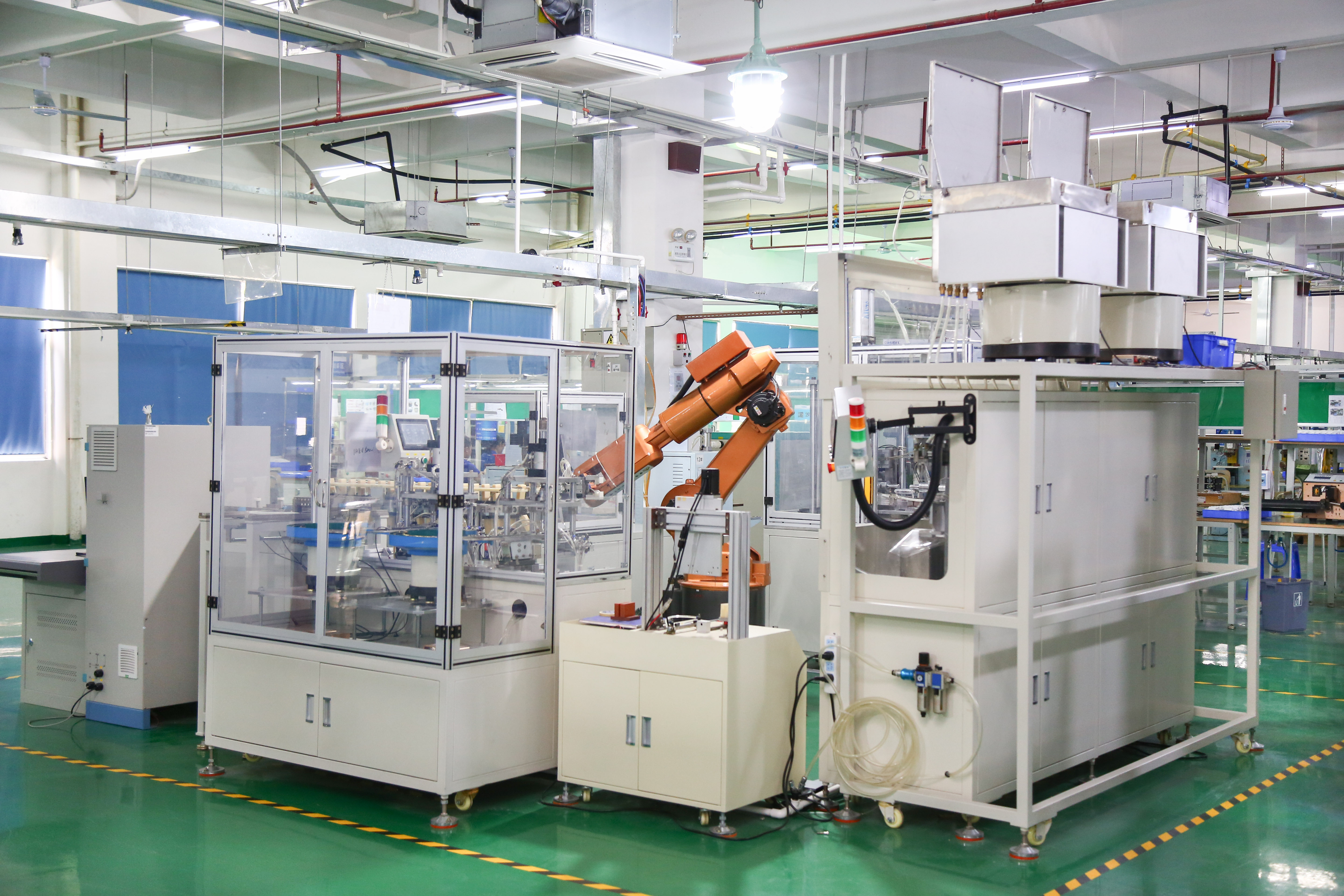

• ⚙️ Production Capability: Display: 1,500 sq. meters | Bonding: 5,500 sq. meters
• 🔩 Capabilities:
  • Electronic Fuse: SMT/Ceramic/Glass/Auto Fuse/Hi-current Fuse/ Micro Fuse
  • Power Fuse: Electric Vehicle/Train/Energy Storage/Hi-Voltage Fuse
  • 45 Technical Patents

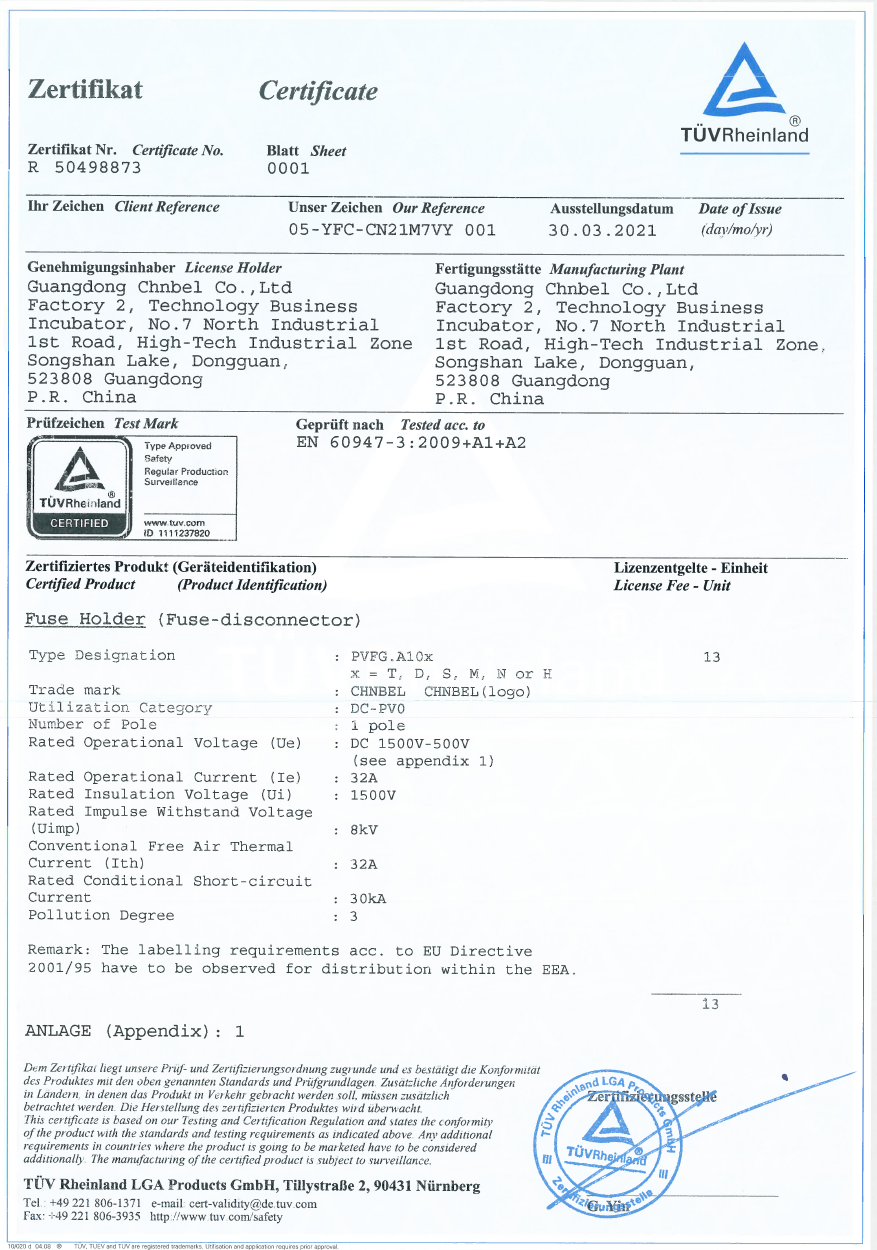

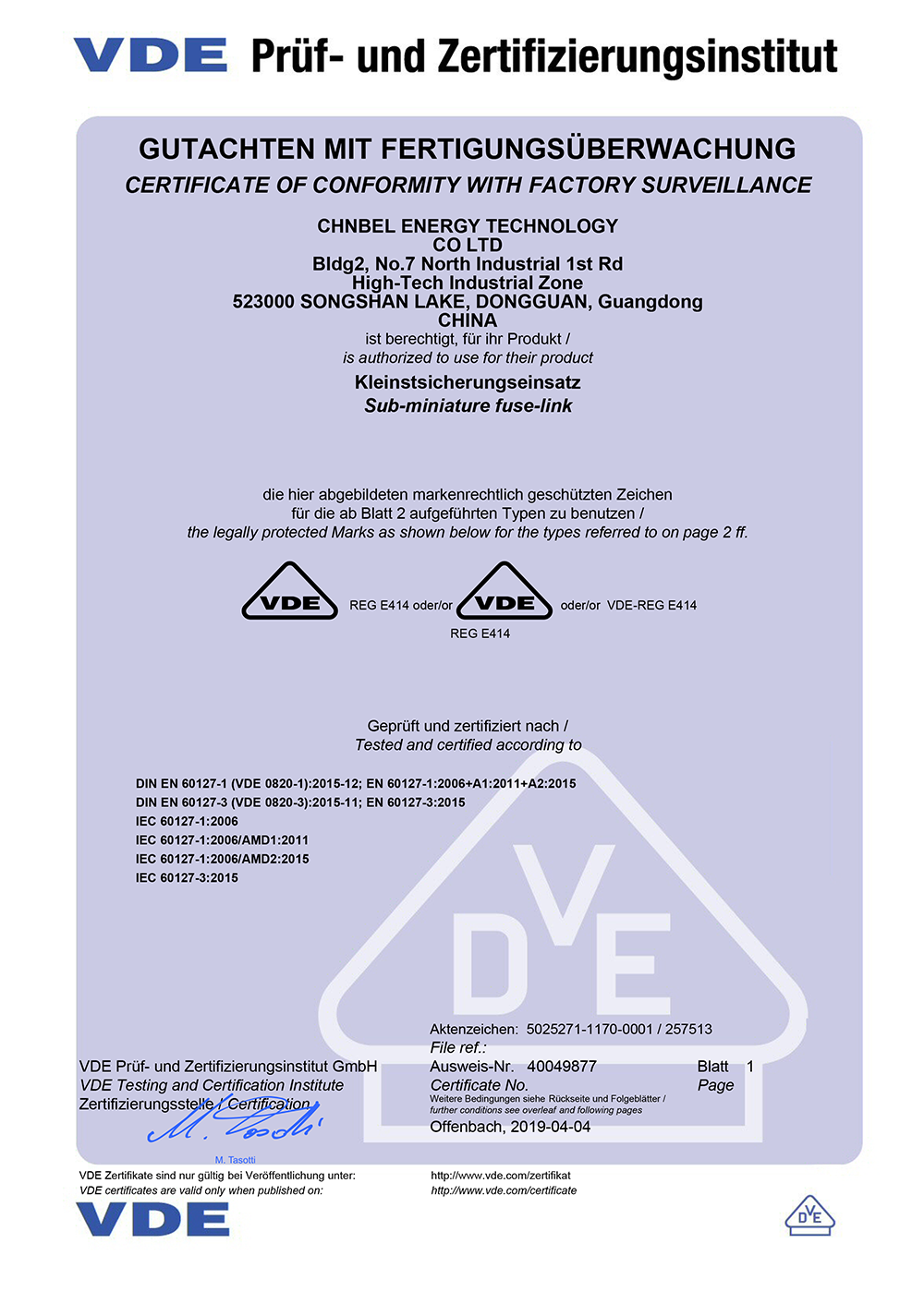

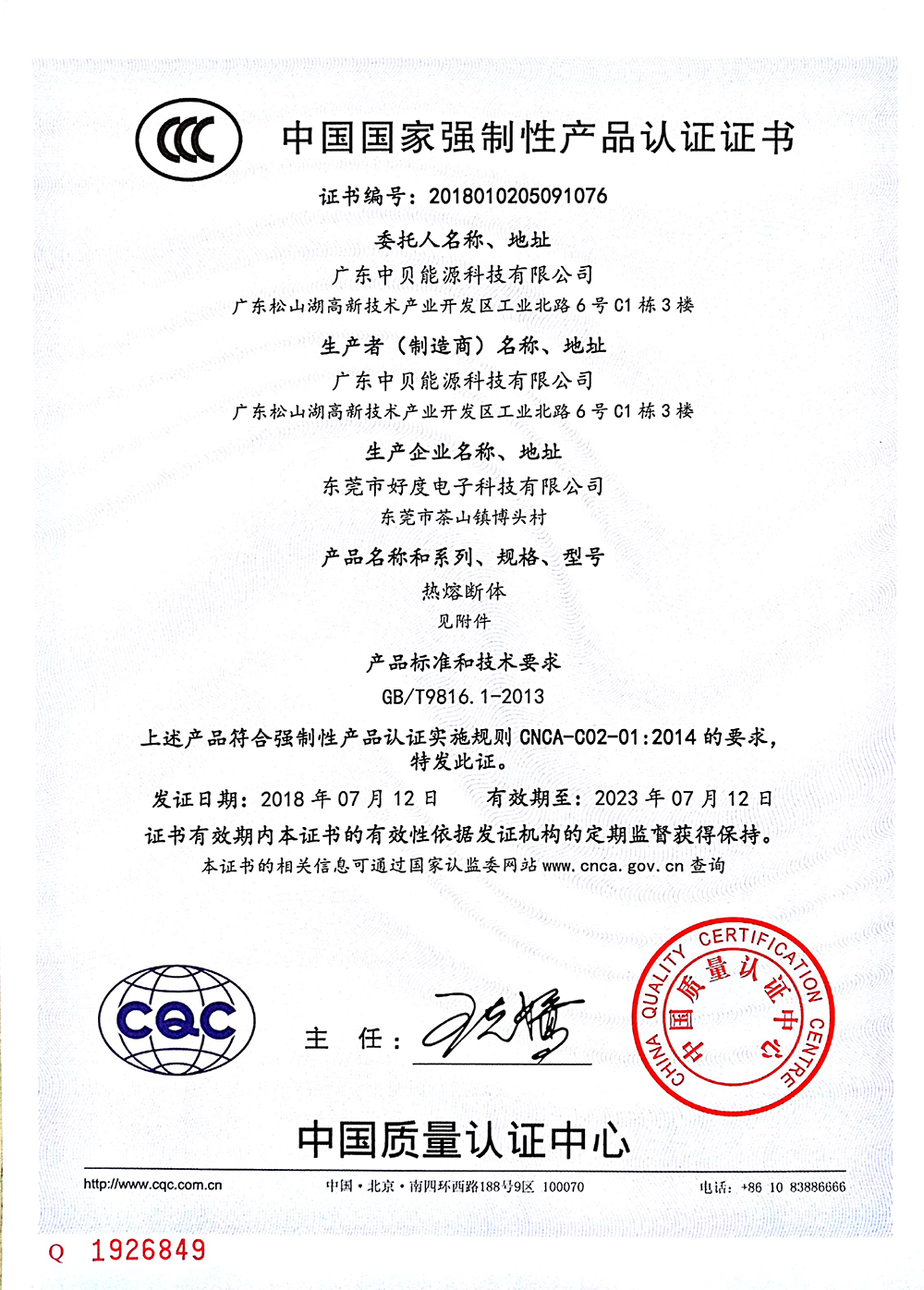

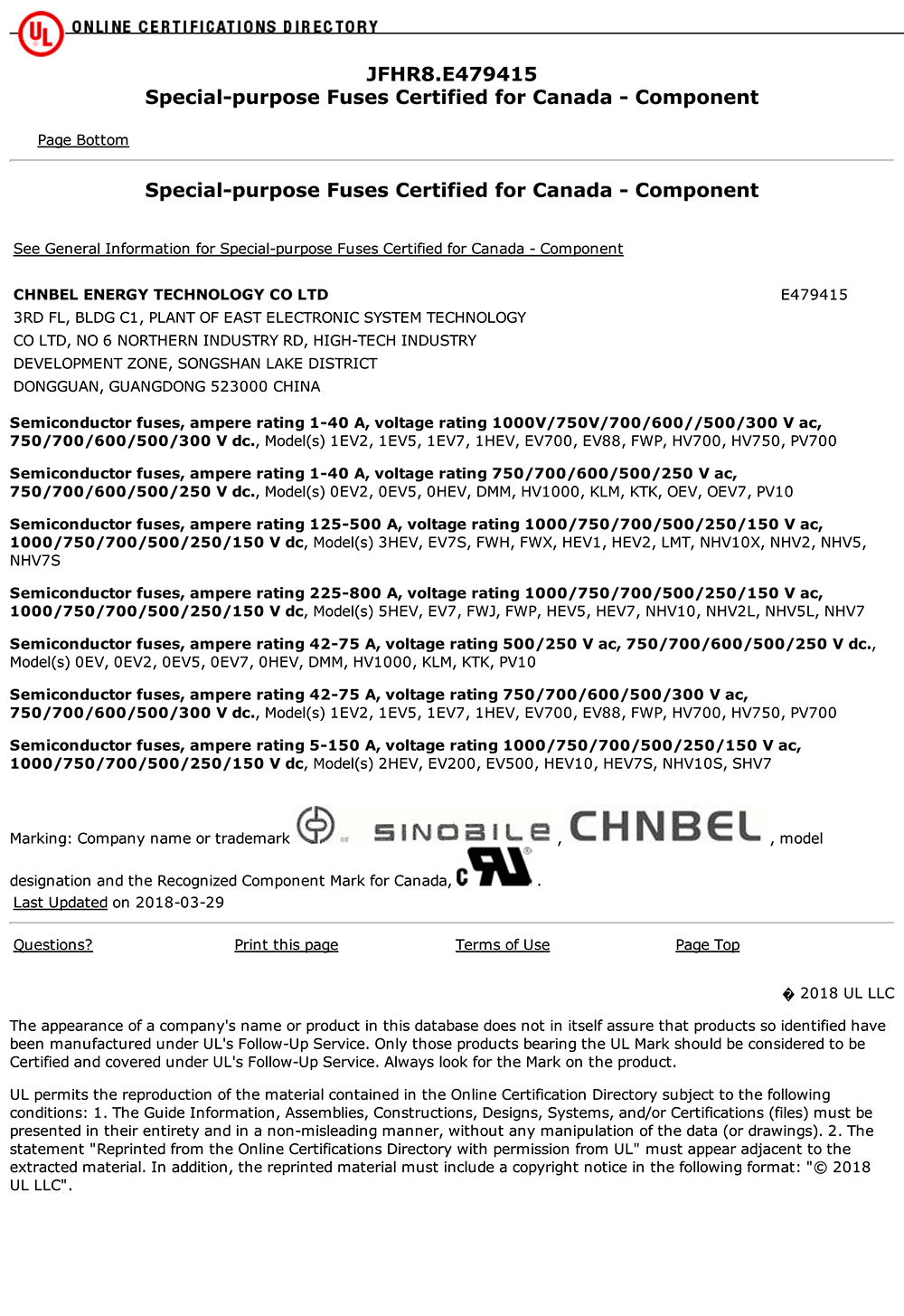

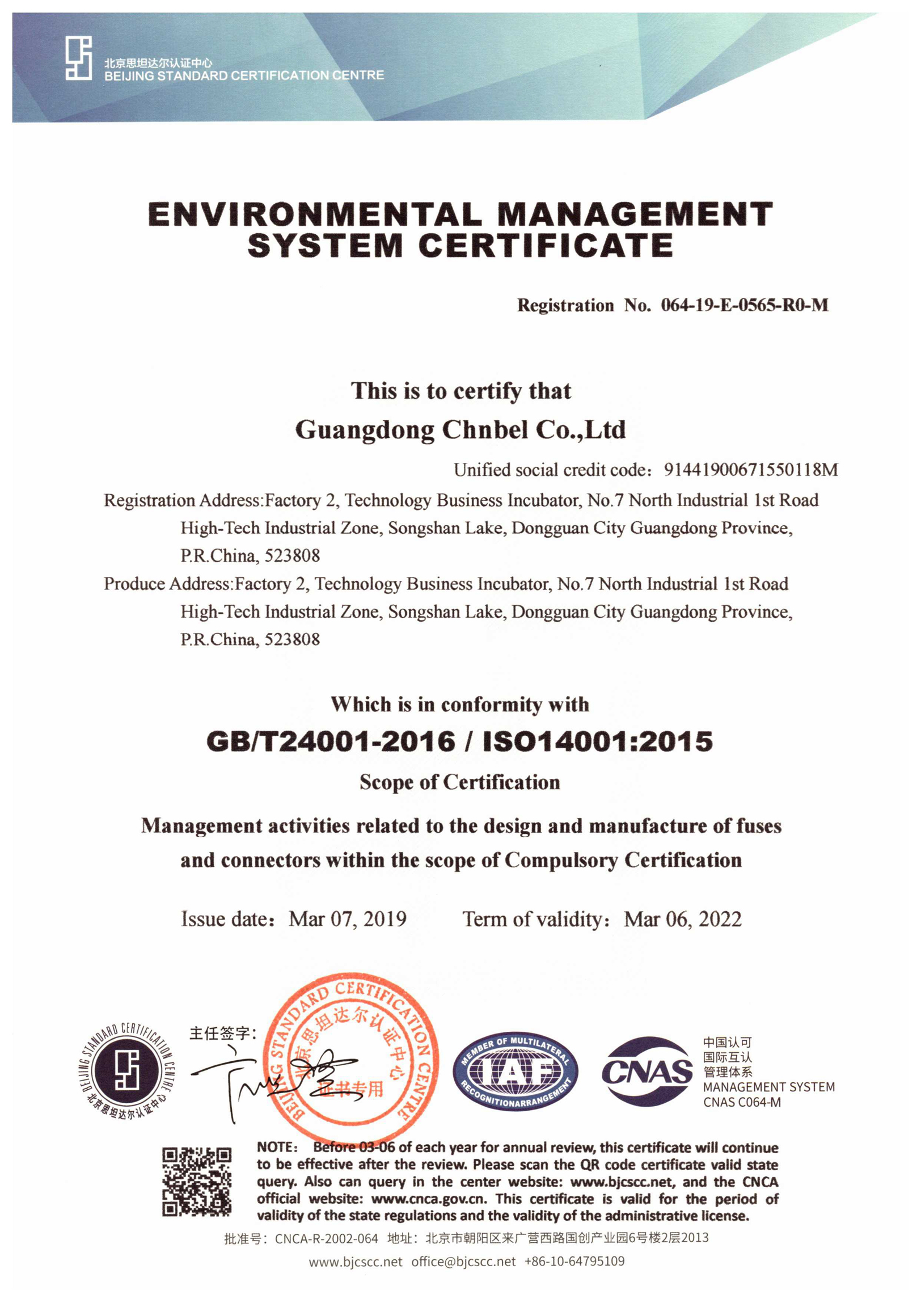

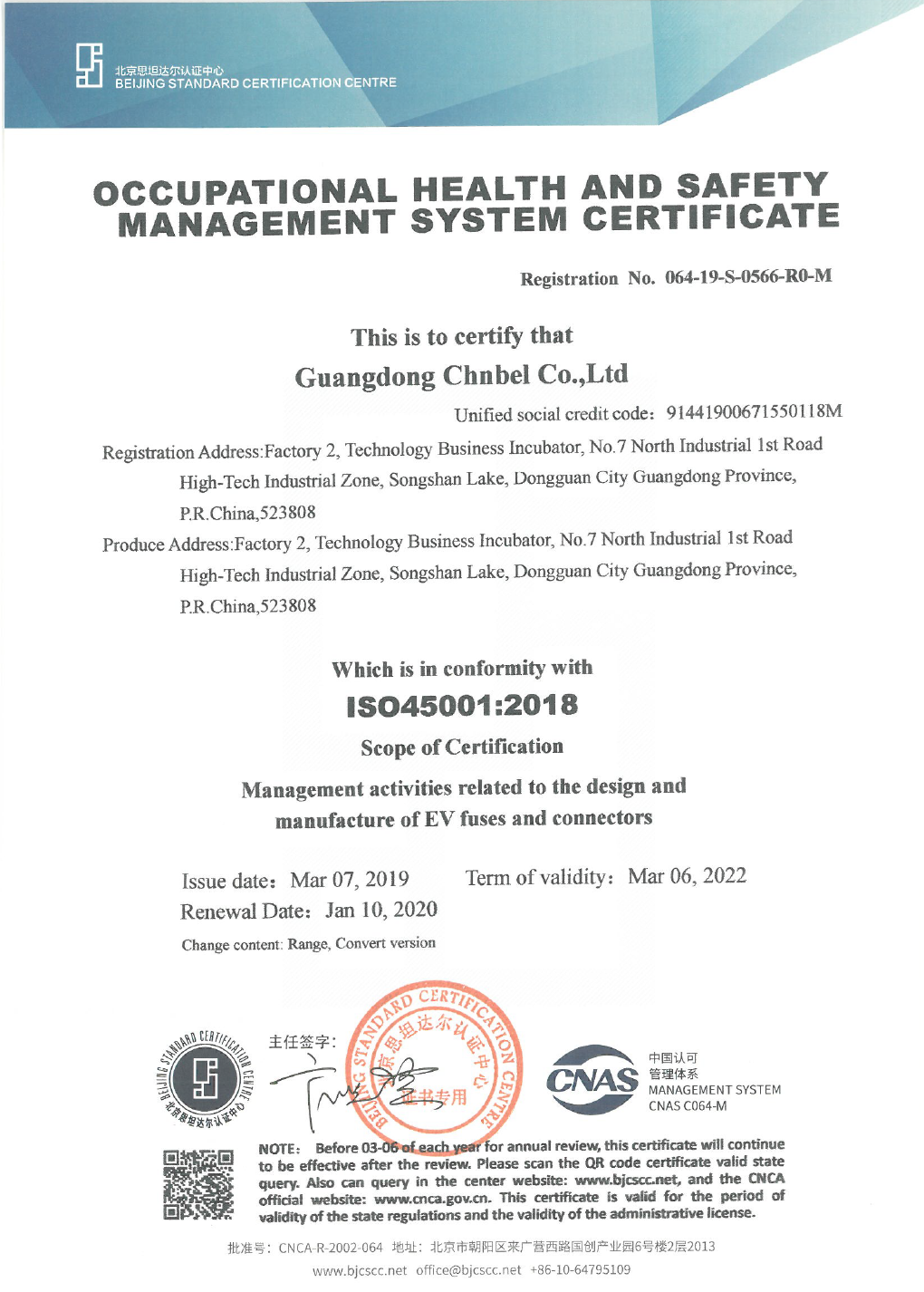

• ✅ Quality Assurance: TUV, UL, VDE, CSA, PSE, DIN, CCC, CQC Certified, CNAS Certified Lab, IATF16949: 2016, ISO/TS22163: 2017, AS/EN9100: 2018, ISO9001: 2015, ISO14001: 2015, OHSAS18000
