| MODEL | 500VA | 1000VA | 1500VA | 2000VA | 3000VA | 5000VA | |
|---|---|---|---|---|---|---|---|
| Capacity | 80% actual power when input voltage is over 190V | ||||||

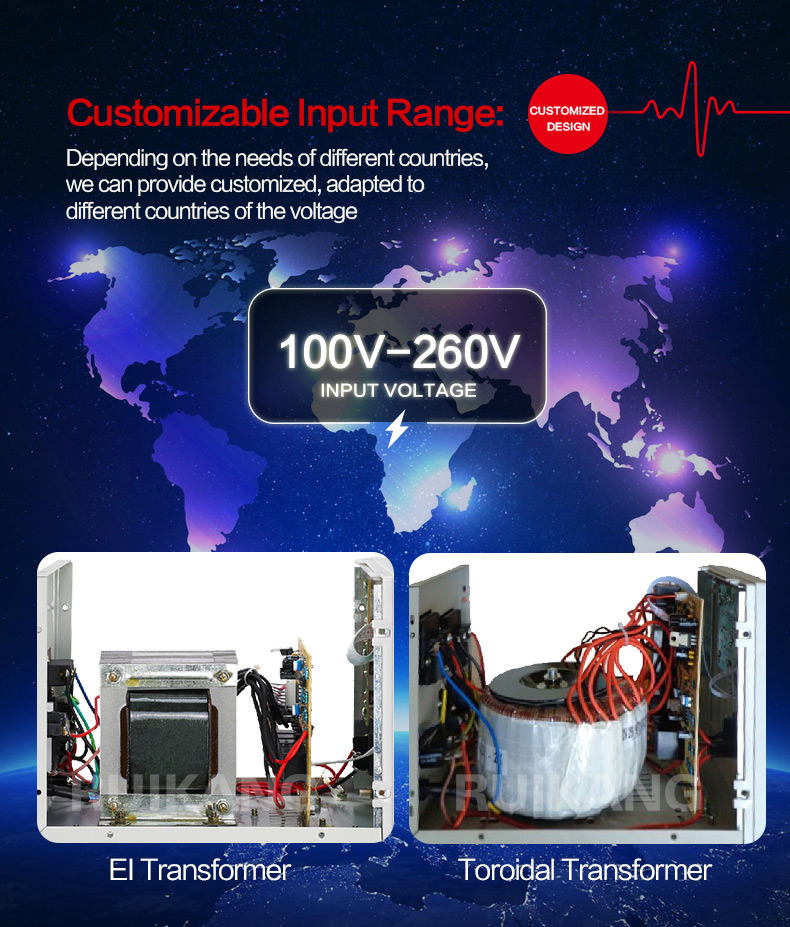

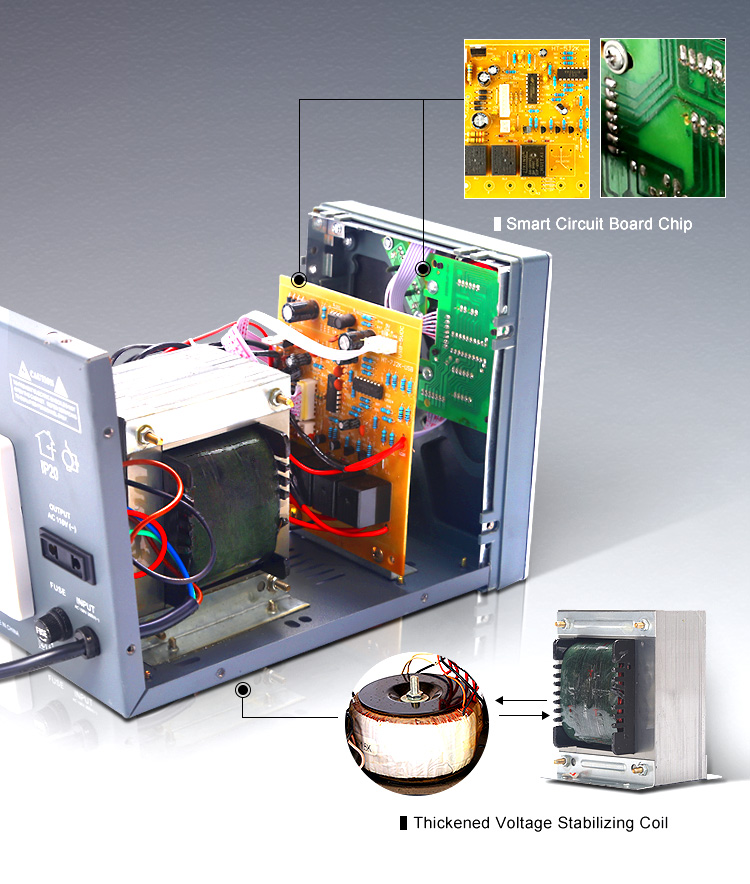

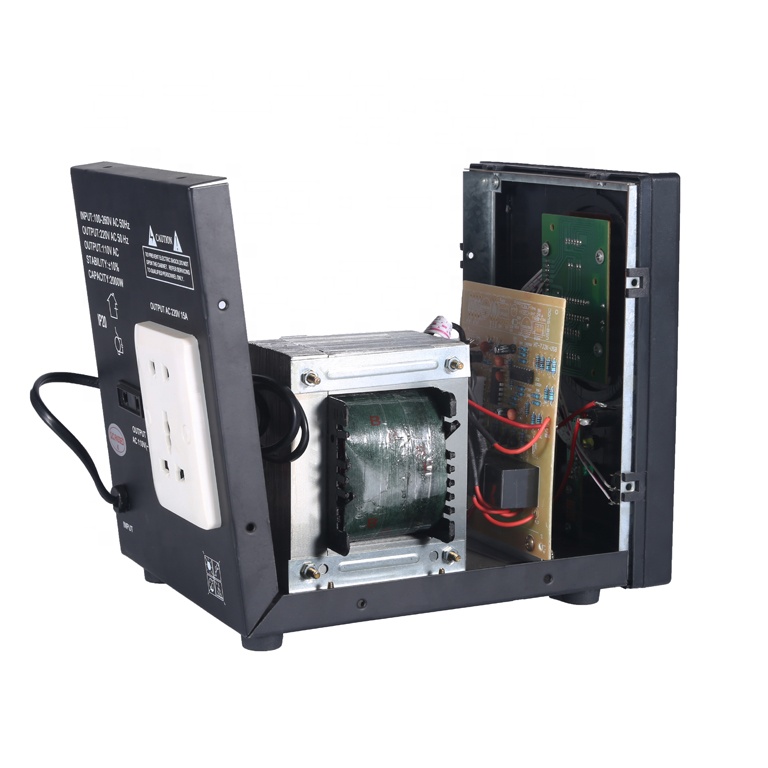

| Technology | Aluminum coil, EI transformer / toroidal transformer, Relay type control | ||||||
| Phase | Single phase (One transformer controlled) | ||||||

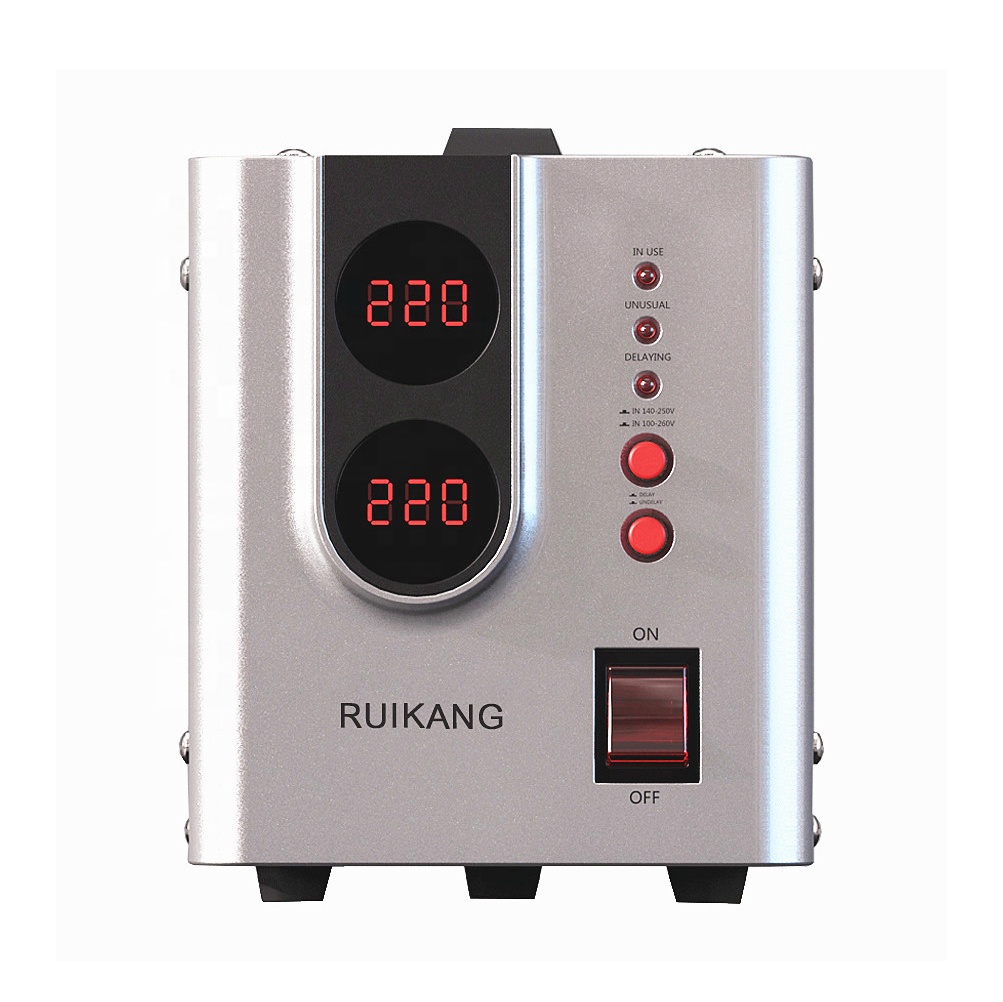

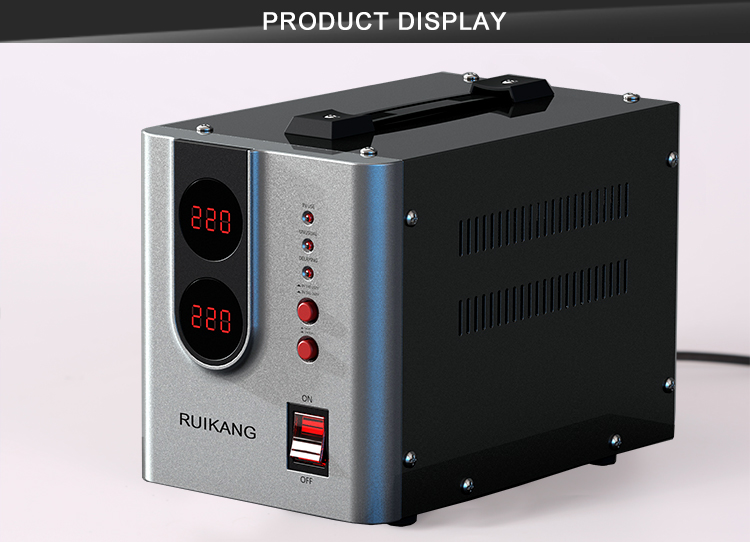

| Display | Digital or Meter | ||||||
| Input Voltage Range | 160-260V (3 relays) |
100-260V (5 relays) |
100-260V (5 relays) |
100-260V (5 relays) |
140-260V (4 relays) |
140-260V (4 relays) |
|

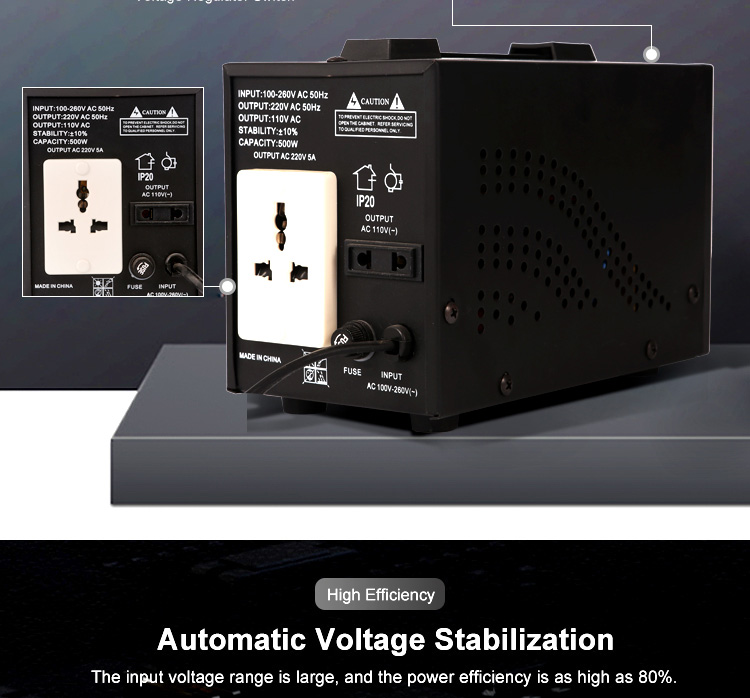

| Output Voltage | AC 220V ±10% / AC 110V ±10% | ||||||
| Frequency | 50 Hz / 60 Hz | ||||||

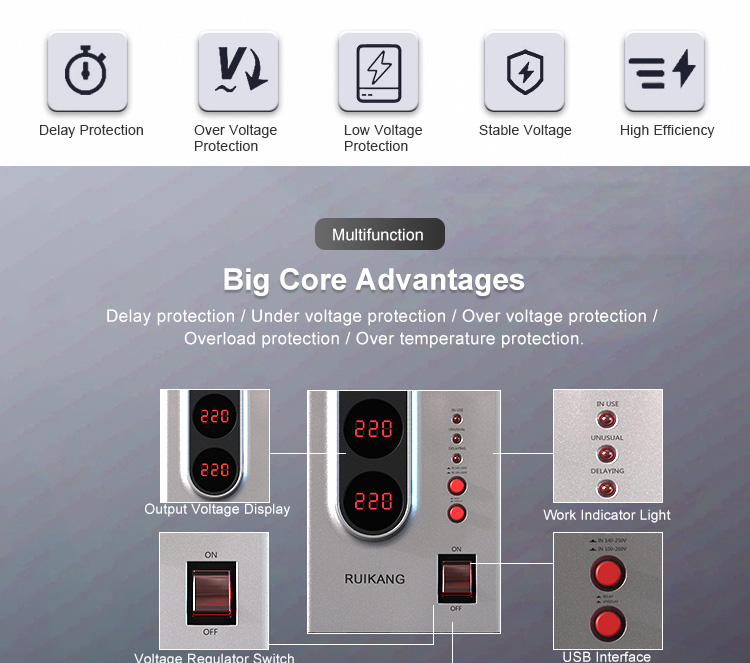

| PROTECTION | |||||||
| Voltage Protection | High Voltage | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Low Voltage | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |

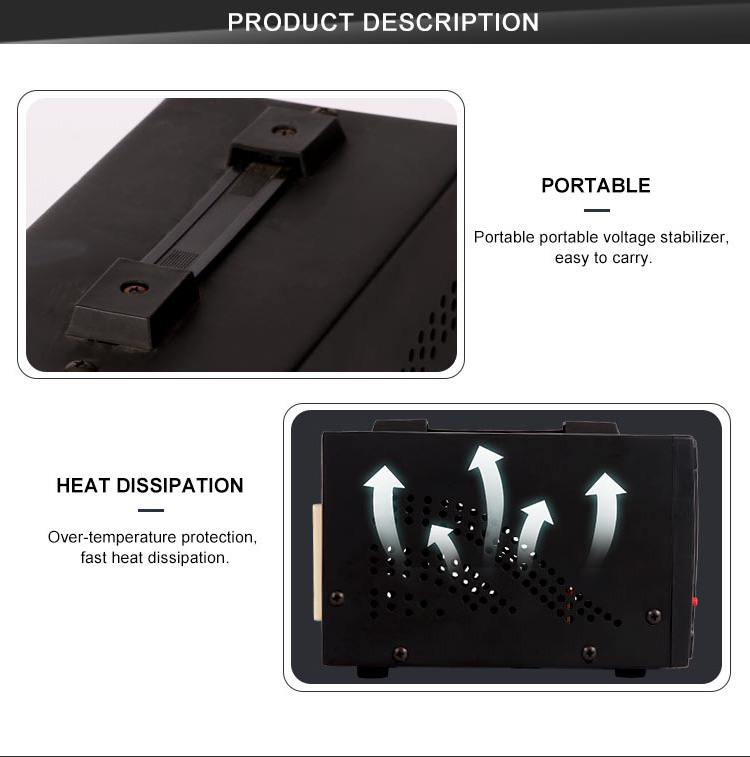

| High Temperature Protection | Customized | ||||||
| ENVIRONMENTAL | |||||||
| Operating Temperature | 0~40℃ | ||||||
| Relative Humidity | 10%RH~90%RH, Non-condensing | ||||||
| PHYSICAL SPECIFICATIONS | |||||||
| PCS / CTN | 8 | 4 | 4 | 4 | 1 | 1 | |
| Packing Size (cm) | 50*30*34 | 69.2*29.5*20.5 | 69.2*29.5*20.5 | 69.2*29.5*20.5 | 42.5*26.8*32 | 42.5*26.8*32 | |
| N.W. (KGS) | 19 | 18 | 20 | 26 | 11 | 16 | |
| G.W. (KGS) | 22 | 20 | 22 | 28 | 12 | 17 | |
