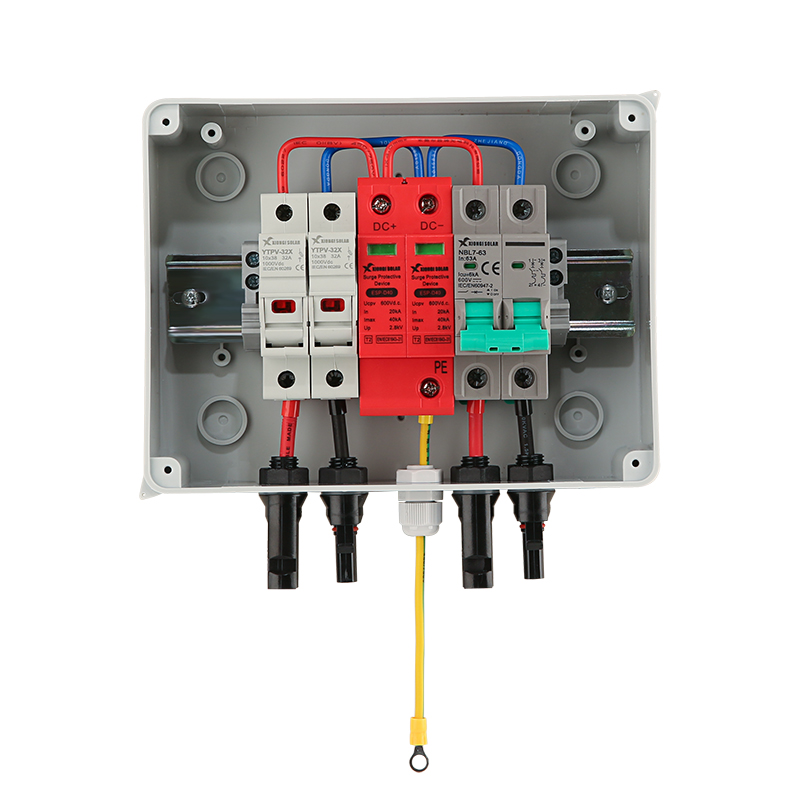

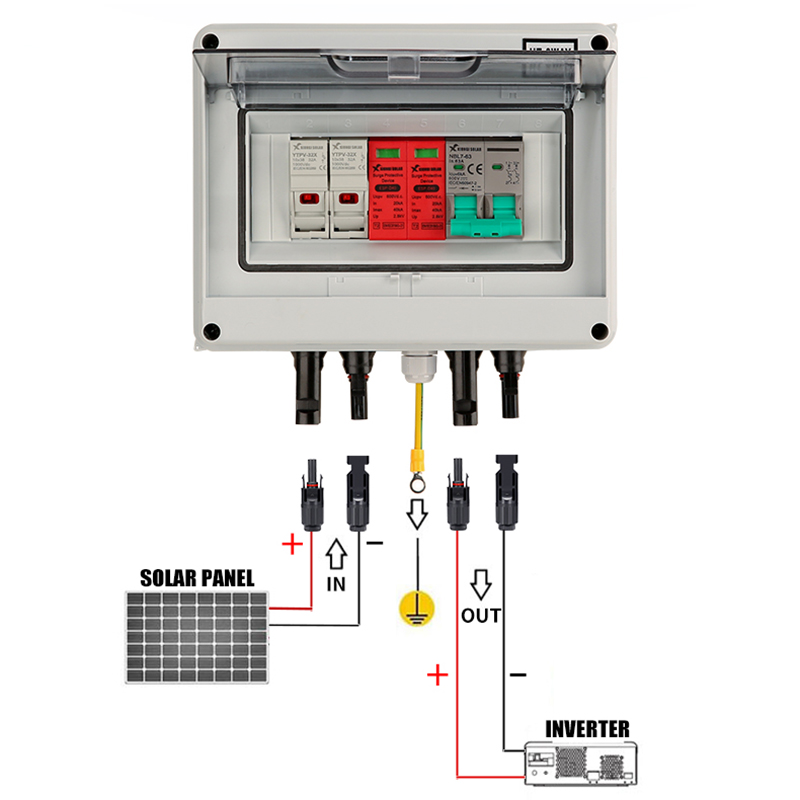

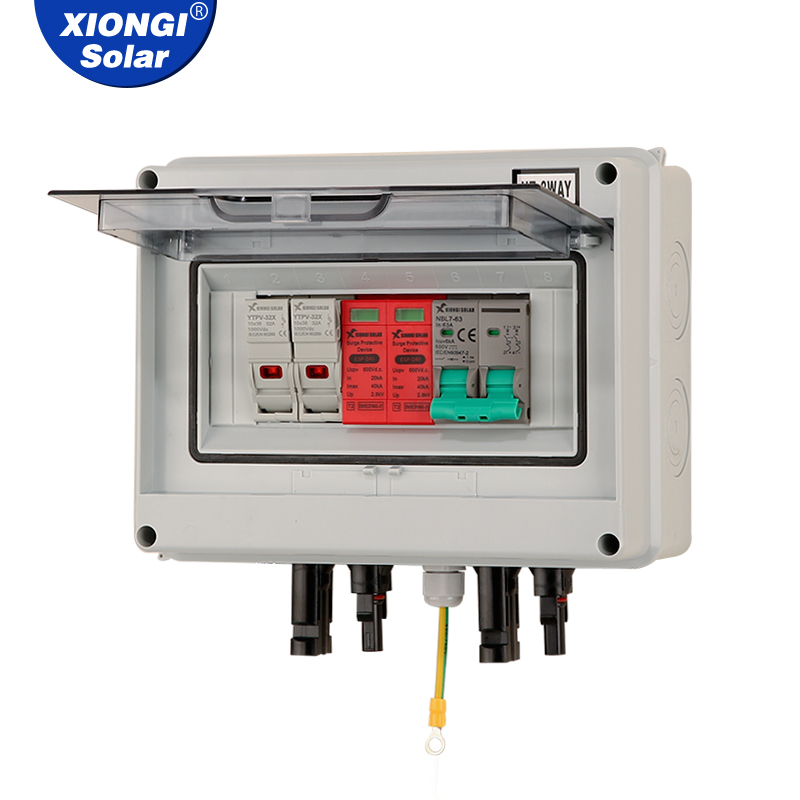

XIONGSOLAR IP65 1in1out 600V DC Solar PV Combiner Junction Box with 15A Input and 63A Circuit Breaker Weatherproof
XIONGSOLAR IP65 1in1out 600V DC Solar PV Combiner Junction Box with 15A Input and 63A Circuit Breaker Weatherproof
XIONGSOLAR IP65 1in1out 600V DC Solar PV Combiner Junction Box with 15A Input and 63A Circuit Breaker Weatherproof
XIONGSOLAR IP65 1in1out 600V DC Solar PV Combiner Junction Box with 15A Input and 63A Circuit Breaker Weatherproof
XIONGSOLAR IP65 1in1out 600V DC Solar PV Combiner Junction Box with 15A Input and 63A Circuit Breaker Weatherproof
1 / 5
XIONGSOLAR IP65 1in1out 600V DC Solar PV Combiner Junction Box with 15A Input and 63A Circuit Breaker Weatherproof
XIONGSOLAR IP65 1in1out 600V DC Solar PV Combiner Junction Box with 15A Input and 63A Circuit Breaker Weatherproof
XIONGSOLAR IP65 1in1out 600V DC Solar PV Combiner Junction Box with 15A Input and 63A Circuit Breaker Weatherproof
XIONGSOLAR IP65 1in1out 600V DC Solar PV Combiner Junction Box with 15A Input and 63A Circuit Breaker Weatherproof
XIONGSOLAR IP65 1in1out 600V DC Solar PV Combiner Junction Box with 15A Input and 63A Circuit Breaker Weatherproof

XIONGSOLAR IP65 1in1out 600V DC Solar PV Combiner Junction Box with 15A Input and 63A Circuit Breaker Weatherproof

Send Inquiry

Product Description

Product Description
SOLAR BOX Application: Combiner Box provides a means of combining multiple source circuits from a PV array into a single DC output. Each source circuit is fused separately using a touch-safe fuse holder. The combiner box allows for fail-safe operation of the system in the unlikely event that a problem with a source circuit leads to abnormally high current. In addition, the combiner box provides a convenient means of accessing the DC portion of a PV system for routine maintenance and troubleshooting.

Product Features

Very high impact resistance
Easy machining with normal tools
IP65 Protection
Wide operation temperature range
Non-conductive material
Good resistance to chemical corrosion
Light weight
Excellent insulating properties
Cost-effective material for harsh environments

Product Functions

Simplify physical wiring between solar panels and inverter
Fault current protection for each String
Fault alarm system compatibility
Easy installation and maintenance
Product Specifications
Parameter Name Specification Details
General Parameters
Solar PV DC Combiner Box 1 in 1 out
Rated voltage of photovoltaic system DC 600V
Max input amp for each string 15A (default)
Input strings / Output strings 1 / 1
Lightning & Surge Protection
Waterproof grade / Protection type IP65 / Lighting protection
Category of test II grade protection
Nominal discharge amp (In) 20KA
Max discharge amp (Imax) 40KA
Volt protection level (Up) 2.8KV
SPD Max operation voltage (Uc) DC 600V
Poles 2P
Structure characteristic Plug push module
System Components & Materials
Protection grade IP65
Output switch 600V 2P DC circuit breaker (63A)
Solar connector Standard
Box material PVC
Installation method Wall mounting type
Operating temperature -25℃ to +60℃
Installation environment (Indoors/Outdoors) Yes
Mechanical Parameters

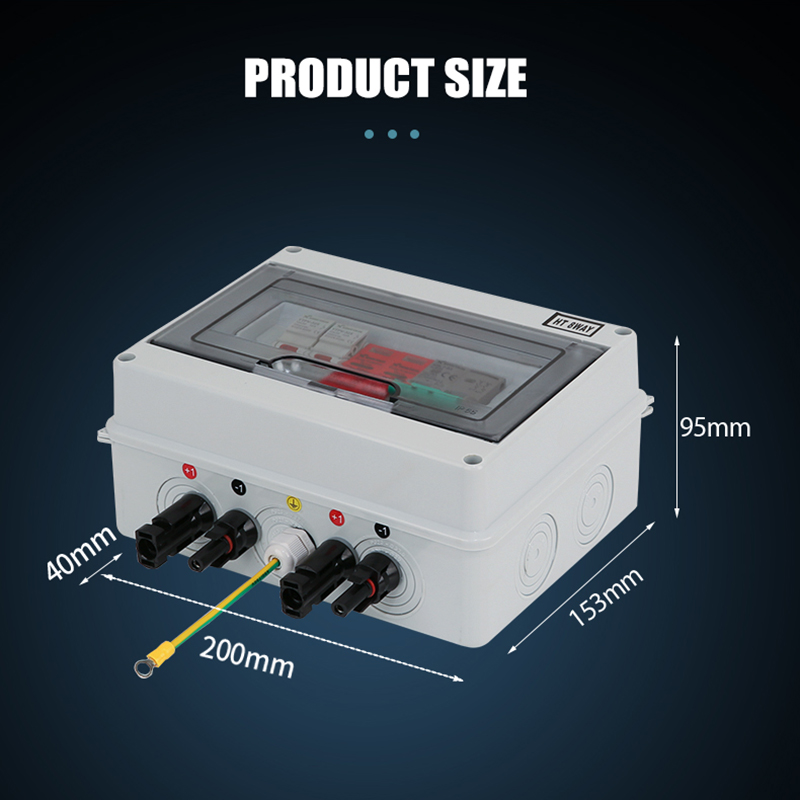

Width * Height * Depth (mm) 250 * 150 * 250
Details Images

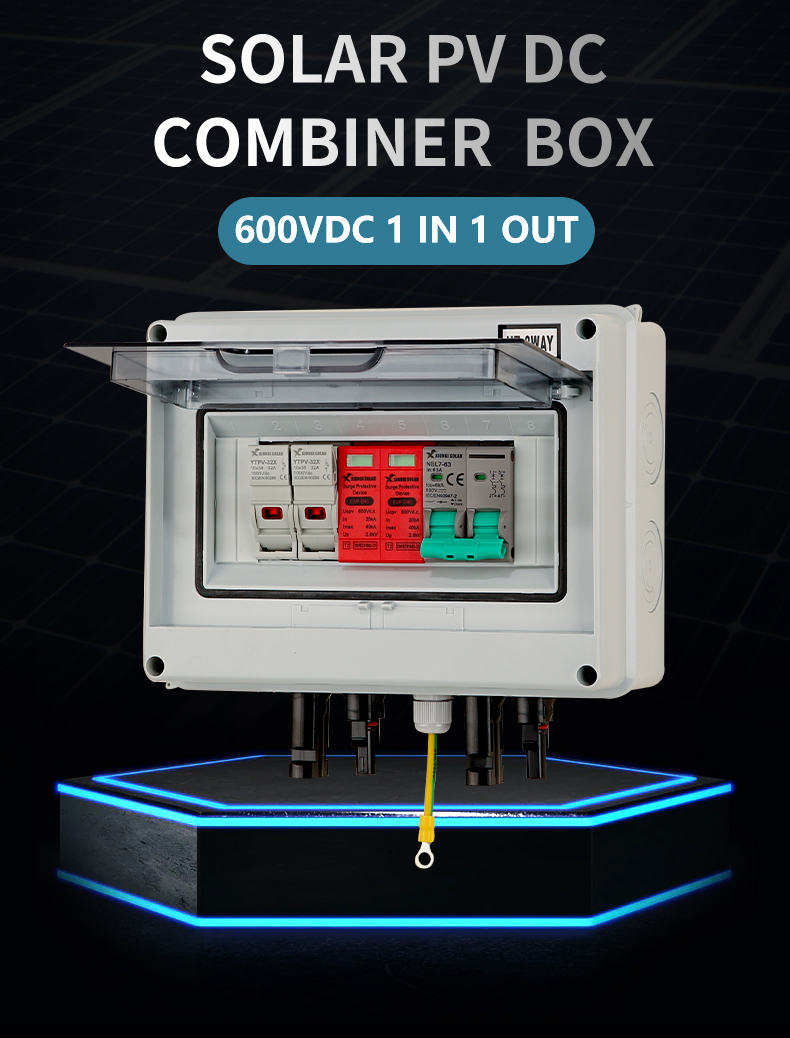

Detail 1
Detail 2

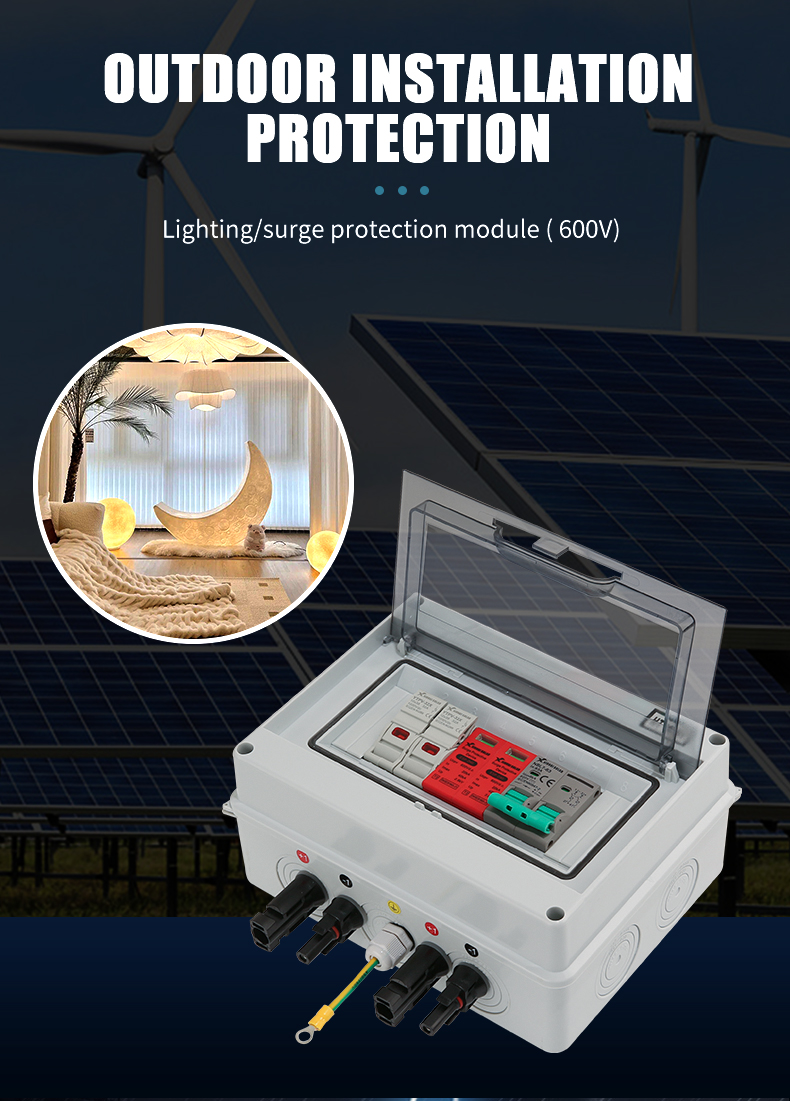

Detail 3

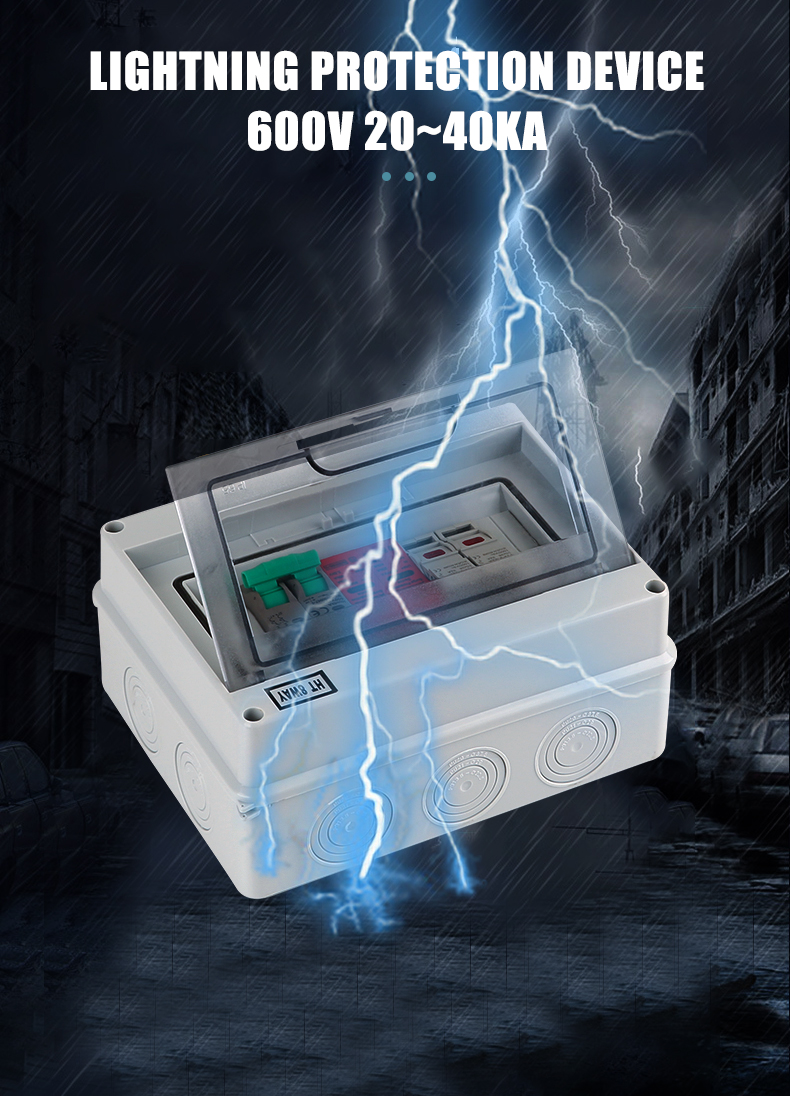

Detail 4

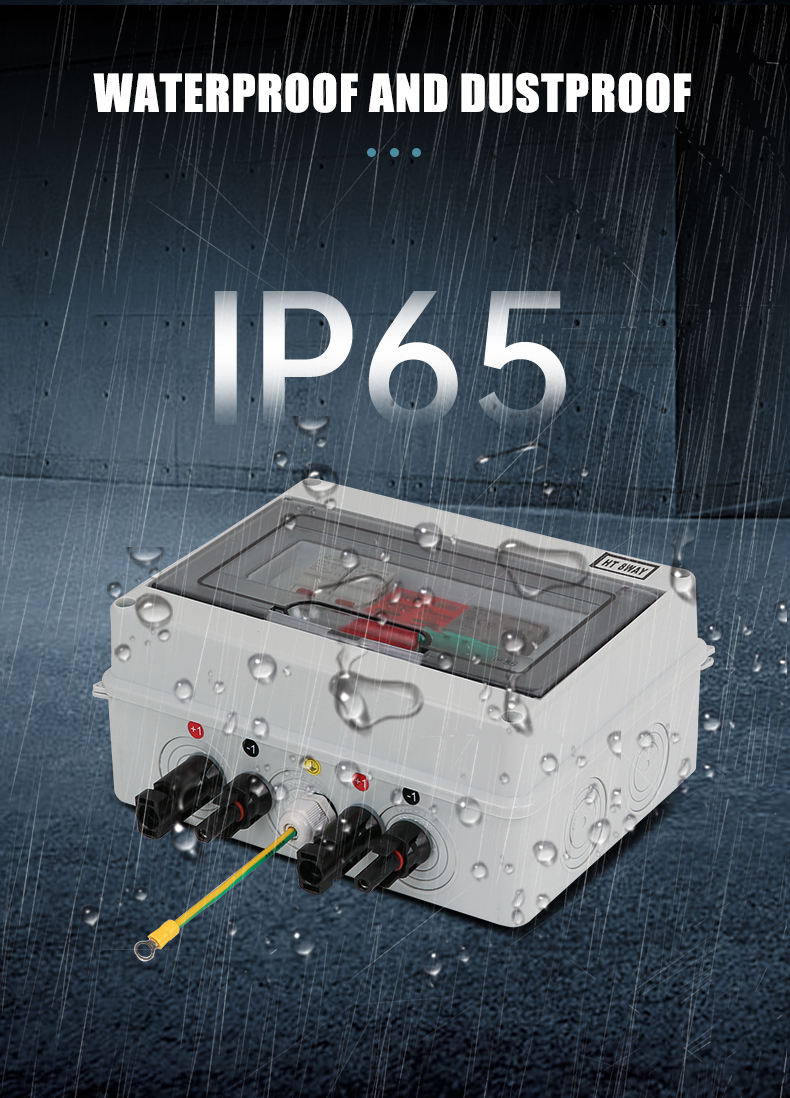

Detail 5

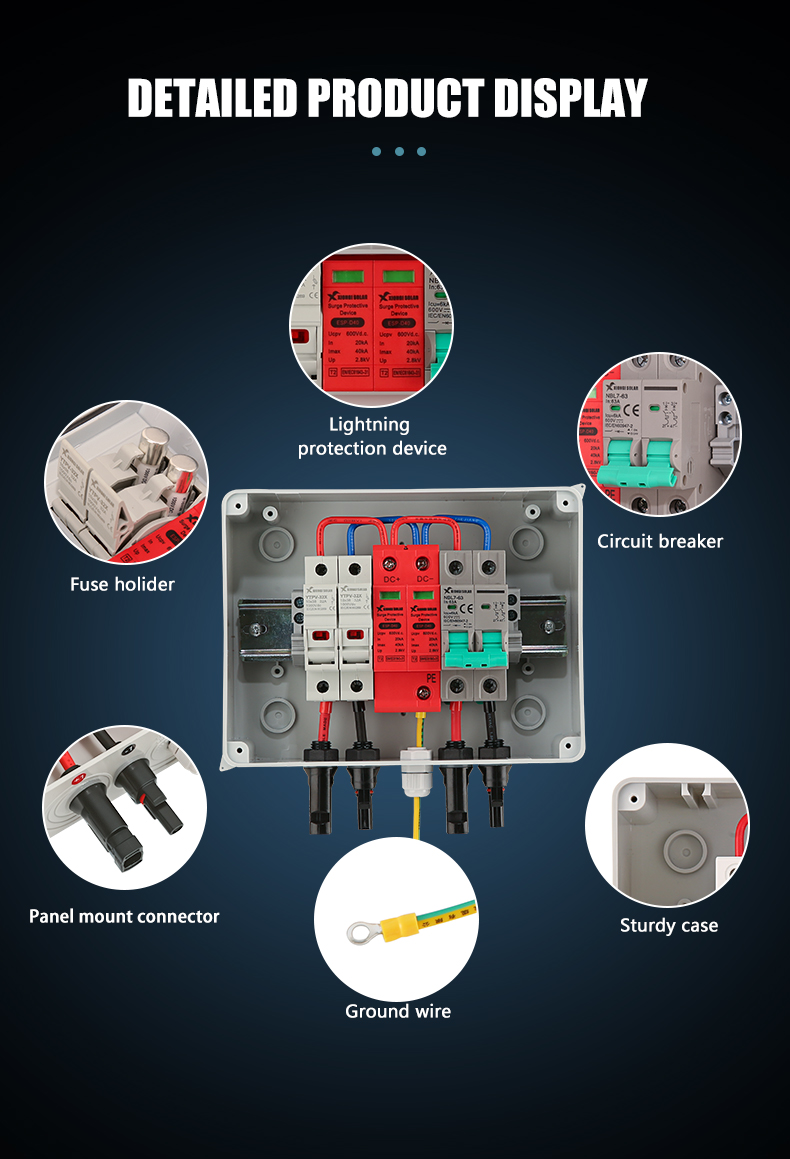

Detail 6

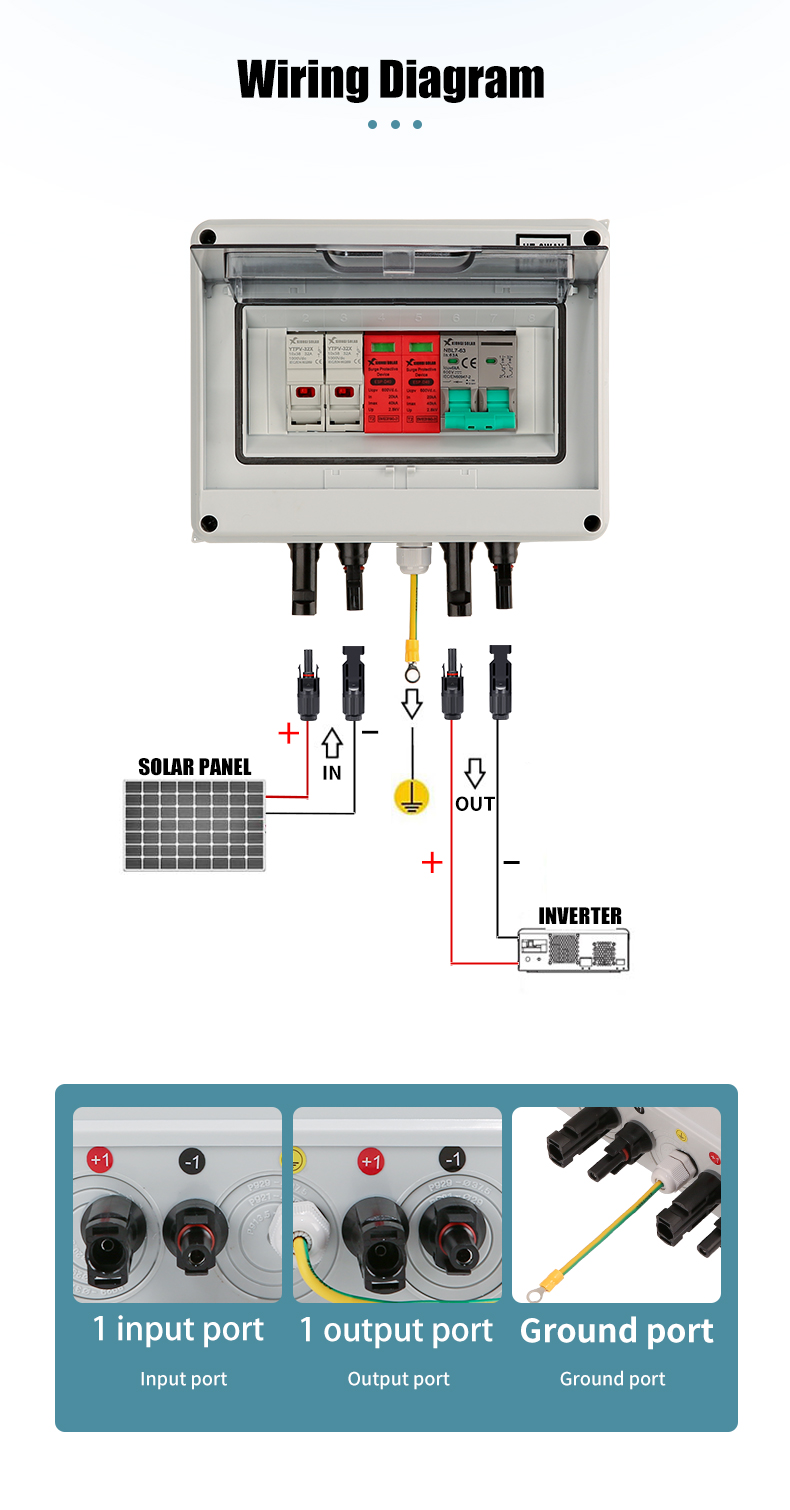

Detail 7

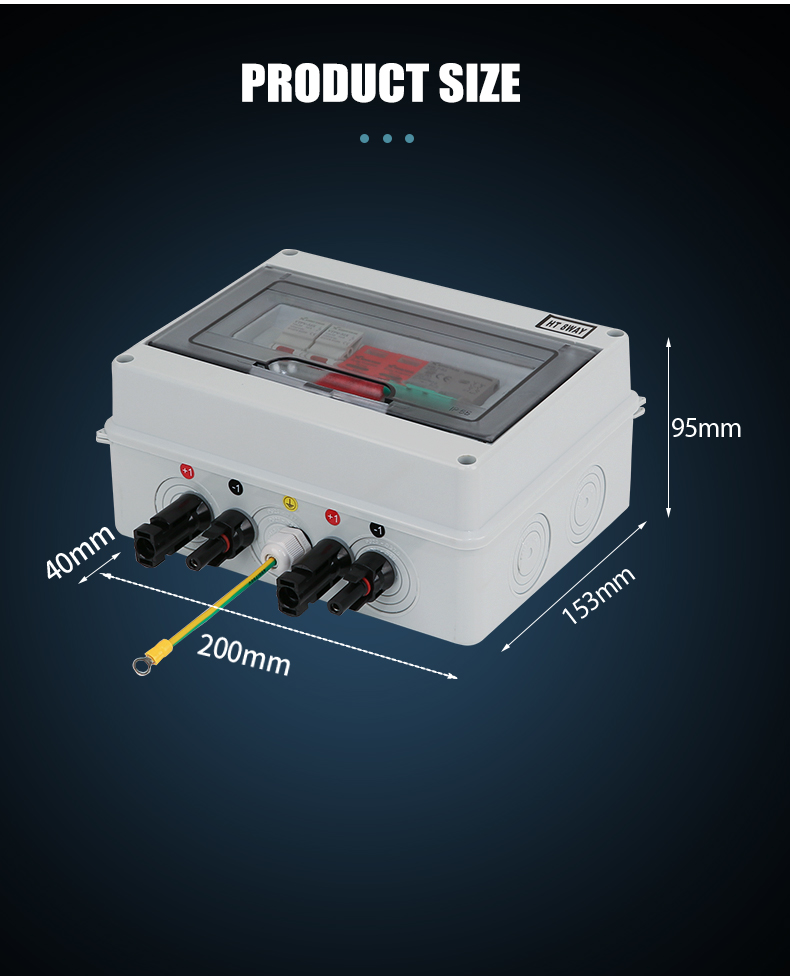

Detail 8

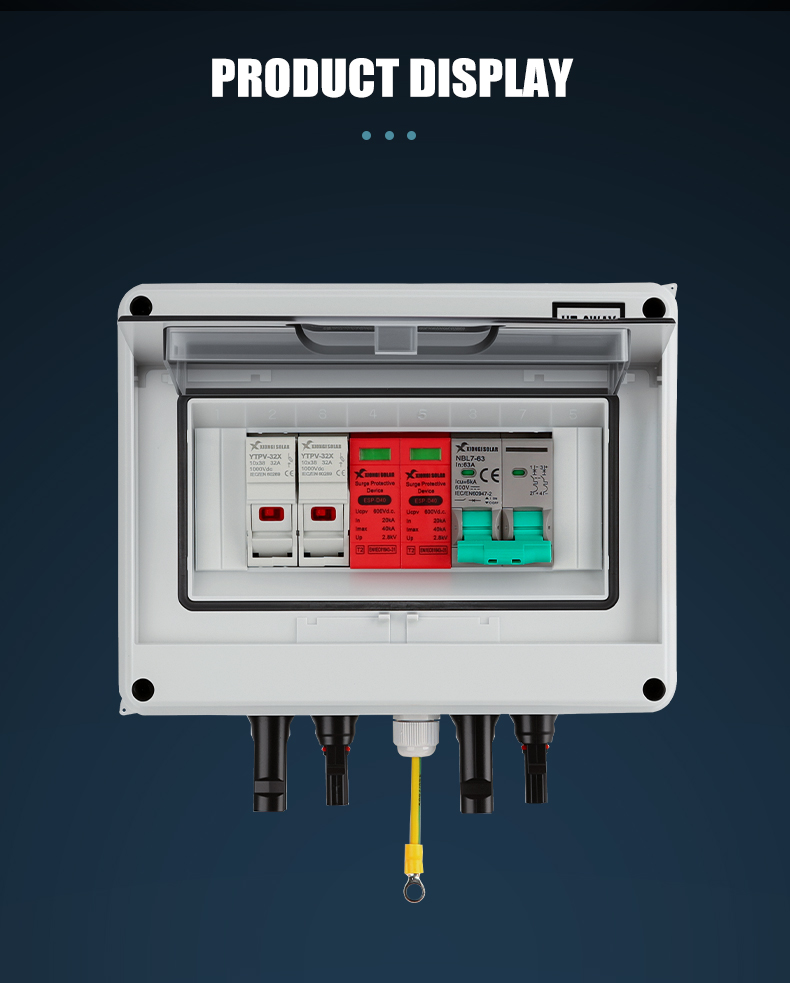

Detail 9

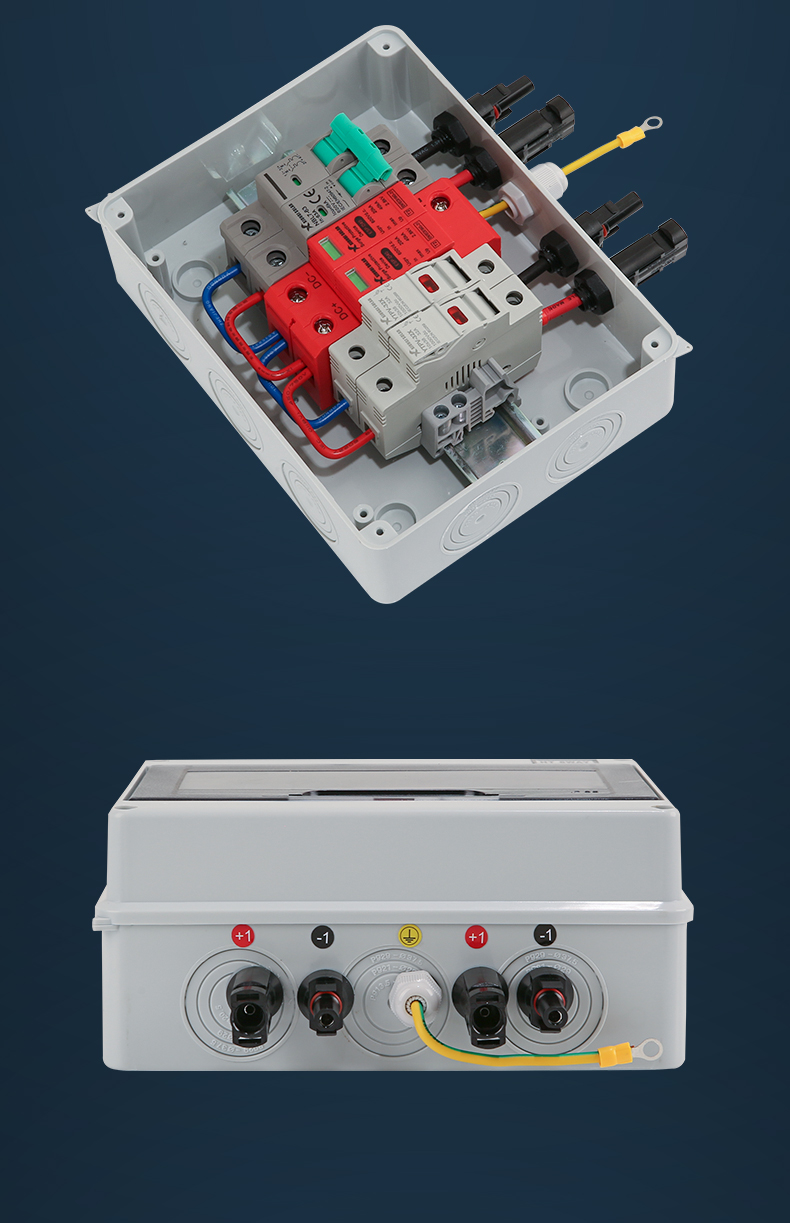

Detail 10
Configurations

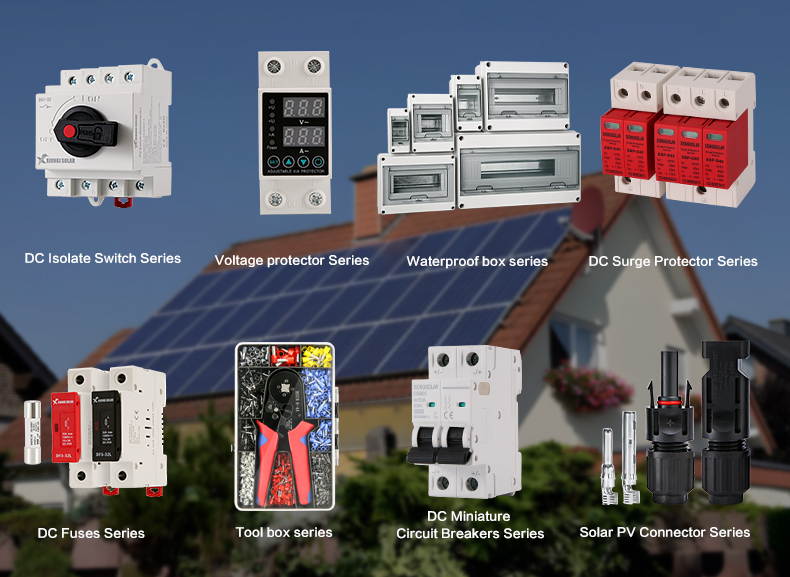

Components Diagram

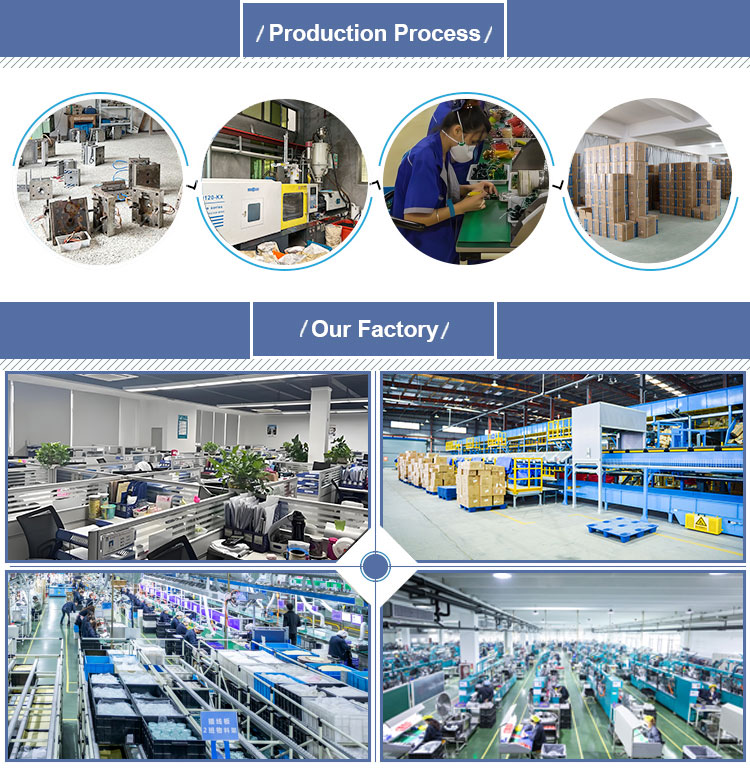

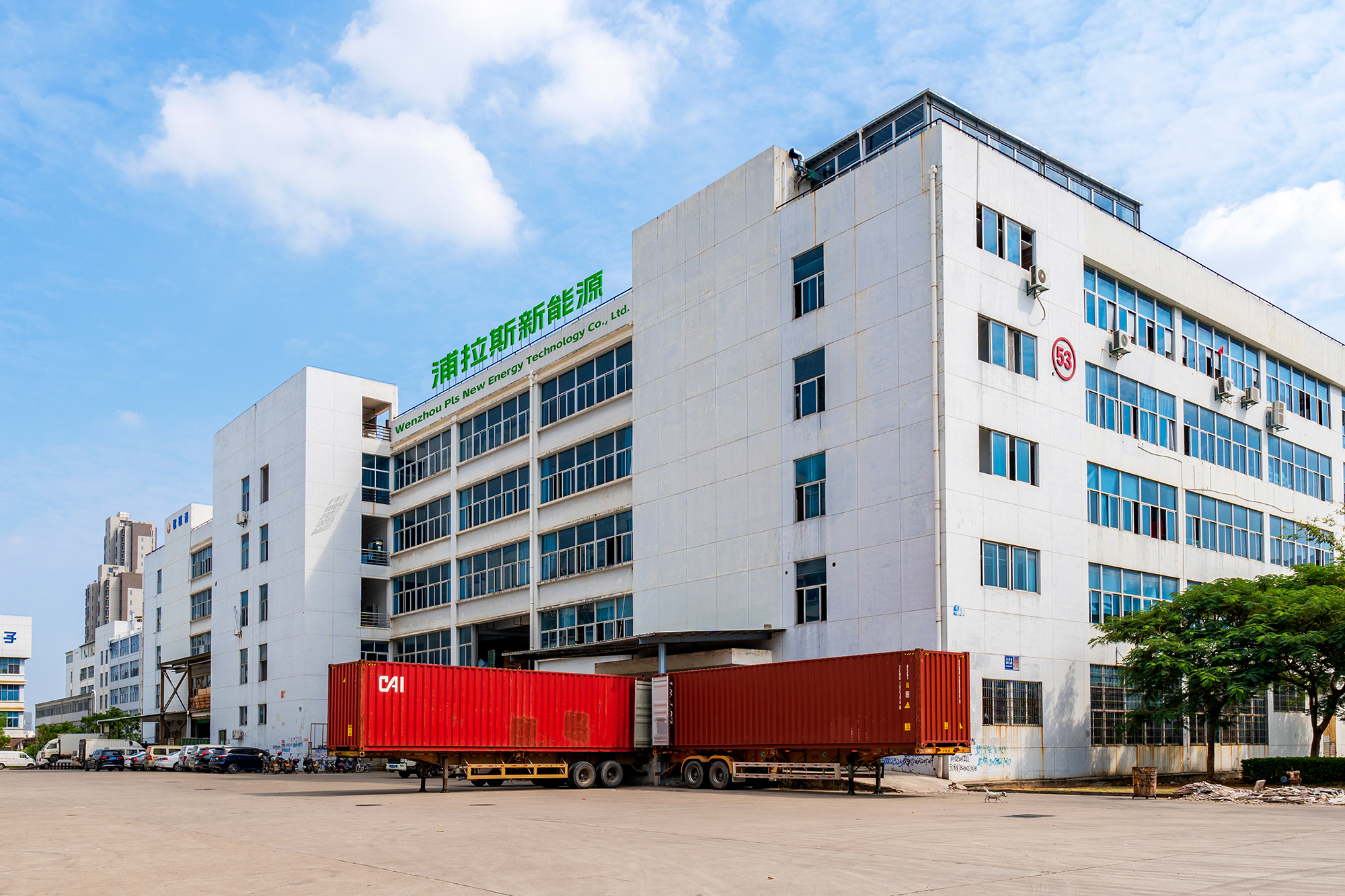

Manufacturing & Facility
Facility 1
Facility 2
Facility 3
Facility 4
Facility 5
Facility 6
Product FAQ
FAQ Diagram
What is the primary role of the DC Combiner Box in a Solar PV system?
The DC Combiner Box combines multiple source circuits from solar arrays into a single DC output. It streamlines wiring, provides individual string fusion, and protects the system from overcurrent or lighting surges.
Can this combiner box be installed outdoors in harsh conditions?
Yes, the combiner box is made of highly durable, non-conductive PVC material. With an IP65 protection rating, it is dustproof, waterproof, and designed to endure outdoor installations.
What safety mechanisms are built into this combiner box?

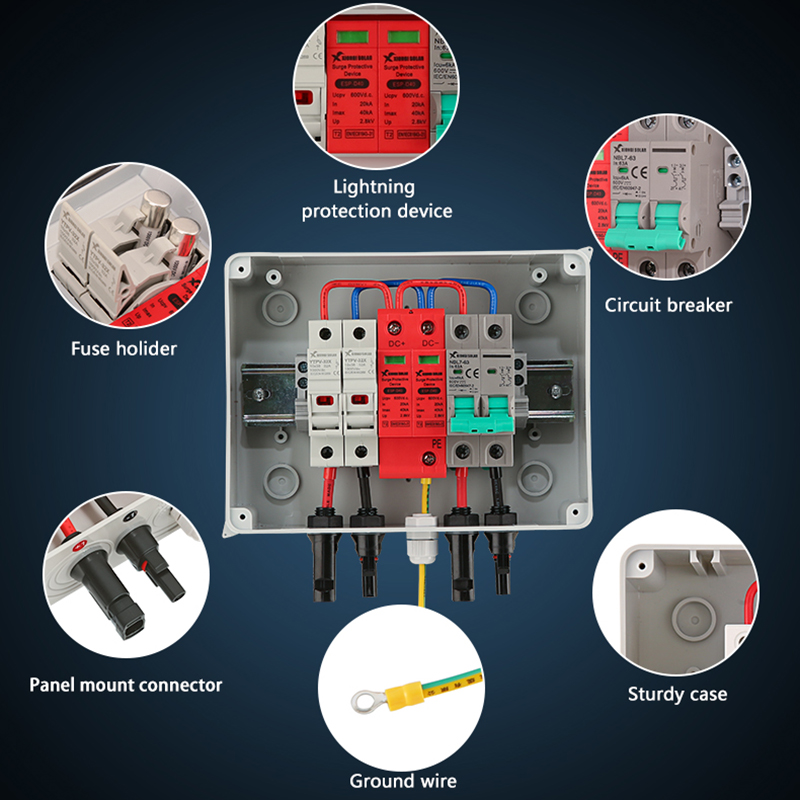

It integrates a touch-safe fuse holder for each string (15A default), II-grade surge protection (SPD) with plug-and-push modules, and a 600V 2P DC circuit breaker (63A) to isolate outputs safely.
How does the plug-and-push module design benefit maintenance?
The plug-and-push structure for components like the SPD makes replacement and troubleshooting straightforward. Modules can be swapped without rewiring the entire unit, minimizing system downtime.
What are the operation temperature limits of this unit?
This solar combiner box functions reliably across a wide operating temperature range of -25°C to +60°C, making it stable under freezing or high-temperature conditions.
