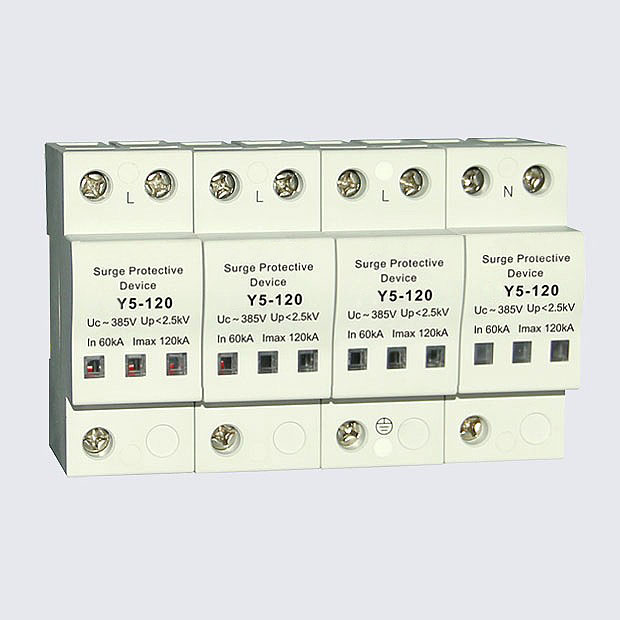

120KA Surge Suppressor Citel type 36mm width Surge Protective Device 275V 380V 420V 550V T2 and T1 Type 1+2 Surge Protector
Voltage limiting type design, integrated structure, conforms to the T1 and T2 test conditions.
Three pieces and four pieces of combination, achieve common mode protection mode.
High level of protection, freewheeling breaking ability, large flow capacity.
Alarm contact, realize remote communication function.
A high level of protection, free wheeling, large flow capacity.
Standard 35mm track design, convenient installation.
Model
Y5-120
Y5-160
Quantity of electric charge (Q)
6.25As
25As
Nominal discharge current (In)
60KA (8/20μs)
100KA (8/20μs)
Max discharge current (Imax)
120KA (8/20μs)
160KA (8/20μs)
The impact of discharge current (Iimp)
12.5KA (10/350μs)
12.5KA (10/350μs)
Max continuous operating voltage (Ucpv)
275V
320V
385V
420V
550V
275V
320V
385V
420V
550V
Voltage protection level (Up)
<1.8KV
<2.0KV
<2.5KV
<3.0KV
<3.5KV
<2.0KV
<2.5KV
<3.0KV
<3.5KV
<3.8KV
Type
Type 1 & Type 2 (T1 + T2), 8/20μs and 10/350μs surge protection
rated operational voltage (Uopv)
220V~690V

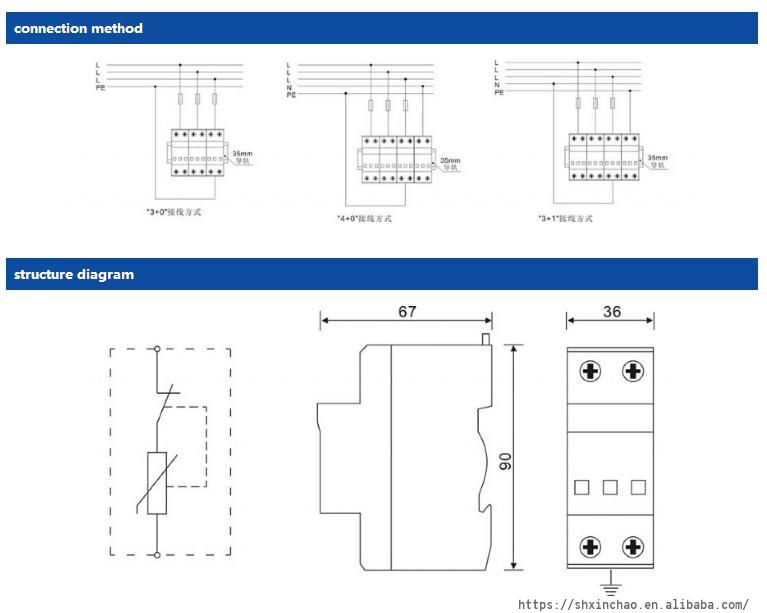

combination method
3+0, 4+0
local indiction
green indicates normal state and red indicates failure.
Protection class of body
IP20
capcity of connection
4~35mm²
Installation
35mm Din Rail
Frequently Asked Questions
Q1 What is the difference between the Y5-120 and Y5-160 models?
The main differences lie in their capacity. The Y5-120 has a Max discharge current (Imax) of 120KA (8/20μs) and Nominal discharge current (In) of 60KA, while the Y5-160 model has an Imax of 160KA (8/20μs) and In of 100KA.
Q2 Does this surge protector support remote status monitoring?
Yes, the device features an integrated Alarm contact to realize remote communication functions.
Q3 How do I know if the surge protective device is working properly?
It includes a local status indicator where green indicates a normal operating state and red indicates a device failure.
Q4 What standard of installation is required for this device?
The device is designed with a standard 35mm Din Rail track design for convenient and secure installation.
Q5 What voltage protection levels (Up) do these devices offer?
Depending on the operating voltage, the protection level ranges from <1.8KV up to <3.5KV for the Y5-120 model, and from <2.0KV up to <3.8KV for the Y5-160 model.
Q6 What are the combination methods and protection classes for this unit?
It supports 3+0 and 4+0 combination methods with three or four pieces to achieve common mode protection. The body has a protection class of IP20.
