Product Specifications
| Product Name |
POWERSA-SV ANTI-LIGHTNING COMBINER BOX (1500V) |
| Material |
Hot-dip galvanized steel sheet/stainless steel/SPCC /Plastic |
| Function |
Configure modular anti-reverse diode (optional) |

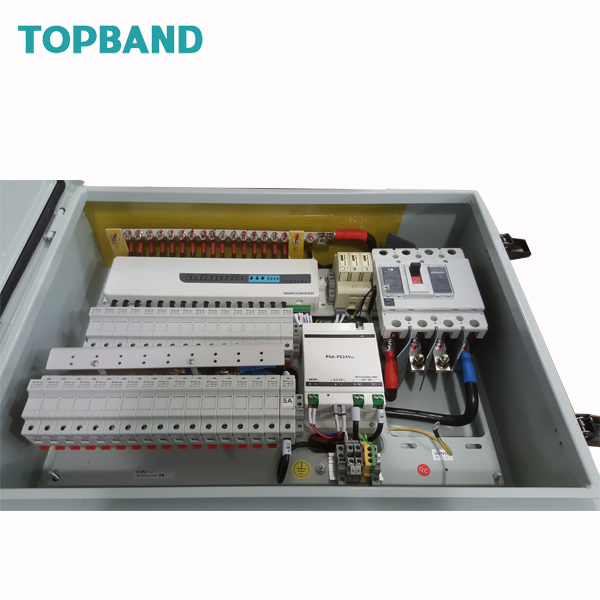

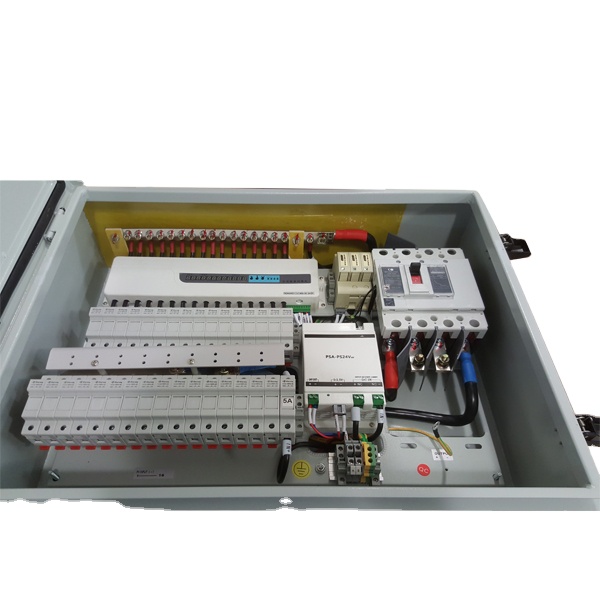

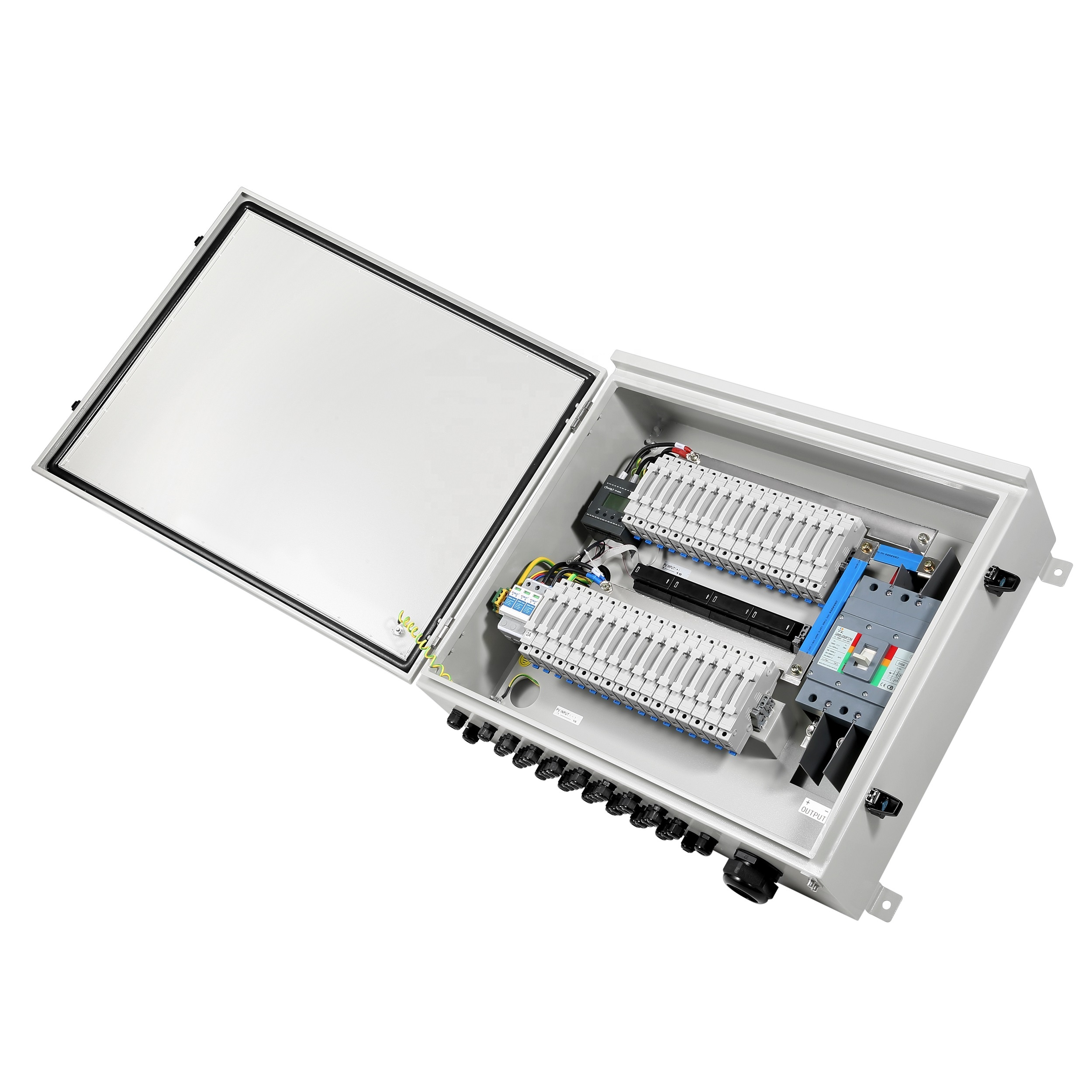

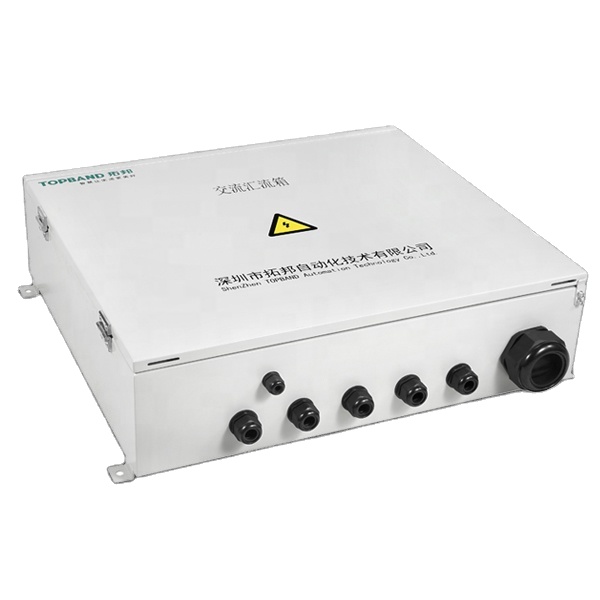

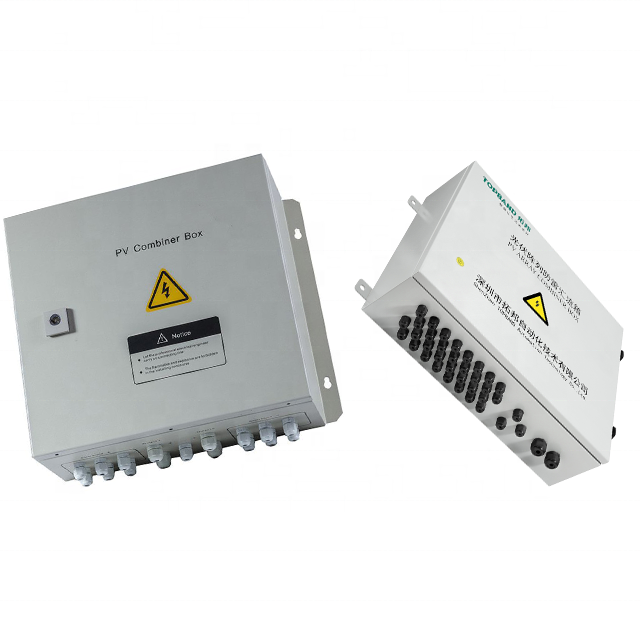

POWERSA-SV 1500V Lightning Protection Combiner Box

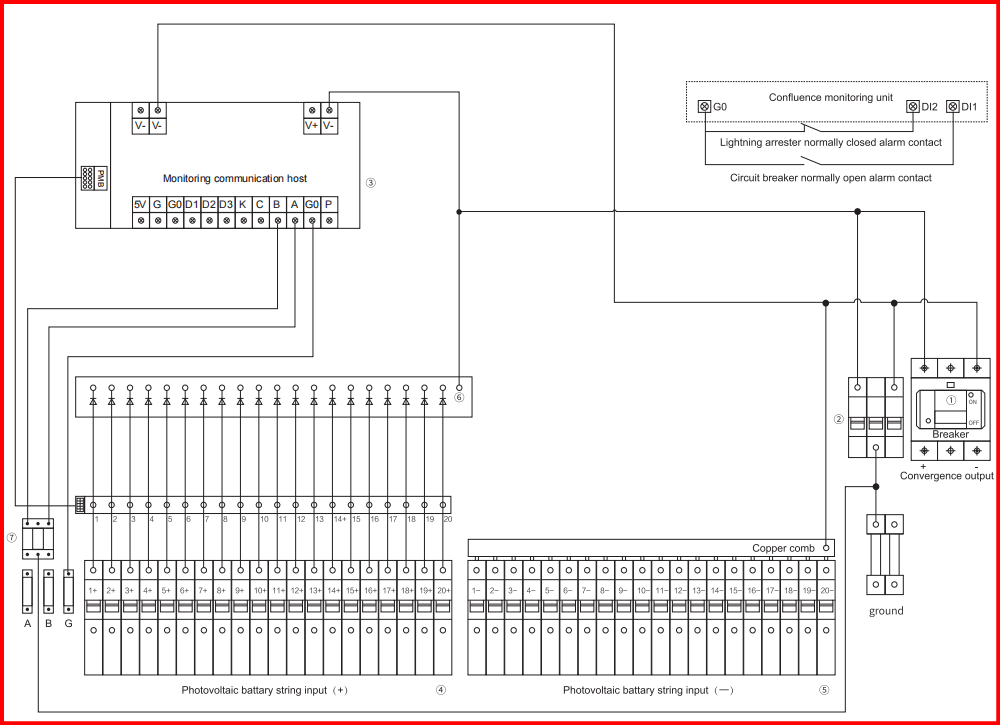

The PowerSA-SV combiner box integrates up to 24 or 32 PV string DC inputs into a single output channel. Each input string is protected by dedicated fuses, while the output is safeguarded with a circuit breaker and lightning protection device.
Product Overview
In large-scale grid-connected PV systems, the combiner box serves as a vital DC convergence point between the PV modules and the inverter. It reduces cabling complexity, simplifies installation and maintenance, and enhances overall system reliability by providing lightning, short-circuit, and grounding protection.

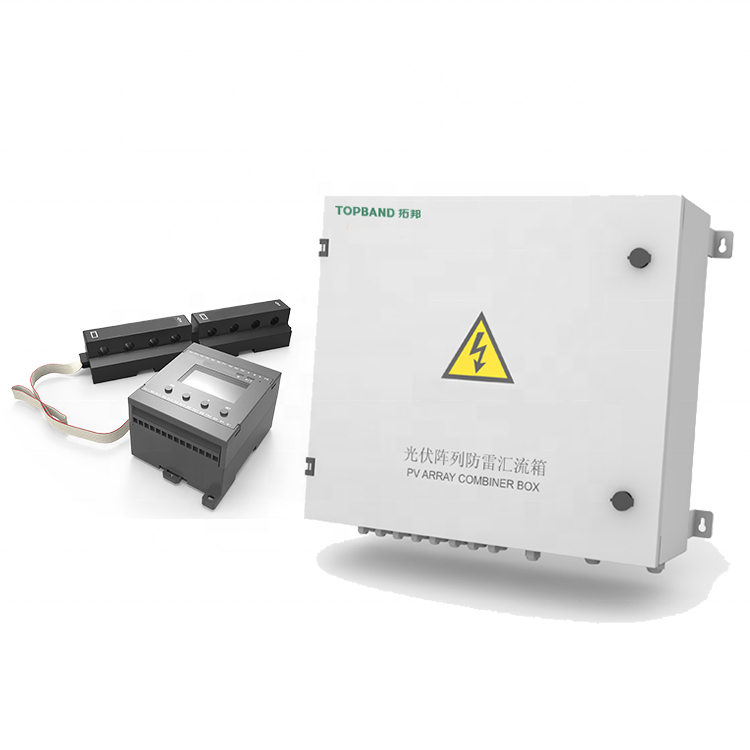

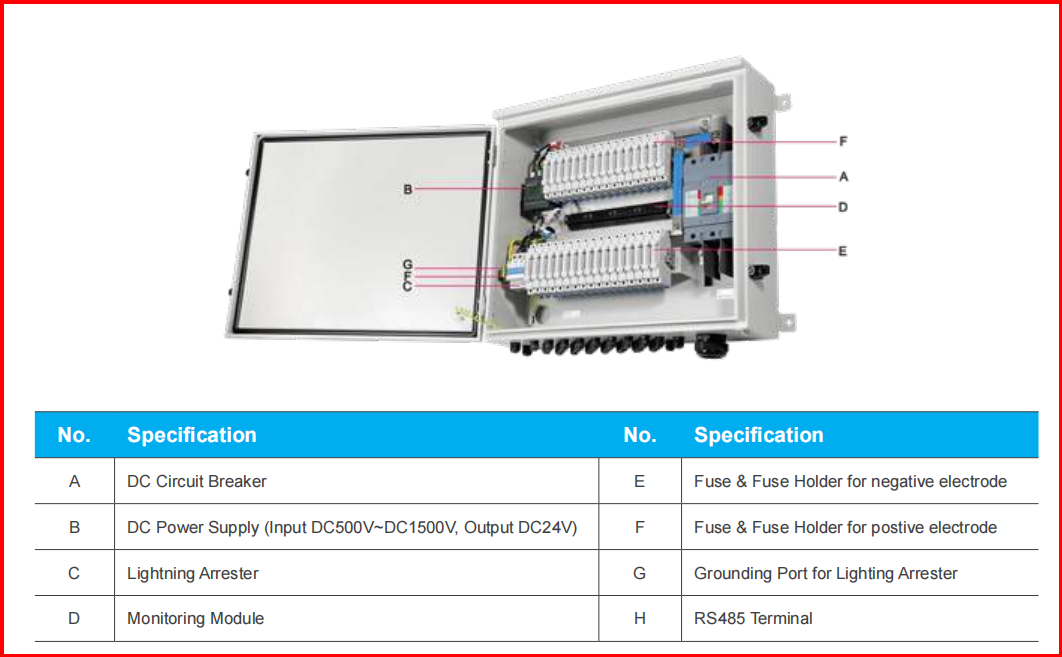

Two versions are available: intelligent and non-intelligent. The smart model includes a built-in monitoring module that continuously tracks the input current of each PV string, total output voltage, internal temperature, and the operational status of the SPD and circuit breakers.

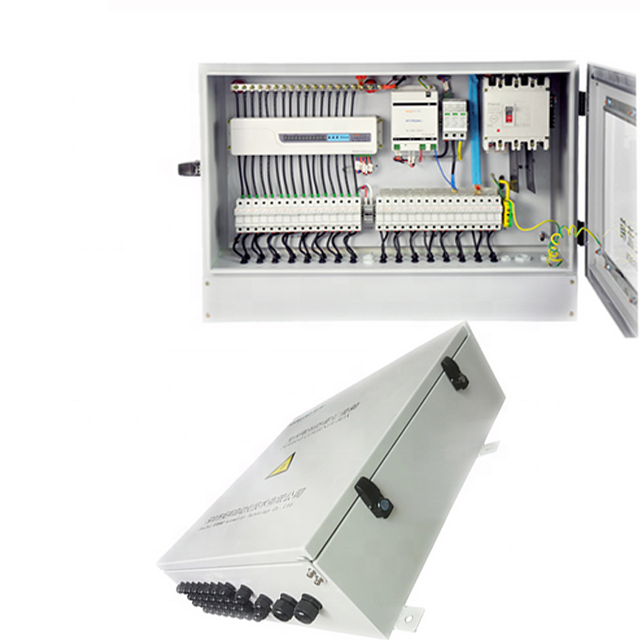

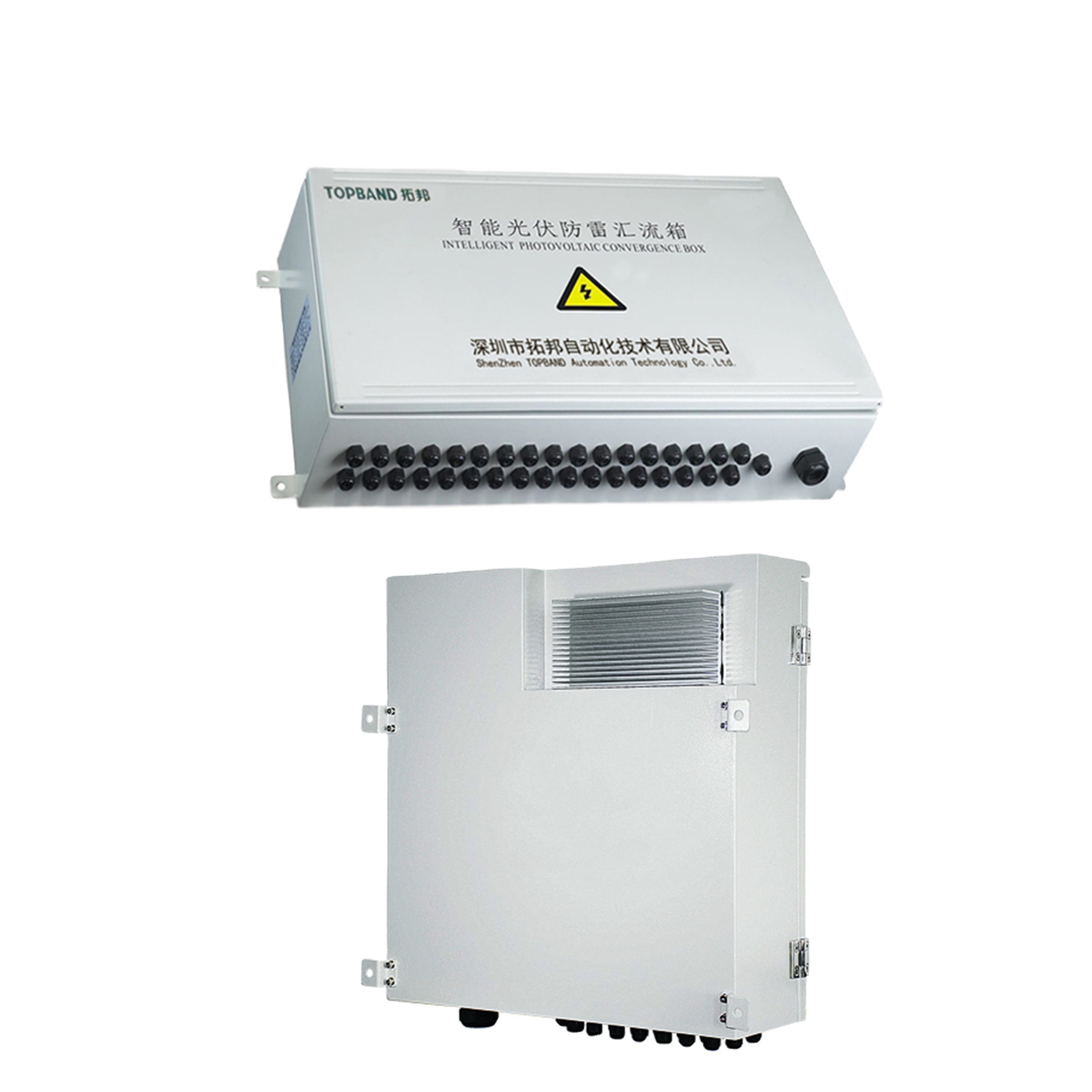

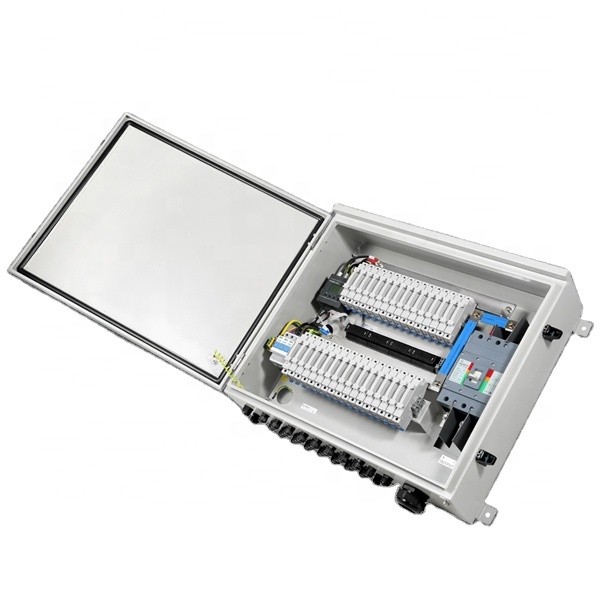

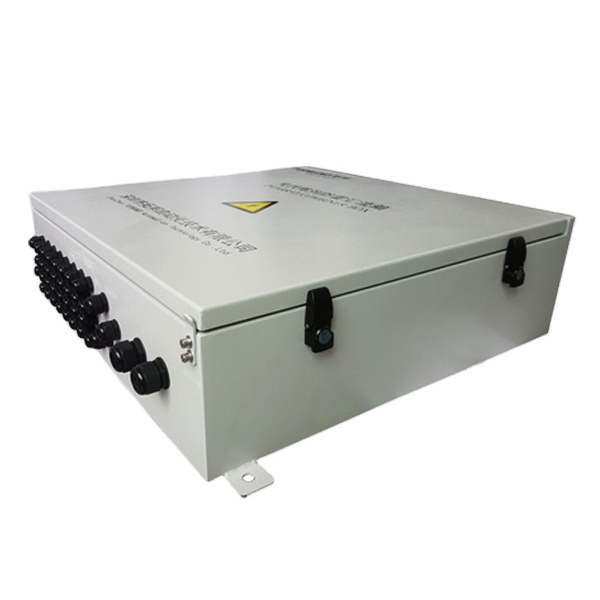

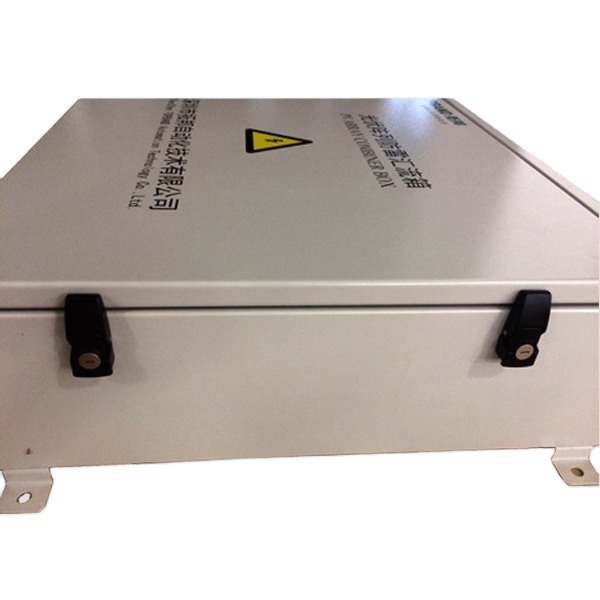

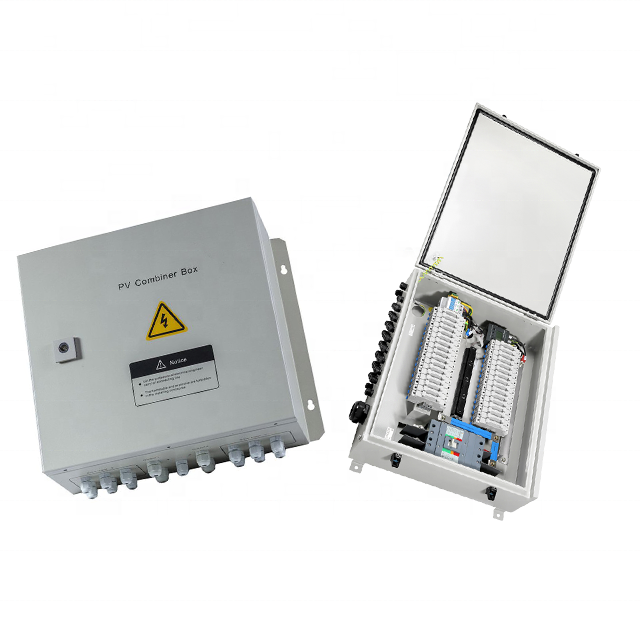

Designed with a clear internal layout and organized wiring, the PowerSA-SV features high reliability, easy maintenance, and outdoor wall-mounted installation, ensuring stable performance under harsh environmental conditions.

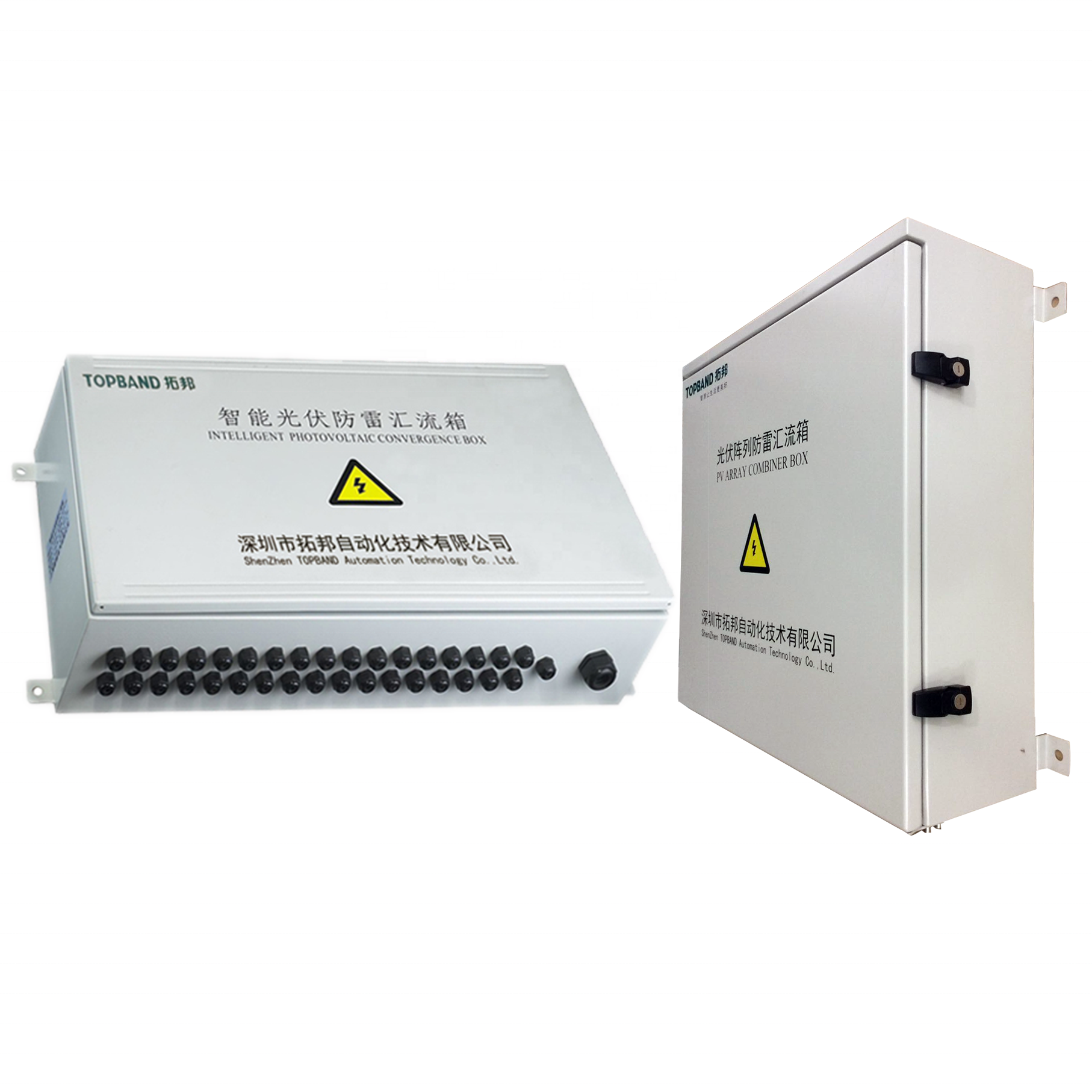

This product is specially designed for 1500V photovoltaic power stations and can be customized according to user requirements.
Product Features
IP65 rated for waterproof, dustproof, anti-rust, and anti-salt-fog, suitable for outdoor installation. Supports up to 32 PV strings, each equipped with dedicated fuses to protect components and reduce maintenance costs while ensuring personnel safety. Includes PV lightning protection device for positive and negative busbar poles, with continuous operating voltage up to 1500V DC.
The power module supports PV system voltages up to 1500V DC. Smart monitoring module with Hall sensor collects current and bus voltage of each string, detects local faults, measures temperature, and monitors circuit breakers and SPD status. Digital display shows string current, bus voltage, temperature, breaker and SPD state, system power, and equipment address. Supports RS485/MODBUS-RTU communication, lightning protection for external interfaces, and parameter download from local monitoring devices. Working power can be supplied externally (220VAC/DC) or via the internal power supply, no separate wiring needed.

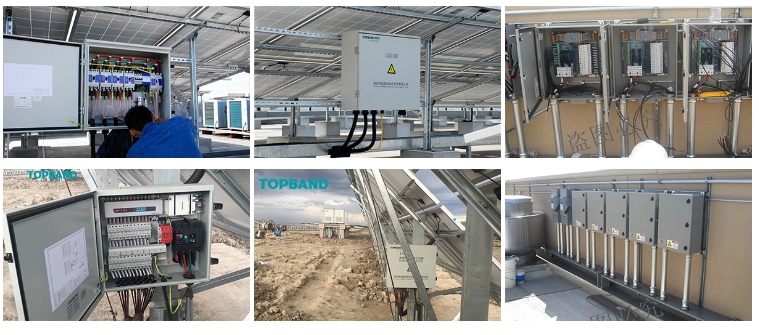

Applications
Ideal for medium-scale rooftop solar systems in commercial buildings, factories, and warehouses, the combiner boxes consolidate DC output from multiple PV panels, providing streamlined system management, protection, and easier maintenance.
Designed for residential PV systems, it simplifies wiring and protects components from overcurrent and overvoltage. Its compact design allows easy installation, making it ideal for home use.
DC combiner boxes are widely used in large-scale photovoltaic (PV) power stations to centralize input from multiple solar strings before connecting to the inverter. This improves wiring efficiency and safety.
Frequently Asked Questions
When can I receive the quotation and detailed information after sending the inquiry?
A reply will normally be sent within 12 hours.
What are your payment terms?
Paypal, Western Union, T/T, and Trade Assurance are all accepted.
Do you offer sample services?
Yes, we understand that sample testing is necessary for projects.
Can I put a custom logo on the cabinet?
Yes, OEM service is available for logo, packaging, and internal components branding.
How soon can you respond to after-sales problems?
Our R&D department and engineering team work closely with the sales department, enabling us to provide quick feedback and effective solutions for any issues.
