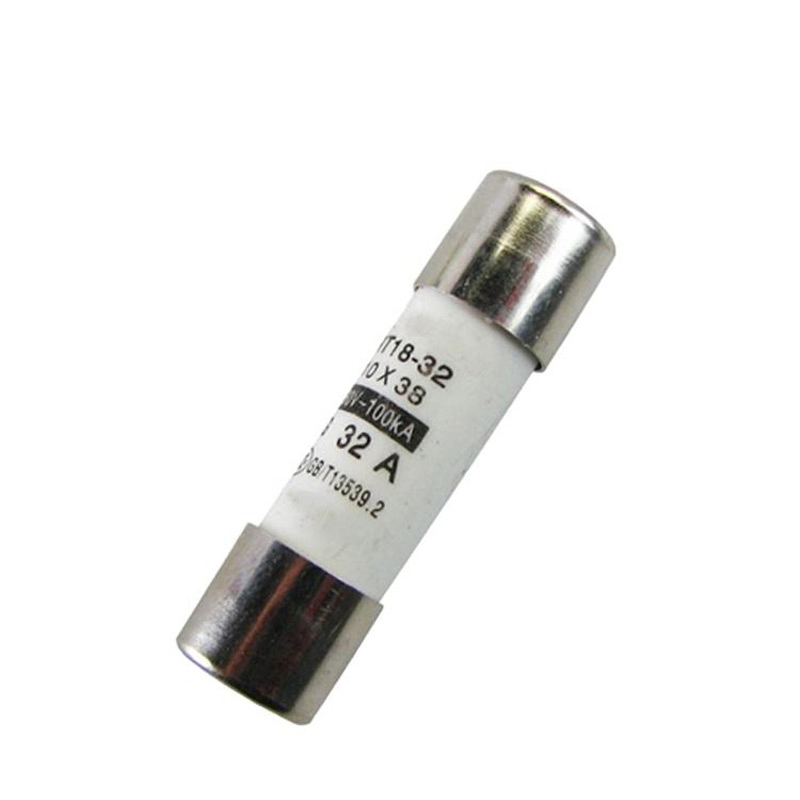

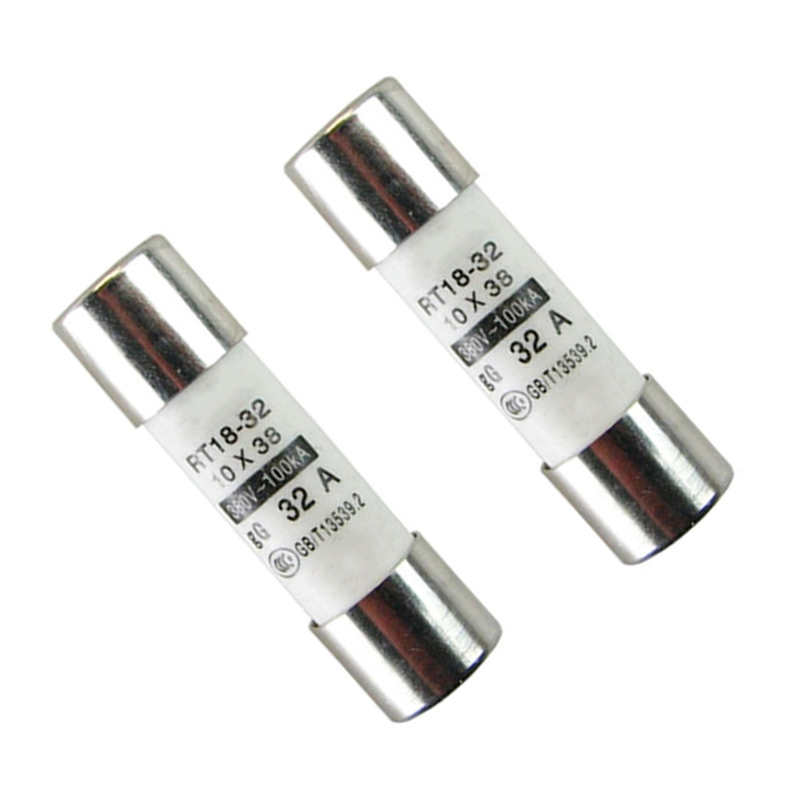

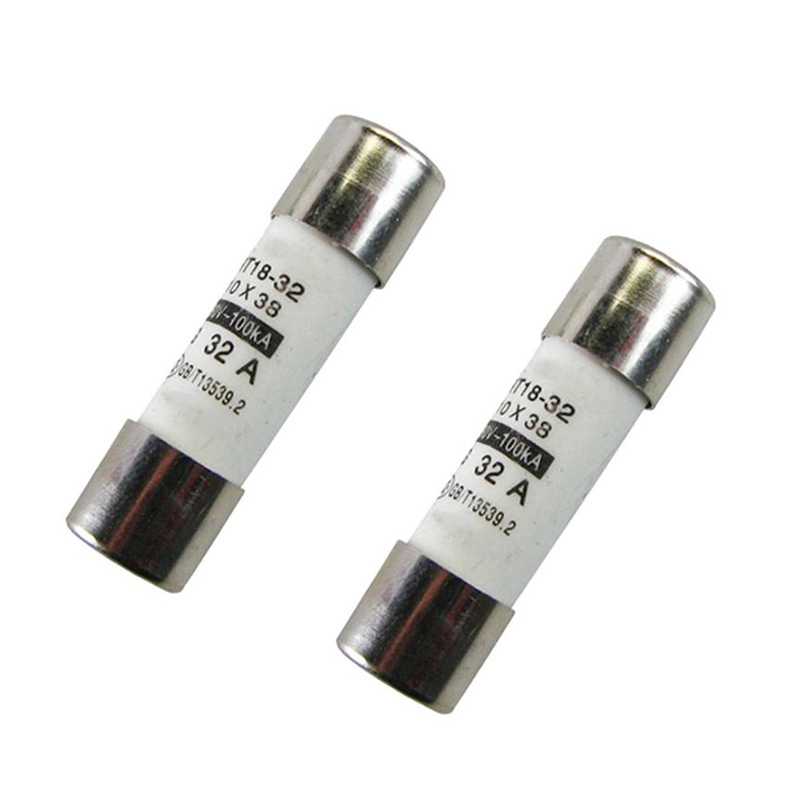

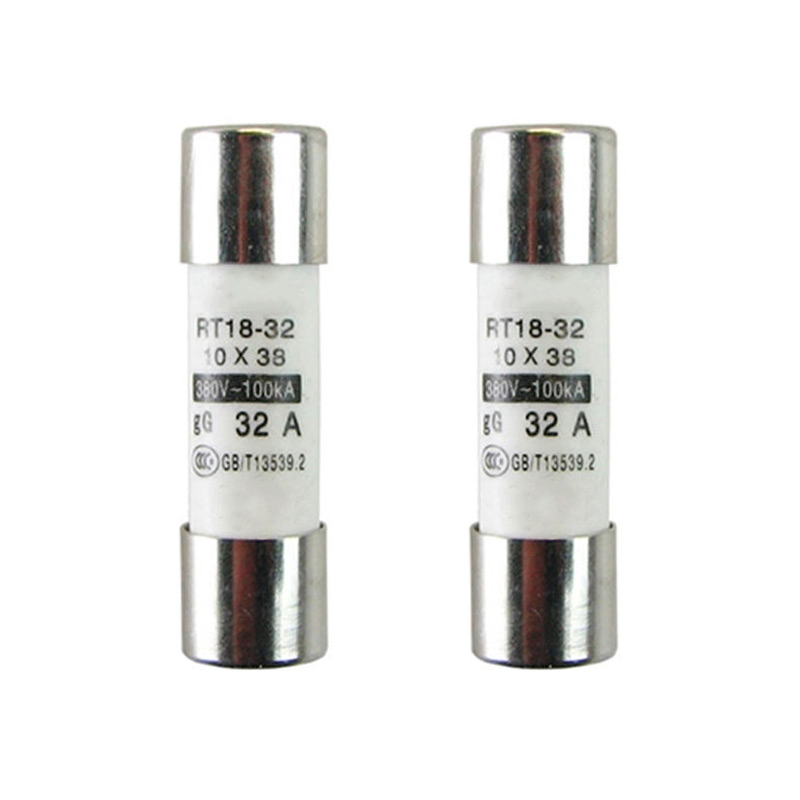

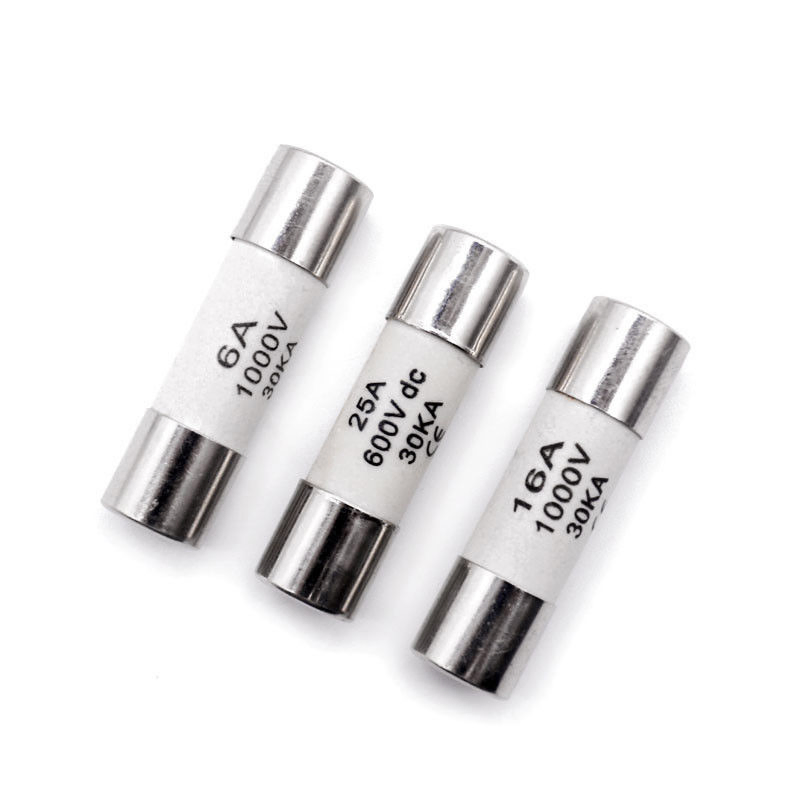

10x38mm RT18-32 16A 32A Solar Photovoltaic Cylindrical Ceramic Fuse 1000V DC designed for comprehensive power system protection.
Core Specifications:
| Rated Current | 1A-30A |
| Rated Voltage | 1000V |
| Material | Lead Free |
| Body Material | Ceramic |
| Cap Material | Copper |
| Type | Power System, Photovoltaic Fuses |
| Size | 10x38mm |
| Time Constant | 1-3ms |
| Breaking Capacity | 10kA 33kA |
| Min Interrupting Rating | 1.35 x In |
| PV Fuse Coordination | Thin film cells and 4", 5" and 6" crystalline silicon cells |
| Application | Solar Panel, Photovoltaic, Power System, Industrial |
| Certification | UL2579, IEC60269‐6, UL, IEC |
What are the primary applications for this cylindrical ceramic fuse?
This fuse is specifically designed for solar power systems, inverters, PV combiner boxes, junction boxes, and battery charge controllers.

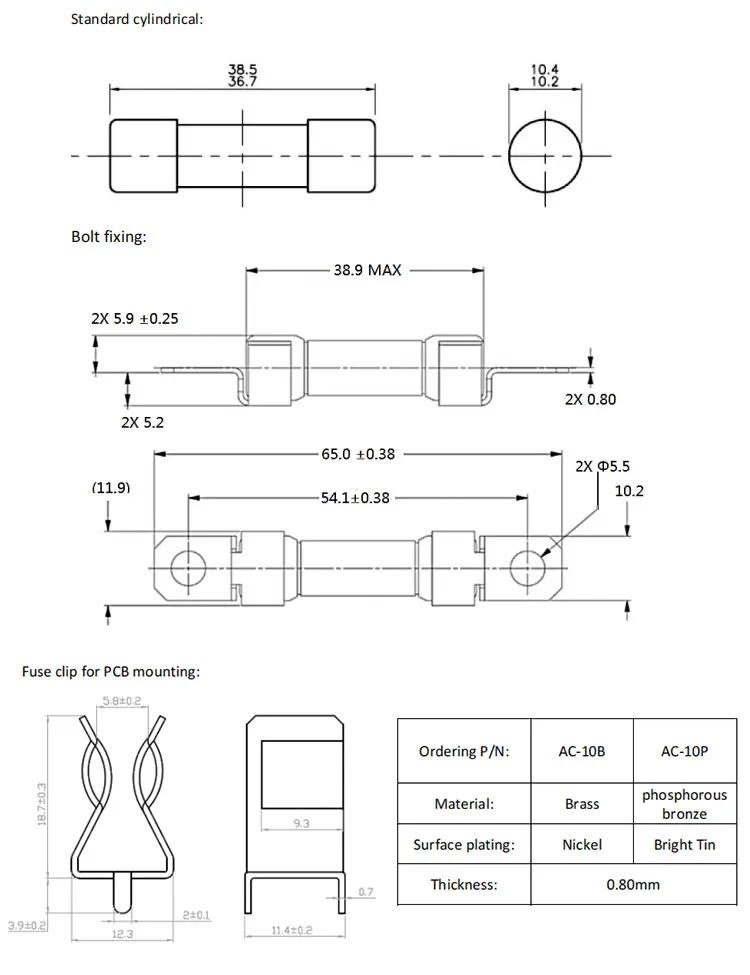

What is the standard physical size of the RT18-32 fuse?
The fuse has a standard physical size of 10x38mm, making it compact and compatible with standard PV fuse holders.
What safety certifications and standards does this solar fuse support?
The fuse is designed and manufactured in compliance with UL2579 and IEC60269‐6 international standards, and is also RoHS compliant, Lead-free, and Halogen-free.
What are the voltage and current ratings of this model?
It features a rated voltage of 1000V DC (with support up to 1500Vdc in PV setups) and supports a rated current ranging from 1A to 30A.
What materials are used in the construction of the fuse?
The body is built from high-strength engineering ceramic, and the contact caps are made from durable nickel-plated copper to ensure optimal conductivity and heat dissipation.
What is the breaking capacity of this product?
The breaking capacity spans between 10kA and 33kA, providing robust protection against overcurrent faults in photovoltaic systems.
