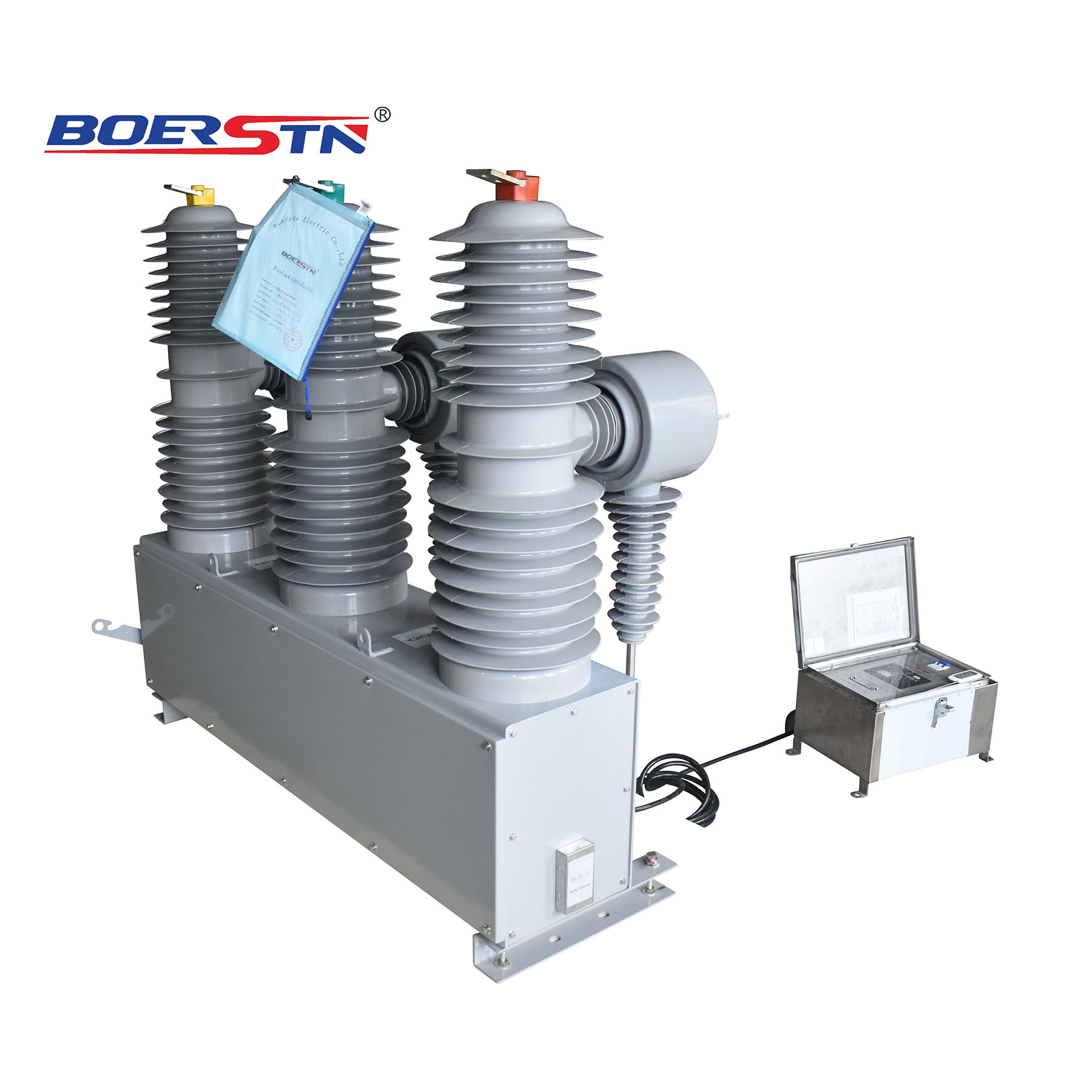

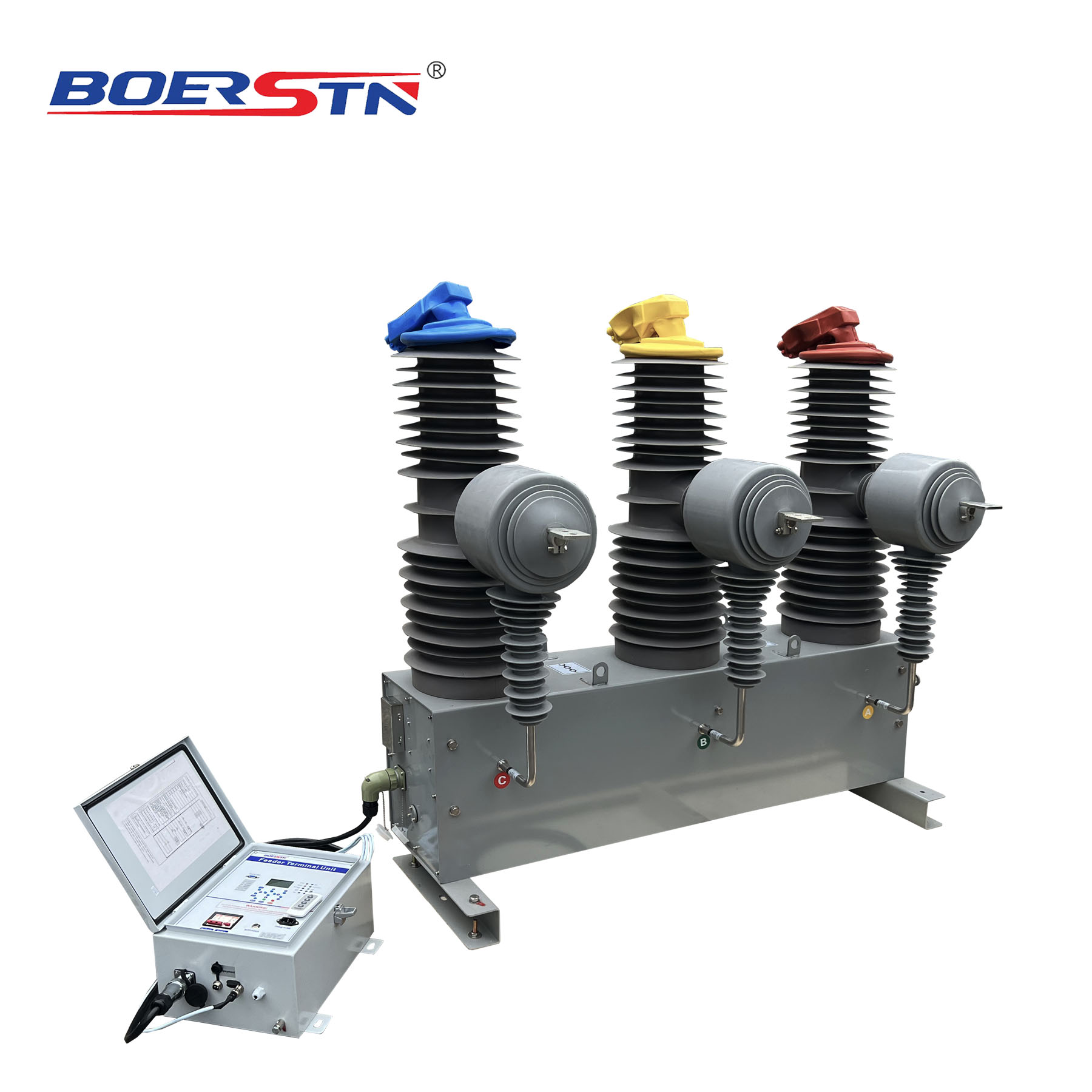

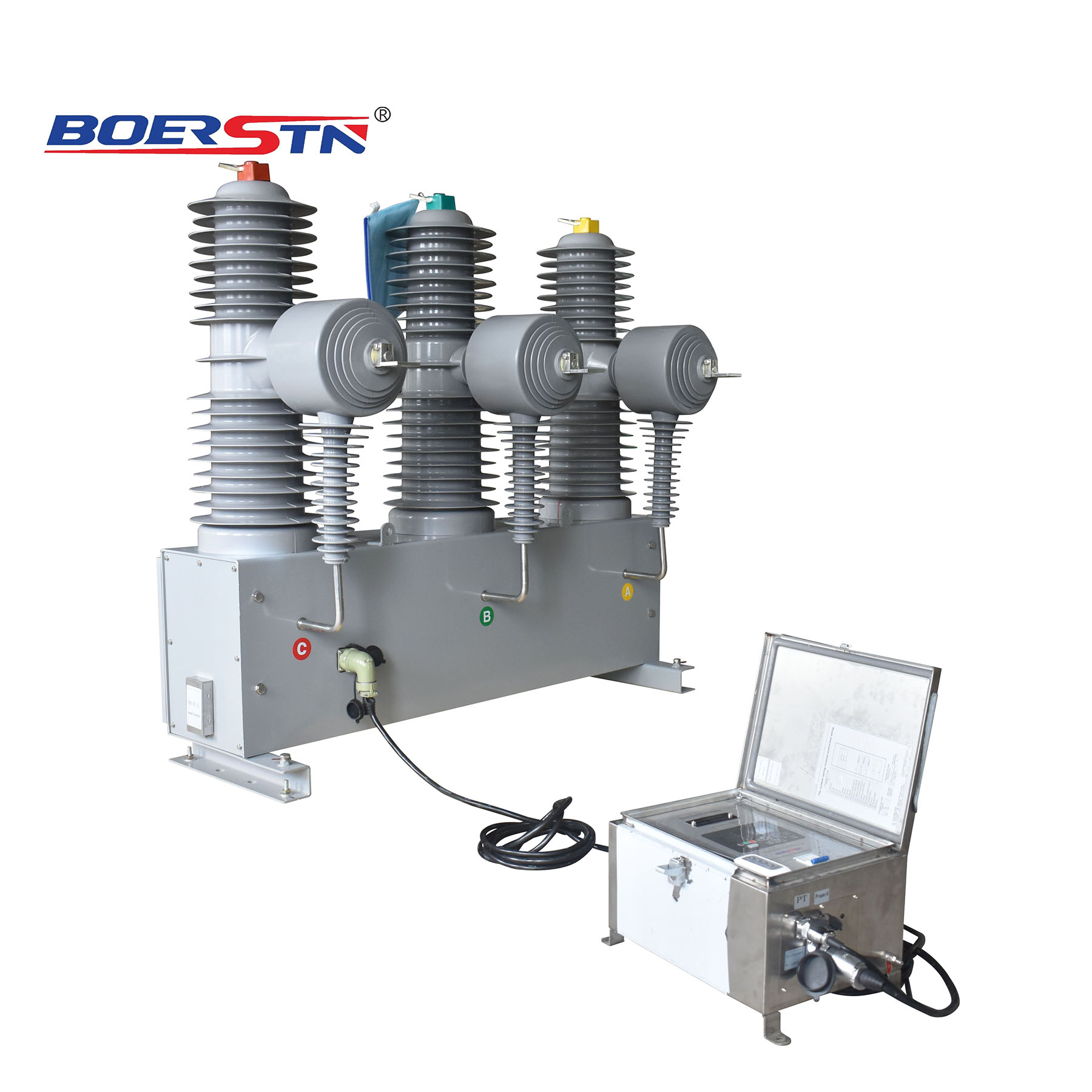

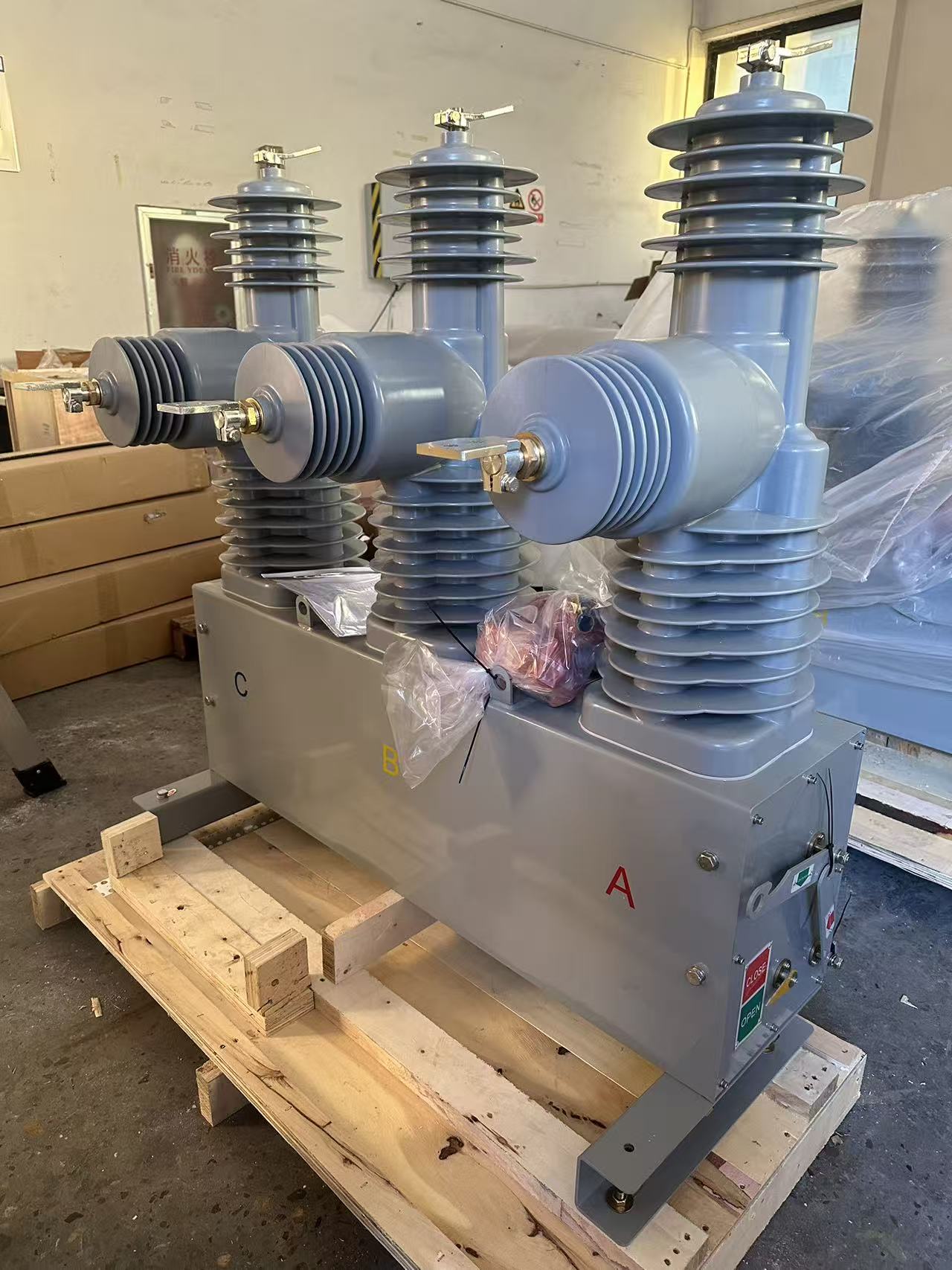

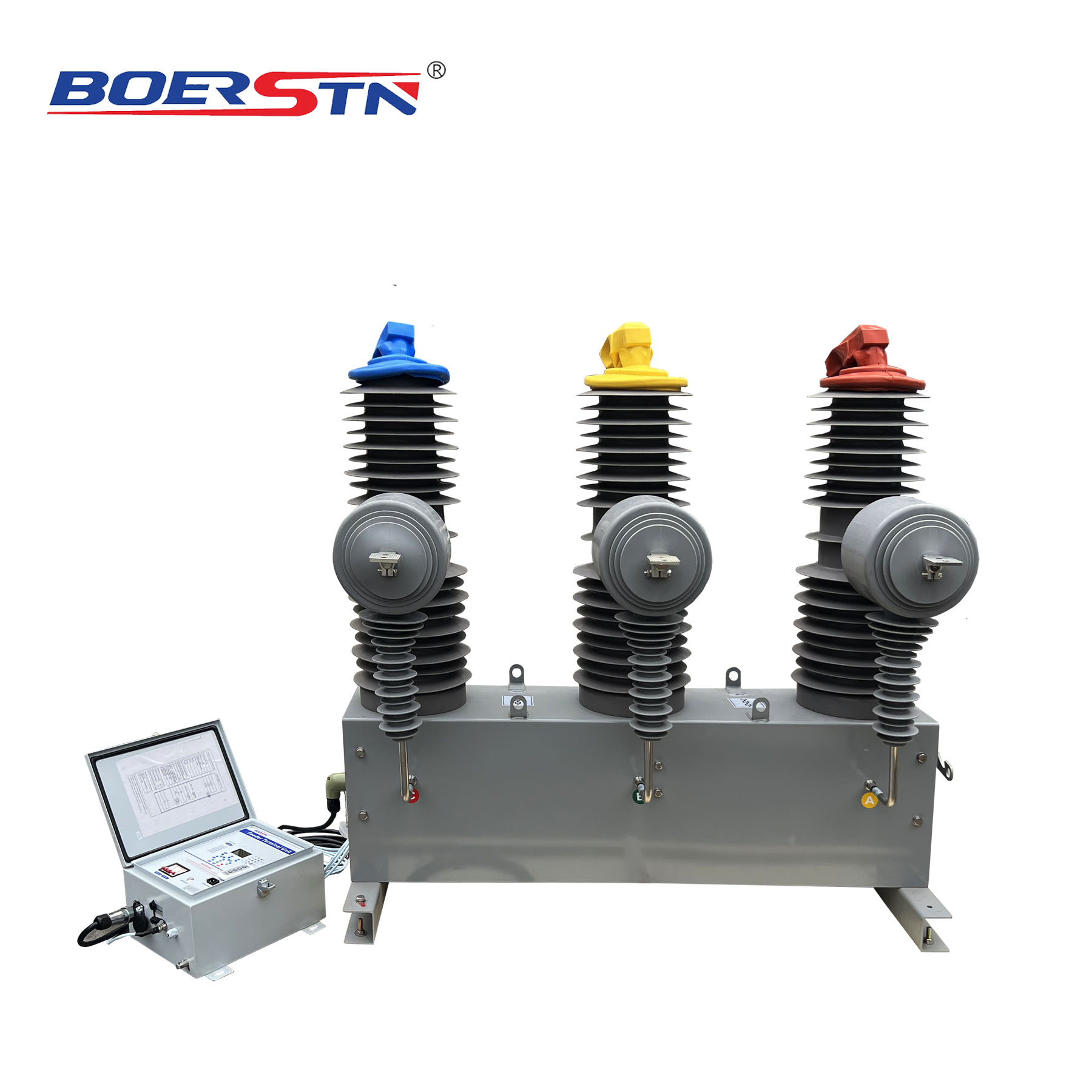

Microprocessor Based Pole Mounted Automatic Circuit Recloser ACR 34.5KV 800A Three Phase Tripolar

Product Description

Automatic Recloser Overview

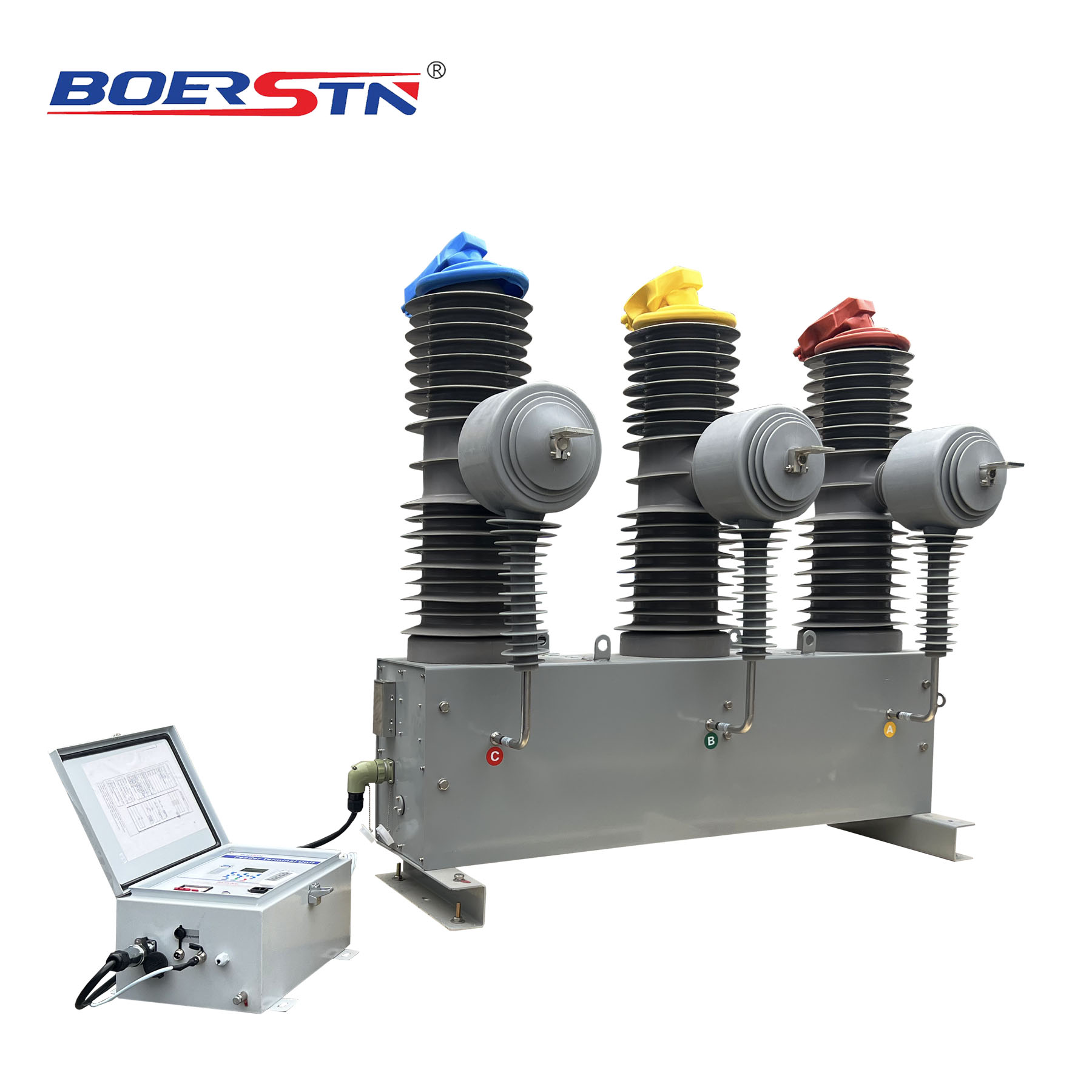

Automatic Recloser Details Automatic Recloser Mechanism
Control Box Close Up

Automatic Recloser, 34.5KV 800A

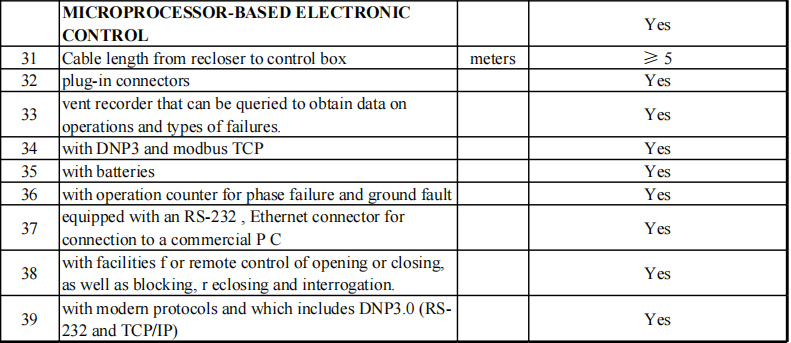

  • 3 phase, 60 Hz, equipped with a microprocessor-based electrical control box.
  • Designed for outdoor installation mounted securely on a pole.
  • Rated voltage of 34.5KV with a continuous operation current of 800A.
  • Supports modern communication protocols including DNP3.0 (RS-232 and TCP/IP).
  • Features 3 pieces of built-in current transformers (CT) and one Voltage transformer 34.5/0.12KV.
  • Includes at least a 5-meter cable connecting the recloser to its control box, along with plug-in connectors and a support structure for pole mounting.
Comply with standards: NEMA SG-13, ANSI C37.60, ANSI C37.61, ANSI C37.90, and IEC62271-100.

Service Environment

Ambient Temperature: -40°C to +45°C, with the average relative humidity (RH) within 24 hours ≤ 50%.

Altitude: Not exceeding 2500 meters above sea level.

Ambient Humidity: Daily average RH ≤ 95%; Monthly average RH ≤ 90%.

Earthquake Intensity: ≤ Degree 8.

Water Vapor Pressure: Daily average RH ≤ 2.2kPa; Monthly average RH ≤ 1.8kPa.

Ambient Environment: Free from fire hazards, explosion risks, serious pollution, chemical corrosion, and severe vibration.

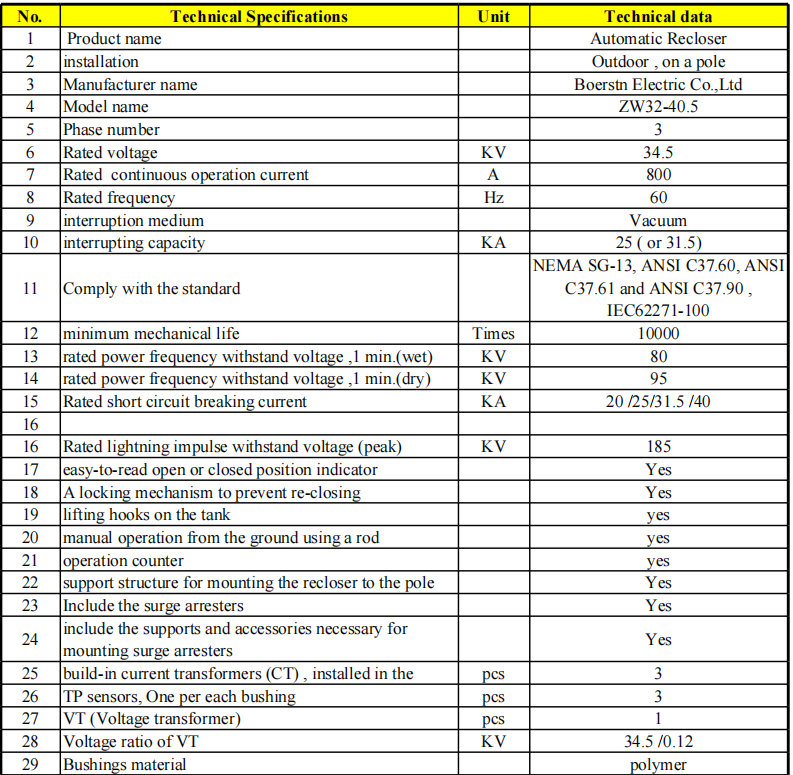

Product Technical Details

Recloser Component Detail 1 Recloser Component Detail 2 Recloser Component Detail 3 Recloser Component Detail 4 Recloser Component Detail 5 Recloser Component Detail 6 Recloser Component Detail 7 Recloser Component Detail 8 Recloser Component Detail 9

Frequently Asked Questions

How can I place an order?

You should supply us with detailed technical specifications, a single line diagram (SLD), or relative drawings via communication channels. Our sales team is available at any time to provide a quotation and discuss details further.

Do you accept OEM & ODM projects?

Yes, we support both OEM and ODM services to fit custom engineering requirements.

What are your payment terms?

We accept flexible and quick payment methods, including irrevocable L/C at sight, T/T (30% deposit in advance and 70% balance after goods are ready), Western Union, and Moneygram.

Where is your primary market?

Our main markets include Southeast Asia, the Middle East, West Asia, Africa, America, and European countries, with exports accounting for over 60% of our annual sales.

What is your product guarantee period?

Our quality guarantee period is 12 months after the goods enter the buyer’s warehouse. We hold ISO9001, ISO14001, ISO45001, IEC, and Soncap certificates. Production and testing strictly comply with international standards like IEC and ANSI.

Do you have an overseas technical support team?

Yes, our technical team is available to travel to site locations to guide installation, testing, commissioning, and maintenance processes.
