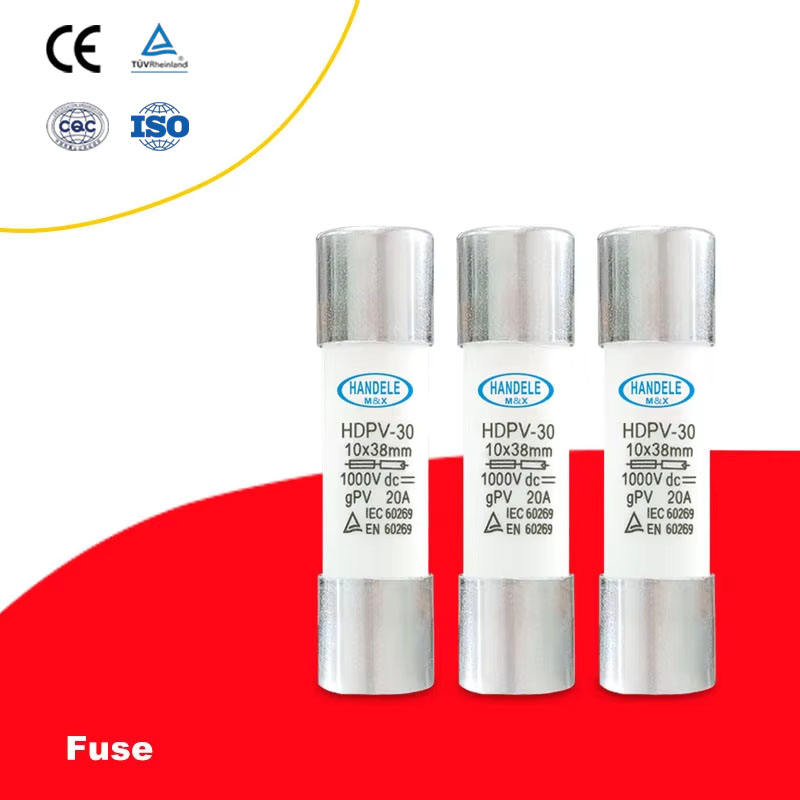

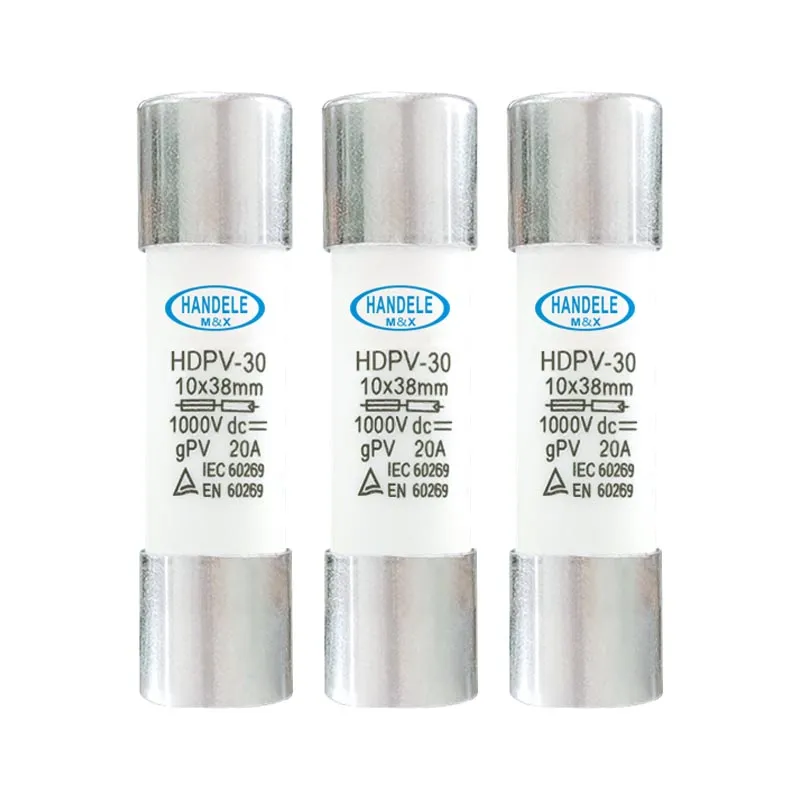

| Model NO. | HDPV-30 |
| Usage | Low Voltage |
| Shape | Circle |
| Fusing Speed | M |
| Fusing Device | Pop-up Solid |
| Standard | IEC |
| Fuse Size | 10*38mm |
| Selling Units | Single Item |
| Safety Standards | IEC |
| Single Gross Weight | 0.060kg |
| Class of Operation | Gpv |
| Application | Low Voltage |
| Single Package Size | 3.8X1X1cm |
| Transport Package | Multiple Packaging Options Available |
| Specification | 10*38MM |
| Trademark | HANDELE |
| Origin | Zhejiang, China |
| Package Size | 3.80cm * 1.00cm * 1.00cm |
| Package Gross Weight | 0.100kg |

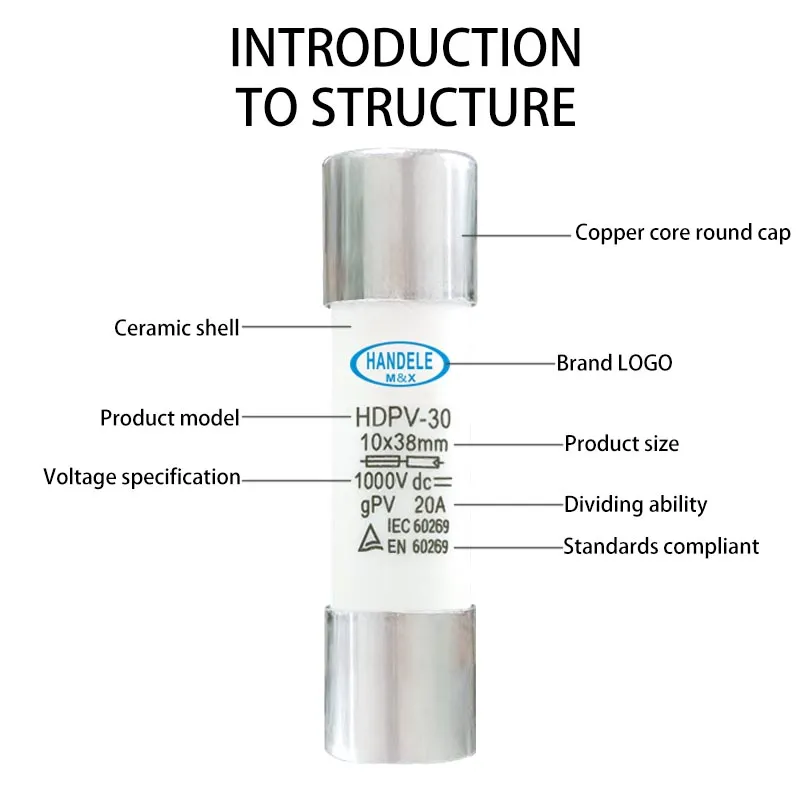

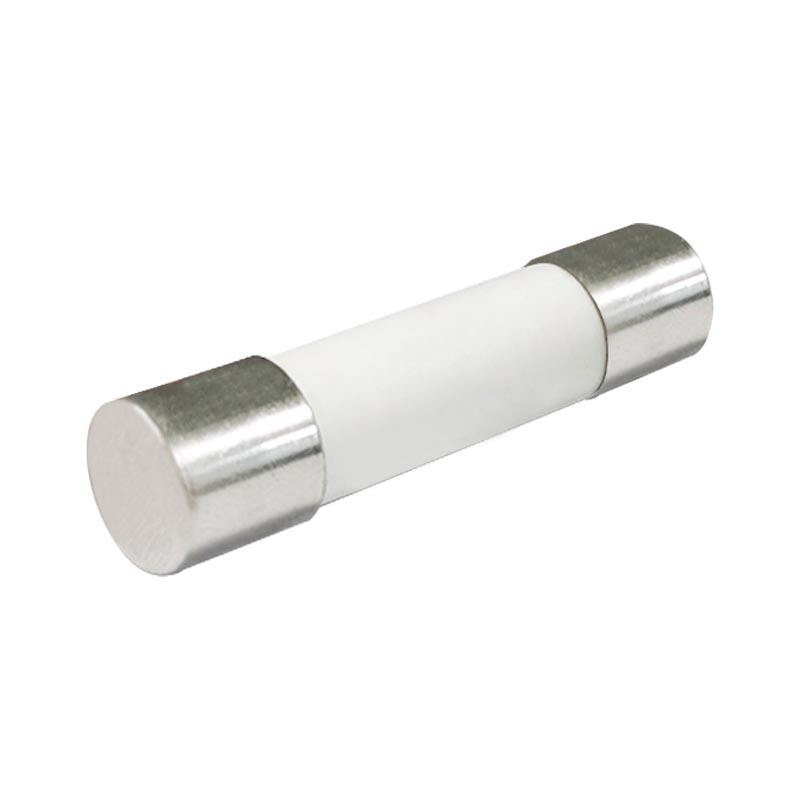

Fuse is also known as a current fuse, IEC127 standard defines it as a fuse (fuse-link). It mainly plays an overload protection role. When the fuse is correctly placed in the circuit, the fuse will fuse itself to cut off the current when the current rises abnormally to a certain height and heat, protecting the safe operation of the circuit.

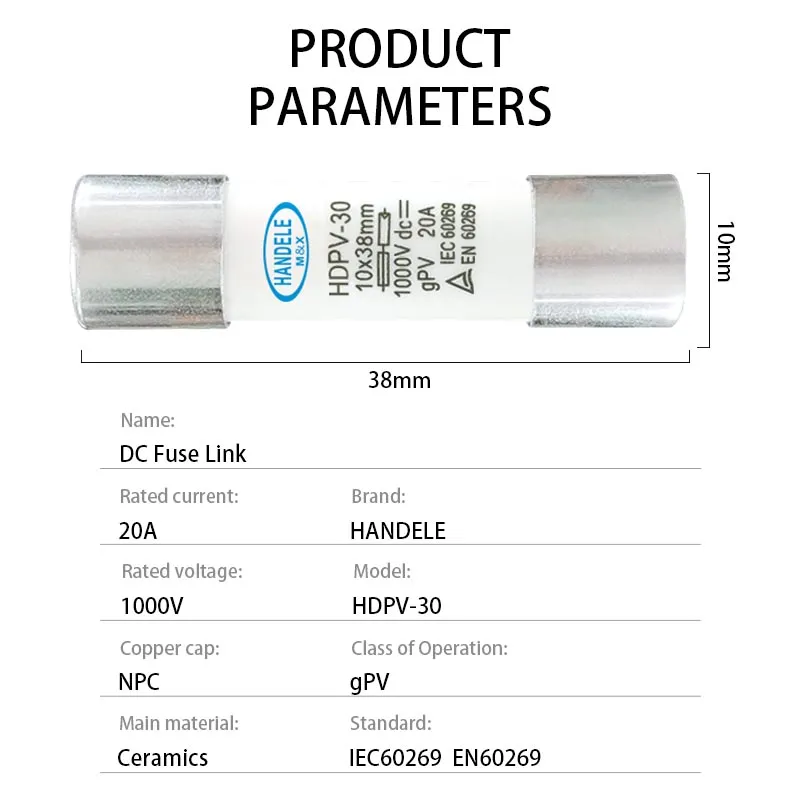

| Parameter | Specification Details |
|---|---|
| Applicable Fuse Link Size | 10*38cm |
| Rated Voltage | 1000V |
| Rated Current | 20A |
| Max power attenuation | 3.5W |
| Connection | 2.5-10mm² |
| Operation ambient temperature | -30~+70 |
| Resistance and damp hot | Class 2 |
| Elevation | ≤2000 |
| RH(relative air humidity) | when +20°C not exceed 95% when +40 °C, not exceed 50% |
| Pollution class | 3 |
| Installation environment | the place of no obvious vibrate & impact |
We have strong OEM/ODM capability and considerate service, welcome to contact us.
We are one of the domestic low-voltage electrical manufacturers, mainly producing SPD surge protective device and modular ac contactor.
Our company has a strong design team and excellent management team with a perfect management system, setting scientific research, production, sales and service in one and providing users with safe, energy-saving and cost-effective low-voltage electrical products.
We cooperate with global partners to bring reliable electrical solutions to customers worldwide.
We have a professional customer service team to provide you with customized personalized service.
