Basic Info.
| Model NO. |
FSKDC15AL |
| Usage |
High Voltage |
| Shape |
Circle |
| Fusing Speed |
F |
| Fusing Device |
Luminous |
| Standard |
UL |
| Insulation Material |
PPO |
| Rated Voltage |
TUV 1000V DC |
| Test Voltage |
6kv(50Hz,1min) |
| Contact Material |
Copper, Tin Plated |
| Contact Resistance |
Less Than 0.35 MΩ |
| Degree of Protection |
IP68 |
| Pollution Degree |
2 |
| Protection Class |
Class II |
| Flame Class |
UL94-V0 |
| Ambient Temperature Range |
-40 ~ + 90 |
| Transport Package |
1800PCS/ Carton |
| Specification |
10*85 |
| Origin |
China |
| HS Code |
8536100000 |
| Production Capacity |
50000 PCS |
Packaging & Delivery
| Package Size |
45.00cm * 30.00cm * 20.00cm |
| Package Gross Weight |
20.000kg |
Product Description
Description

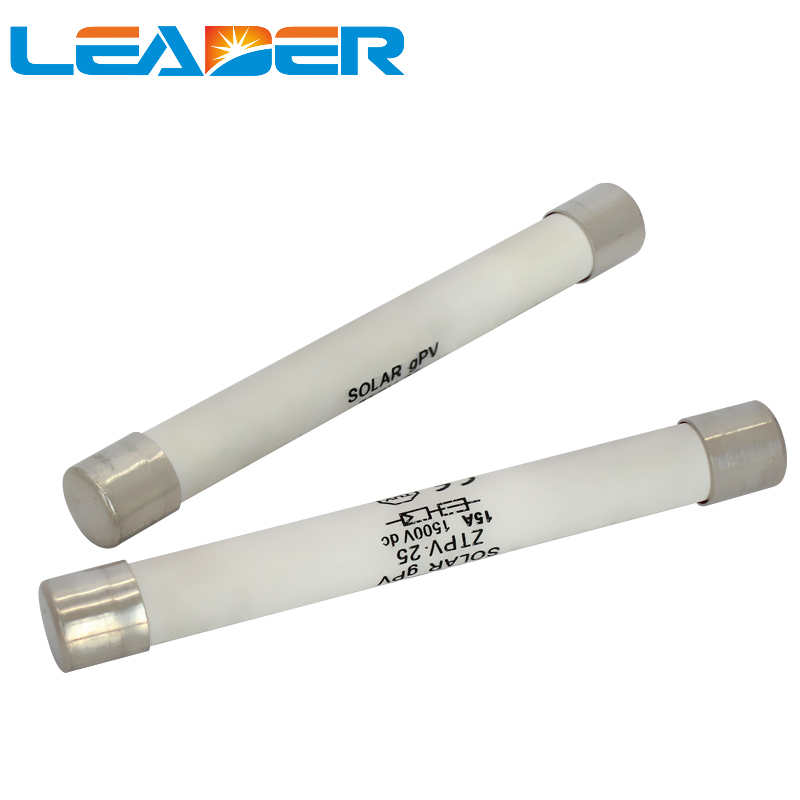

Solar inline fuse is used for safe and simple series or parallel connecting solar PV modules, inverters, or solar power plant systems. Certification with TUV/UL/IEC/CE standards, suitable for Ø2.5-Ø16mm² photovoltaic solar cables. The connector design is based on the 25-year working lifetime of the photovoltaic power station and has long-term stable electrical contact performance.
- Contact with drum-type crown spring, make electrical connection safety and fastness.
- TUV/UL/IEC/CE certificated, compatible with 2000+ popular solar module connectors.
- Self-locking between the female and male connector, installation conveniently and reliably.
- Ratchet mechanism design to lock the nut cover, avoid being loosened after long term using.
- Contact resistance less than 0.35mΩ with Multi-Contact, less heating and low power consume.
- Strong ageing resistance and UV resistance, suitable for use in multiple harsh outdoor environments.
It is suitable for various harsh outdoor environments such as deserts, lakes, seasides, and mountains (climate environment with high temperature, high humidity, and strong salt content). It is an important part of the solar system. Good connection quality ensures the long-term and safe operation of the photovoltaic system and effectively reduces the failure rate of the photovoltaic system and the later operating costs.

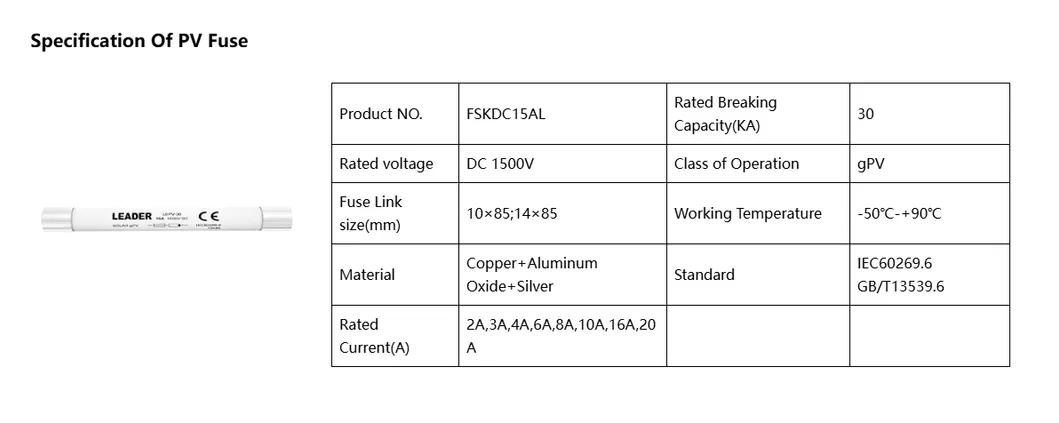

Specification Of Solar Products

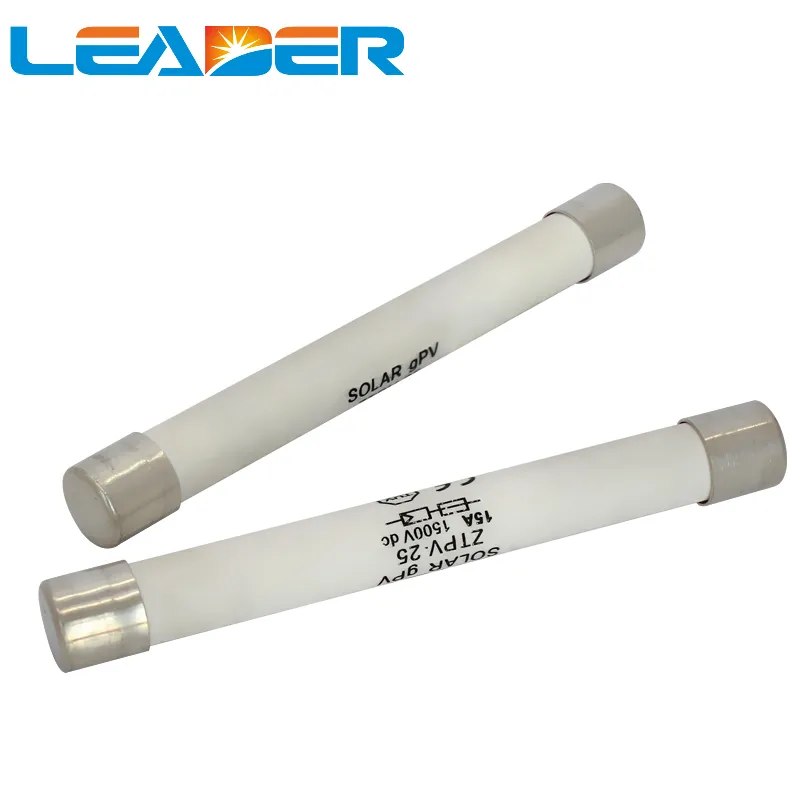

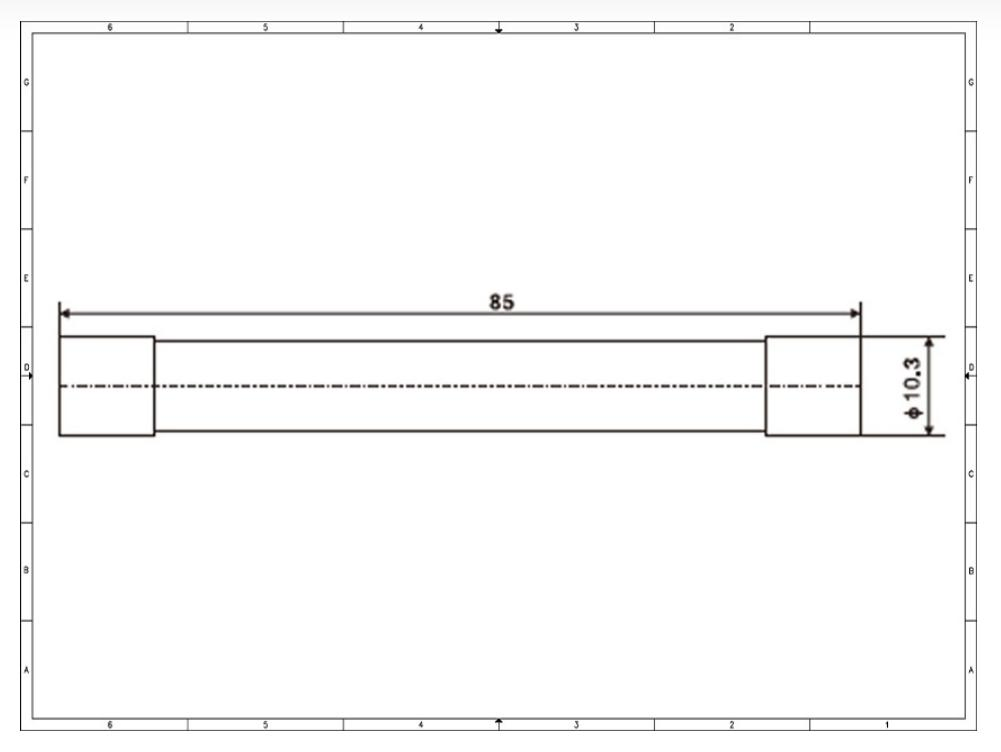

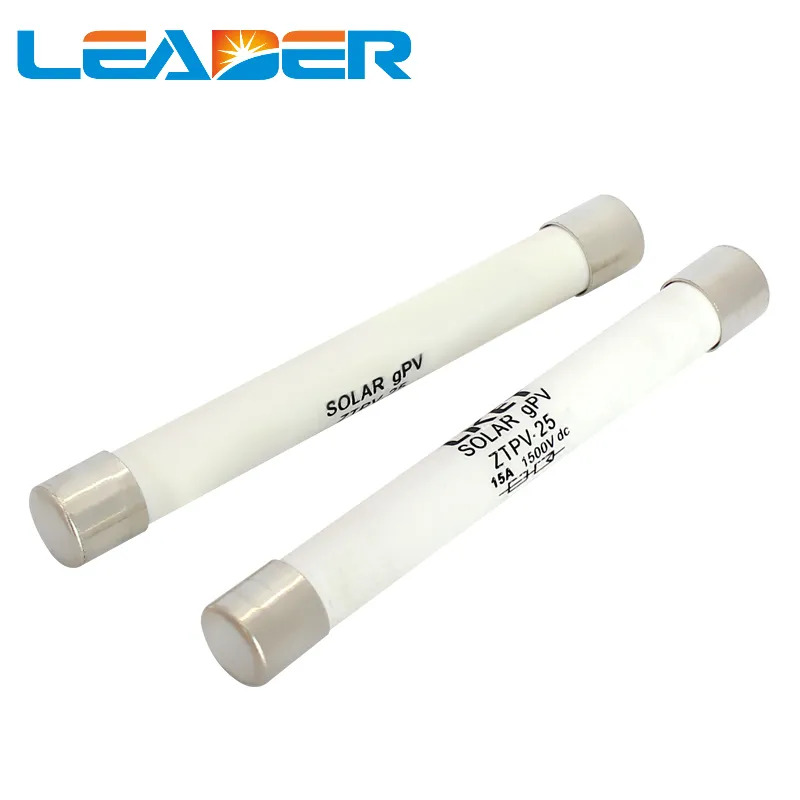

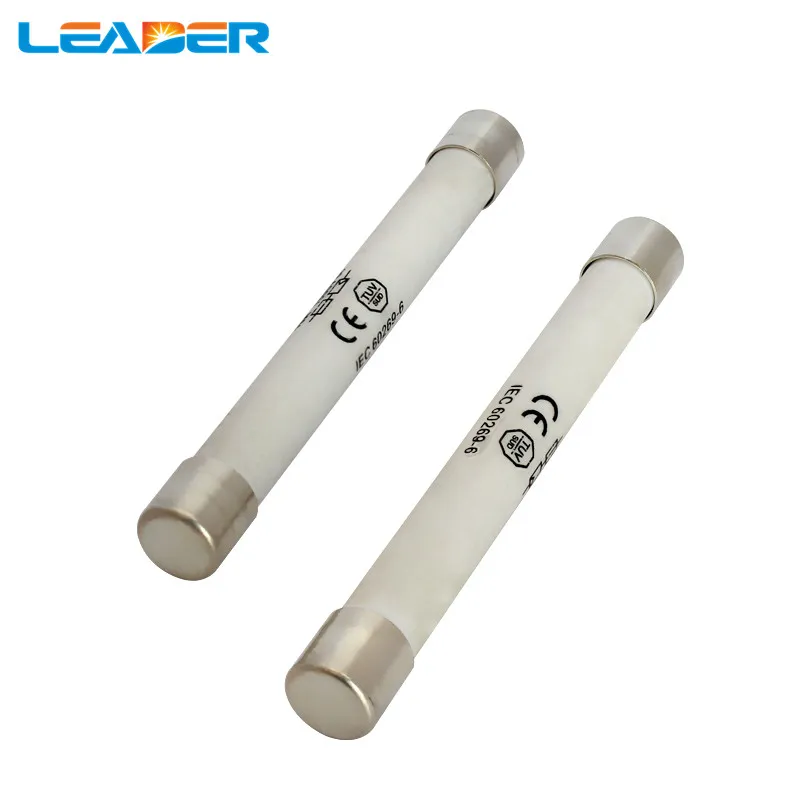

Drawing Of Solar Inline Fuse Types
Our Services:
Upon receipt of our products, if you are not satisfied with the quality or concerned, you can return it within 3 days after receiving our products, but only if products need to keep intact and original; any returns arising from the cost of freight and customs, will be borne by the buyer, buyer should be responsible to assume, otherwise, we have the rights to refuse to refund.
All in all, we believe our quality and service will satisfy your needs, we do not wish to see similar things happen, but once they occurred, please contact us immediately, we will make every effort to resolve the problem and make you satisfied at the first time.
We will give you a best service:
- Reply inquiry within 24 hours.
- Answer your detailed question.
- Freight forwarder: faster, safer, and convenient.
- Please kindly inform us which item you are interested in so that the reasonable price could be provided soon.
Frequently Asked Questions
What is the main application of the solar inline fuse?
The solar inline fuse is designed for the safe and simple series or parallel connection of solar PV modules, inverters, and solar power plant systems to provide reliable overcurrent protection.
What certifications do these solar inline fuses carry?
These products are fully compliant and certified with TUV, UL, IEC, and CE standards, ensuring international quality and safety compliance.
Are these solar fuse connectors waterproof and dustproof?
Yes, they feature an IP68 protection rating, which provides superior protection against water and dust intrusion, making them perfect for harsh outdoor installations.
What types of environments are these fuses suitable for?
They are built with strong aging and UV resistance, allowing them to withstand extreme outdoor conditions such as deserts, lakes, coastal regions, and mountains.
What cable sizes are compatible with these connectors?
These connectors are compatible with standard photovoltaic solar cables ranging from Ø2.5mm² to Ø16mm².
What is the return policy if I am not satisfied with the product?
We accept returns within 3 days of product receipt if you are unsatisfied with the quality. The product must remain intact and in its original condition, and the buyer is responsible for freight and customs return costs.
