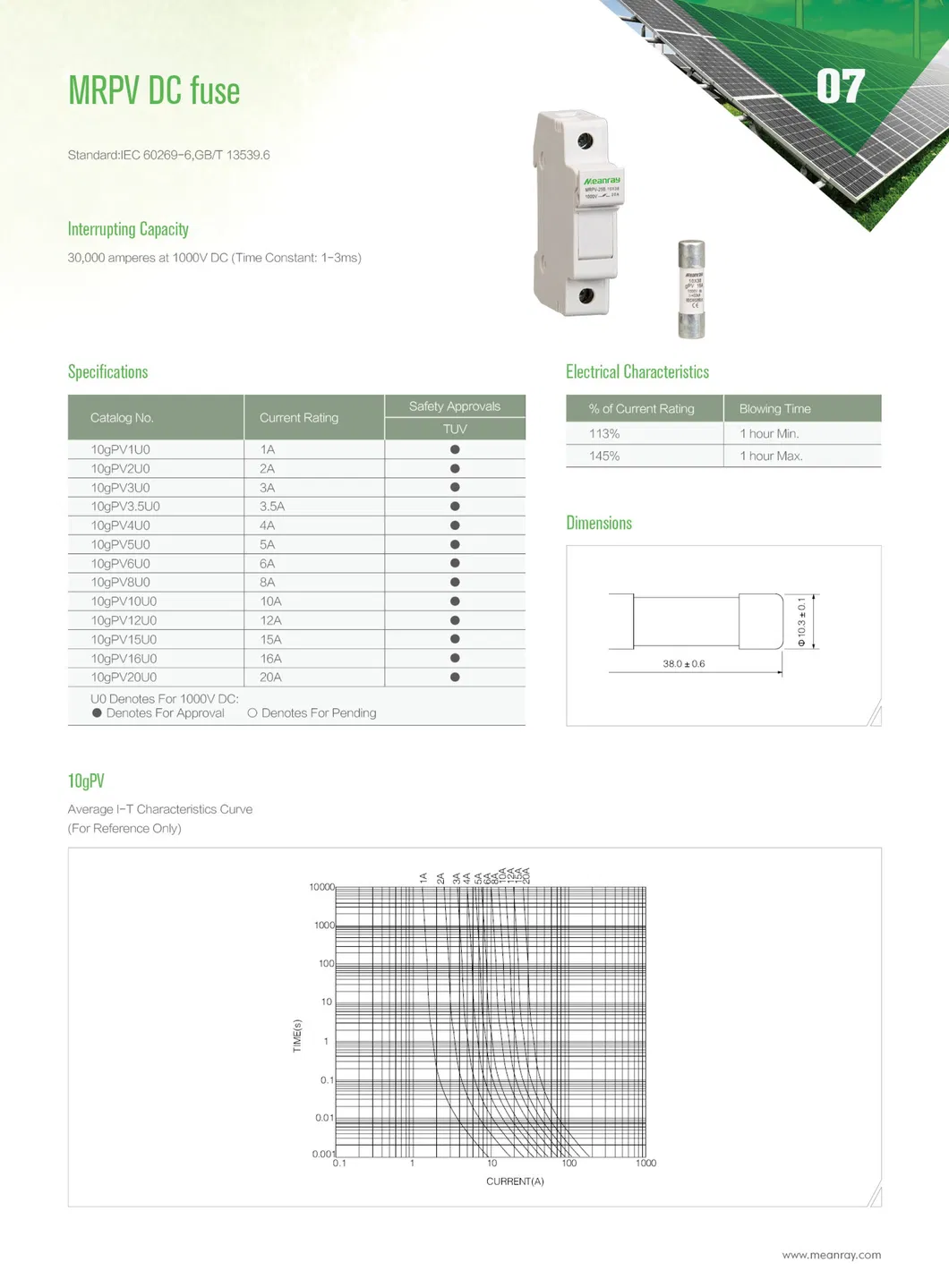

| Item | DC FUSE |
| Pole | 1P, 2P |
| Voltage | ≤1000VDC |
| Current | 1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A, 32A |
| Giggest block ability(KA) | 33KA |
| Standard | IEC/EN60269 |
| Connection(mm) | 2.5-10 |
| Power consumption(W) | 3.5 |
| Working Temperature | -5° to +40° |
| Protection Degree | IP20 |
| Dimension(W)X(H)X(D) | 10X38 (18X60X78) |
| Installation | 35MM DIN RAIL |
| Installation Altitude | ≤2000M |

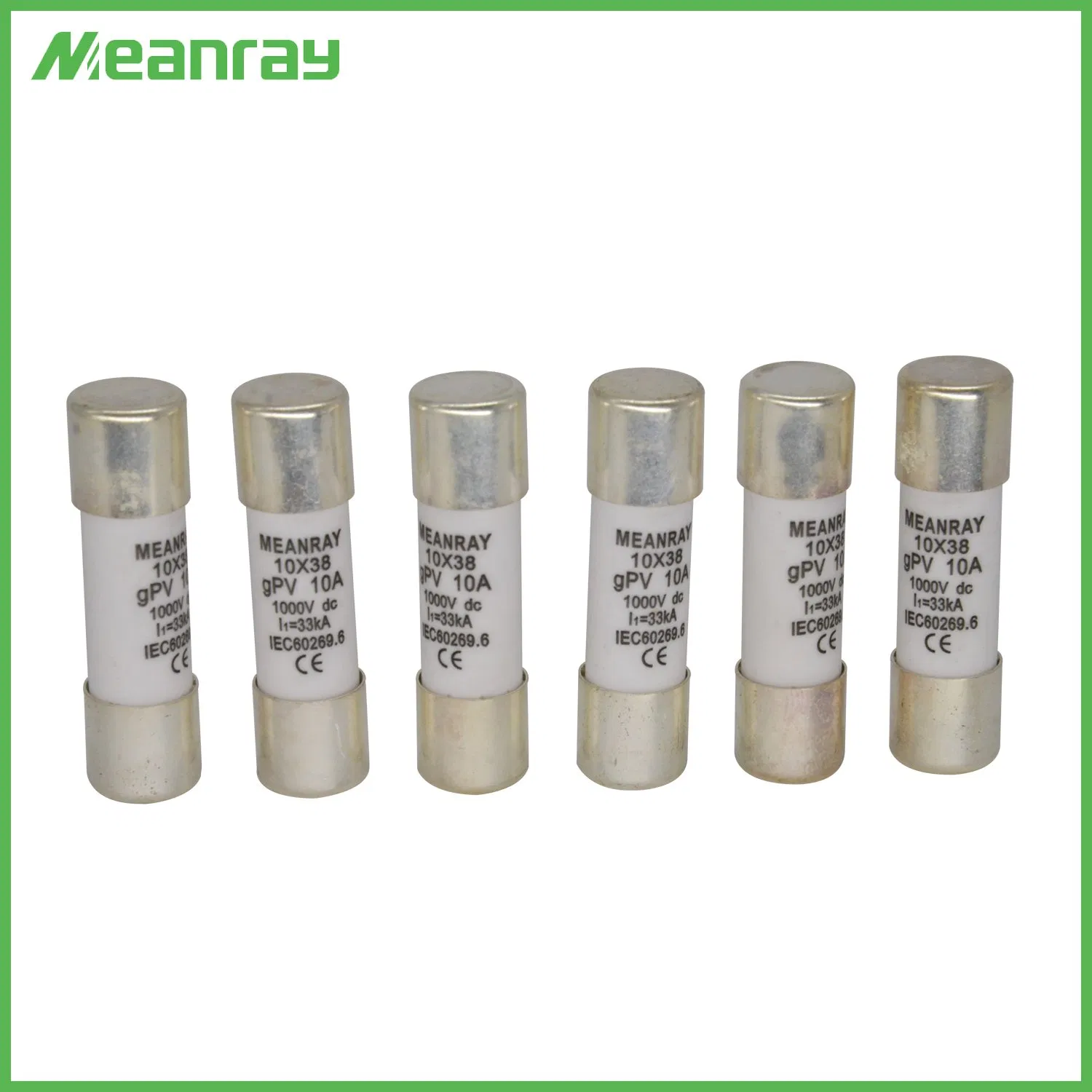

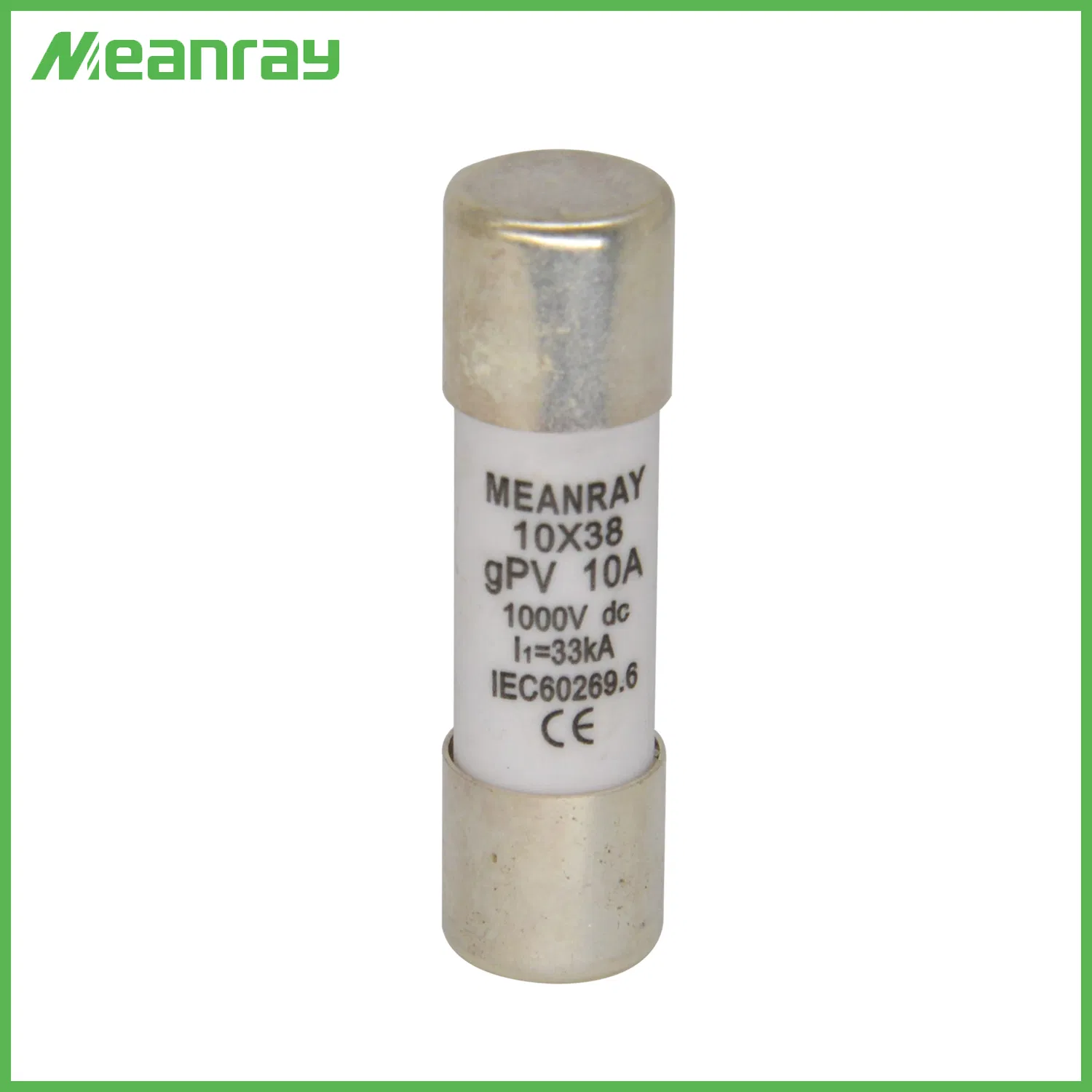

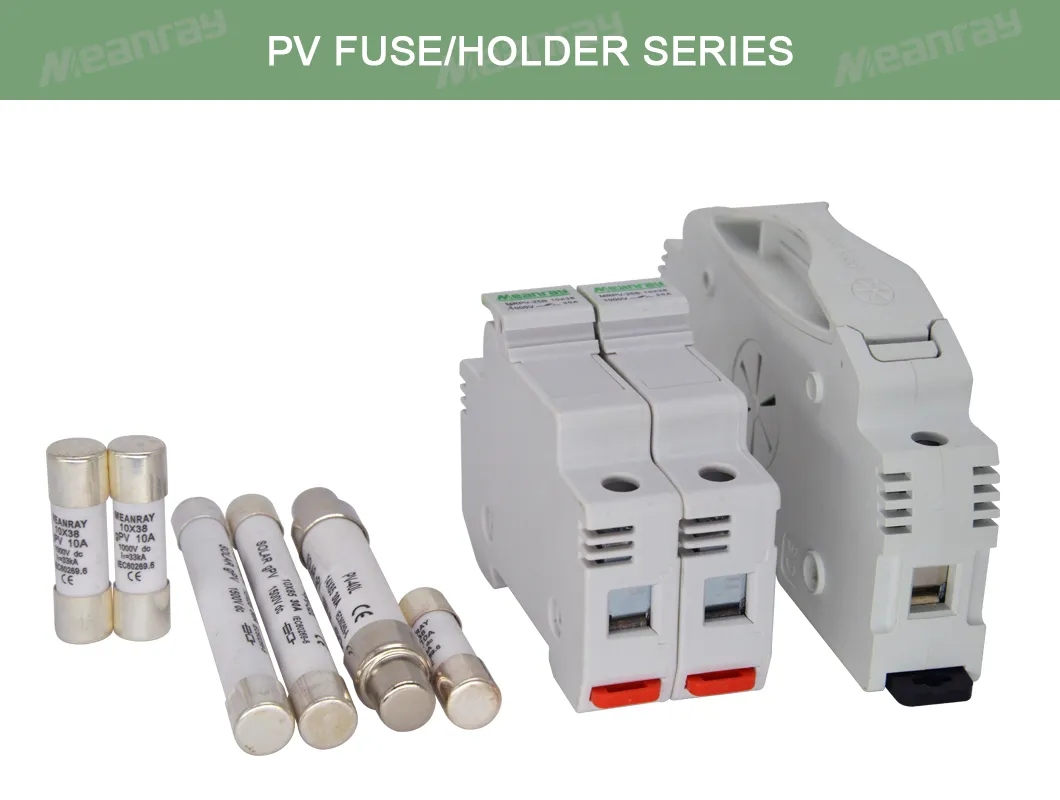

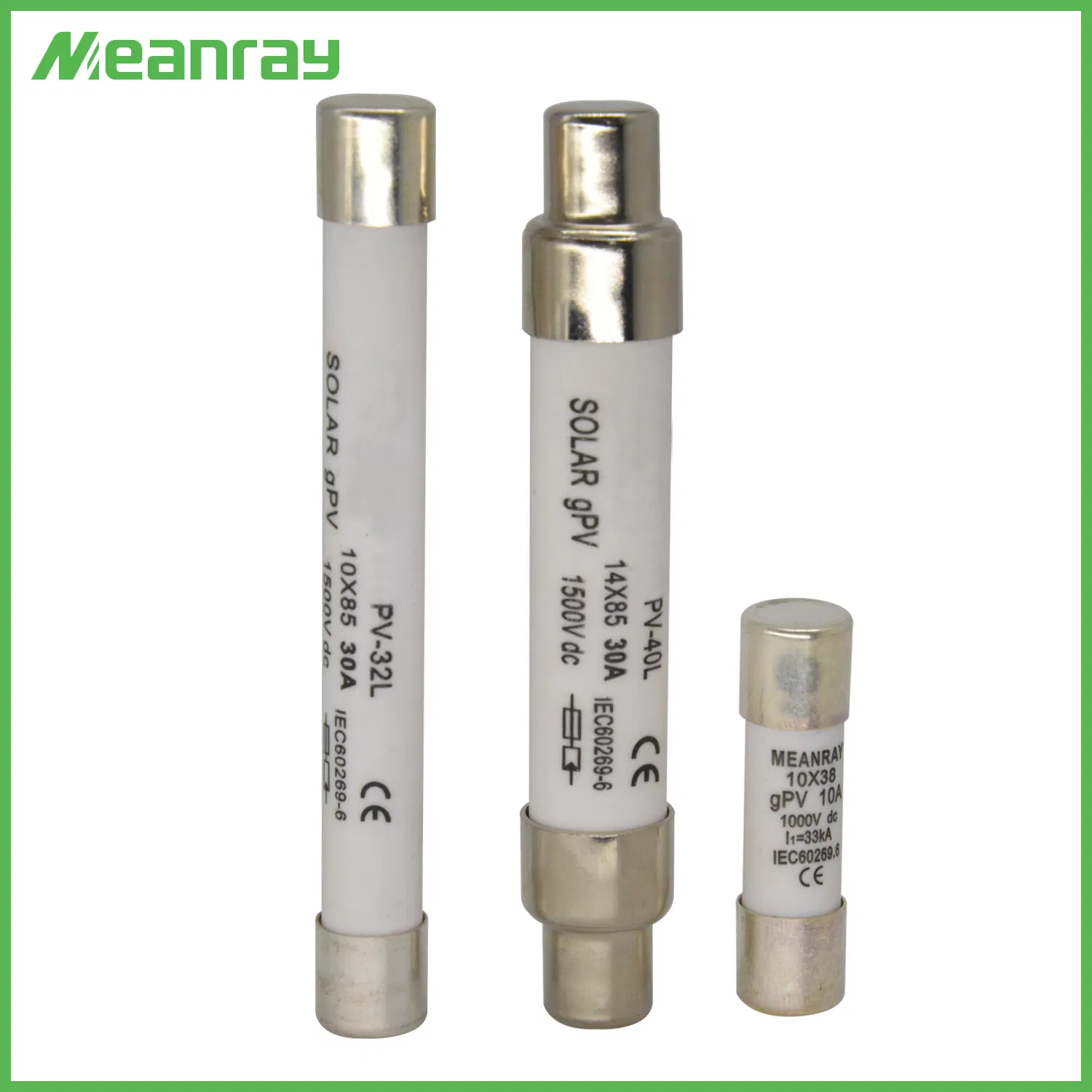

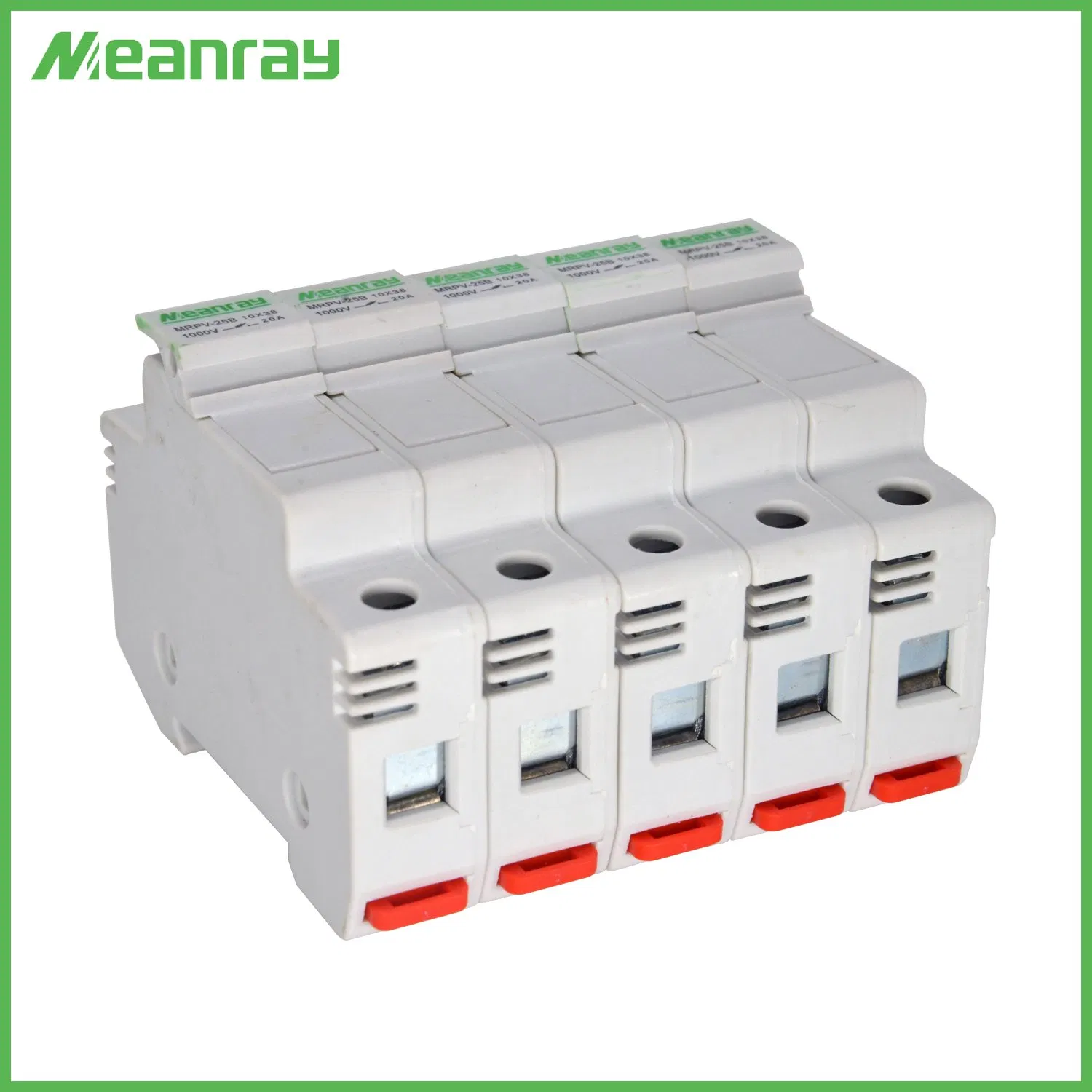

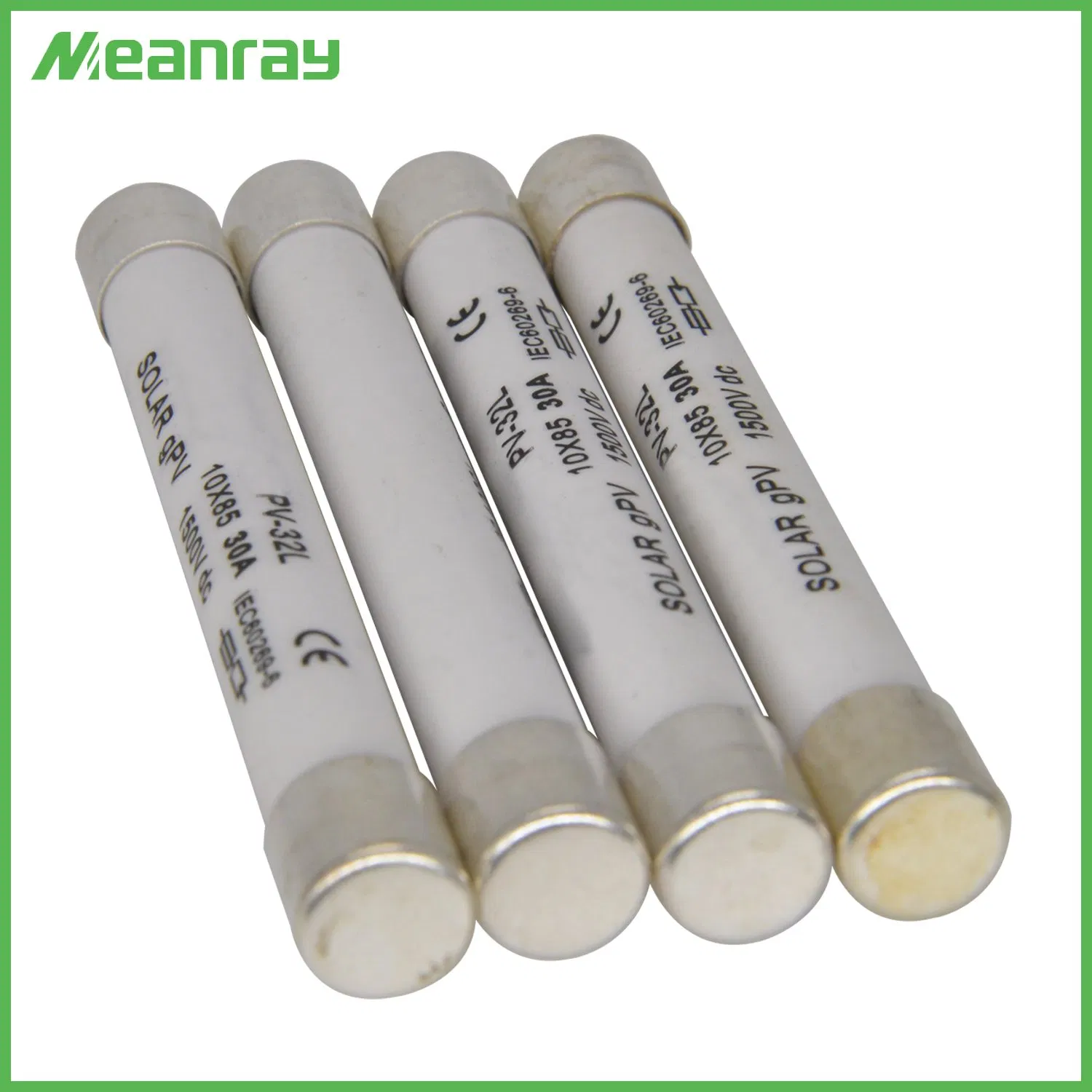

DC1000V ROHS 30A PV Fuse series of fuse consists of fuse link and fuse base. The variable cross-section fuse body made by pure copper piece (or copper wire, silver wire, silver piece) is sealed in the fusion tube which is made by the high strength porcelain or epoxy glass cloth pipe, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube. The two sides of the fuse use the spot welding to reliably connect with the end plate and to form the cylindrical cap shape structure. Fuse base suppressed by the resin or plastic casing fitted with contacts and contains the fusion pieces, the connection made by riveting as the support of the appropriate size fuse body parts. This series of fuse has many merits such as small in size, convenient for installation, safe in usage, beautiful in appearance and so on.
All your enquiry will be replied in 24 hours.
Our DC FUSE are high quality customized. For solar system, we think comparing the quality first and then comparing the price is the best way.
Of course! We also think sample order is the best way to build the trust.
For sample order, 3~7 days will be no problem. And for regular order, we promise in 15 days.
We offer one year warranty for our customer.
Yes, it is designed for standard 35MM DIN Rail installation, making it compatible with most standard solar power distribution systems and enclosures.
